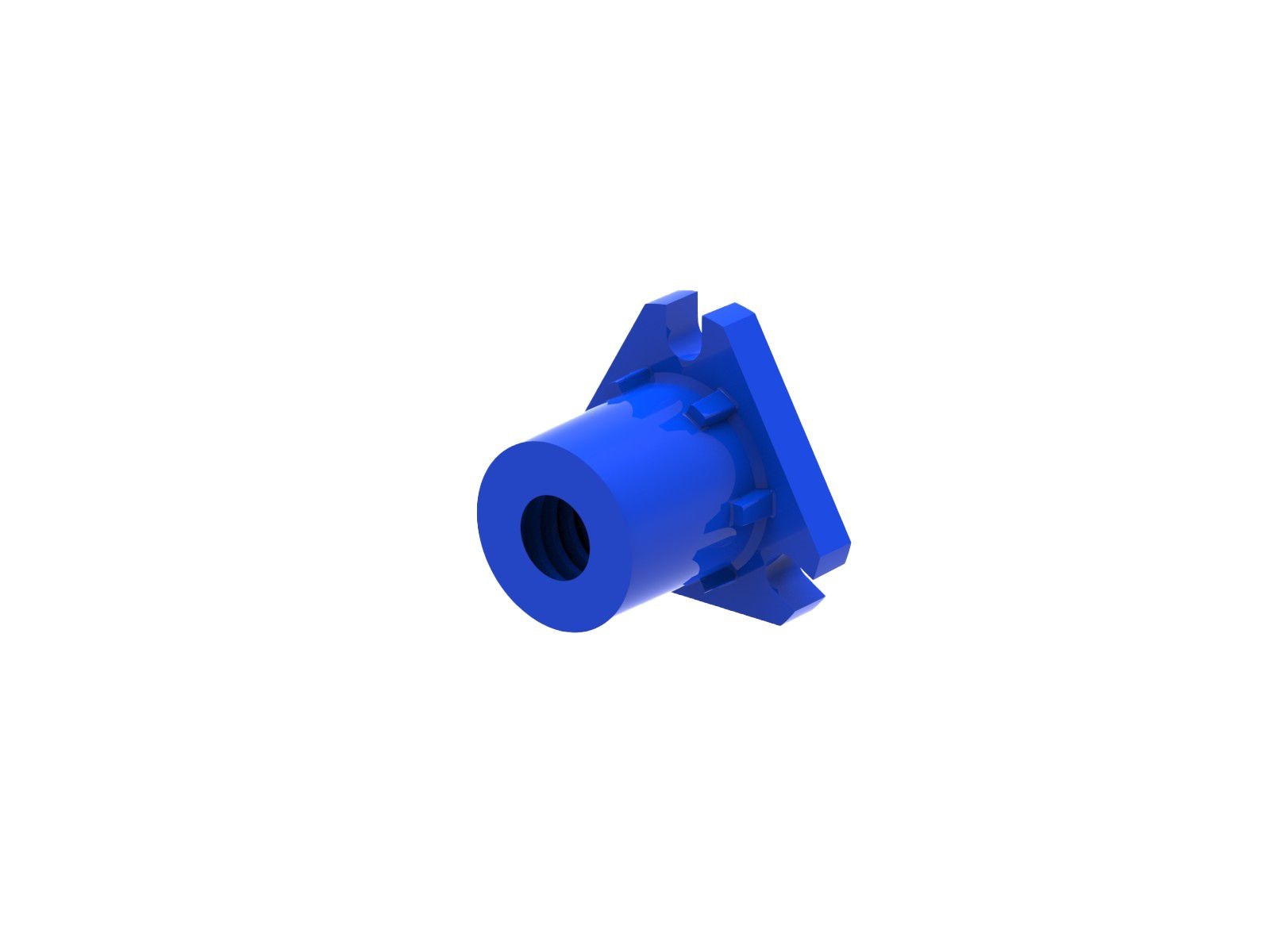

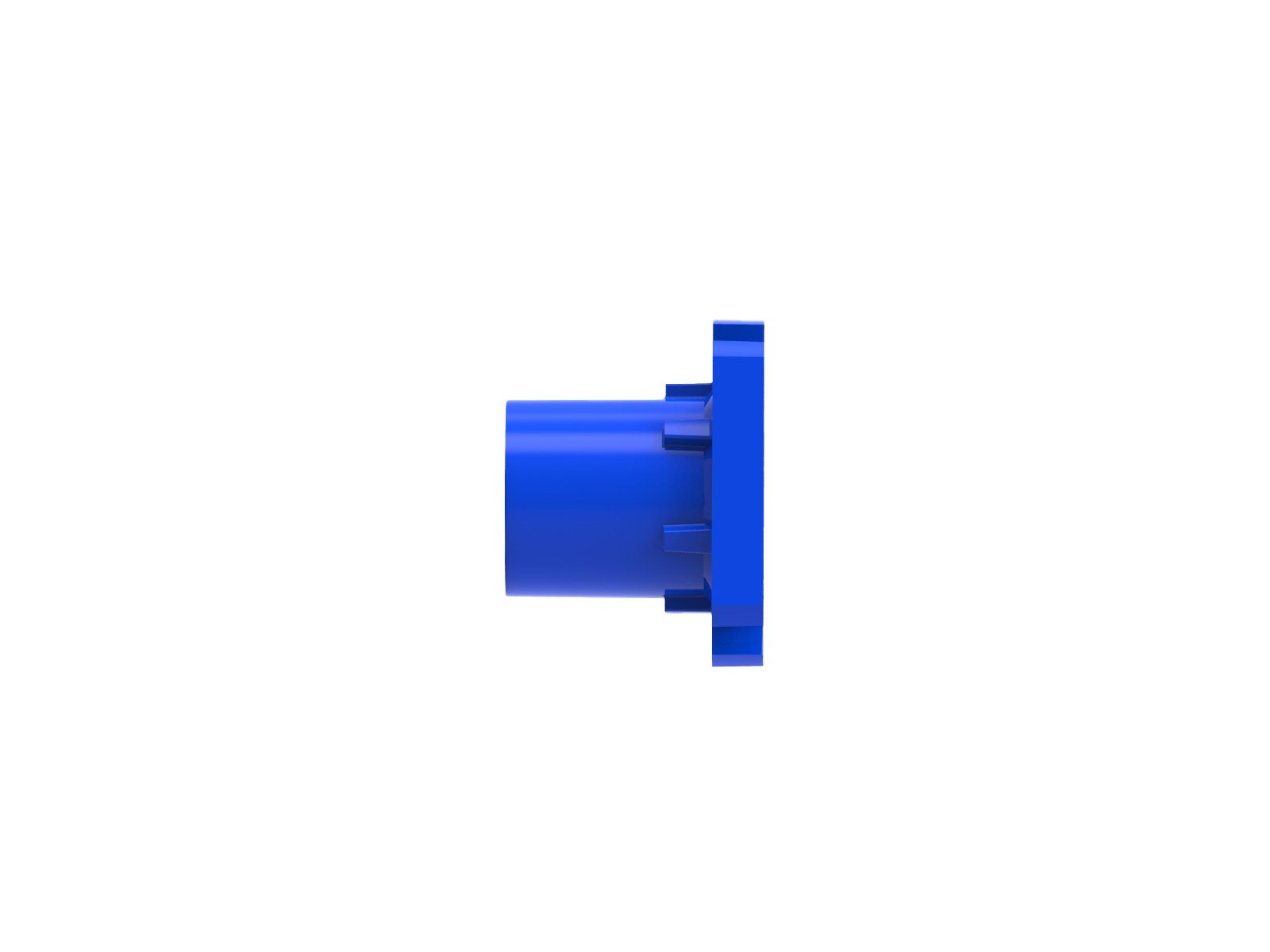

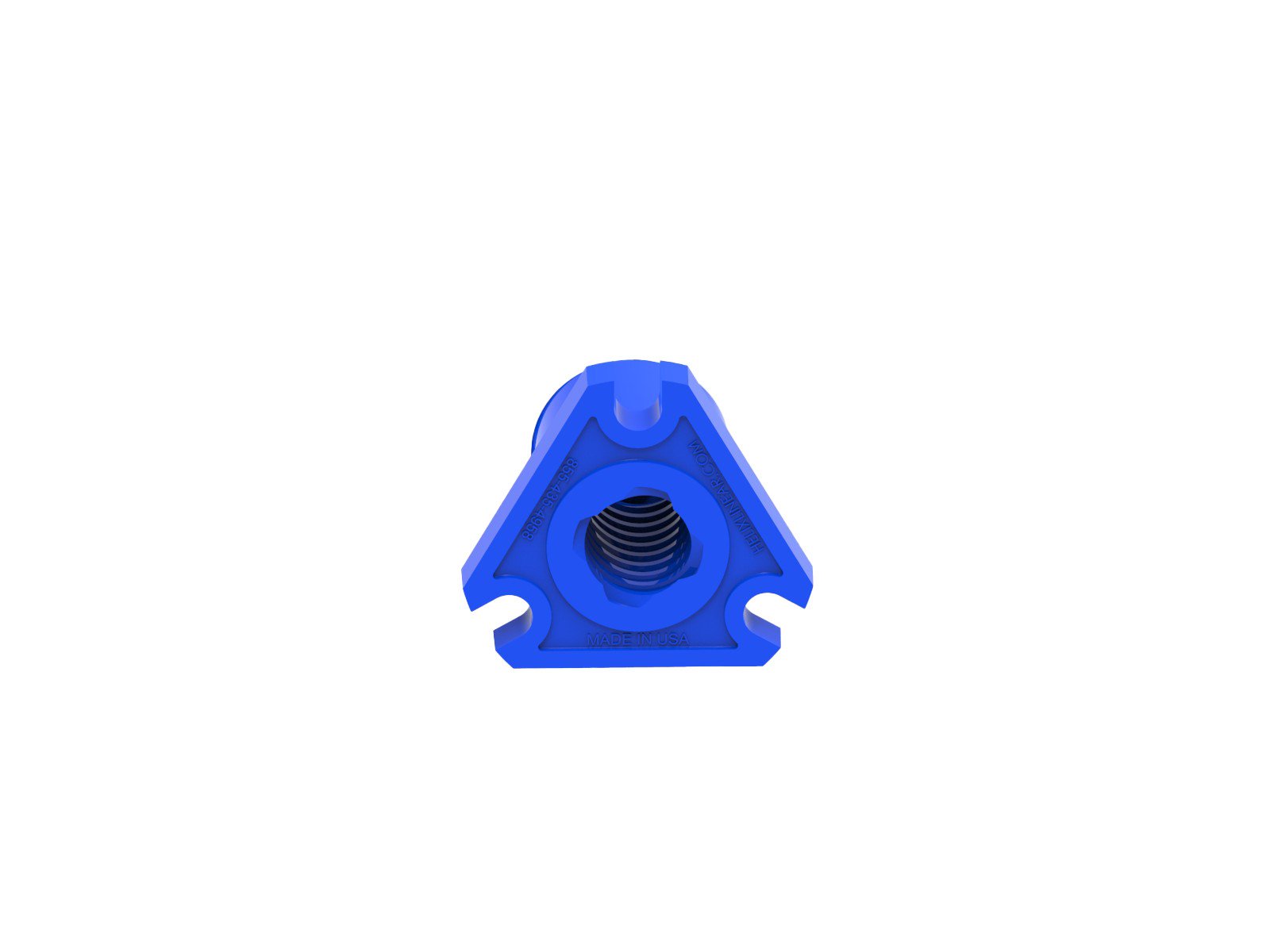

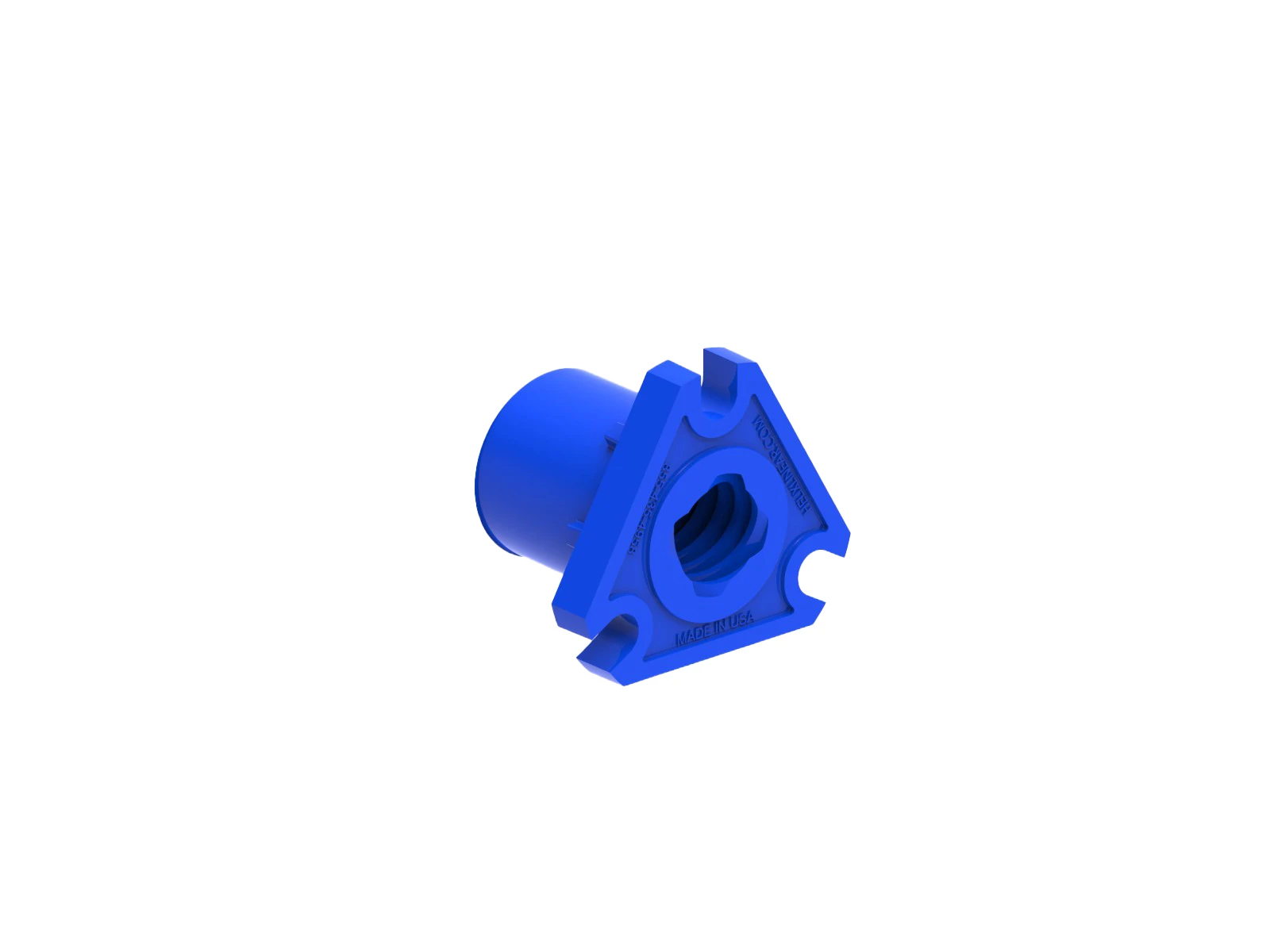

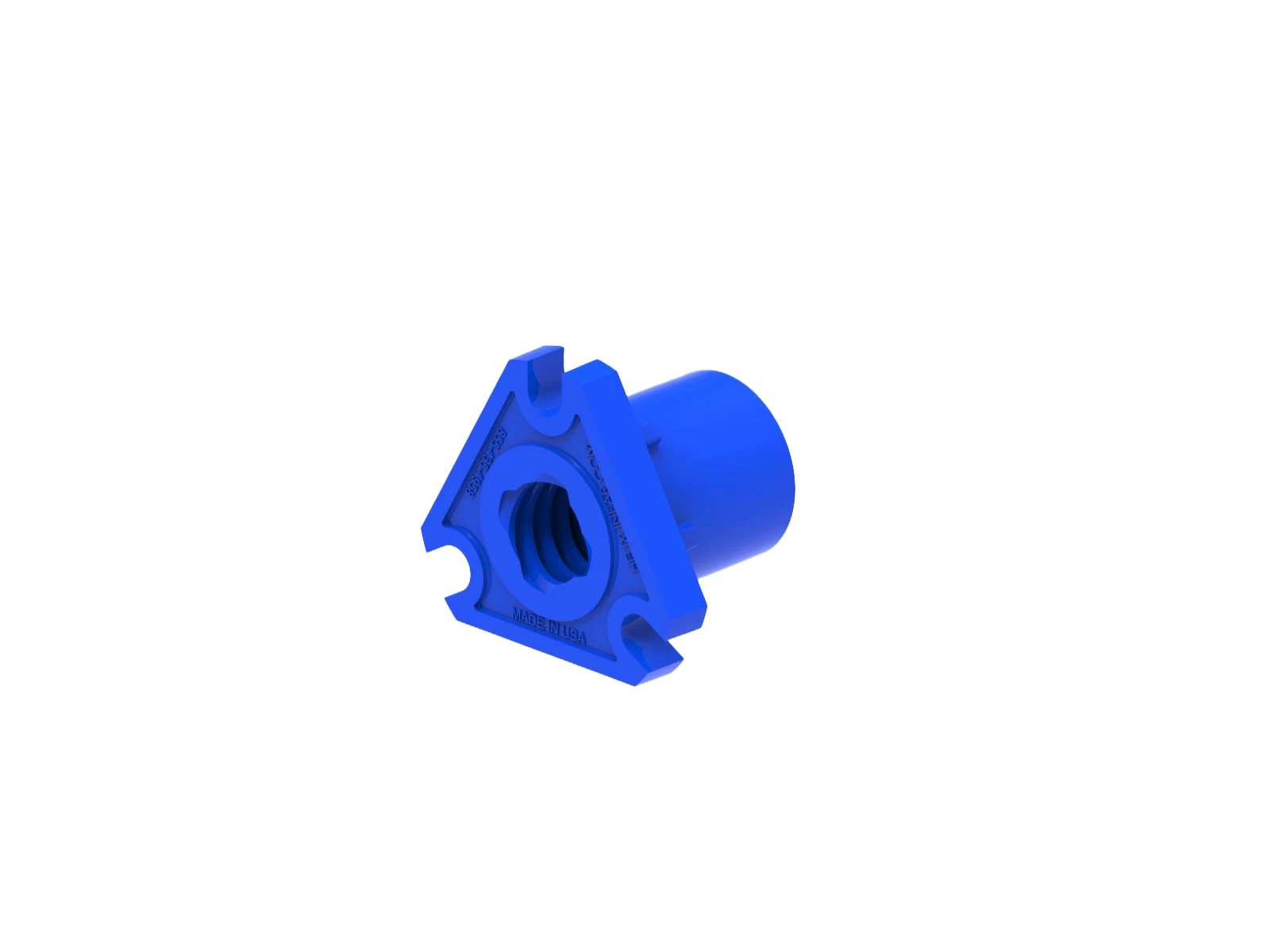

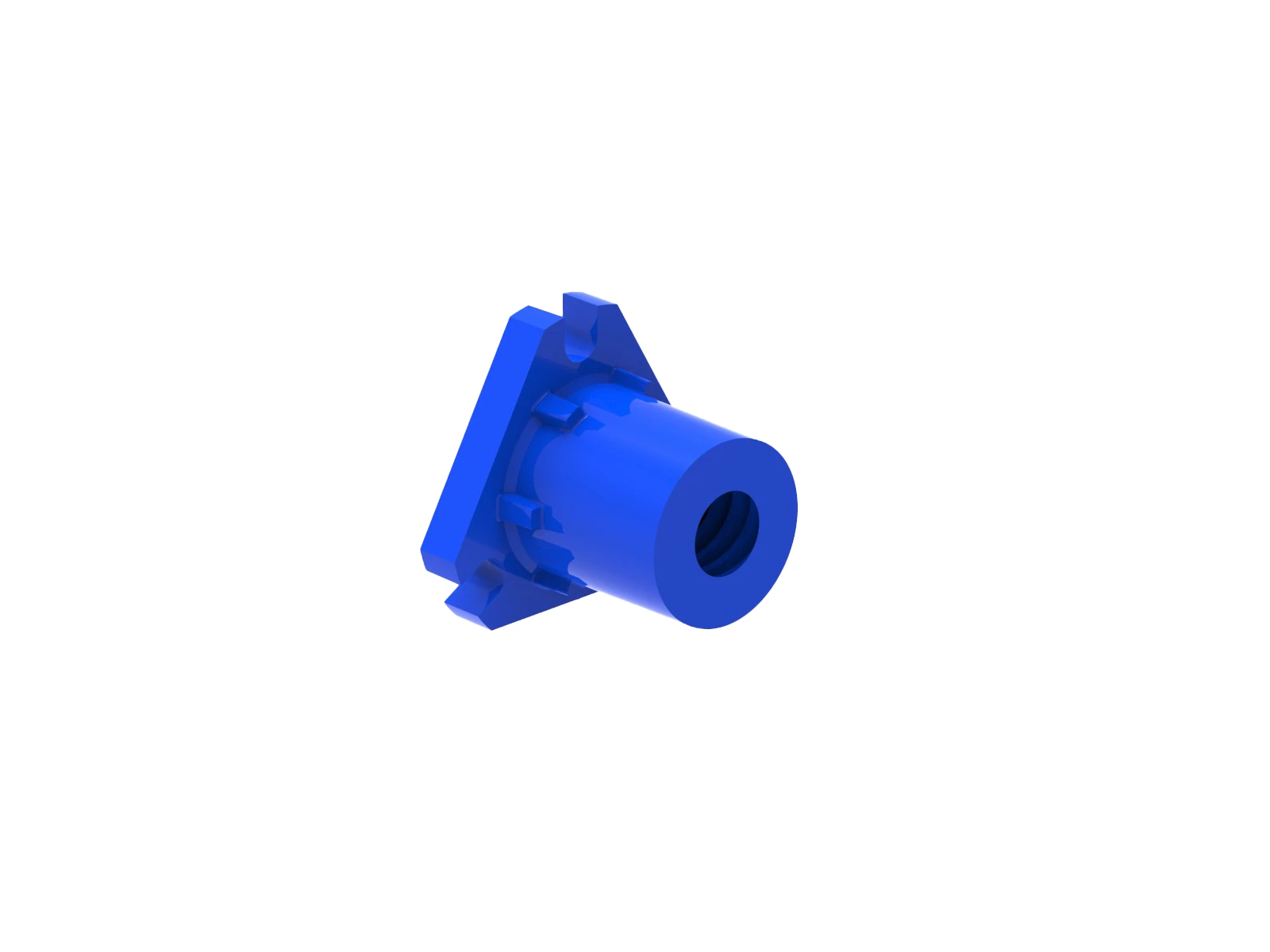

Nut CodeNFA
Connection TypeFlanged
D - Flange Diameter (in)0.75
Diameter Code12
E - Flange Height (in)0.4
Efficiency (%)44.33177426
F - Flange Thickness (in)0.13
G - Slot Width (in)0.12
H - Bolt Circle Diameter (in)0.6
Mating Screw Part No012024L, 012024R
Nut Diameter B (in)0.4
Nut Length C (in)0.5
Nut TypeStandard nut with mounting flange
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.0086162097
