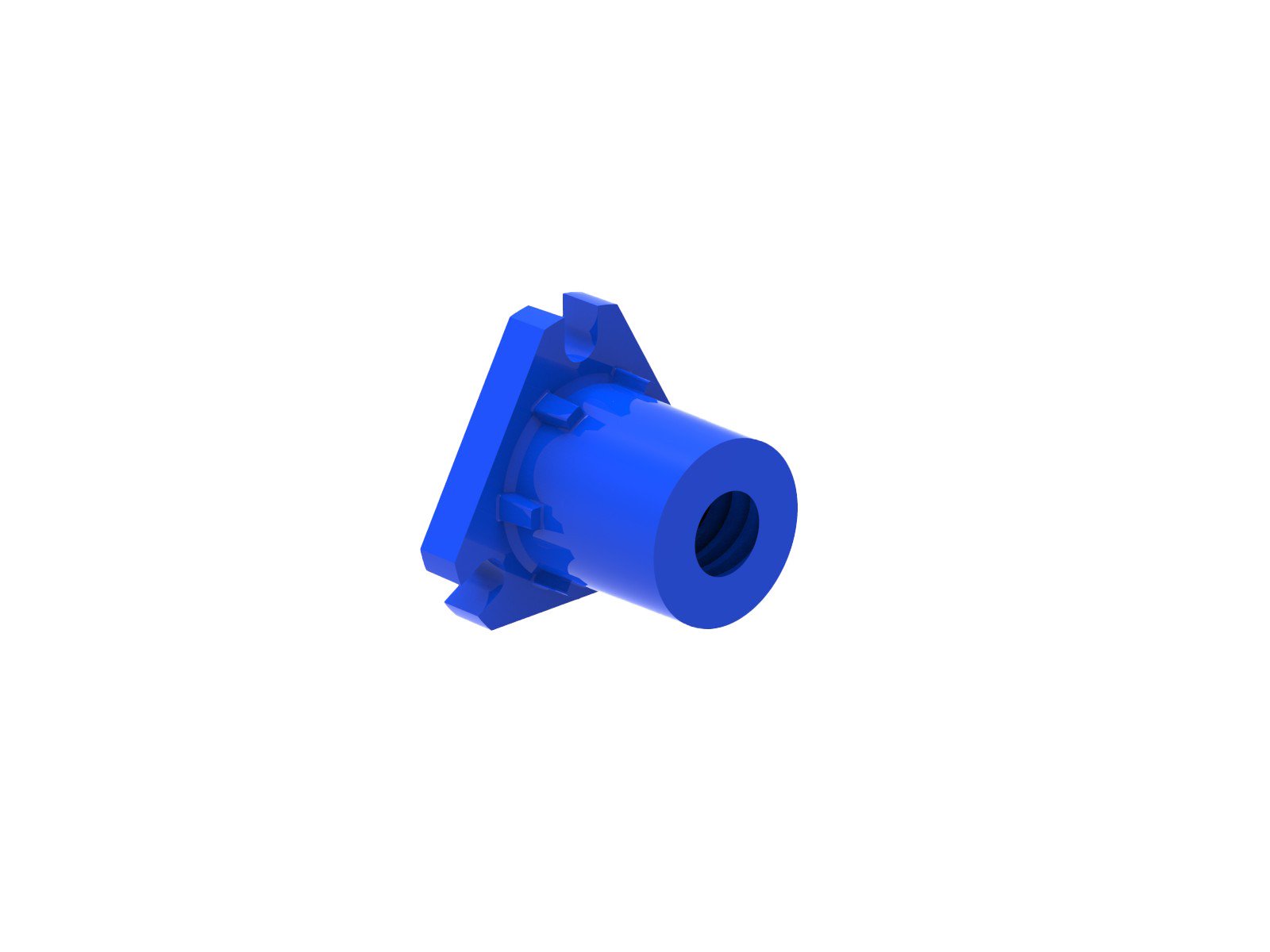

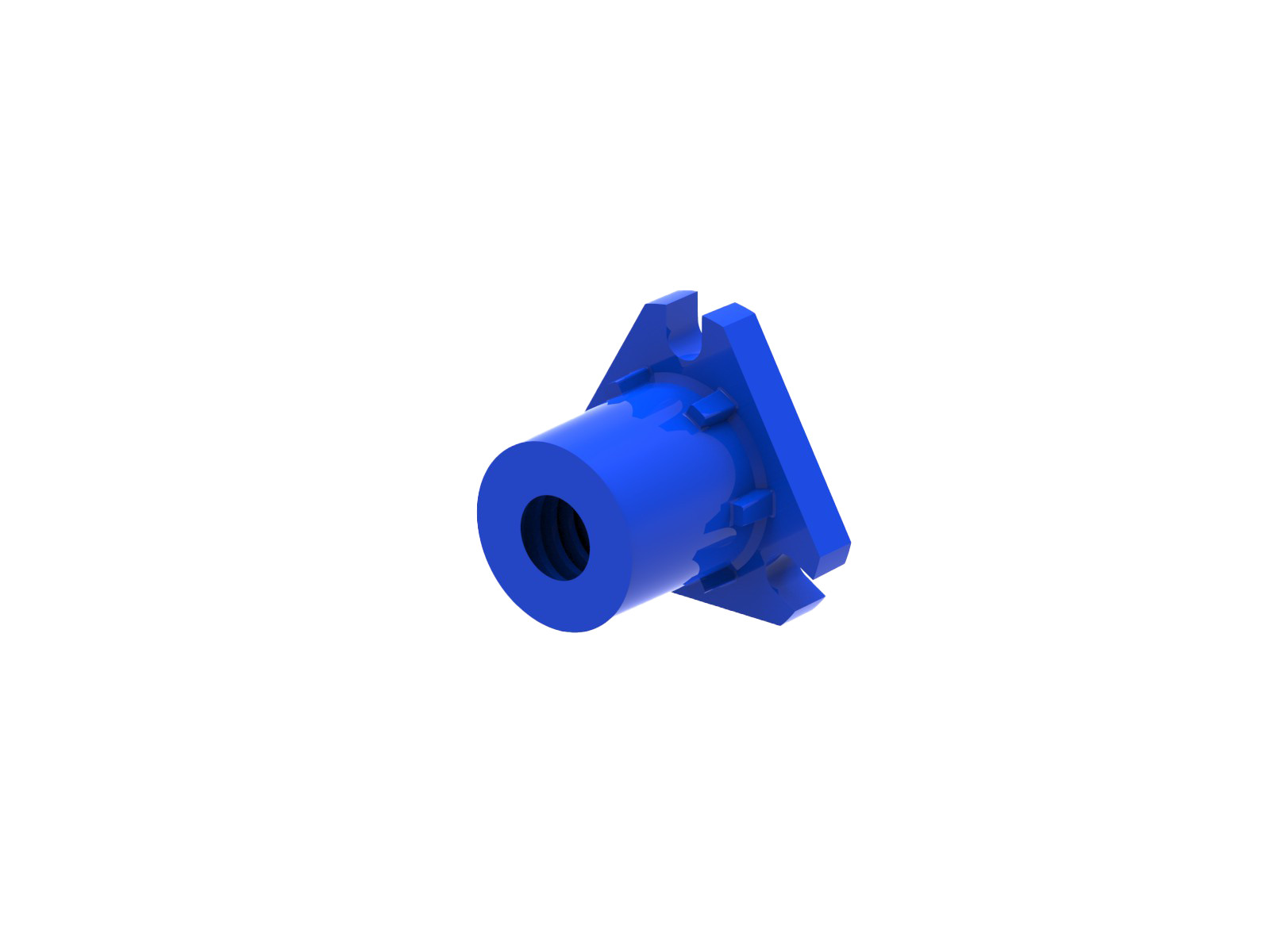

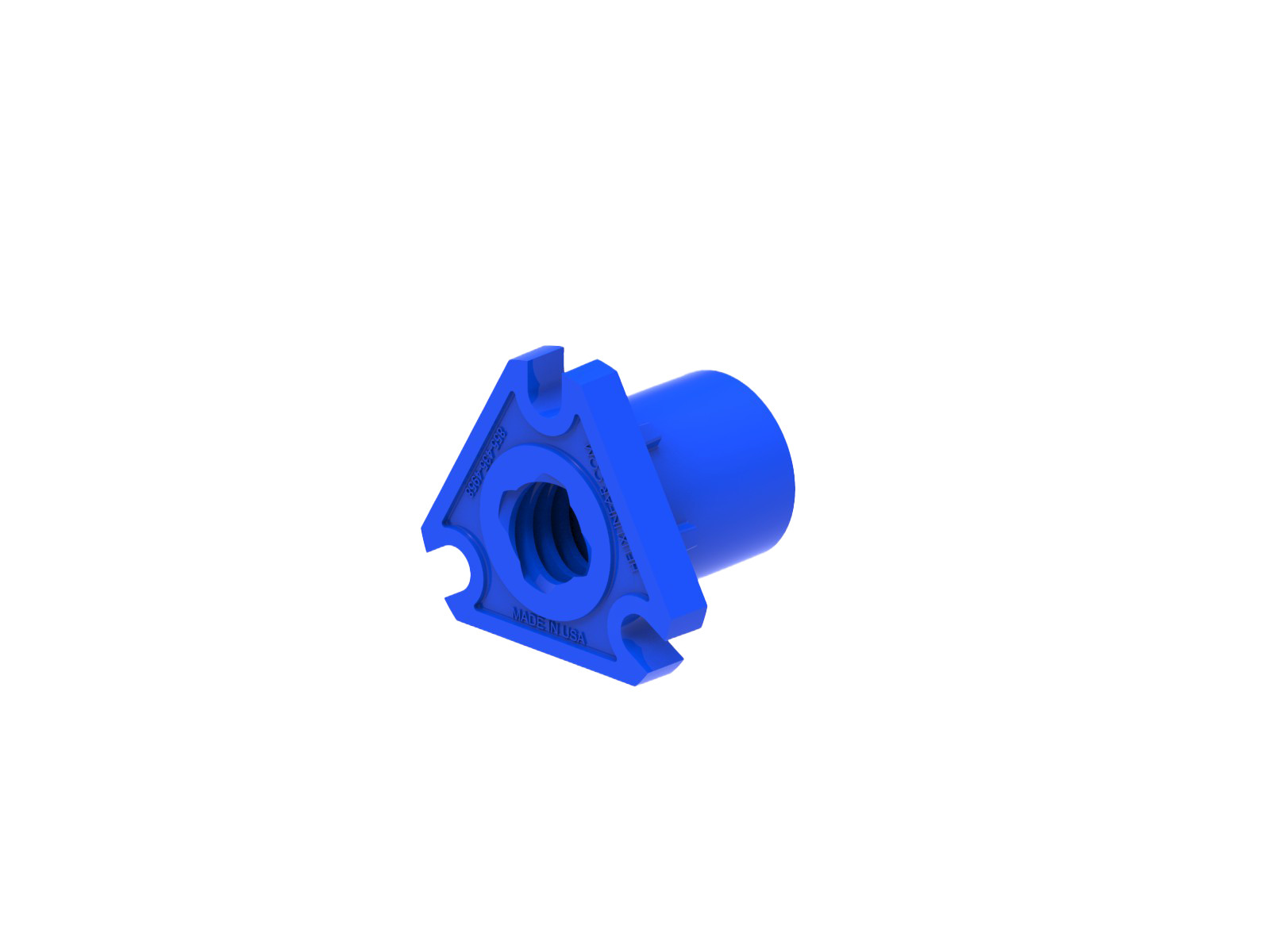

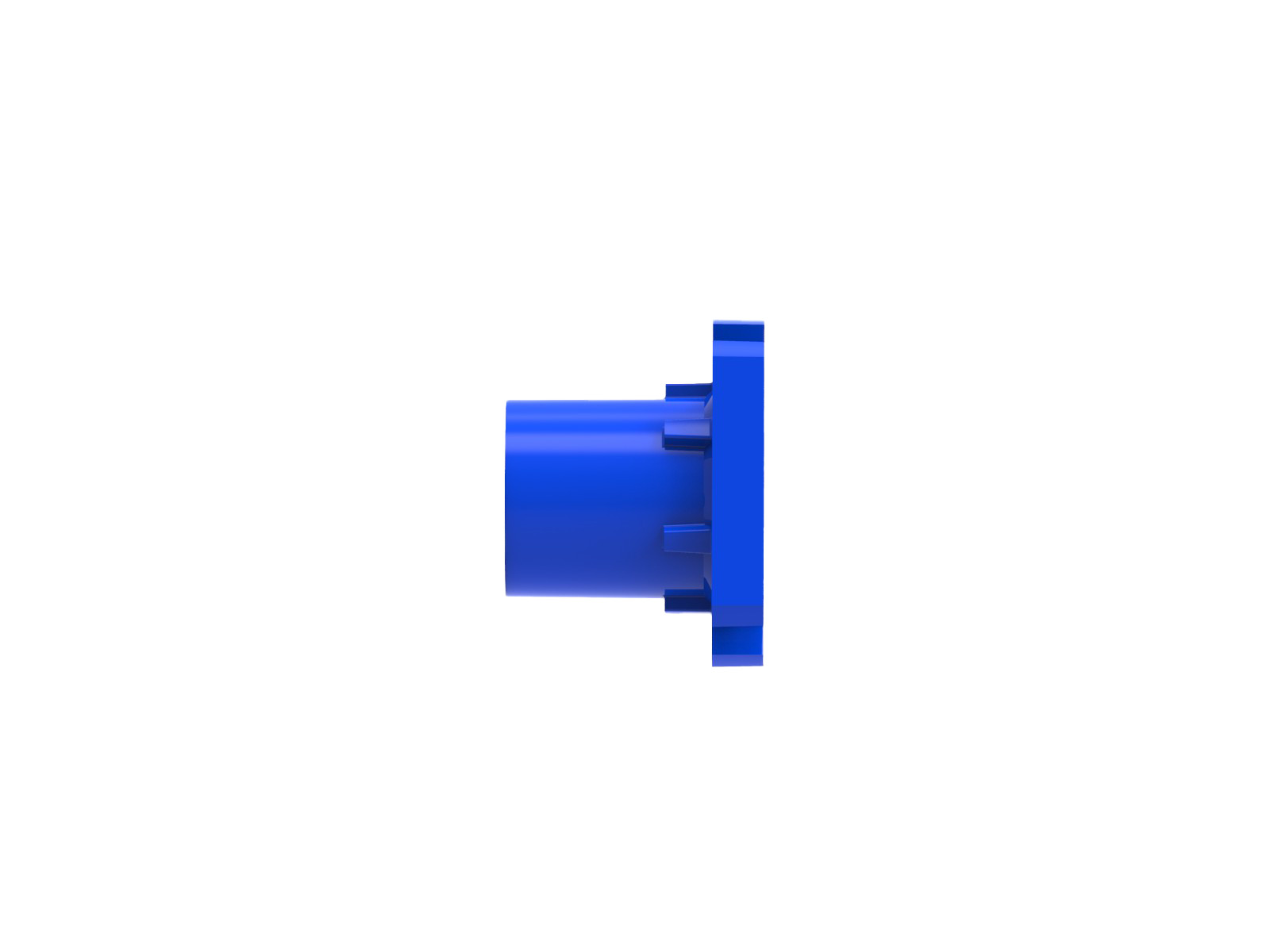

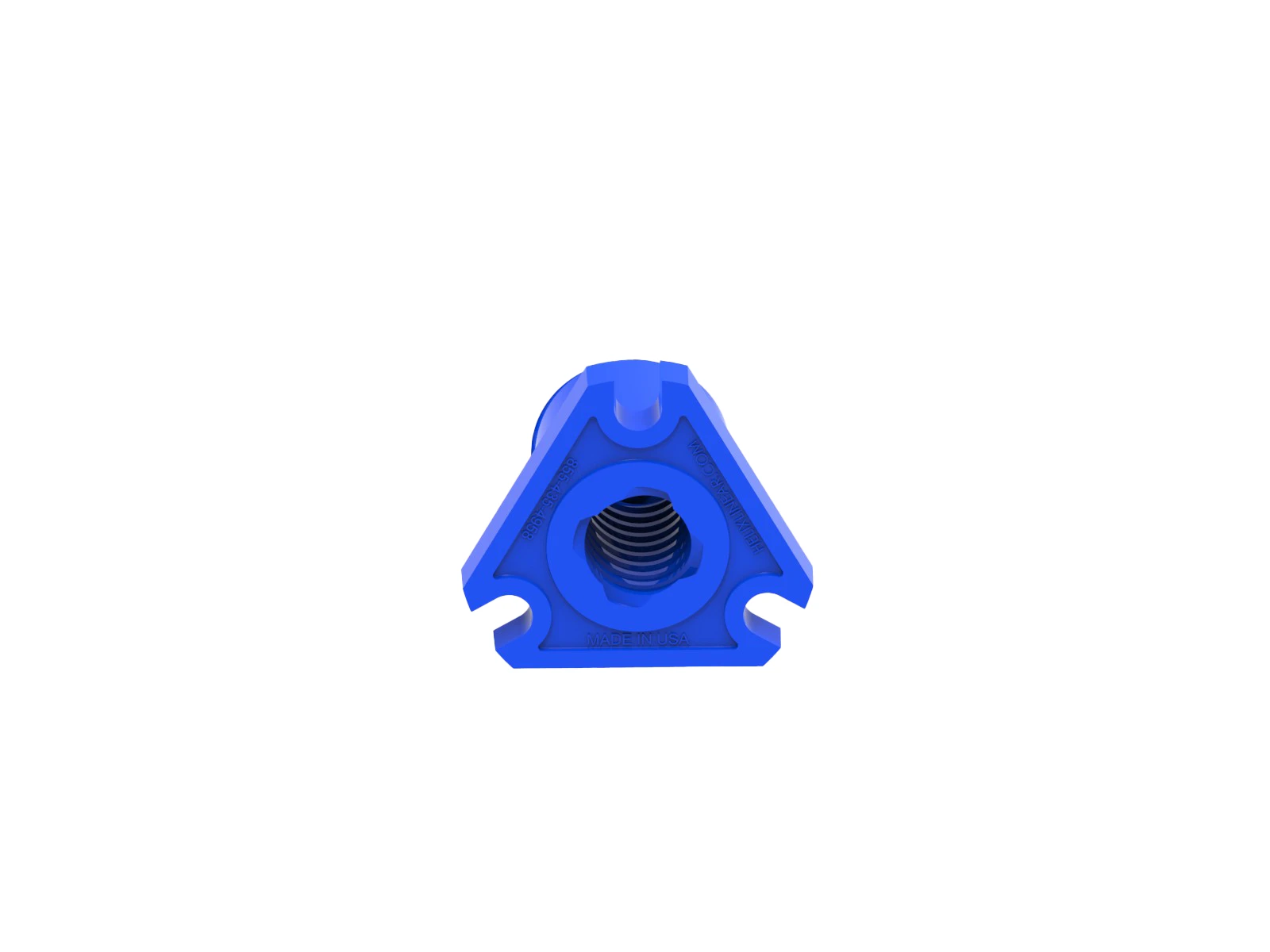

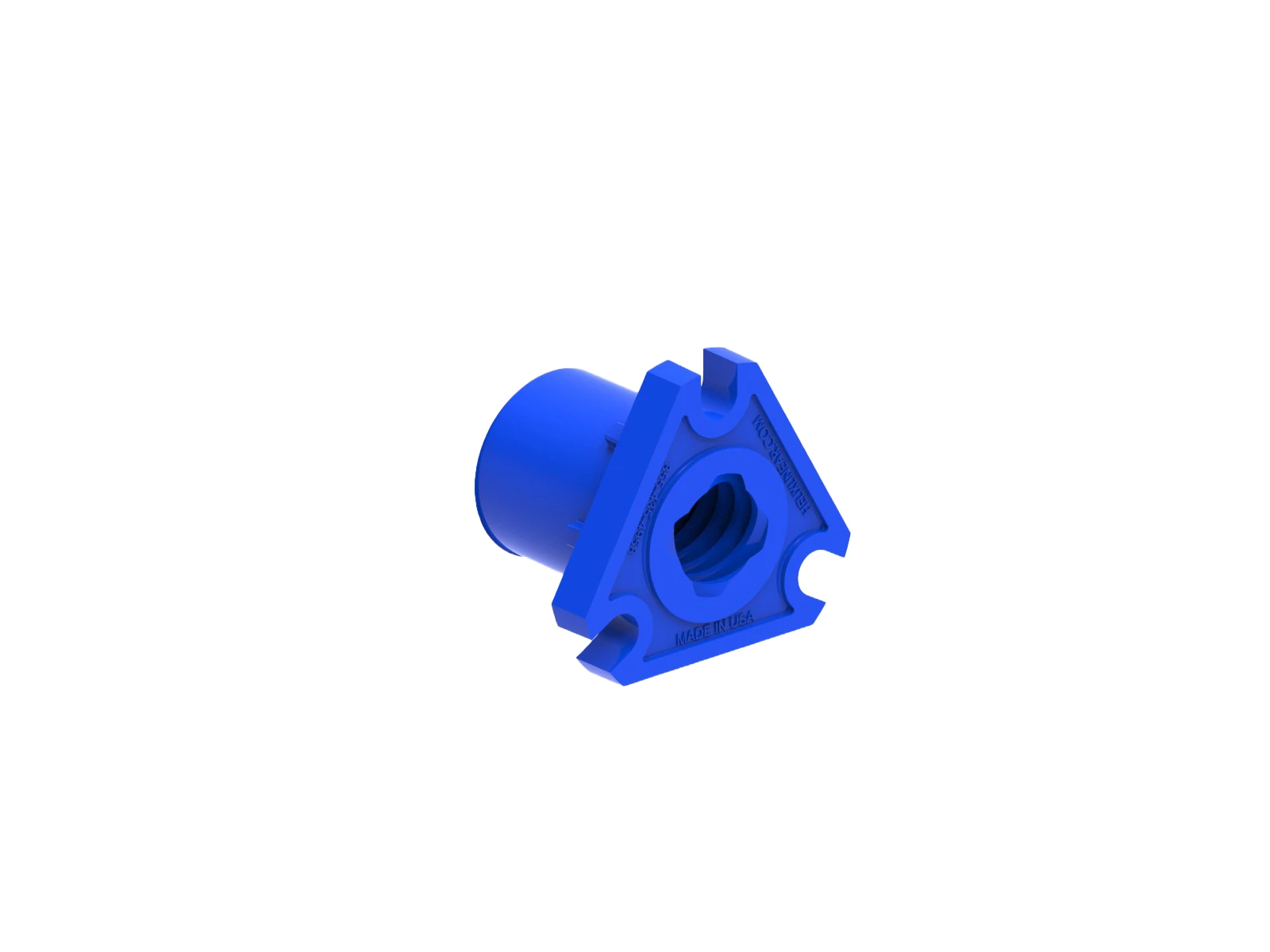

Nut CodeNFA
Connection TypeFlanged
D - Flange Diameter (in)0.75
Diameter Code18
E - Flange Height (in)0.4
Efficiency (%)60.02205388
F - Flange Thickness (in)0.13
G - Slot Width (in)0.12
H - Bolt Circle Diameter (in)0.6
Mating Screw Part No018078L, 018078R
Nut Diameter B (in)0.4
Nut Length C (in)0.5
Nut TypeStandard nut with mounting flange
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.020868153
