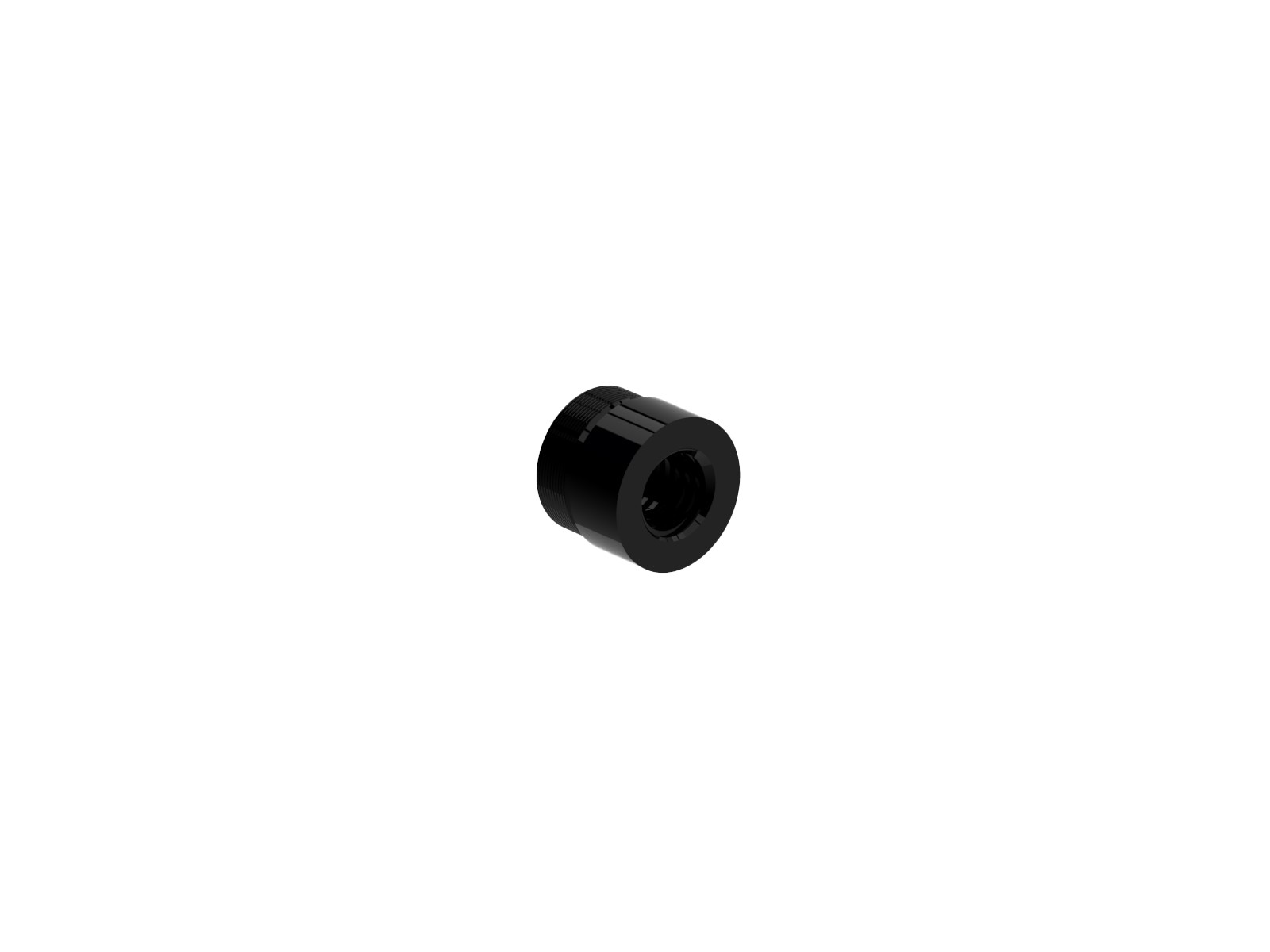

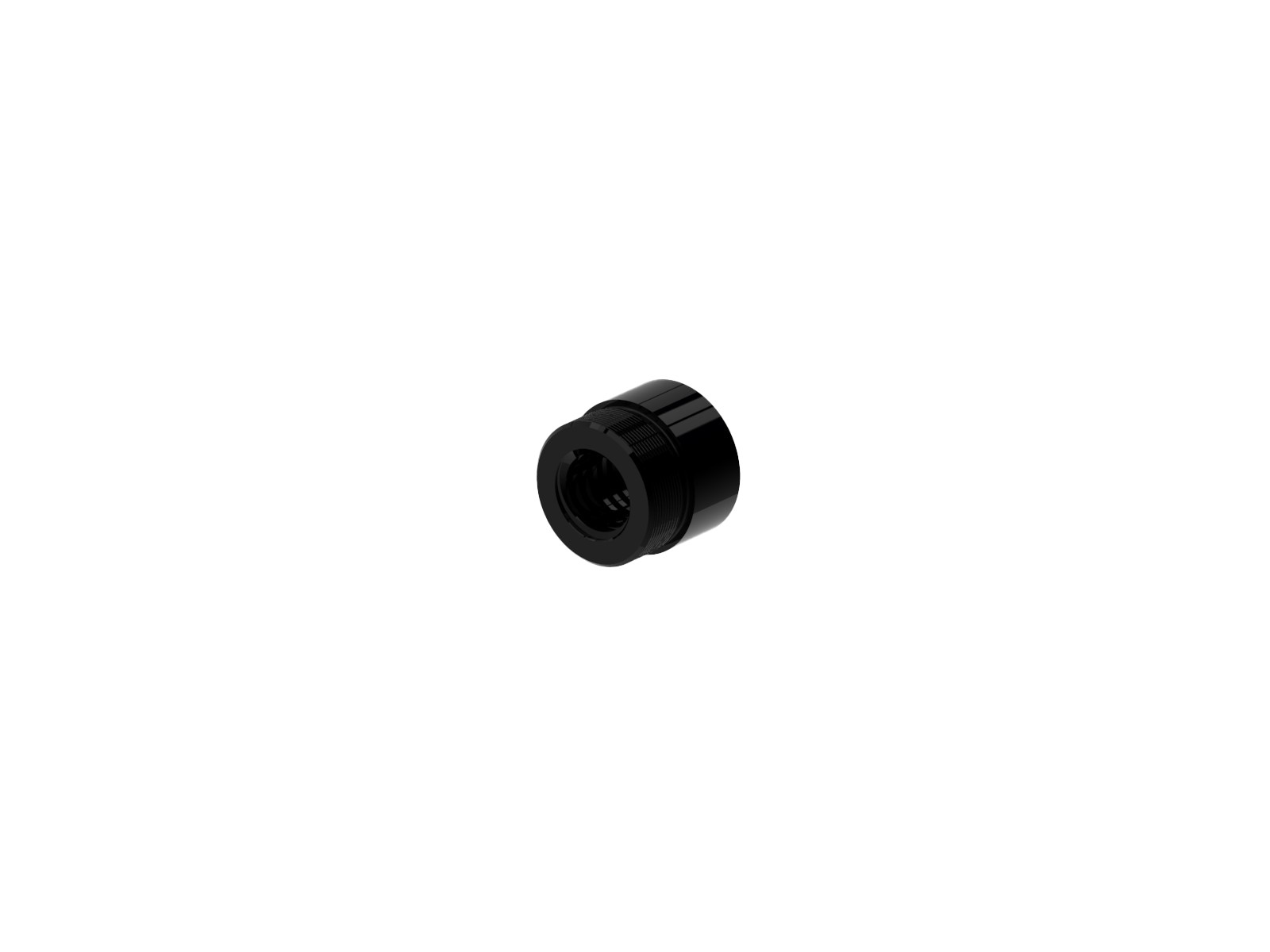

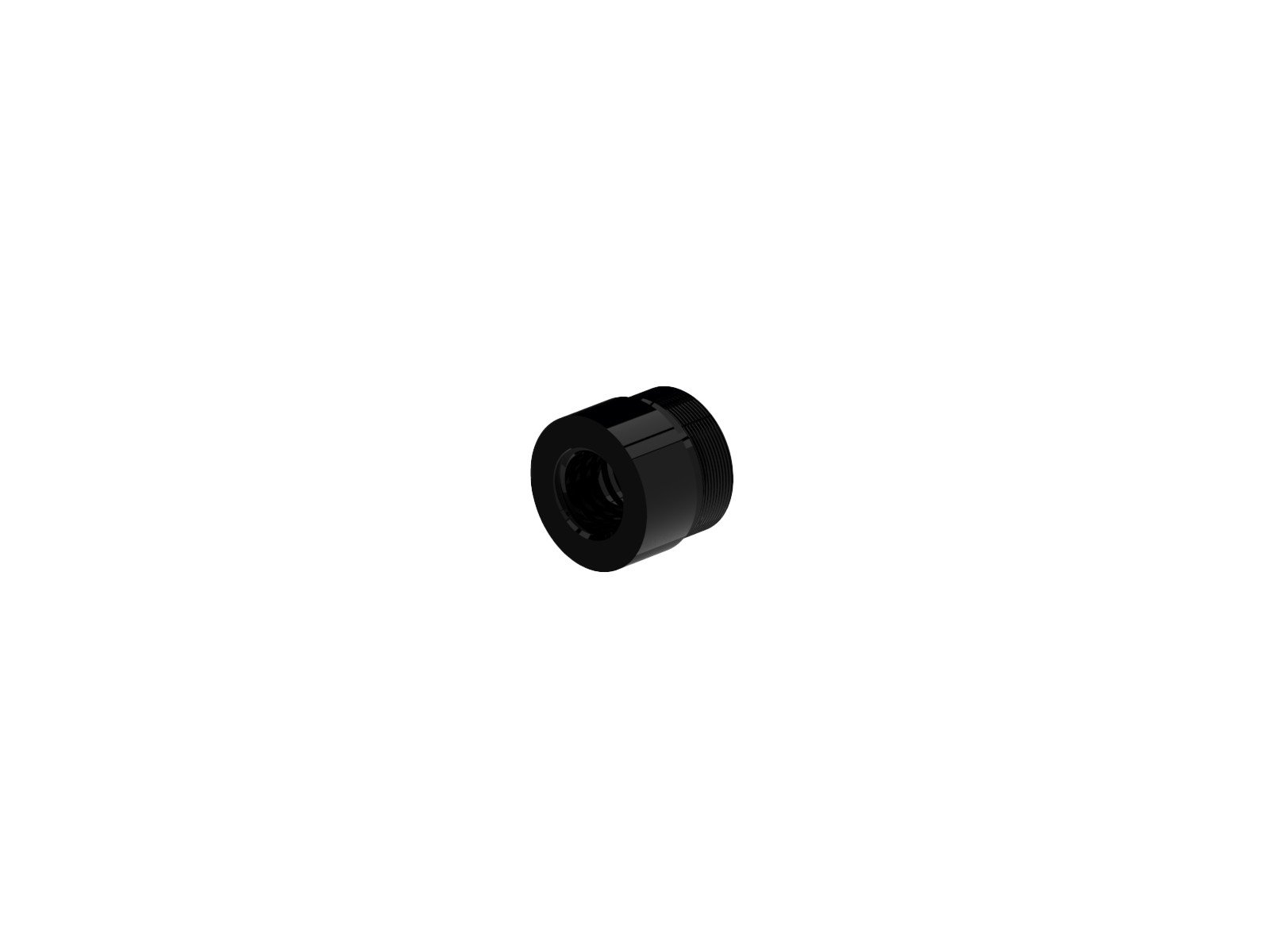

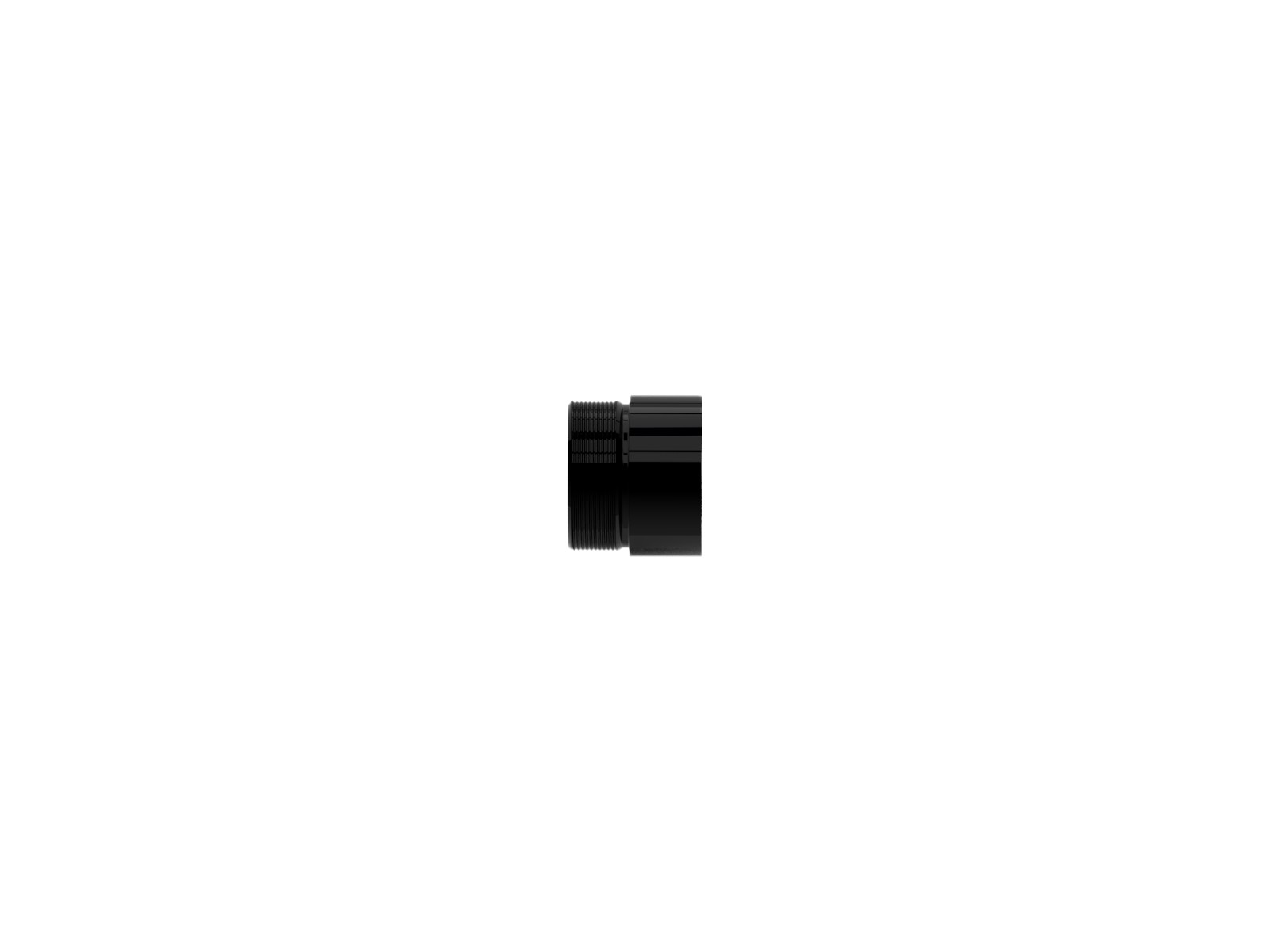

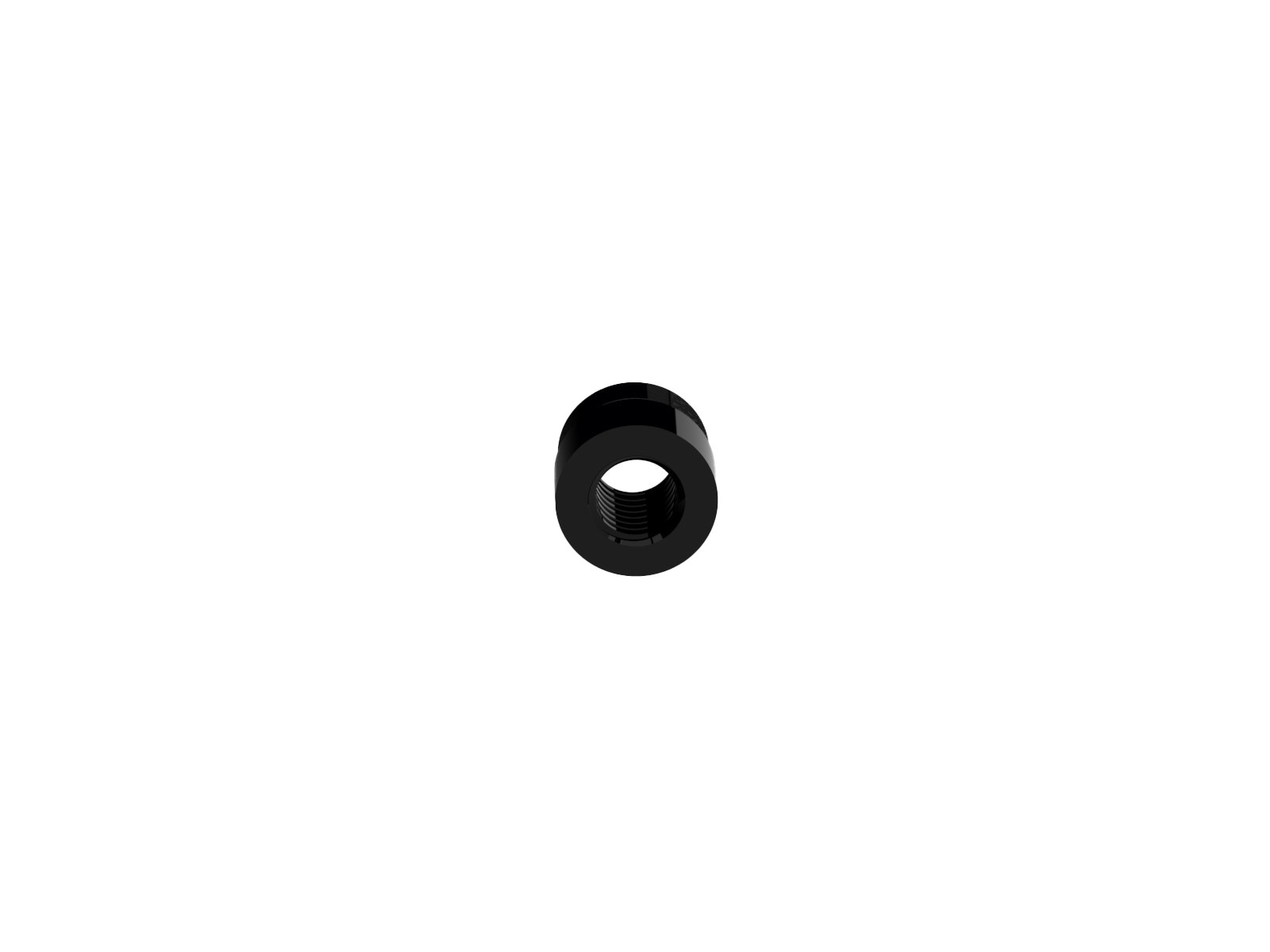

10 mm Diameter x 4 mm Lead Power AC Acme Nut (NPA)
NPA039157
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
0.25 in Diameter x 0.333 in Lead Power AC Acme Nut (NPA)
Price:
$39.86
View Product
View Product
0.313 in Diameter x 0.25 in Lead Power AC Acme Nut (NPA)
Price:
$39.86
View Product
View Product
0.375 in Diameter x 0.157 in Lead Power AC Acme Nut (NPA)
Price:
$41.19
View Product
View Product
8 mm Diameter x 1.5 mm Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
0.25 in Diameter x 0.031 in Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
0.25 in Diameter x 0.039 in Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
8 mm Diameter x 15 mm Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
0.25 in Diameter x 0.1 in Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
0.25 in Diameter x 1 in Lead Power AC Acme Nut (NPA)
Price:
$44.36
View Product
View Product
10 mm Diameter x 1.5 mm Lead Power AC Acme Nut (NPA)
Price:
$46.13
View Product
View Product
10 mm Diameter x 9 mm Lead Power AC Acme Nut (NPA)
Price:
$46.13
View Product
View Product
10 mm Diameter x 1 mm Lead Power AC Acme Nut (NPA)
Price:
$46.13
View Product
View Product
0.375 in Diameter x 0.333 in Lead Power AC Acme Nut (NPA)
Price:
$46.13
View Product
View Product
10 mm Diameter x 6 mm Lead Power AC Acme Nut (NPA)
Price:
$46.13
View Product
View Product
0.5 in Diameter x 0.25 in Lead Power AC Acme Nut (NPA)
Price:
$46.20
View Product
View Product
0.75 in Diameter x 0.333 in Lead Power AC Acme Nut (NPA)
Price:
$54.91
View Product
View Product
0.75 in Diameter x 0.2 in Lead Power AC Acme Nut (NPA)
Price:
$54.91
View Product
View Product
16 mm Diameter x 21 mm Lead Power AC Acme Nut (NPA)
Price:
$55.60
View Product
View Product
0.625 in Diameter x 0.5 in Lead Power AC Acme Nut (NPA)
Price:
$55.60
View Product
View Product
16 mm Diameter x 25 mm Lead Power AC Acme Nut (NPA)
Price:
$55.60
View Product
View Product
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Lead Screws
NPA
Dimensions Lead
Lead (mm)
4
Nominal Diameter - A (mm)
10
Pitch (in)
0.07874
Pitch (mm)
2
Material & Finish
Material
Acetal
Performance & Tolerances
Lead Accuracy +/- (in/in)
0
Starts
2
Measurement system
Metric
Product Info
Nut Code
NPA
D - Thread Size (in)
.562-18
Diameter Code
39
E - Thread Length (in)
0.38
Efficiency (%)
63.28508141
Mating Screw Part No
039157L, 039157R
Maximum Axial Lash (in)
FALSE
Nut Diameter B (in)
0.68
Nut Length C (in)
0.62
Nut Type
Plastic Acme Nut
Thread Details
Threads per Inch
12.7000254
Thread Direction
LH, RH
Thread Class
Centralizing
Thread Type
Trapezoidal
Thread Direction
Select an option
Price:
$46.13
Add to cart
Request a Quote
