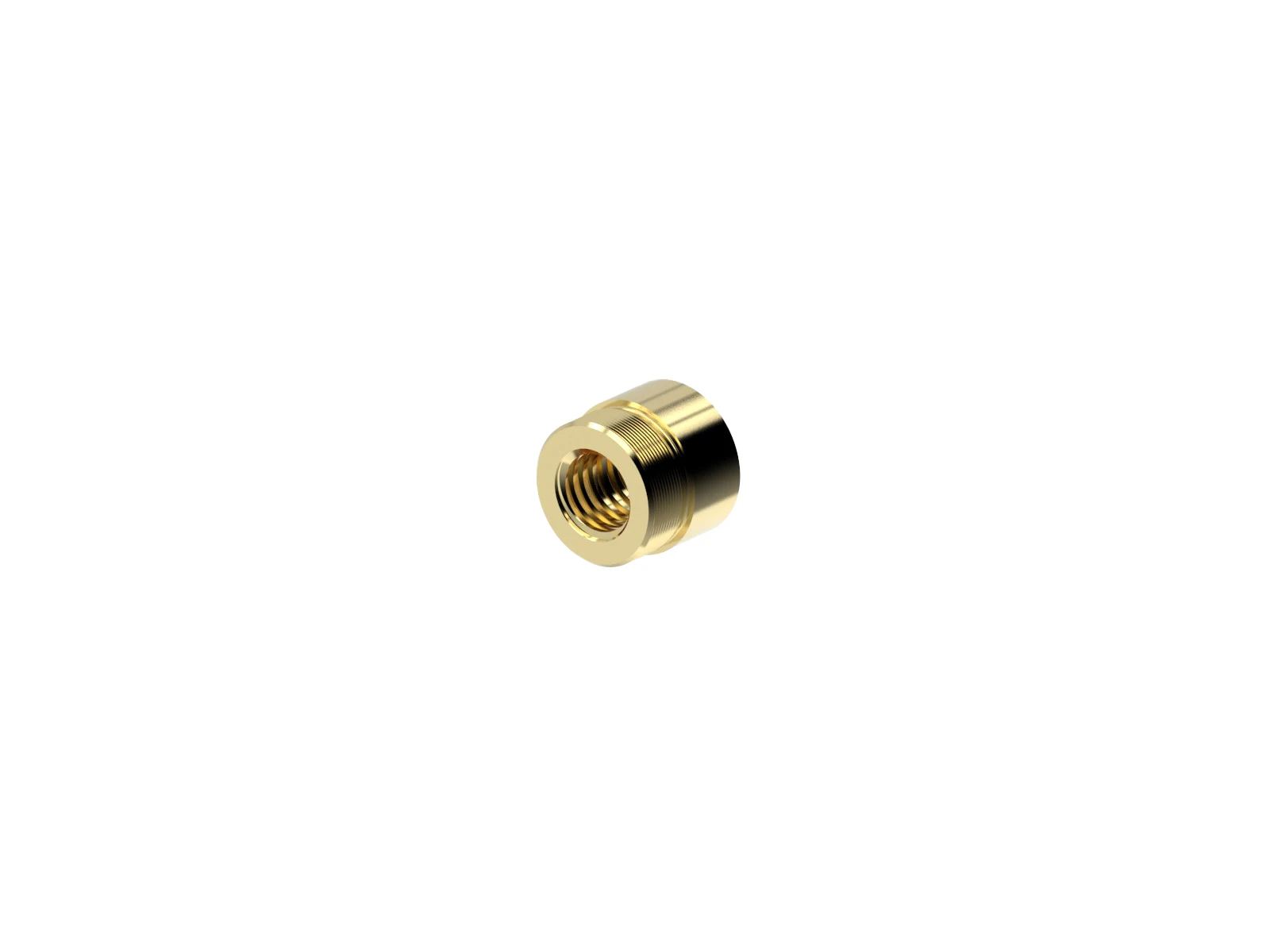

12 mm Diameter x 2 mm Lead Power AC Acme Nut (NPB)
NPB047078
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
0.453 in Diameter x 0.5 in Lead Rounded Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
12 mm Diameter x 6 mm Lead Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
11 mm Diameter x 6 mm Lead Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
12mm Diameter x 40mm Lead - Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
12 mm Diameter x 25 mm Lead Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
0.25 in Diameter x 0.118 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
0.25 in Diameter x 0.125 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
0.25 in Diameter x 0.05 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
0.25 in Diameter x 0.394 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
10 mm Diameter x 3 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 1.5 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 12 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.4 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.083 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10 mm Diameter x 1 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.75 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.05 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 8 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10 mm Diameter x 2 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10mm Diameter x 50mm Lead - Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Lead Screws
NPB

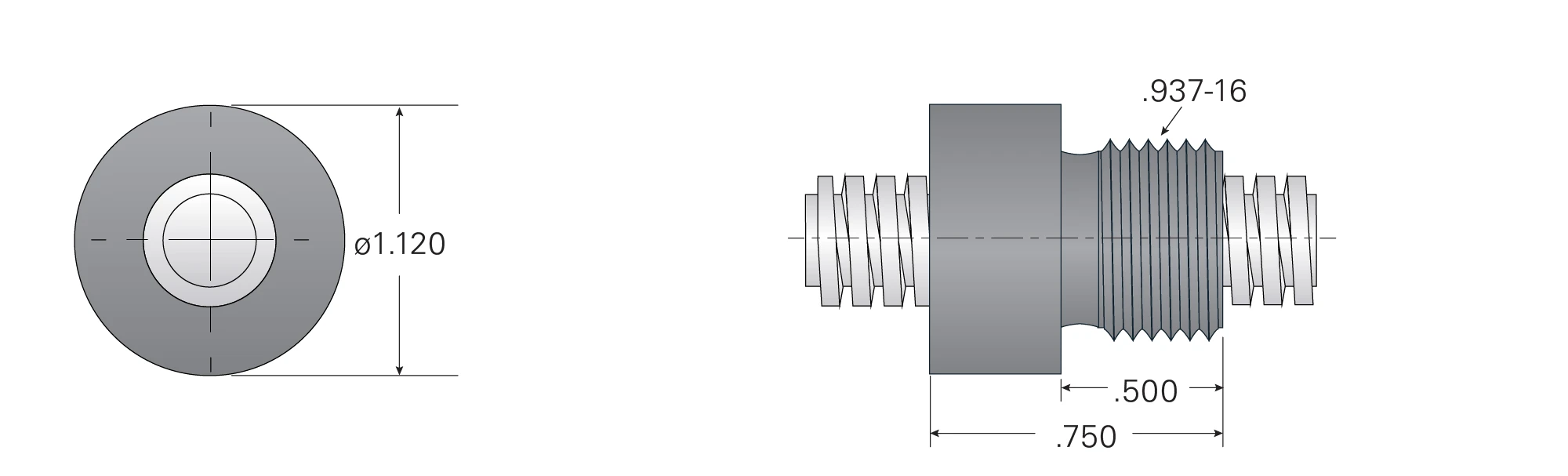

Dimensions Lead
Lead (mm)
2
Nominal Diameter - A (mm)
12
Pitch (in)
0.07874
Pitch (mm)
2
Material & Finish
Material
Bronze
Performance & Tolerances
Starts
1
Measurement system
Metric
Product Info
Nut Code
NPB
D - Thread Size (in)
.562-18
Diameter Code
47
E - Thread Length (in)
0.38
Efficiency (%)
27.4
Mating Screw Part No
047078L, 047078R
Maximum Axial Lash (in)
FALSE
Nut Diameter B (in)
0.68
Nut Length C (in)
0.62
Nut Size
4
Nut Type
Bronze Acme Nut
Standard Operating Temperature Range (F°)
1
Torque to Raise 1 lb (in-lb)
2
Show more
Thread Details
Threads per Inch
12.7000254
Thread Direction
LH, RH
Thread Class
Centralizing
Thread Type
Trapezoidal
Thread Direction
Select an option
Price:
$42.82
Add to cart
Request a Quote
