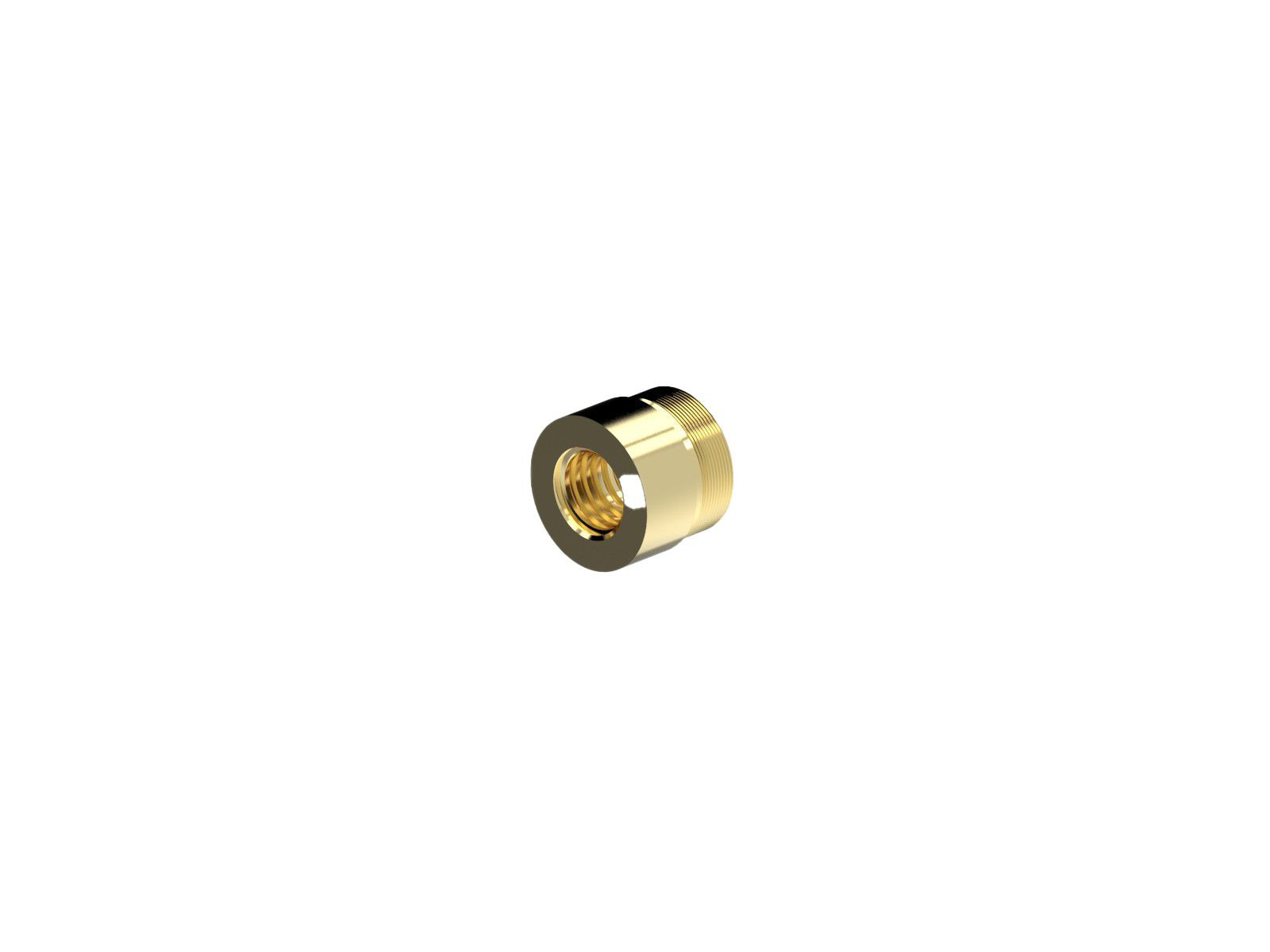

0.56" Diameter x 1.60" Lead - Power AC Acme Nut (NPB)
NPB056M41
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
0.453 in Diameter x 0.5 in Lead Rounded Power AC Acme Nut (NPB)
Price:
$42.82
View Product
View Product
0.25 in Diameter x 0.4 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
0.25 in Diameter x 0.025 in Lead Power AC Acme Nut (NPB)
Price:
$45.83
View Product
View Product
8 mm Diameter x 20 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.167 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10 mm Diameter x 4 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10 mm Diameter x 15 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.375 in Diameter x 0.1 in Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.38" Diameter x 1.50" Lead - Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 15 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 0.6 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 4 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
8 mm Diameter x 25 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
10 mm Diameter x 2 mm Lead Power AC Acme Nut (NPB)
Price:
$47.67
View Product
View Product
0.5 in Diameter x 0.05 in Lead Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
14 mm Diameter x 3 mm Lead Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
0.50" Diameter x 1.40" Lead - Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
14 mm Diameter x 4 mm Lead Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
0.5 in Diameter x 0.197 in Lead Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
0.5 in Diameter x 0.125 in Lead Power AC Acme Nut (NPB)
Price:
$61.11
View Product
View Product
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Lead Screws
NPB
Dimensions Lead
Lead (in)
1.5984
Pitch (in)
0.1998
Pitch (mm)
5.07492
Material & Finish
Material
Bronze
Performance & Tolerances
Starts
8
Measurement system
Imperial
Product Info
Nut Code
NPB
D - Thread Size (in)
.562-18
Diameter Code
56
E - Thread Length (in)
0.38
Efficiency (%)
72.43237047
Mating Screw Part No
056M41L, 056M41R
Maximum Axial Lash (in)
FALSE
Nut Diameter B (in)
0.68
Nut Length C (in)
0.62
Nut Size
6
Nut Type
Bronze Acme Nut
Standard Operating Temperature Range (F°)
1953
Torque to Raise 1 lb (in-lb)
3
Show more
Thread Details
Threads per Inch
5.005005005
Thread Direction
LH, RH
Thread Class
Centralizing
Thread Type
High Helix
Thread Direction
Select an option
Price:
$61.11
Add to cart
Request a Quote
