Nut CodeSNA
Diameter Code37
Dynamic Load Capacity (lb)350.00
Efficiency (%)41.32600542
Mating Screw Part No037062L, 037062R
Maximum Axial Lash (in)FALSE

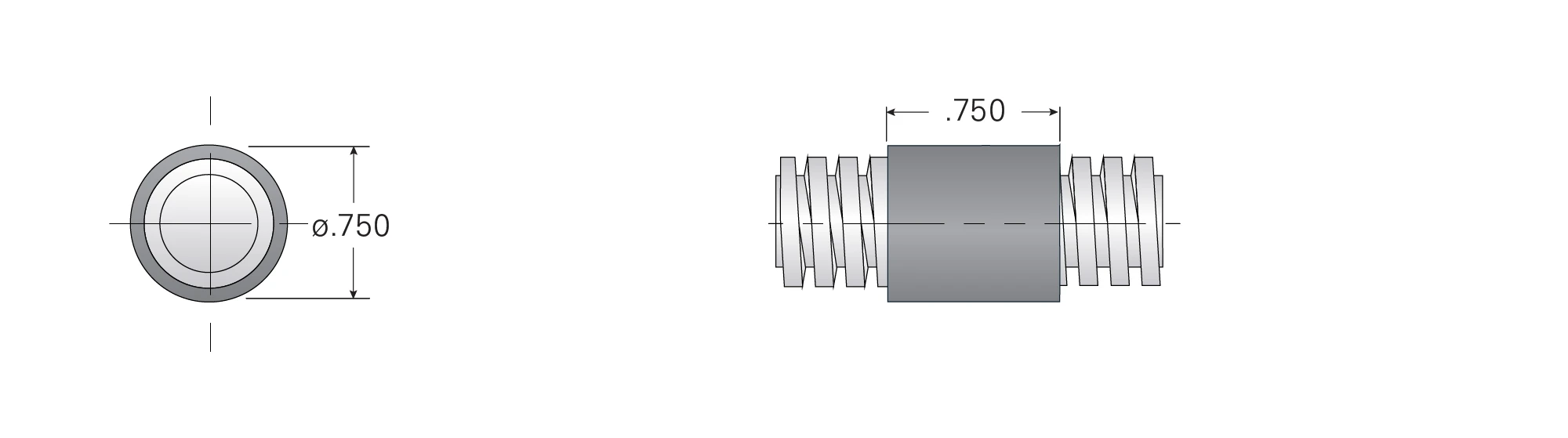

Nut Diameter B (in)0.75
Nut Length C (in)0.75

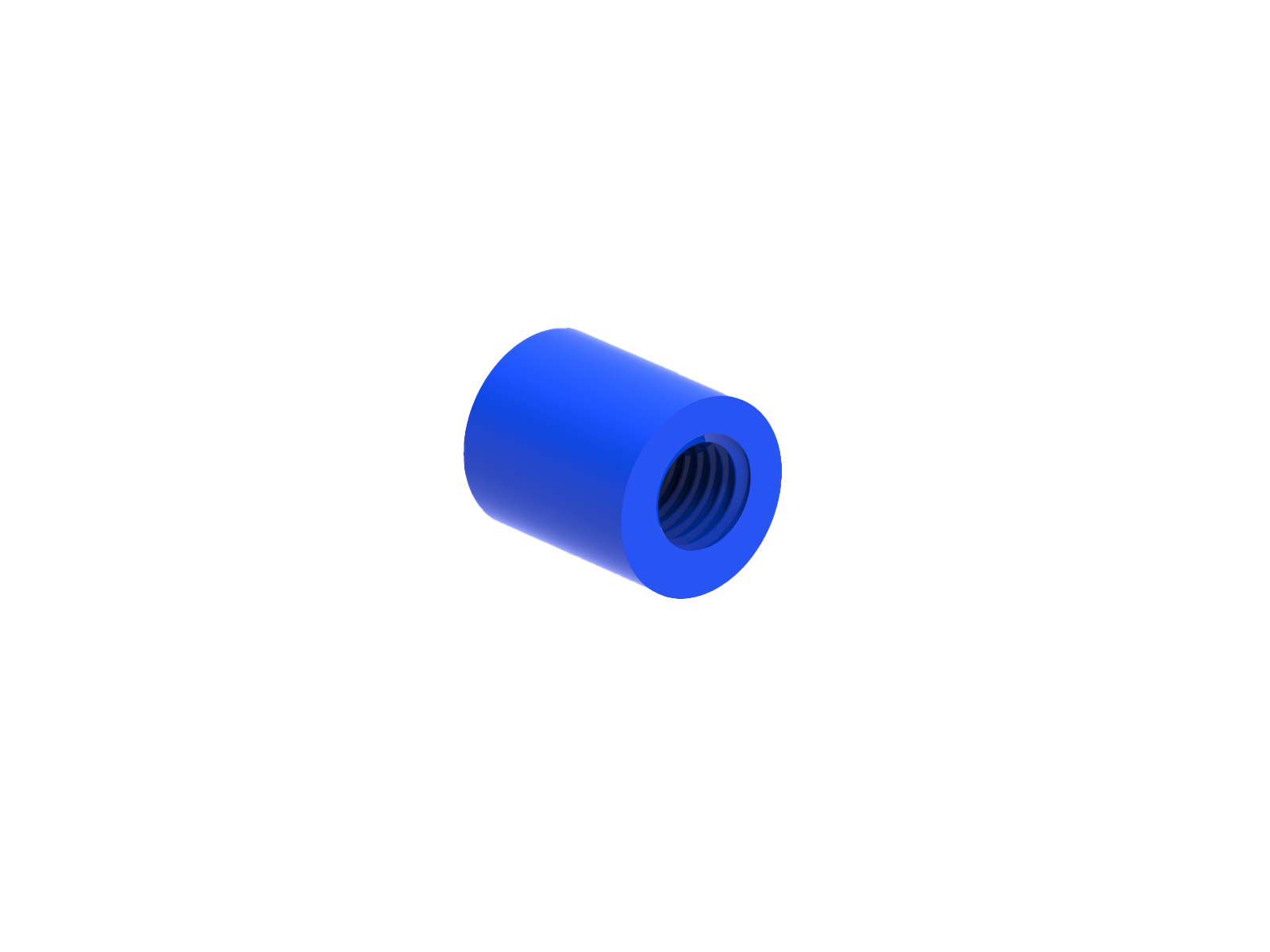

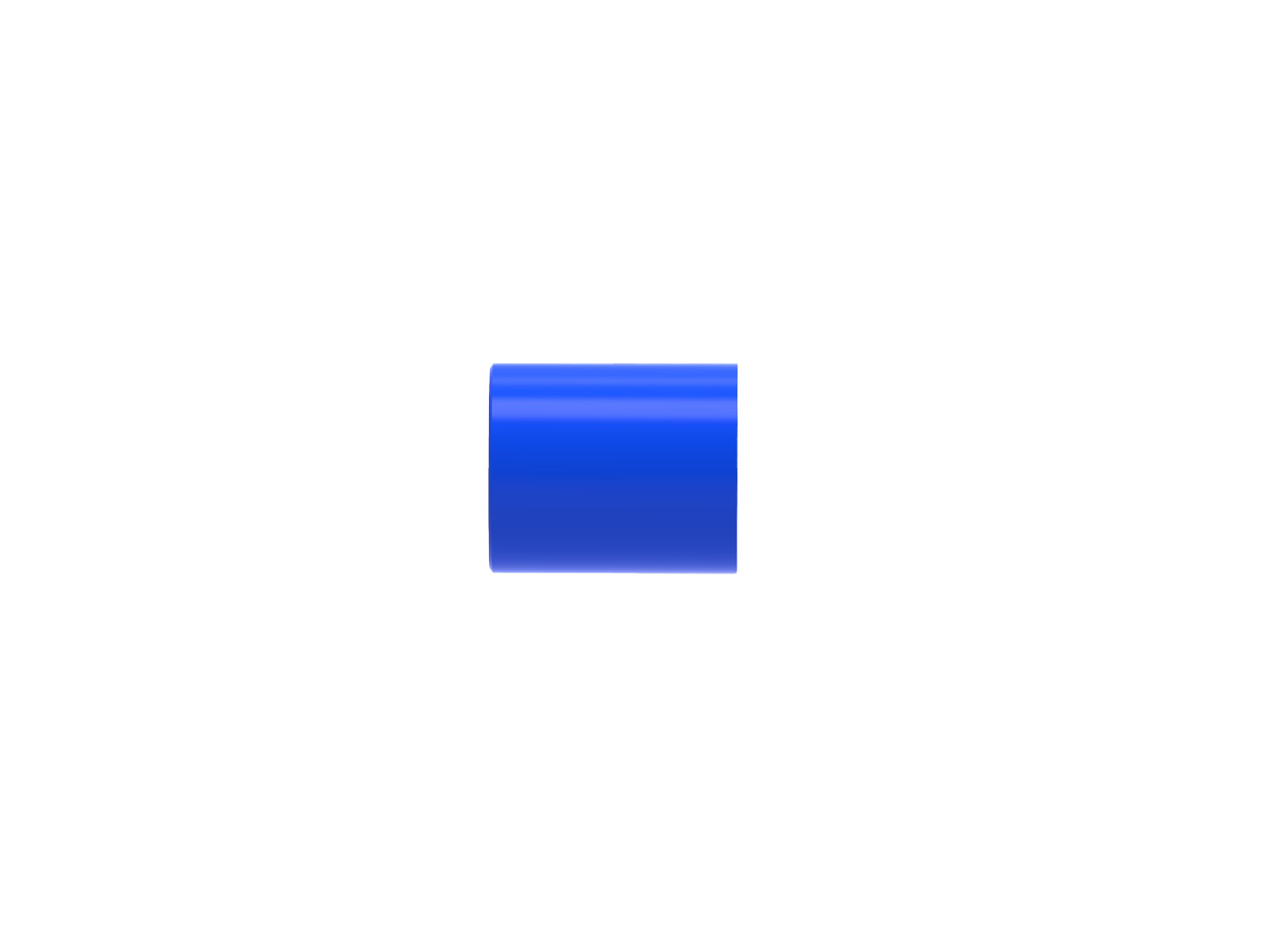

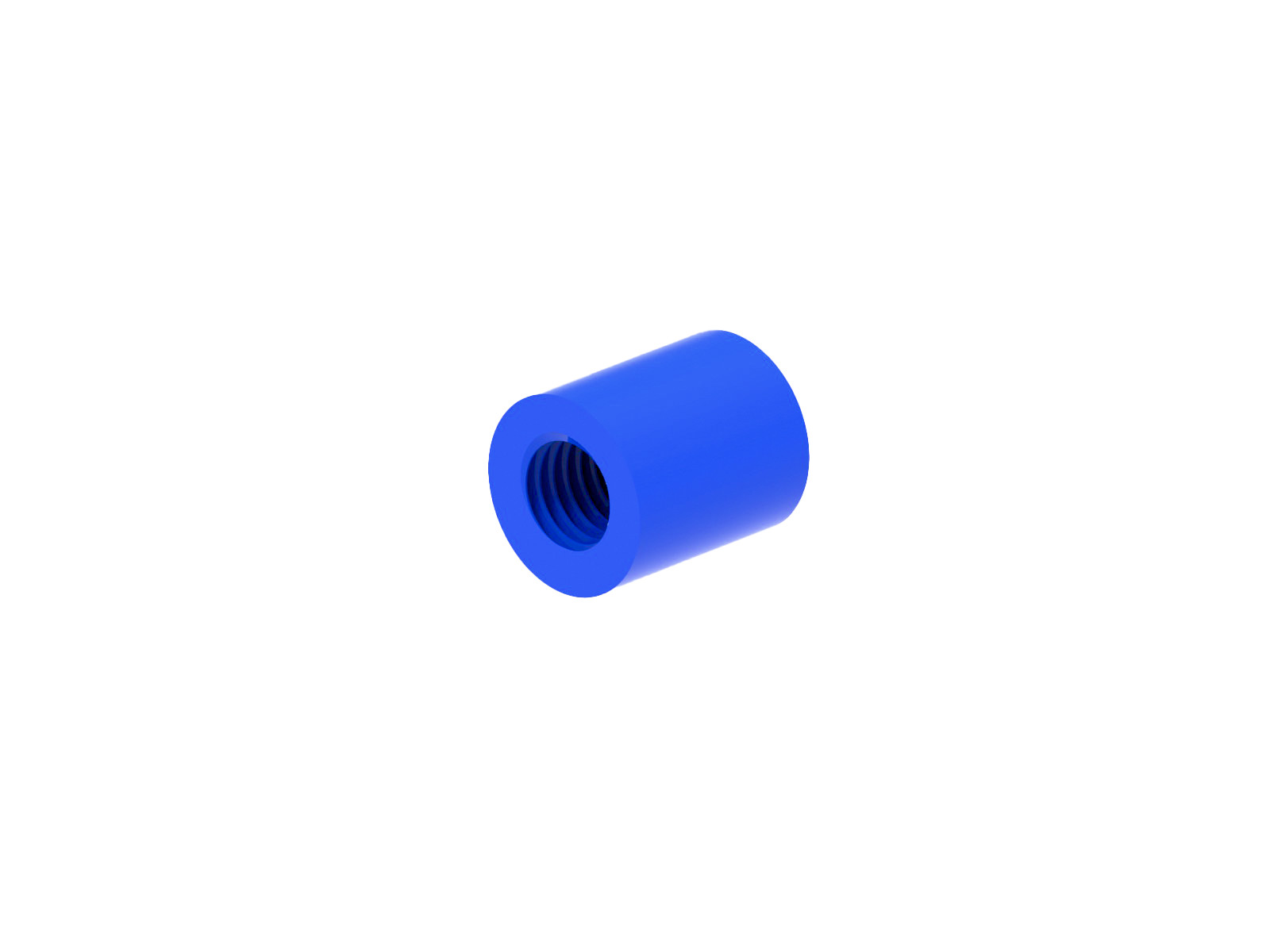

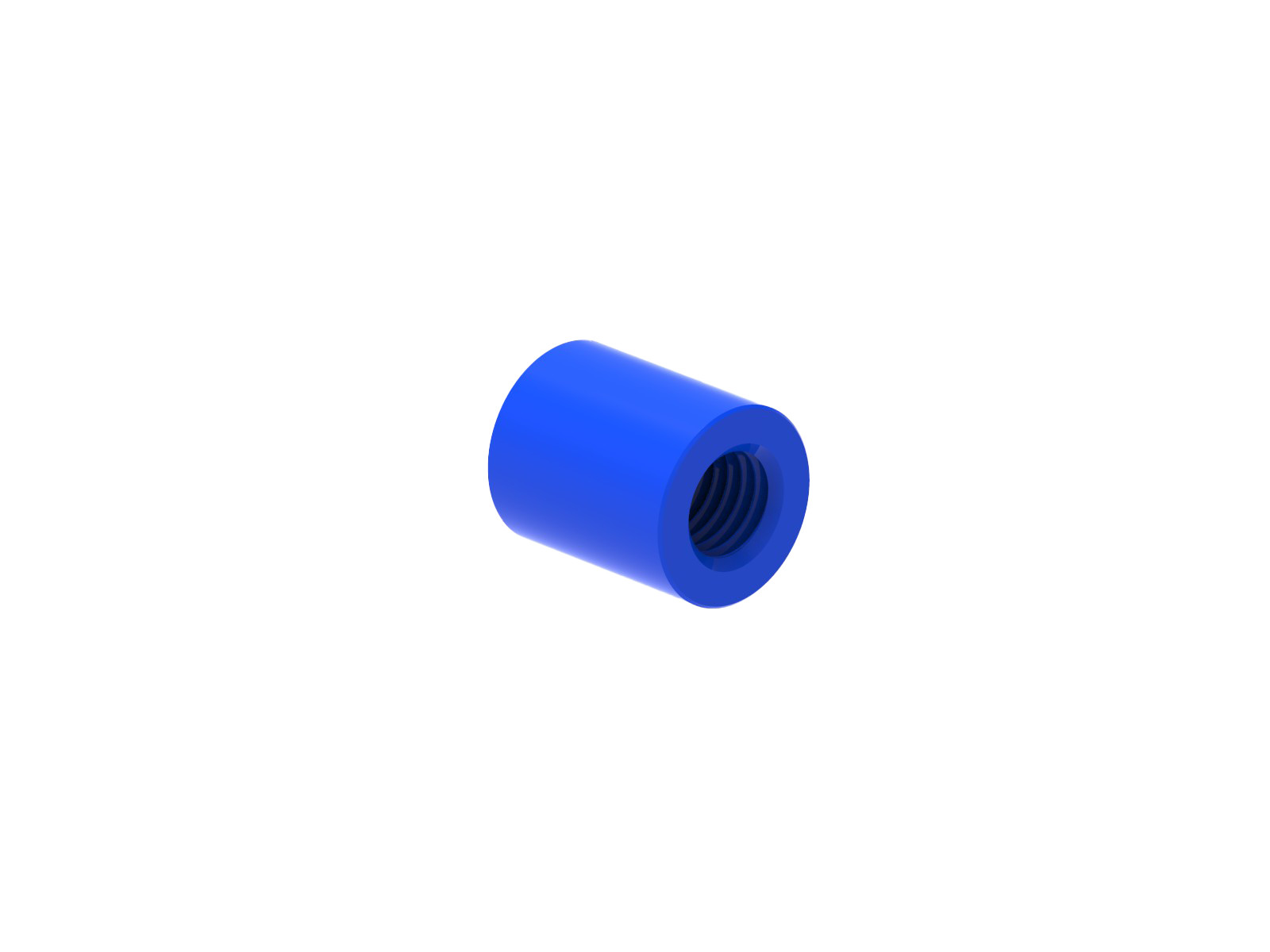

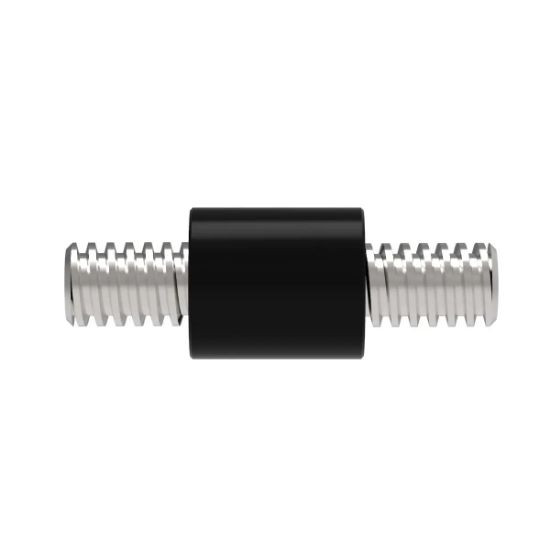

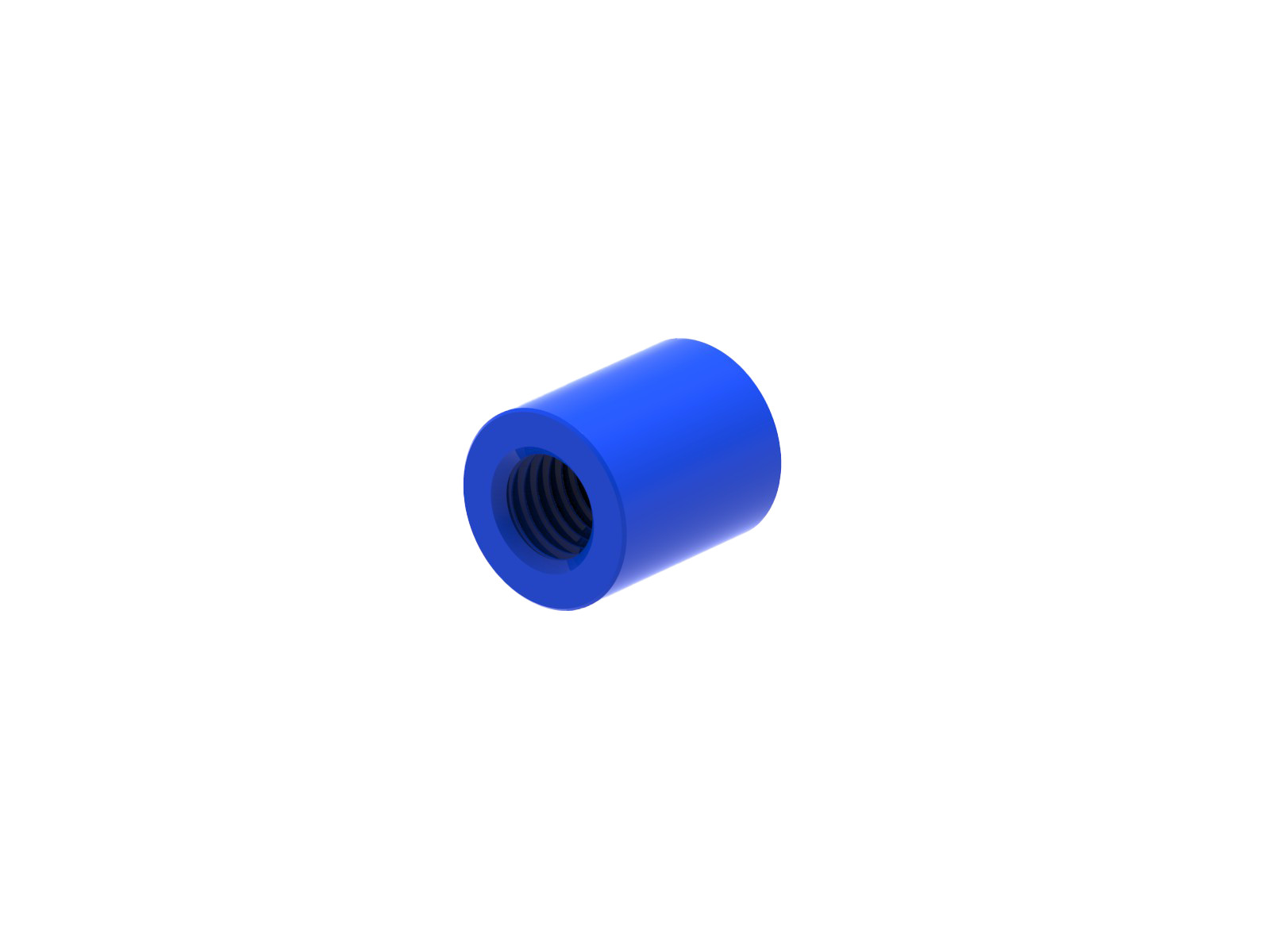

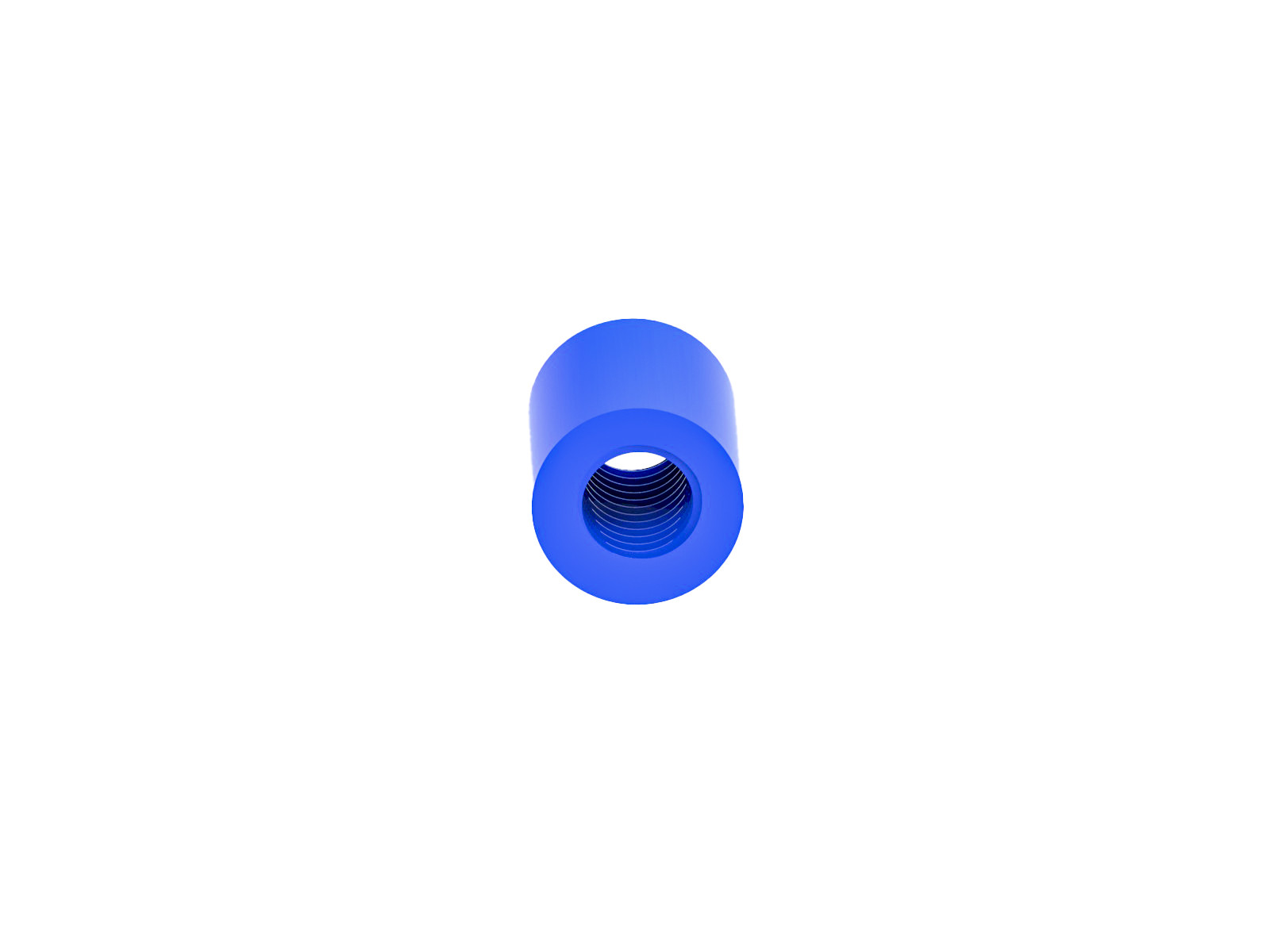

Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)560.00
Torque to Raise 1 lb (in-lb)0.0240700349
