Nut CodeSNA
Diameter Code88
Dynamic Load Capacity (lb)1950
Efficiency (%)49.85856574
Mating Screw Part No088200L, 088200R
Maximum Axial Lash (in)FALSE

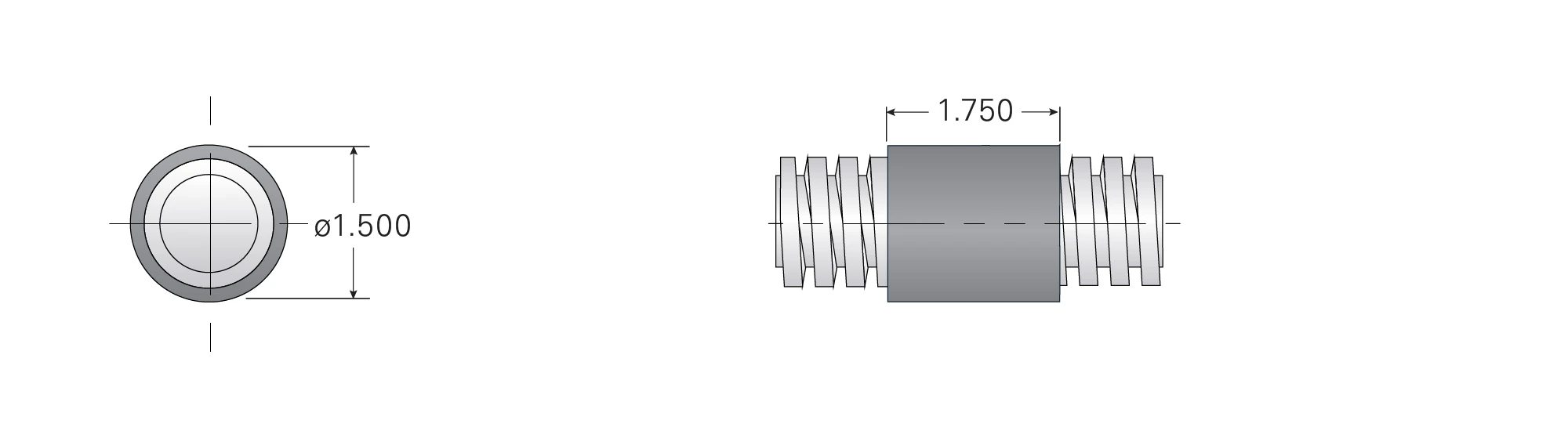

Nut Diameter B (in)1.5
Nut Length C (in)1.75
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)3100.00
Torque to Raise 1 lb (in-lb)
