Nut CodeSNA
Diameter Code94
Dynamic Load Capacity (lb)2600
Efficiency (%)84.21091649
Mating Screw Part No094M55L, 094M55R
Maximum Axial Lash (in)FALSE

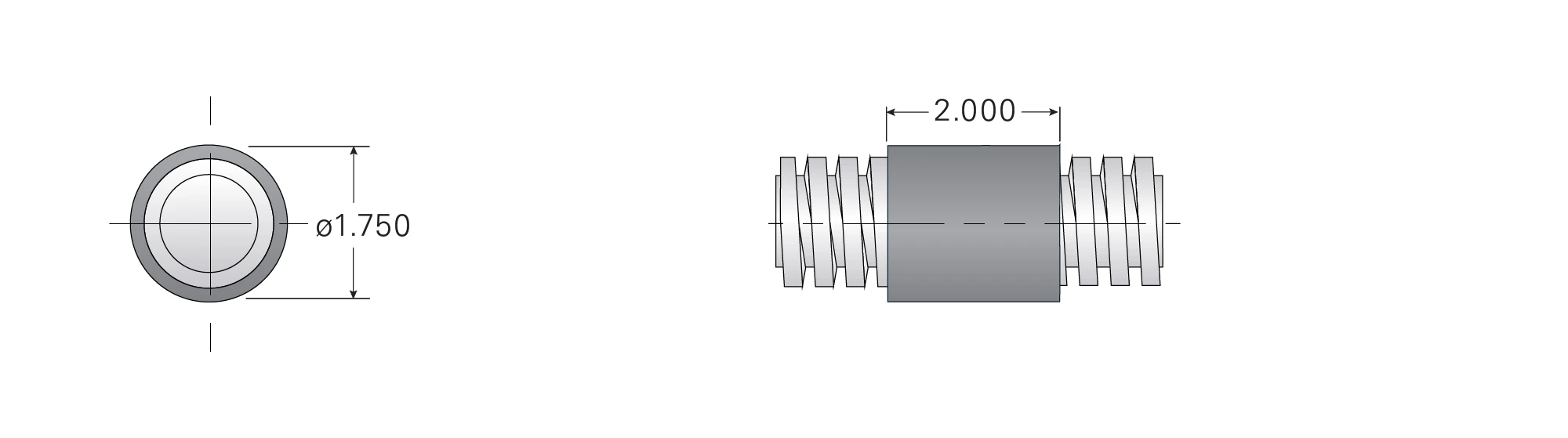

Nut Diameter B (in)1.75
Nut Length C (in)2
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)4100
Torque to Raise 1 lb (in-lb)
