Nut CodeSNB
Diameter Code37
Dynamic Load Capacity (lb)700.00
Efficiency (%)12.12054784
Mating Screw Part No037025L, 037025R
Maximum Axial Lash (in)FALSE

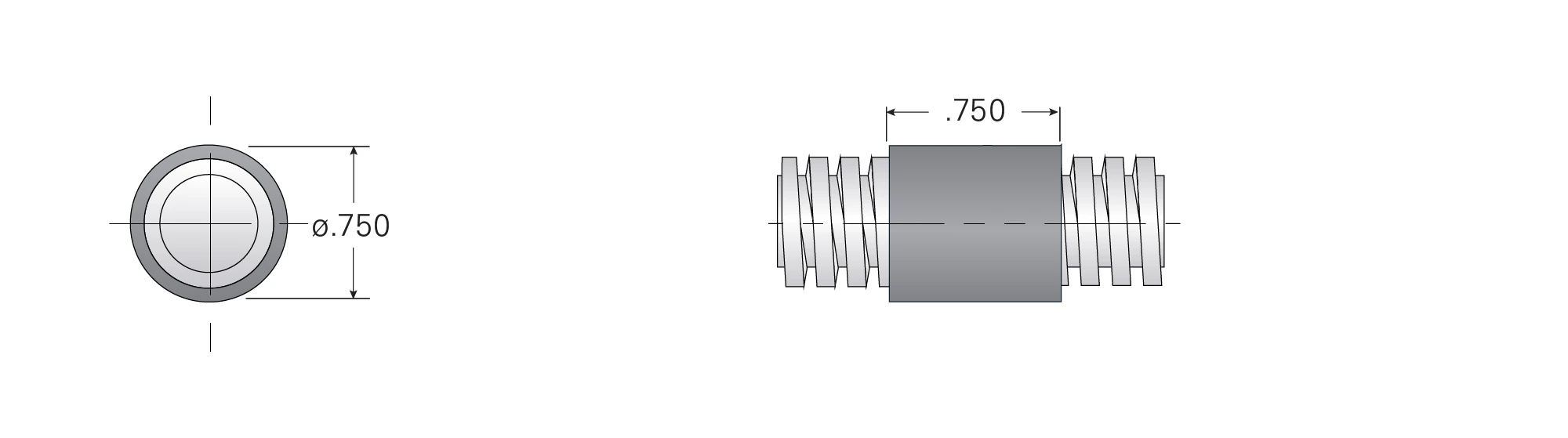

Nut Diameter B (in)0.75
Nut Length C (in)0.75
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)2250.00
Torque to Raise 1 lb (in-lb)
