Nut CodeSNB
Diameter Code37
Dynamic Load Capacity (lb)700
Efficiency (%)68.93465543
Mating Screw Part No037M38L, 037M38R
Maximum Axial Lash (in)FALSE

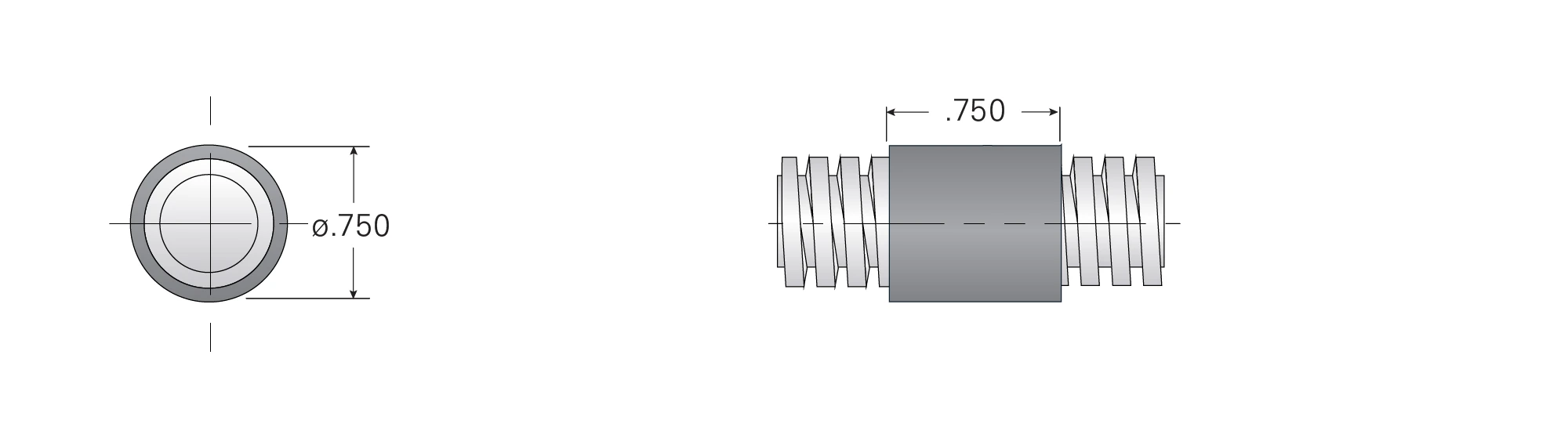

Nut Diameter B (in)0.75
Nut Length C (in)0.75
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)2250
Torque to Raise 1 lb (in-lb)
