Nut CodeSNB
Diameter Code55
Dynamic Load Capacity (lb)1250
Efficiency (%)65.16028957
Mating Screw Part No055M70L, 055M70R
Maximum Axial Lash (in)FALSE

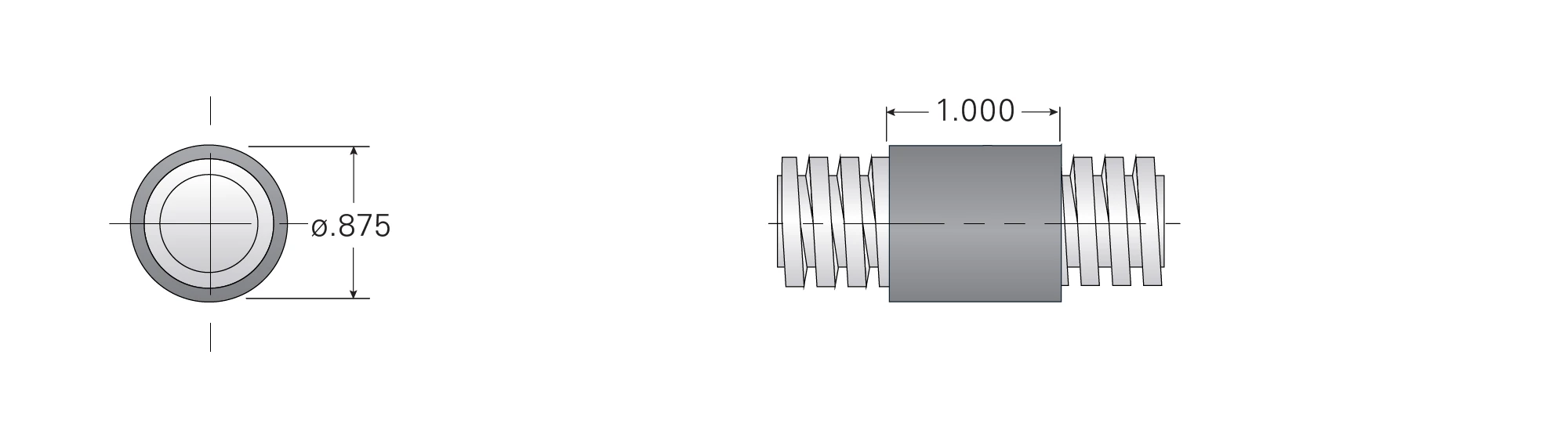

Nut Diameter B (in)0.875
Nut Length C (in)1
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)4000
Torque to Raise 1 lb (in-lb)
