Nut CodeSNB
Diameter Code79
Dynamic Load Capacity (lb)2800
Efficiency (%)72.70802216
Mating Screw Part No079M45L, 079M45R
Maximum Axial Lash (in)FALSE

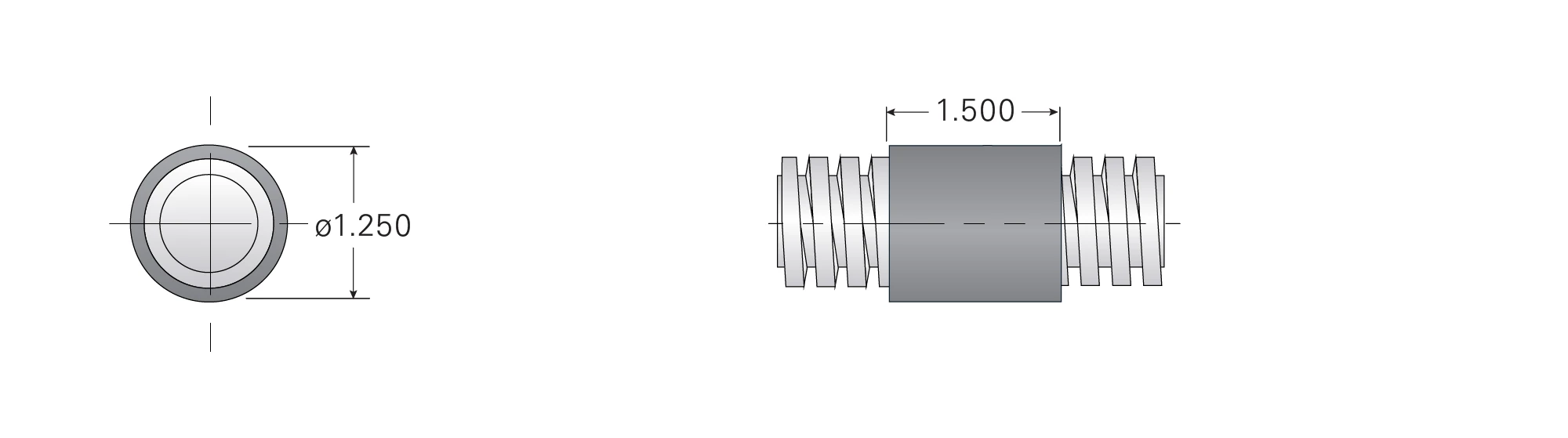

Nut Diameter B (in)1.25
Nut Length C (in)1.5

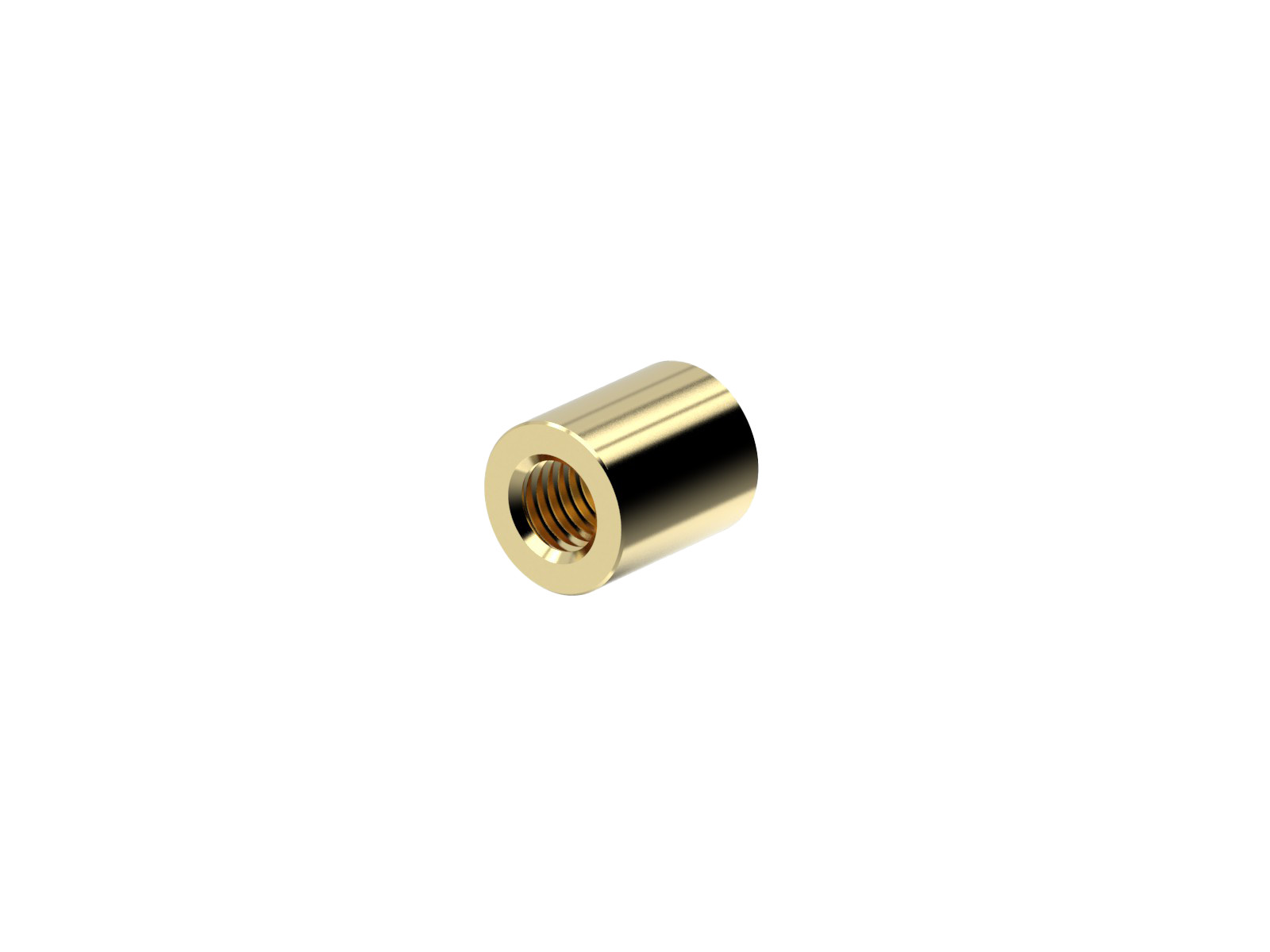

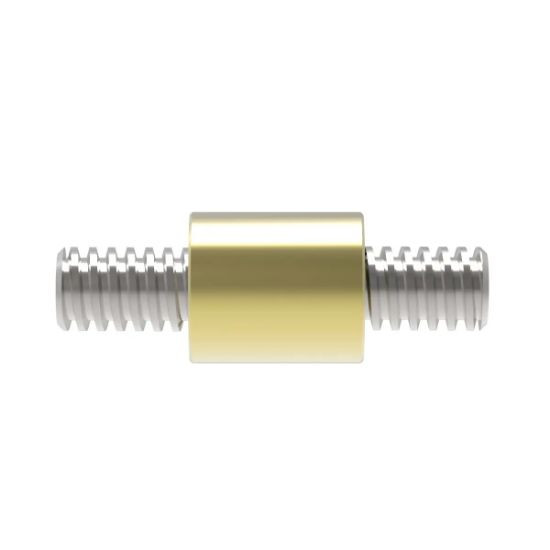

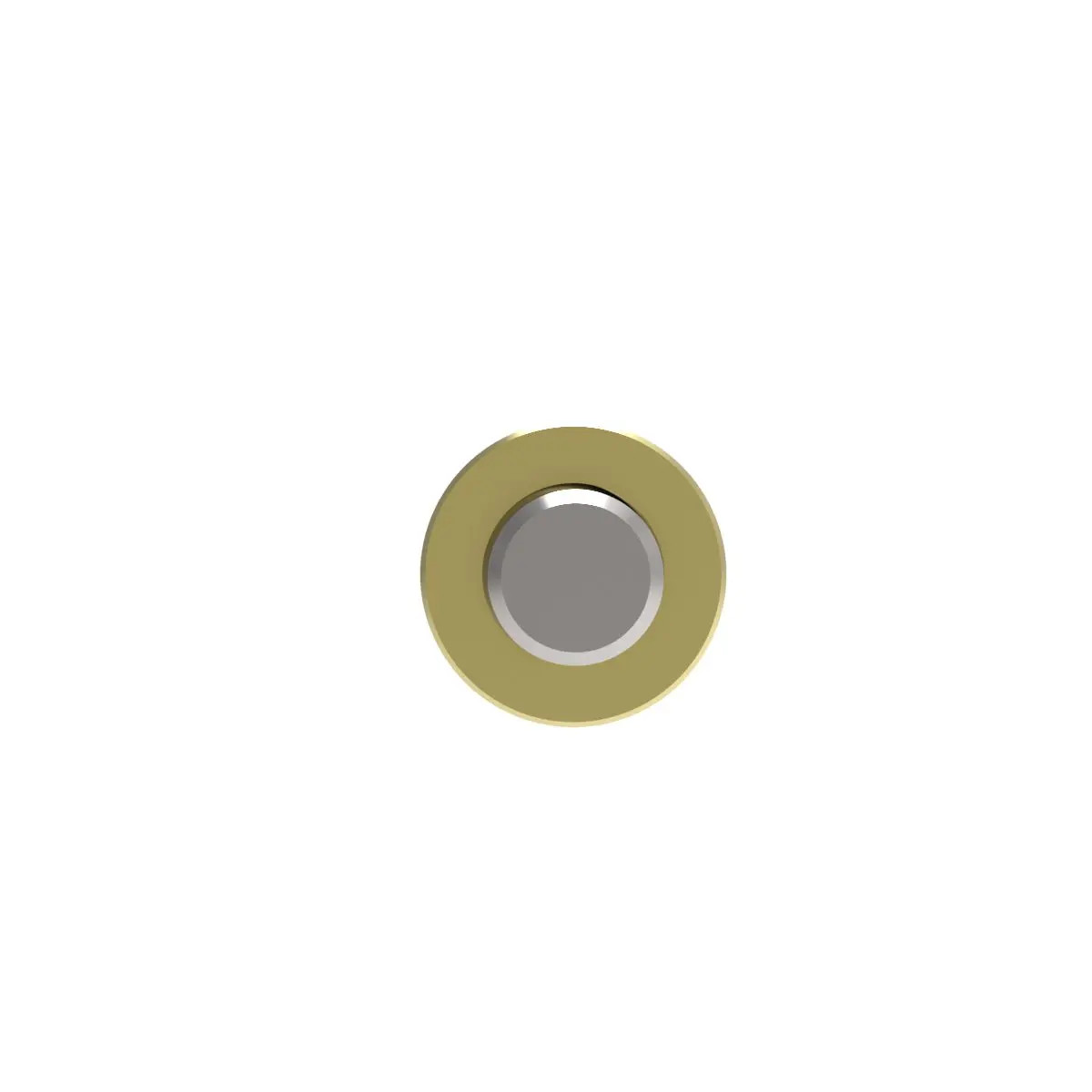

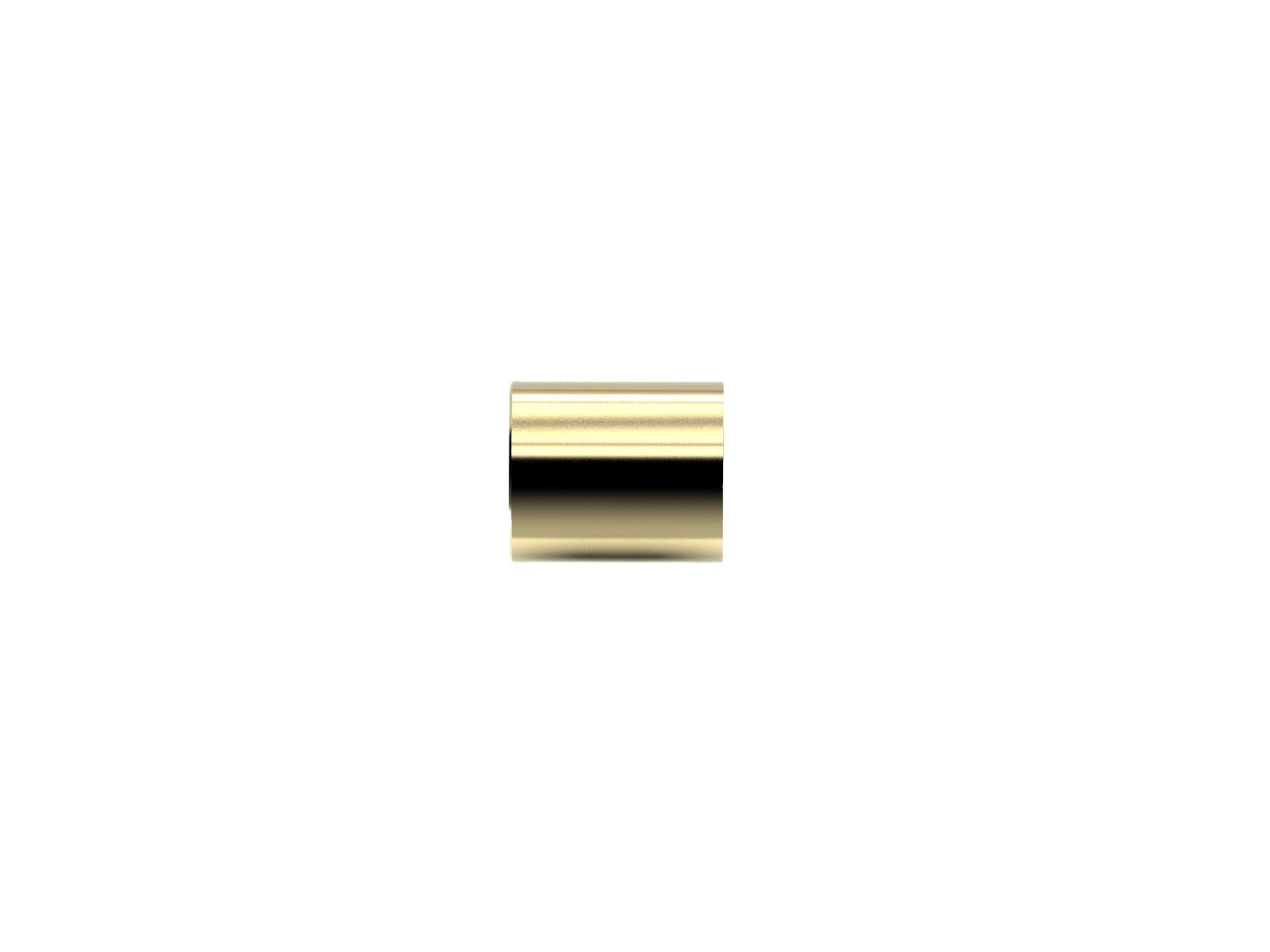

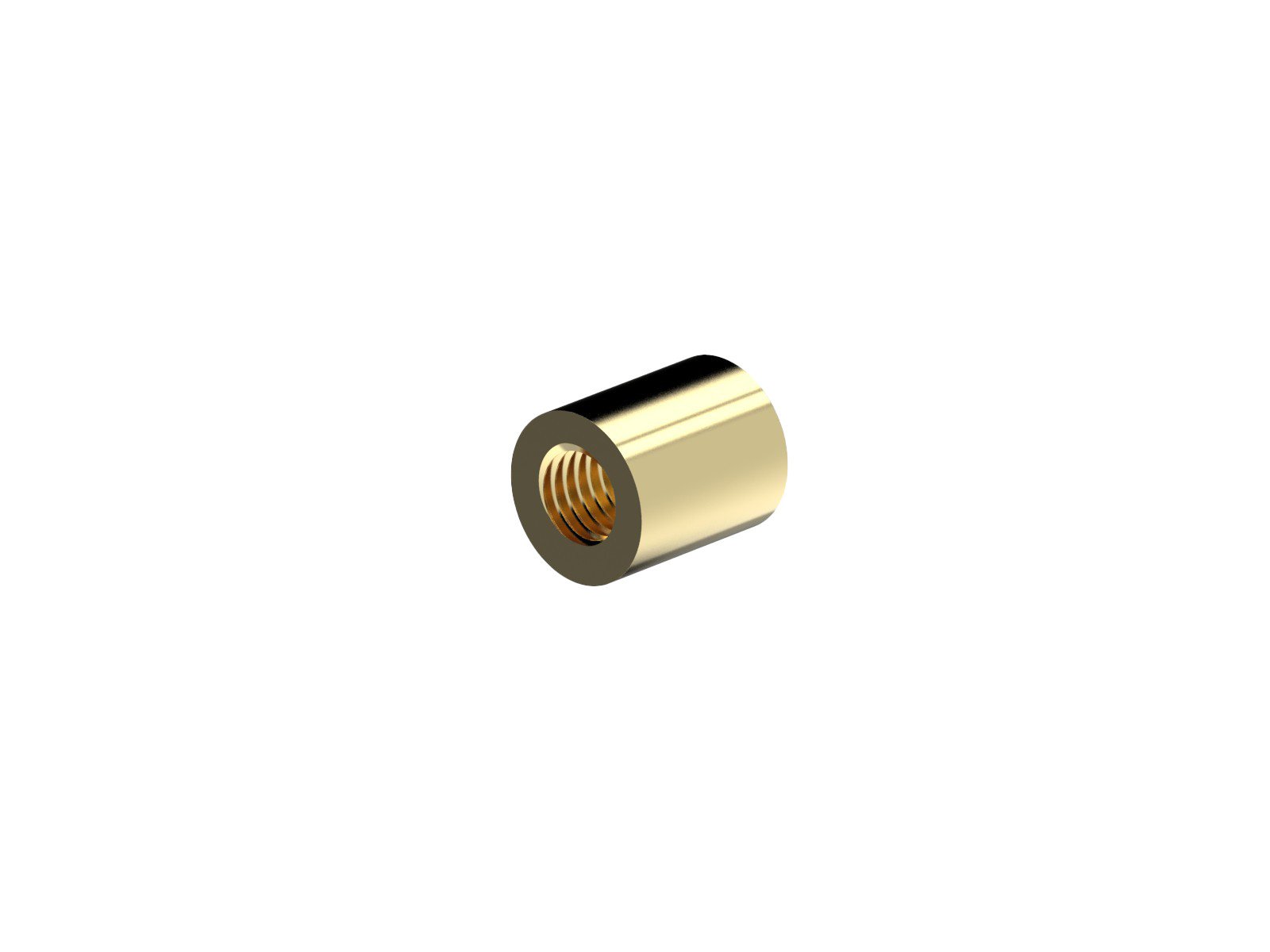

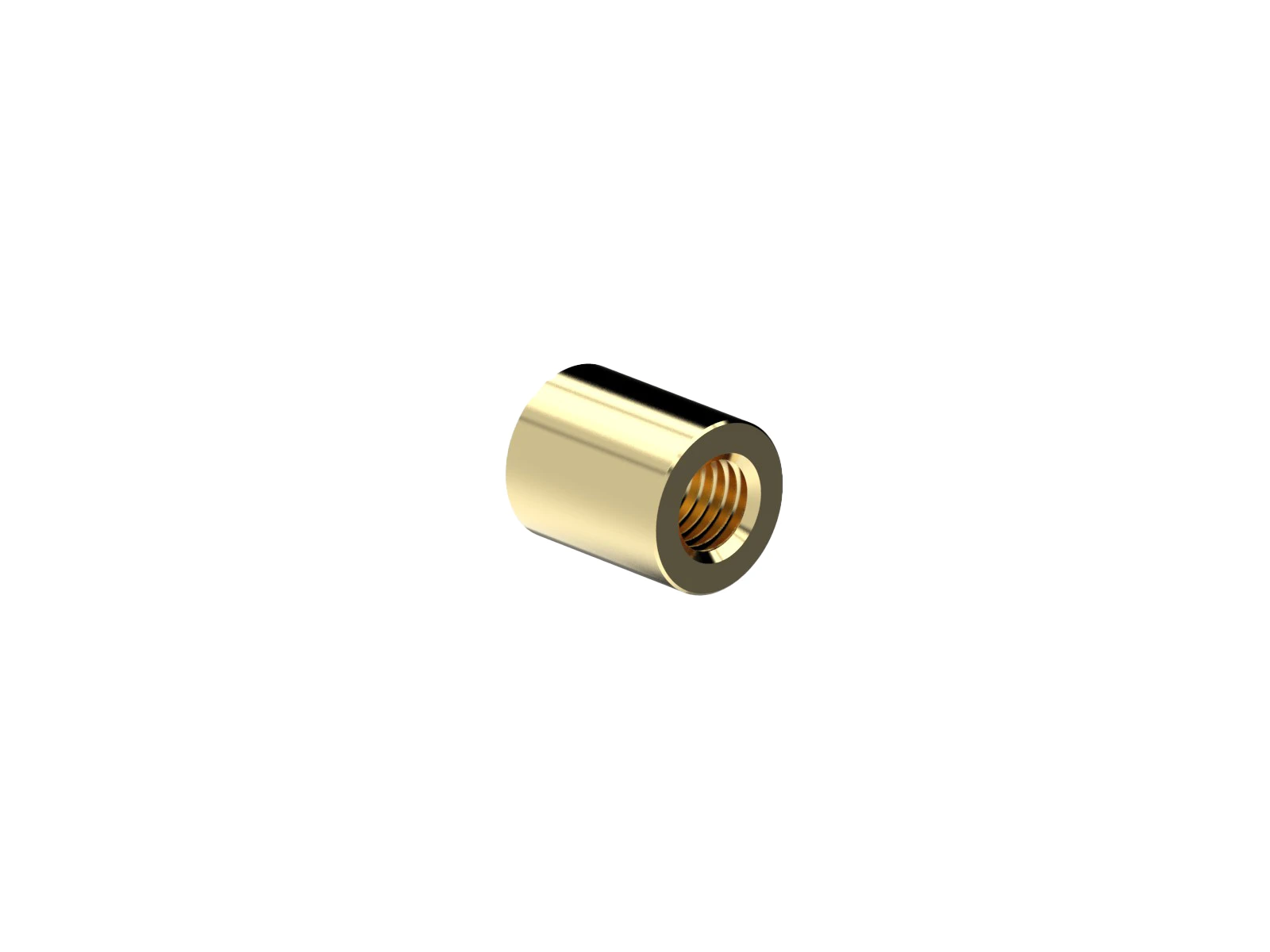

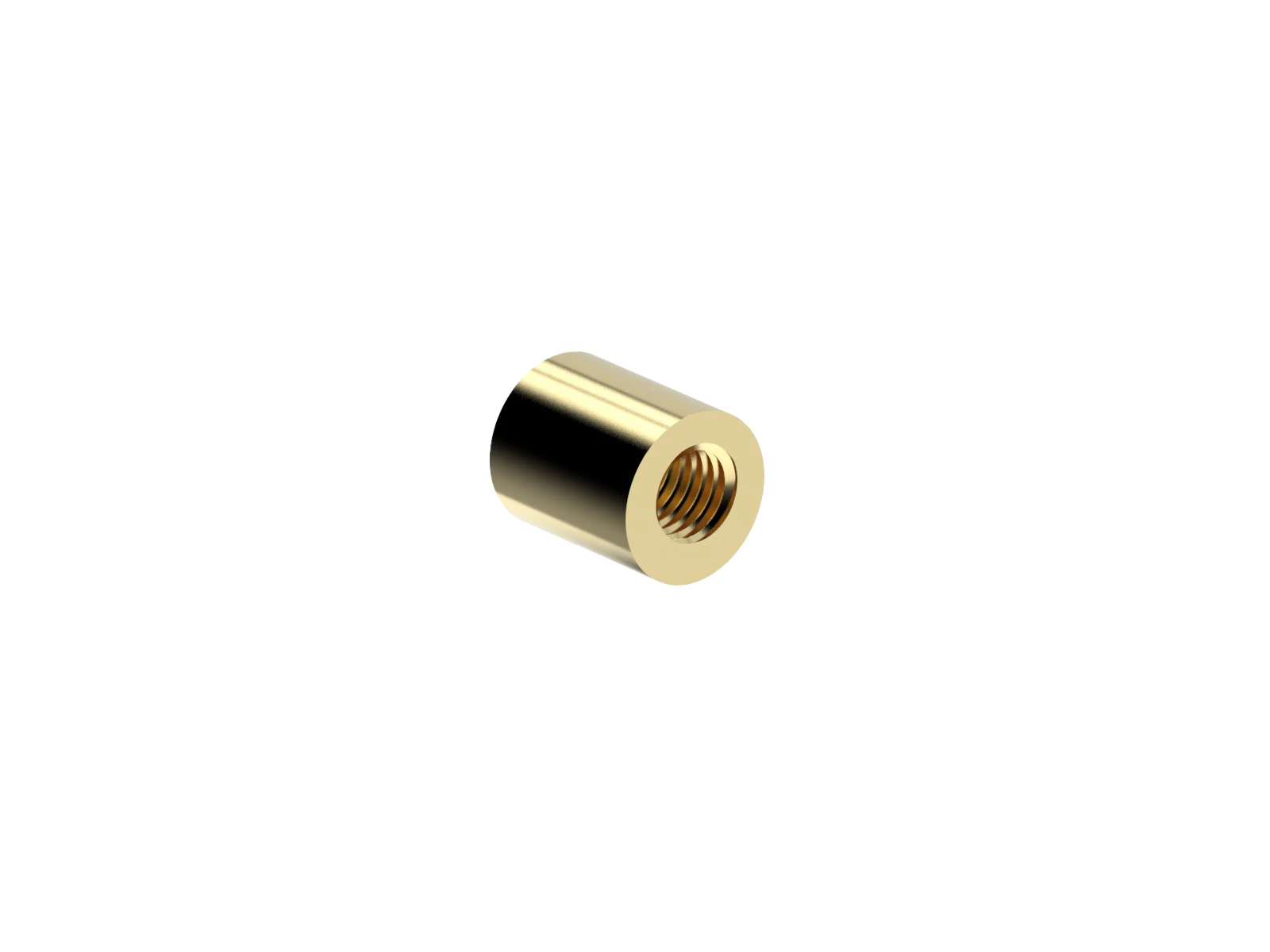

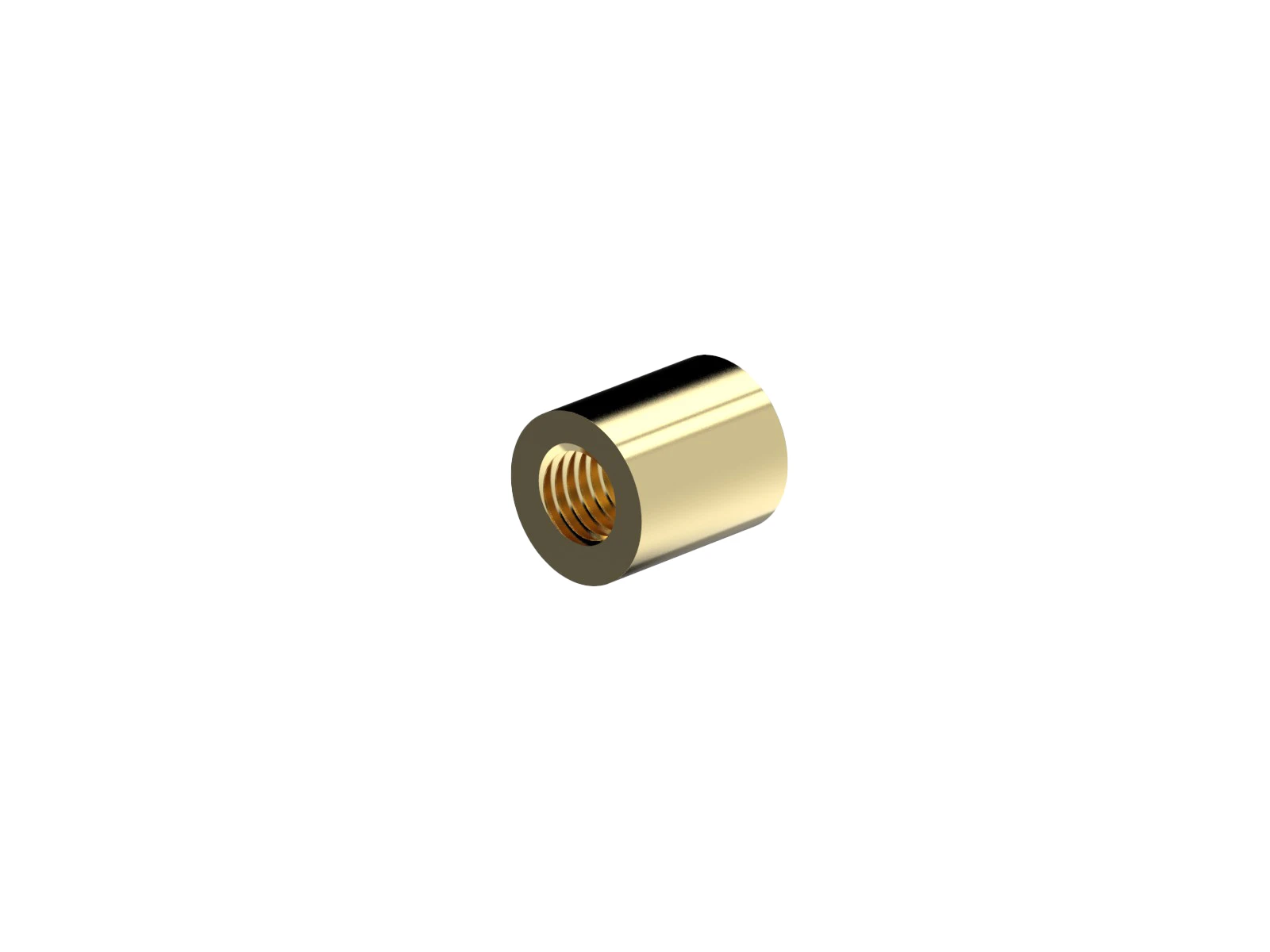

Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)9000
Torque to Raise 1 lb (in-lb)
