Nut CodeSNB
Diameter Code87
Dynamic Load Capacity (lb)3800
Efficiency (%)72.70799956
Mating Screw Part No087M50L, 087M50R
Maximum Axial Lash (in)FALSE

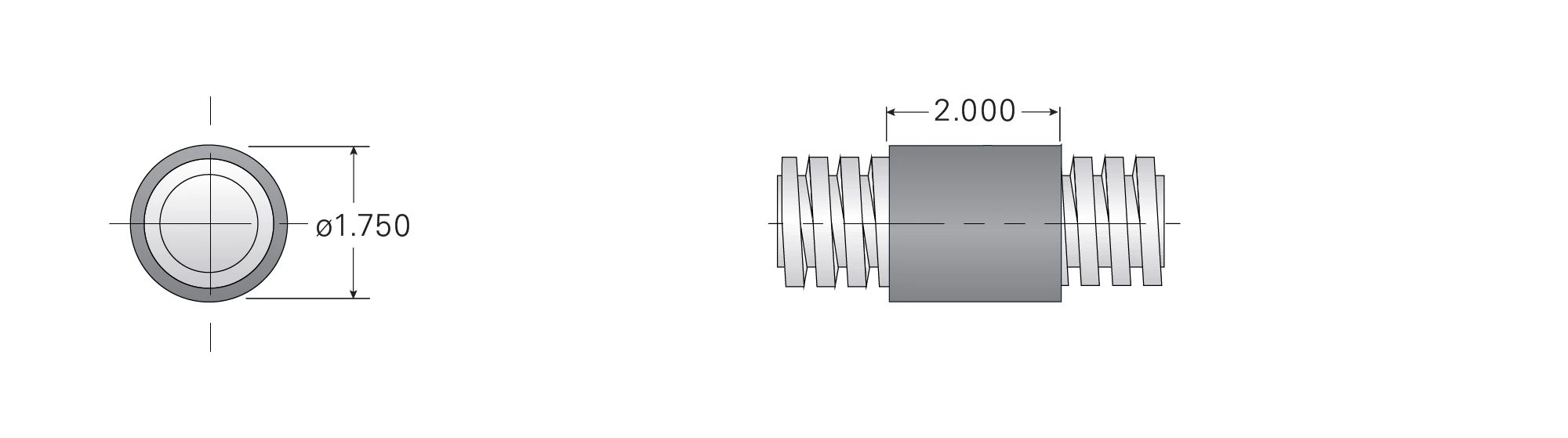

Nut Diameter B (in)1.5
Nut Length C (in)1.75
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)12250
Torque to Raise 1 lb (in-lb)
