Nut CodeTMA
Anti-Backlash Nut Life with H10X Coating (in)NA - Typical Backlash 0.003 to 0.011
Anti-Backlash Nut Life without H10X Coating (in)NA - Typical Backlash 0.003 to 0.010
Connection TypeFlanged
D - Chamfer Width (in)1.125
Diameter Code31
Dynamic Load Capacity (lb)75
Efficiency (%)71.57450653
F - Trunion Height (in)0.188
G - Width over Pins (in)0.144
H - Nut Body Width (in)0.88
Mating Screw Part No031200L, 031200R
Maximum Axial Lash (in)FALSE
Nut Height B (in)0.63
Nut Length C (in)0.75

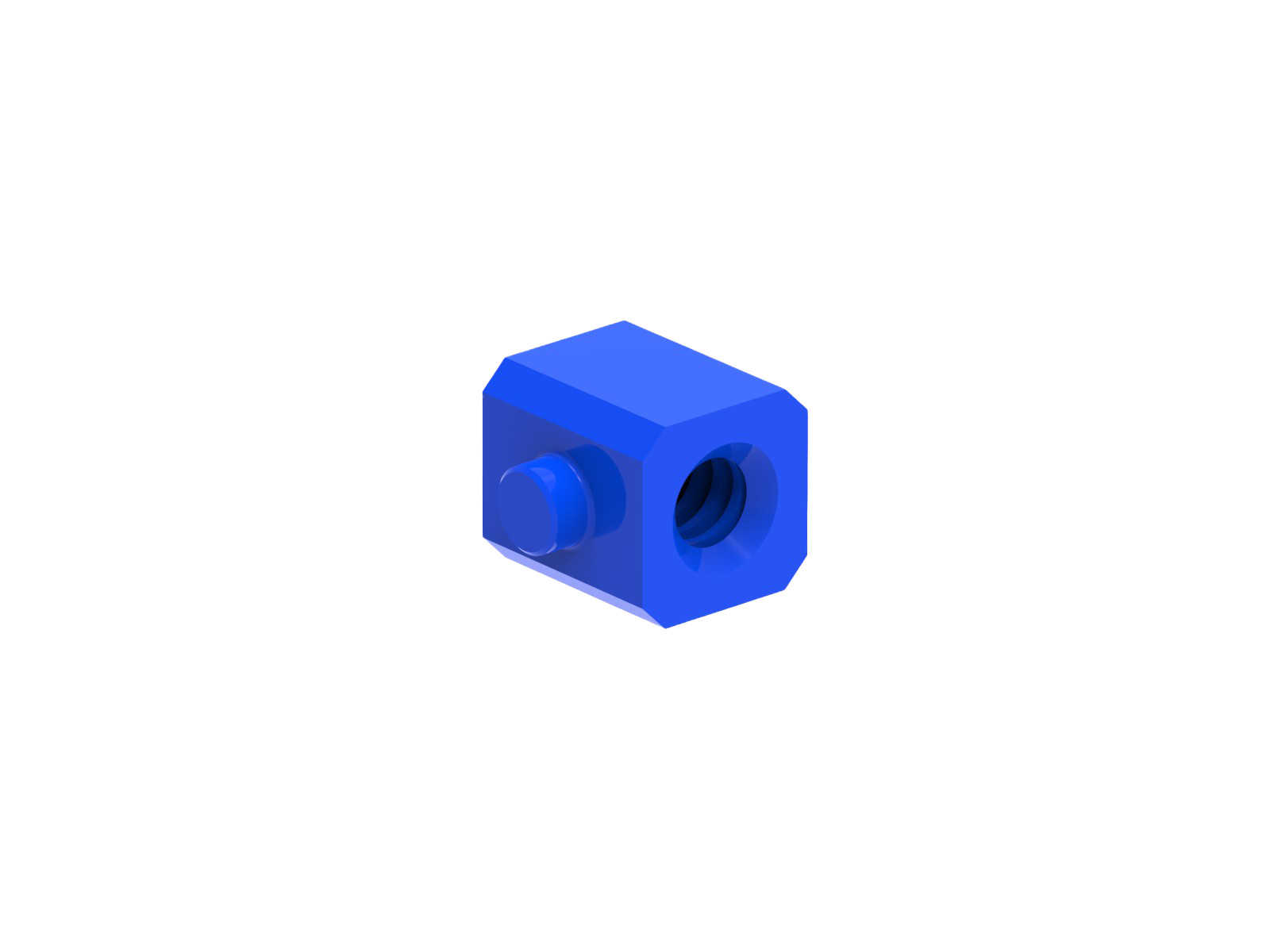

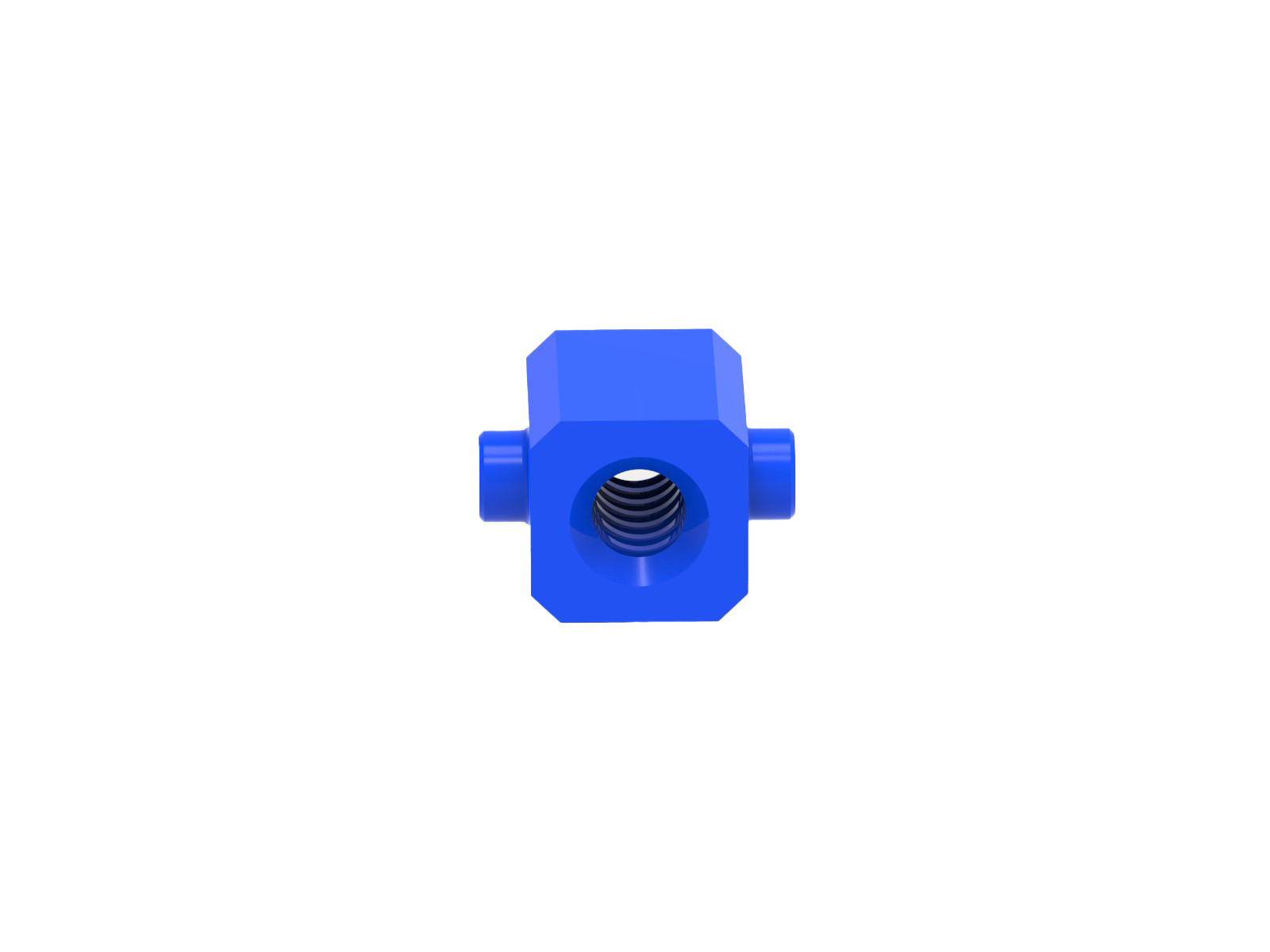

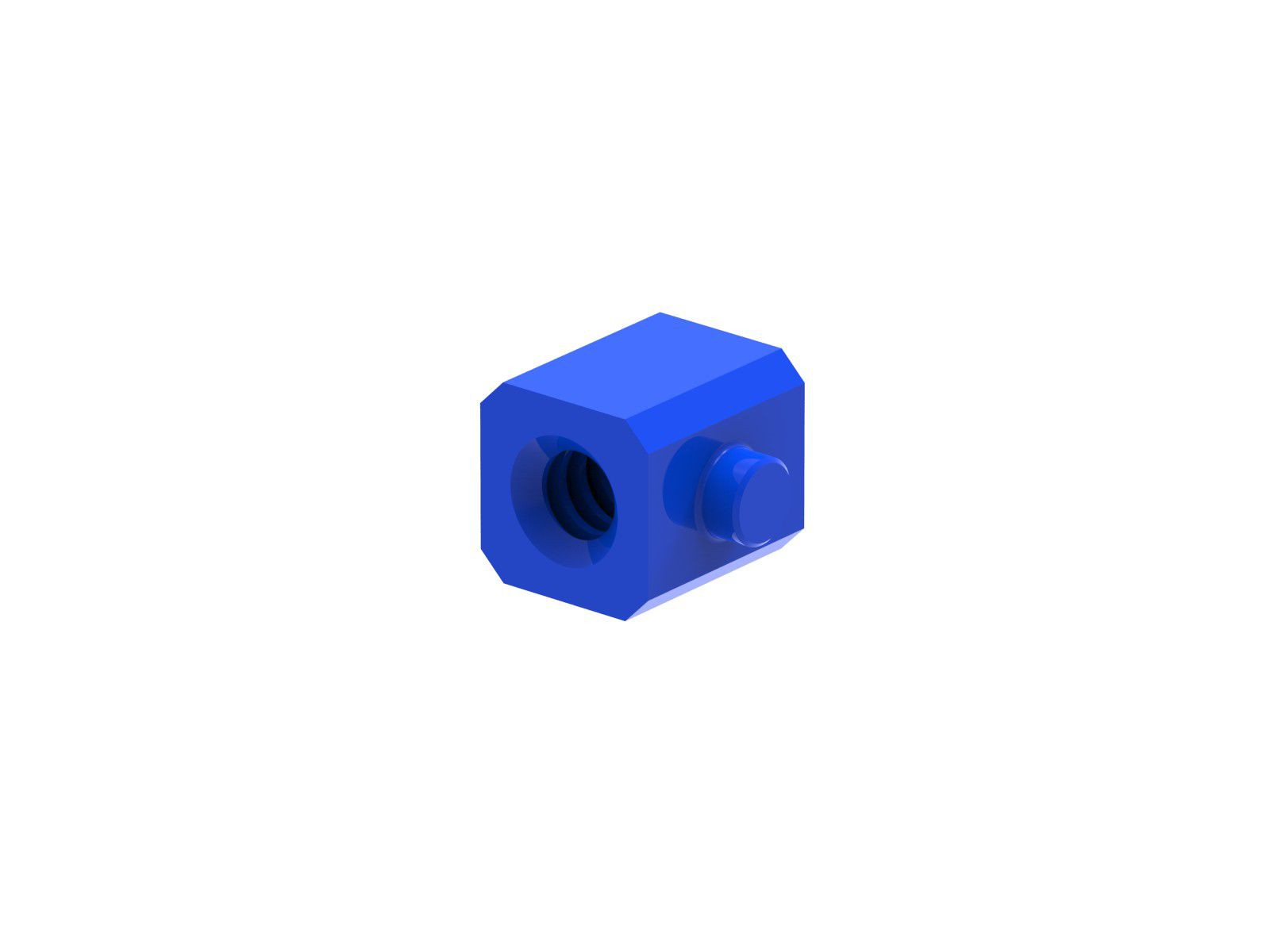

Nut TypeStandard nut with trunion style mount
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.04
