Nut CodeTMA
Anti-Backlash Nut Life with H10X Coating (in)NA - Typical Backlash 0.003 to 0.011
Anti-Backlash Nut Life without H10X Coating (in)NA - Typical Backlash 0.003 to 0.010
Connection TypeFlanged

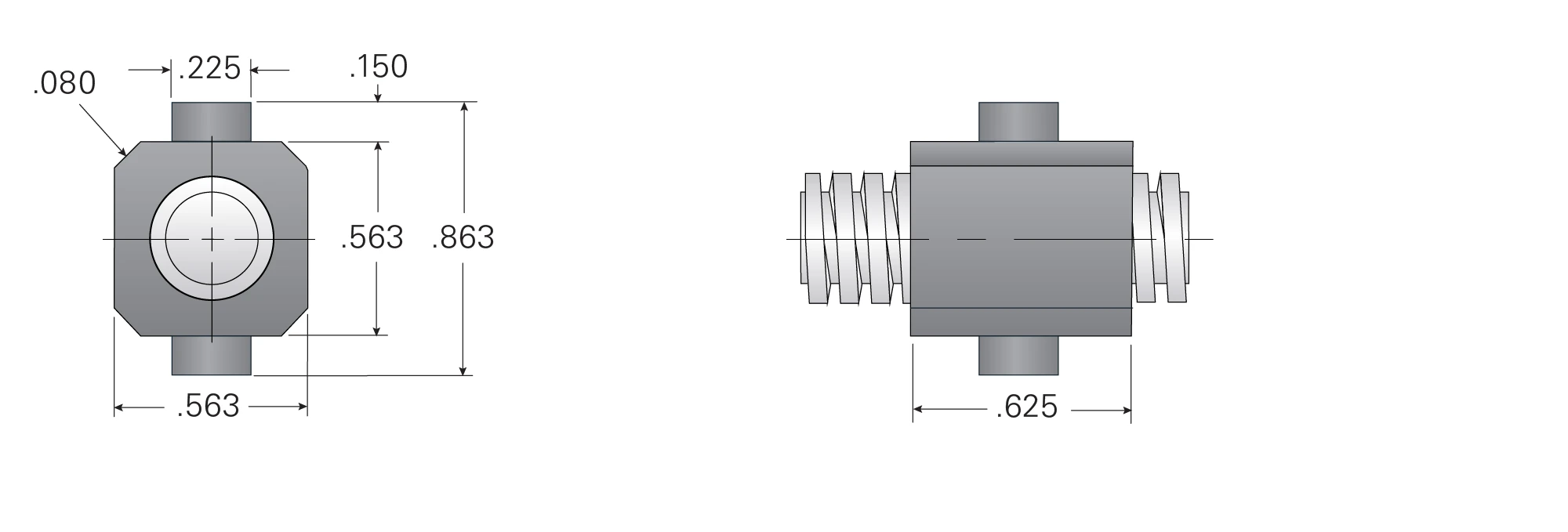

D - Chamfer Width (in)0.08
Diameter Code39
Dynamic Load Capacity (lb)125
E - Trunion Diameter (in)0.225 in
Efficiency (%)69.91495625
F - Trunion Height (in)0.15
G - Width over Pins (in)0.863
H - Nut Body Width (in)0.56
Mating Screw Part No039236R
Maximum Axial Lash (in)FALSE
Nut Height B (in)0.54
Nut Length C (in)0.625

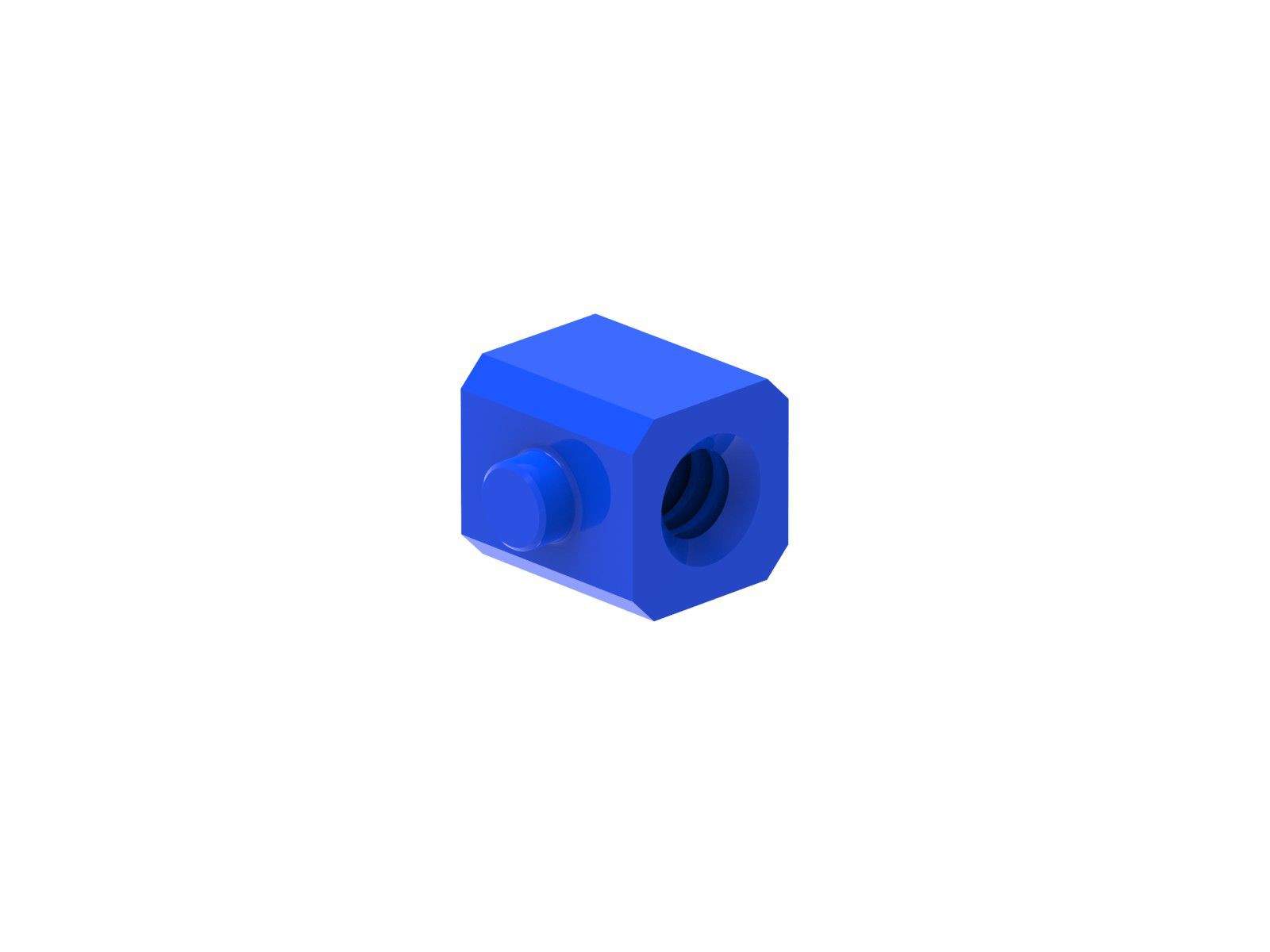

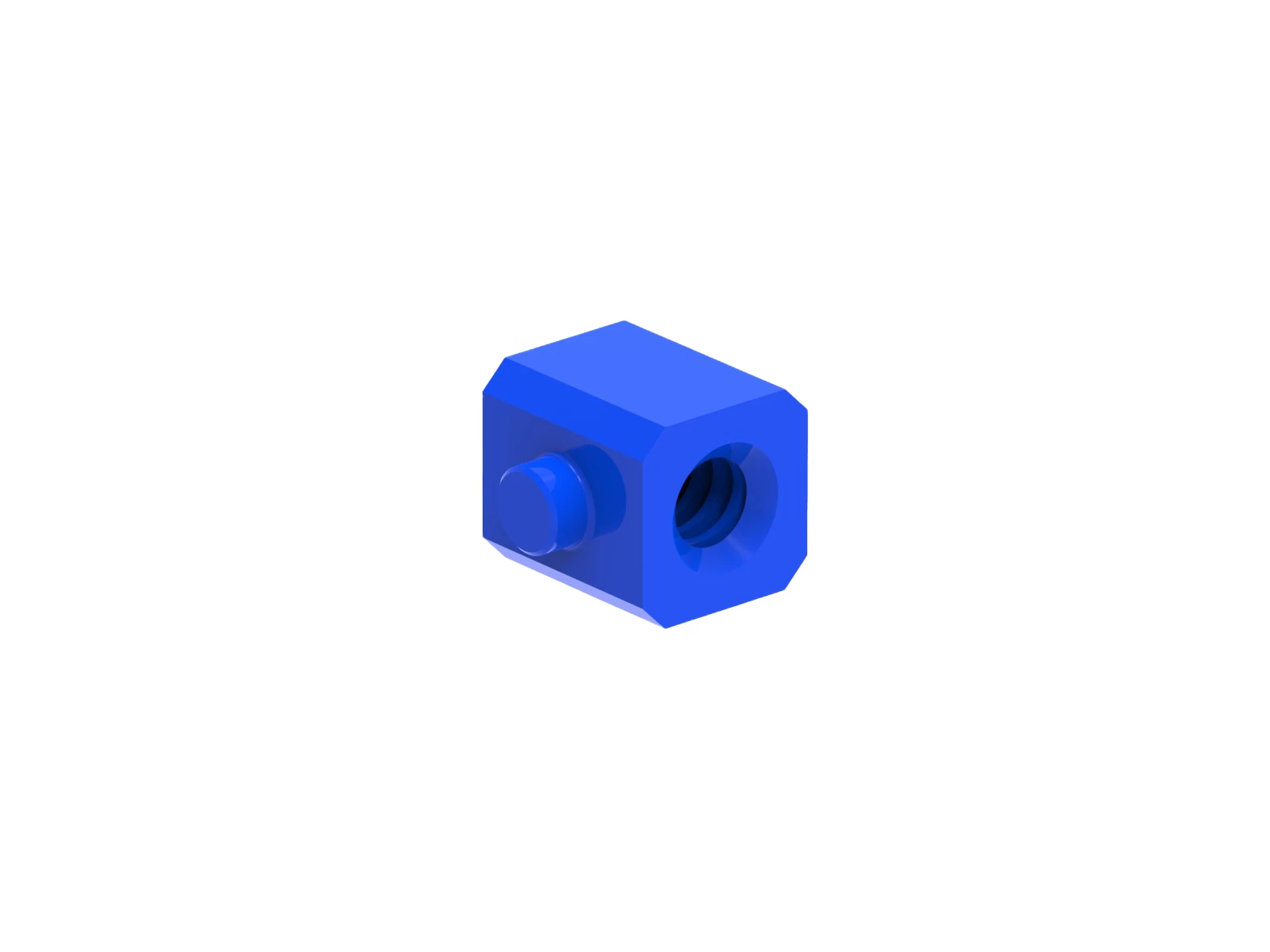

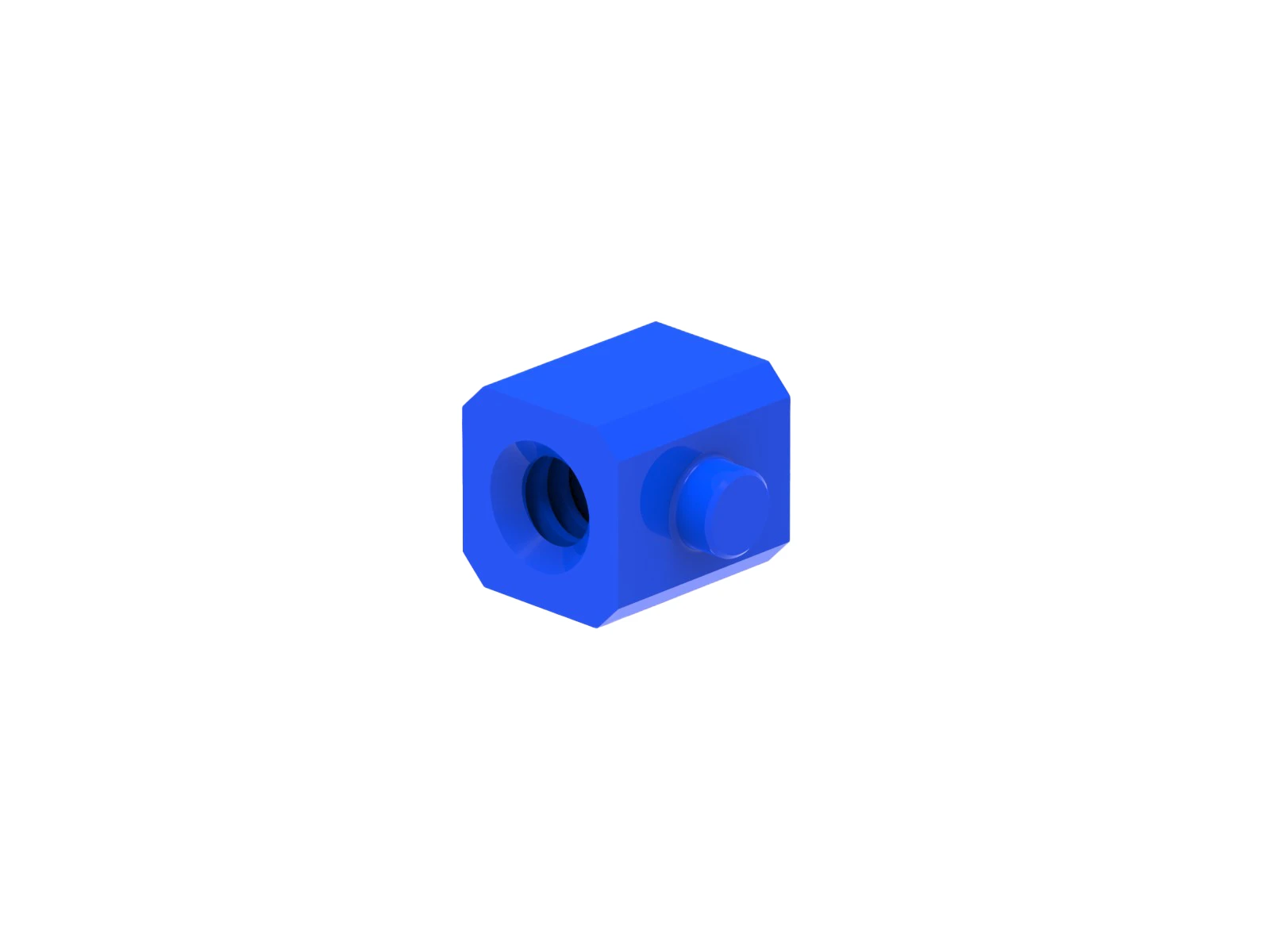

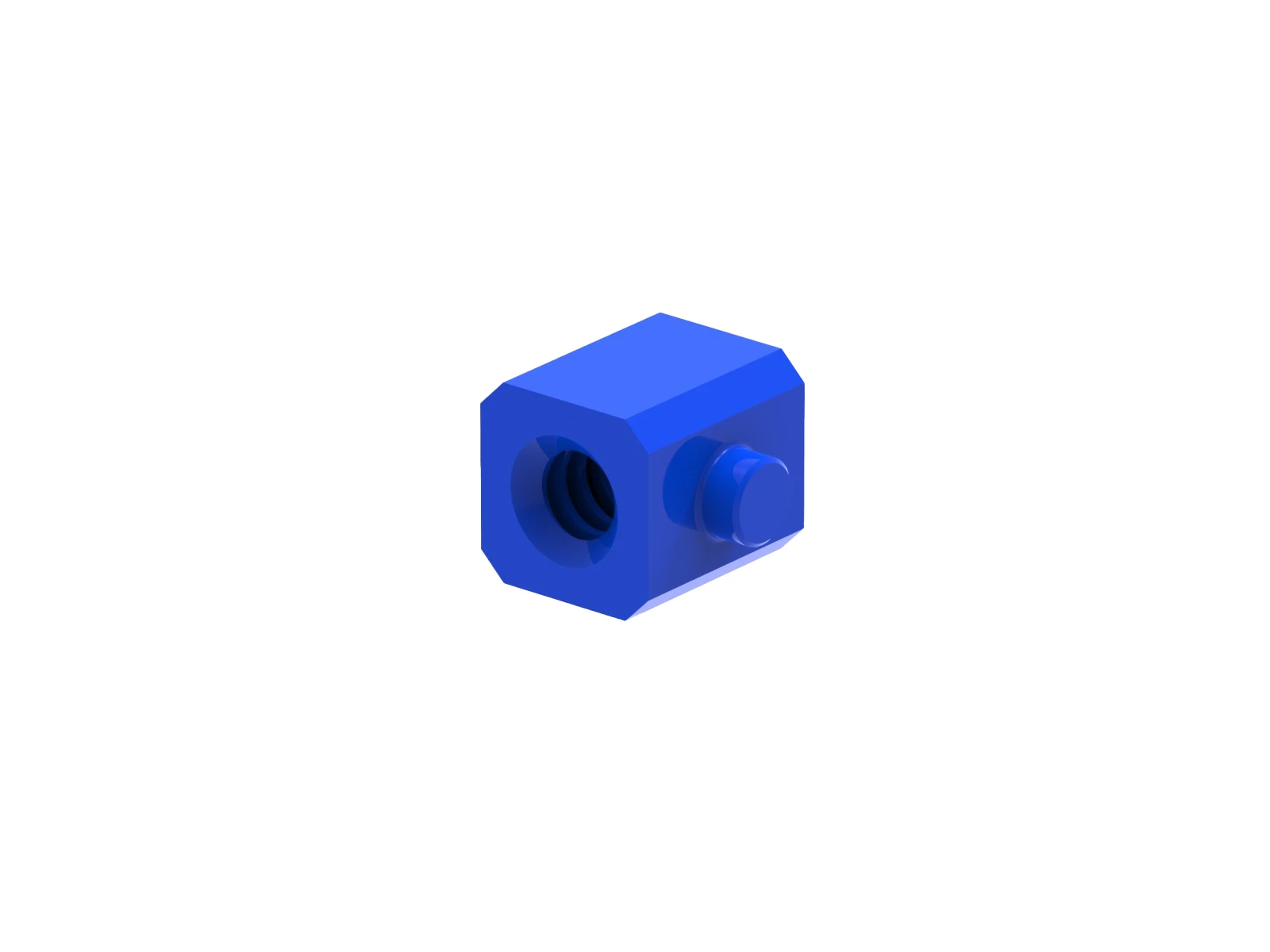

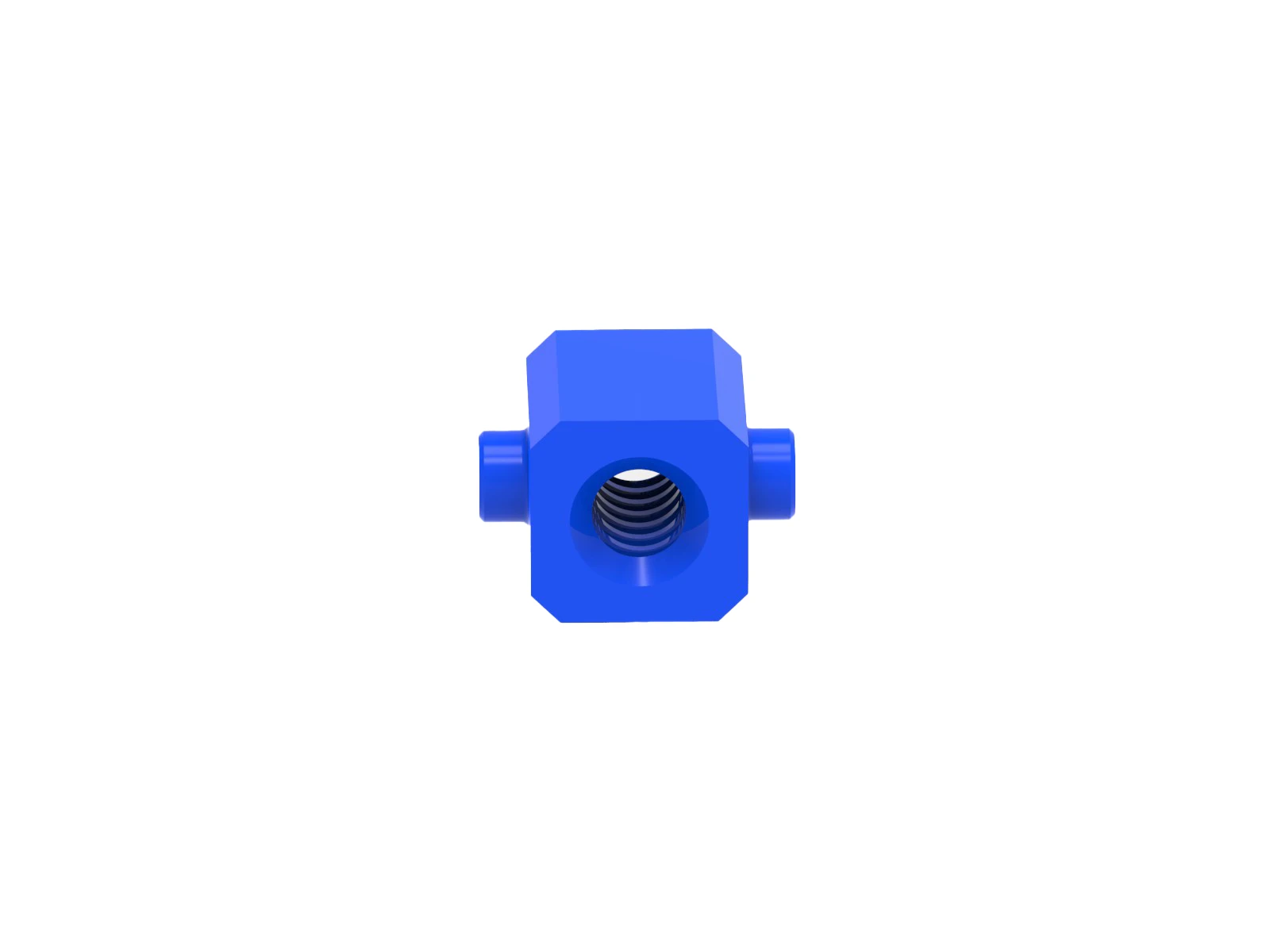

Nut TypeStandard nut with trunion style mount
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.05
