C (mm)34.5
Carriage StyleSquare
D (in)1.63
D (mm)41.4
Diameter Code37.00
E (in)0.25
E (mm)6.4
EncoderNo Encoder, E1000 Encoder
F (in)2.06
F (mm)52.3
Fx - Dynamic Normal Load (lbs)0
Fx - Static Normal Load (lbs)0
Fy - Axial Dynamic Load Capacity (lbs)8
Fy - Axial Static Load Capacity (lbs)8
Fz - Dynamic Normal Load (lbs)8
Fz - Static Normal Load (lbs)8
G (in)1.59
G (mm)40.4
Inductance/Phase (mH)1.95
J (in)0.24
J (mm)6.2
K (in)1.61
K (mm)40.6
Lead Screw Accuracy +/- (in/in)0.0003
Linear Guide SupportsNo External Rails, 1 Rail - Right, 1 Rail - Left, 2 Rails
M (in)0.52
M (mm)13.1
M2 (in)0.14
M2 (mm)3.6
Motor Weight (g)240
Motor Weight (oz)8.47, 5.7, 12.4, 8.5
Mx - Maximum Moment Load (in/lbs)0
My - Maximum Moment Load (in/lbs)0
Mz - Maximum Moment Load (in/lbs)0
N (in)0.17
N (mm)4.2
Number of Runner Blocks0
Nut TypeAnti-backlash, Standard
P (in)1.42
P (mm)36.00
Power Consumption (W)9.1
Q (in)0.71
Q (mm)18.00
R (in)1.86
R (mm)47.40
Rated Current (A)2, 1.25, 2.6, 1.5, 3.32
Resistance/Phase Ω1.2
SM4× 0.7
Screw Drive TypeLead Screw
SeriesCPA

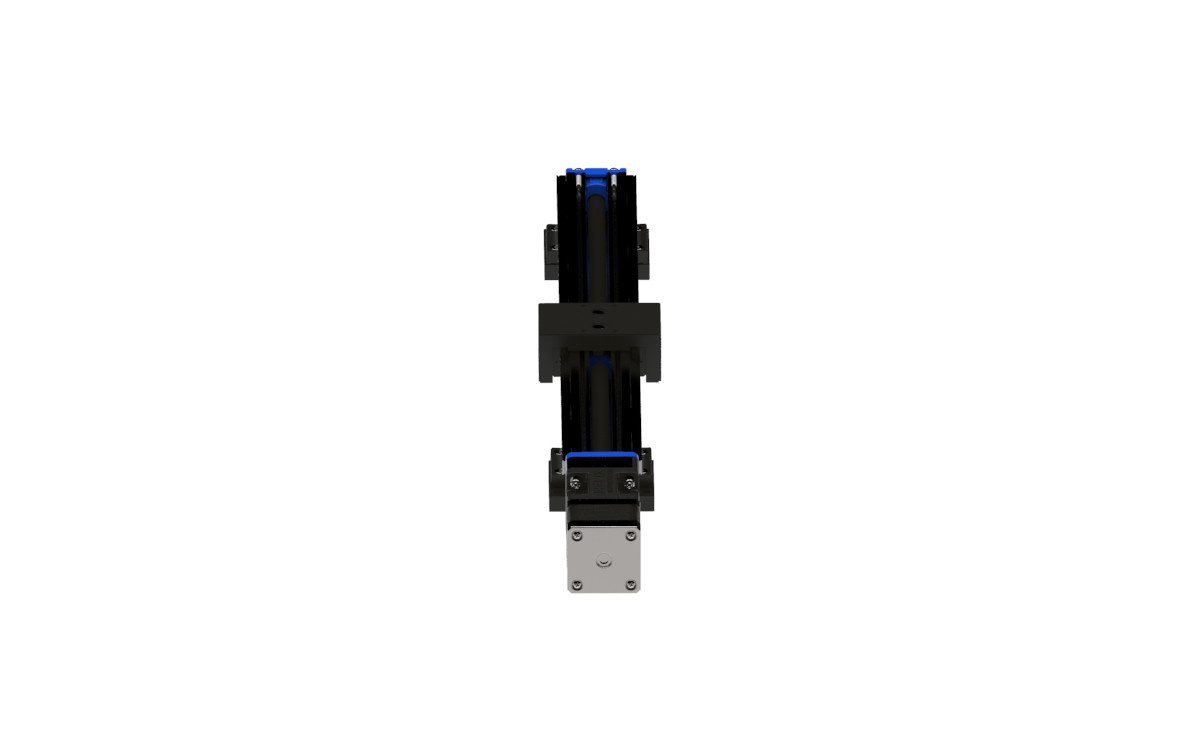

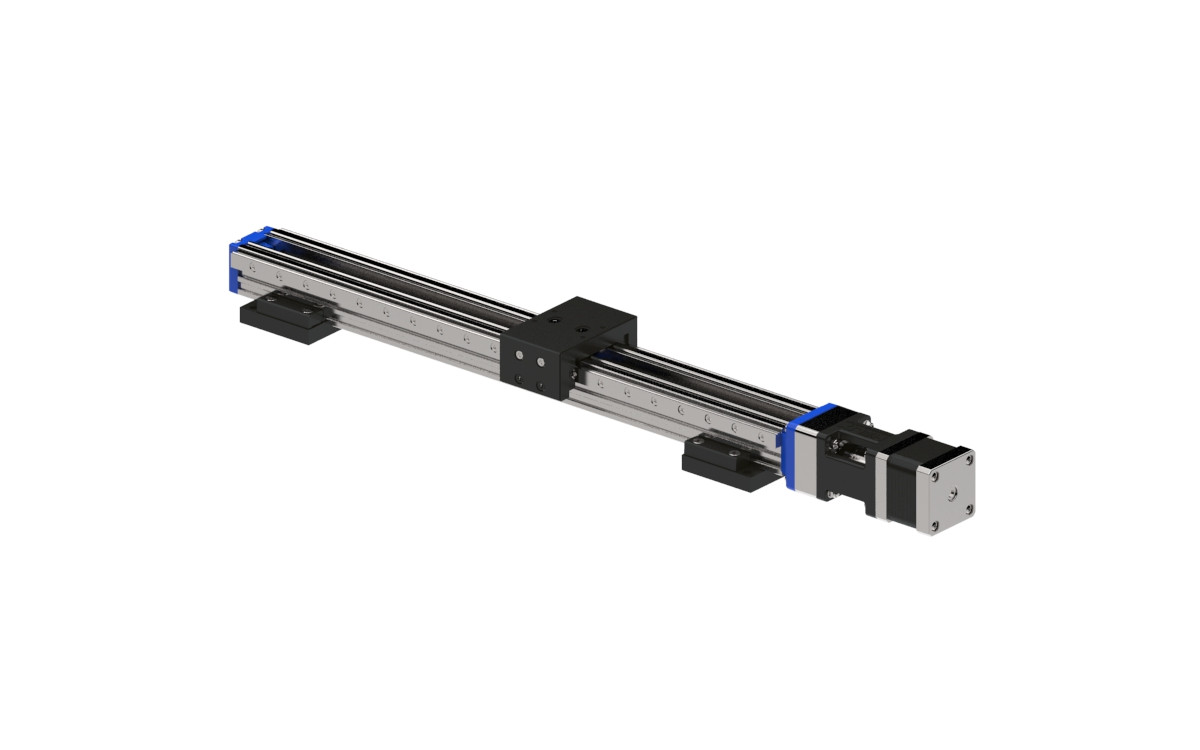

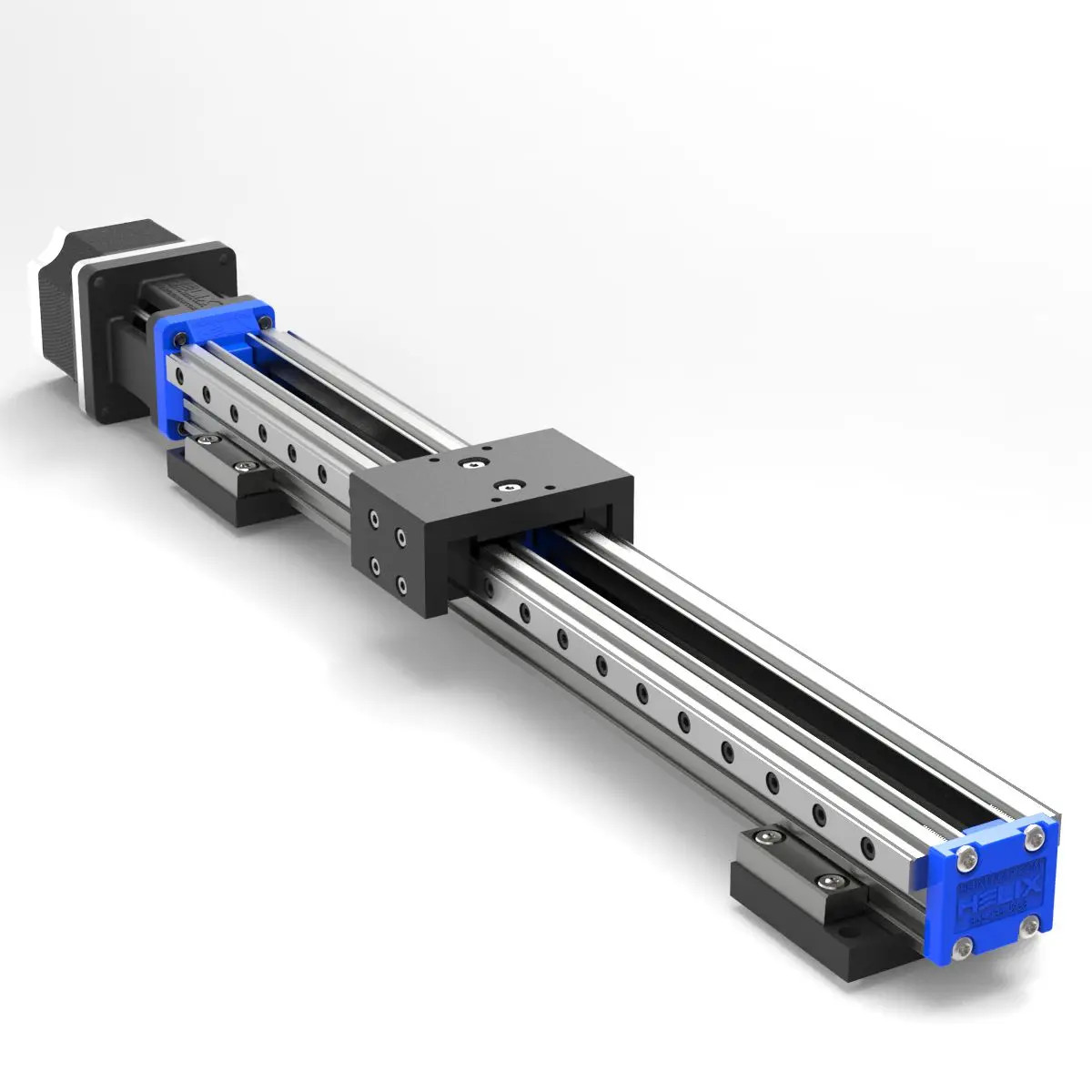

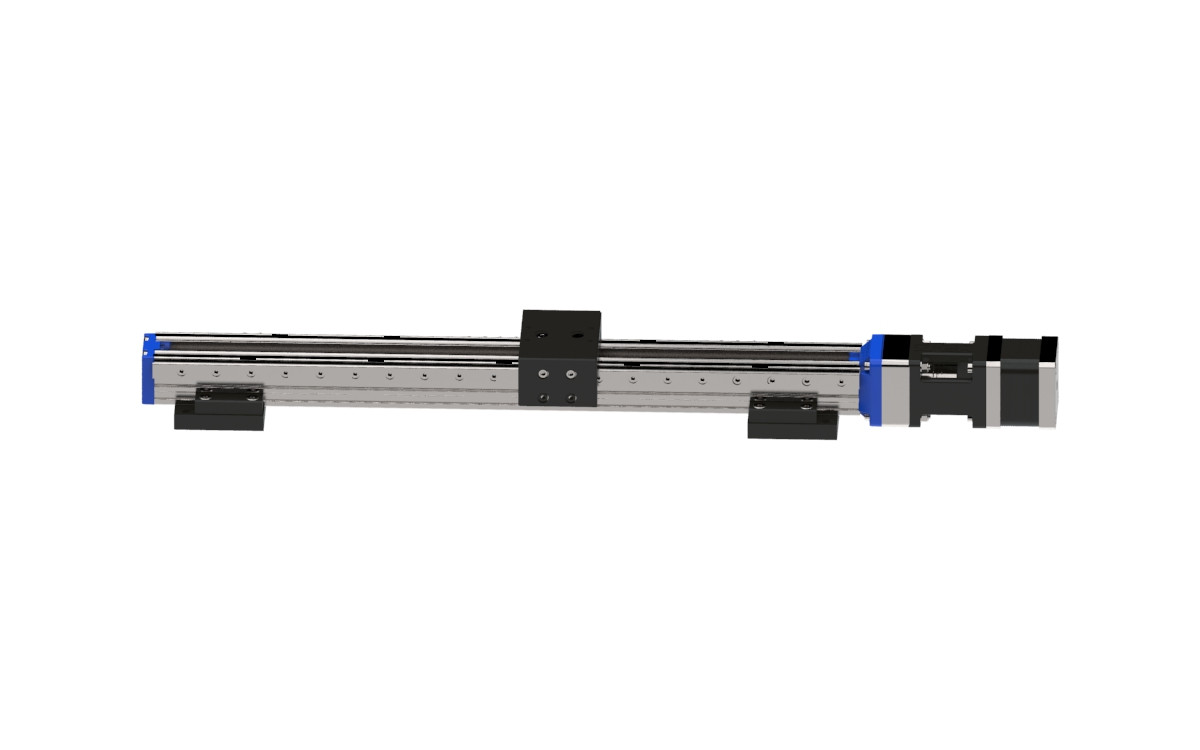

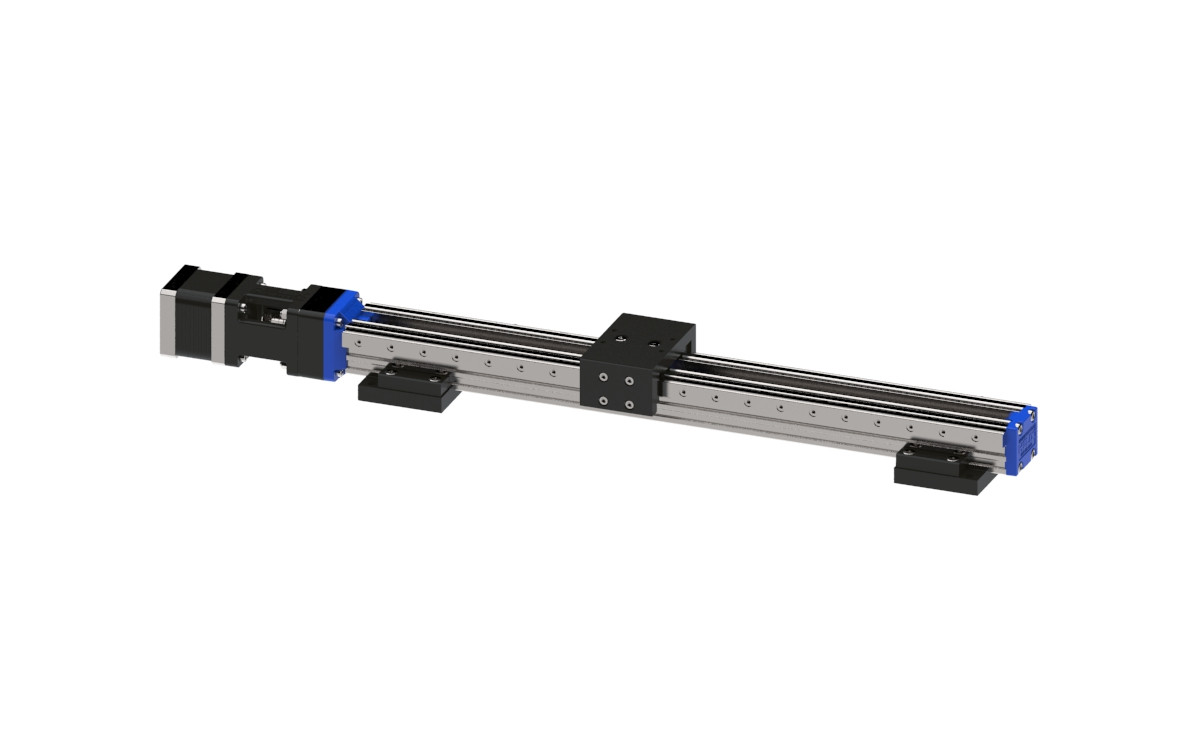

Series DescriptionMicro Precision Coupled Motor Linear Actuator
Step Angle1.8
T (in)1.75
T (mm)44.50
Travel (in)3.937007874
Travel (mm)100
U (in)1.38
U (mm)34.90
V (in)0.44
V (mm)11.10
W (in)1.19
W (mm)30.20
WiringBipolar
Wiring Leads4
X1 (in)0.25
X1 (mm)6.40
X2 (in)0.19
X2 (mm)4.80
X3 (in)2.00
X3 (mm)50.80
X4 (in)0.22
X4 (mm)5.50
Y1 (in)2.37
Y1 (mm)60.30
Y2 (in)2.00
Y2 (mm)50.80
Y3 (in)0.37
Y3 (mm)9.50
Z1 (in)0.70
Z1 (mm)17.90
Z2 (in)1.50
Z2 (mm)38.10
Zero Lash Axial Dynamic Load Capacity (lbs)8
