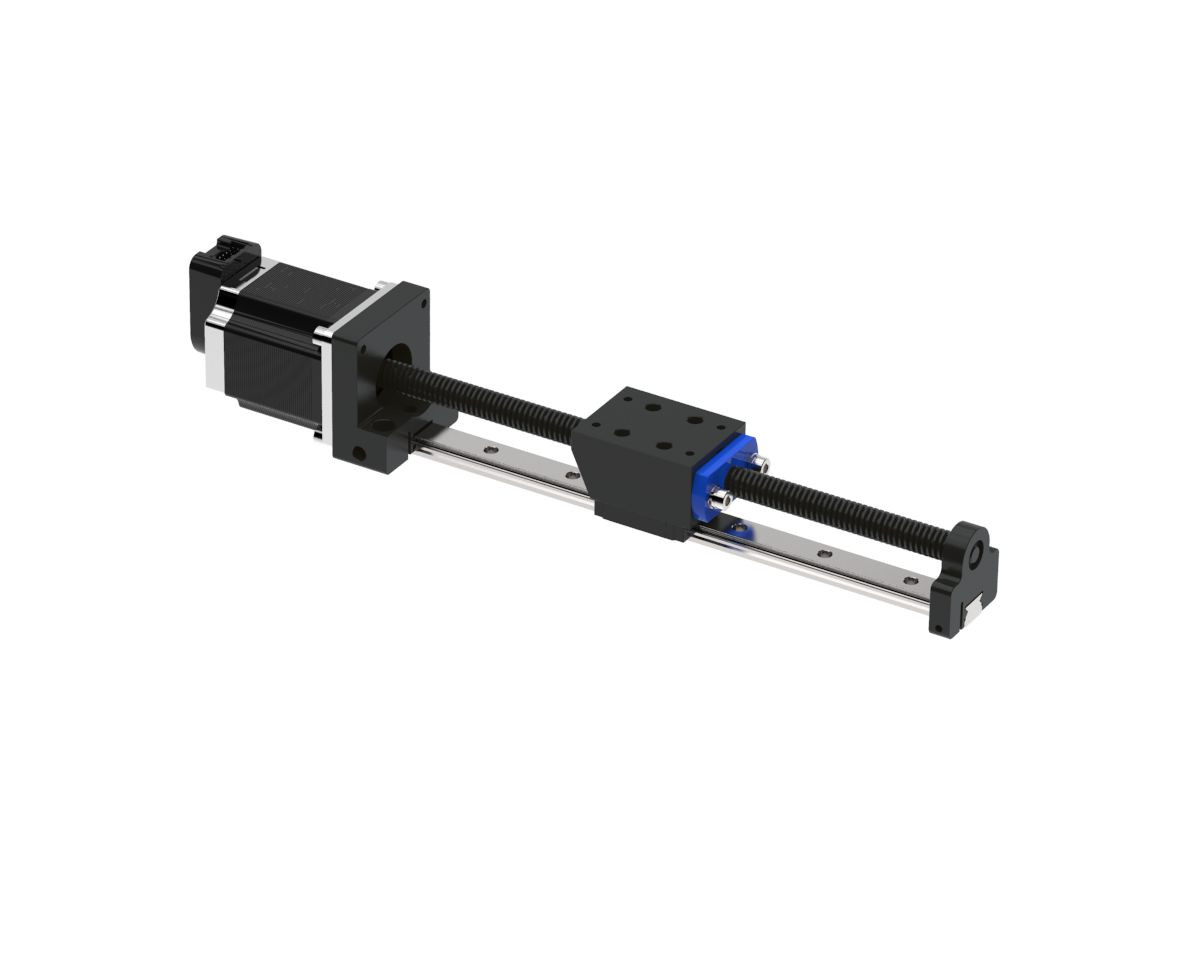

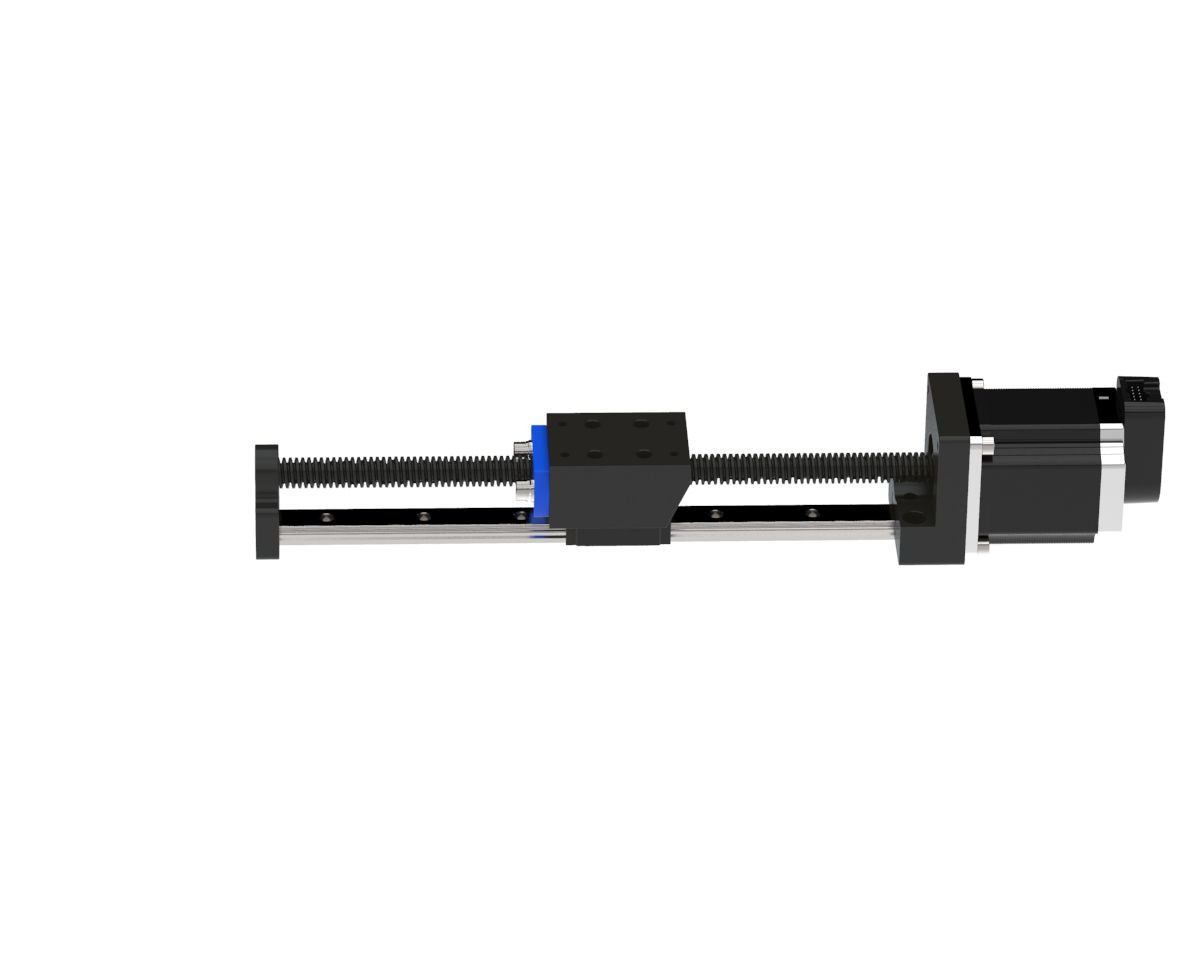

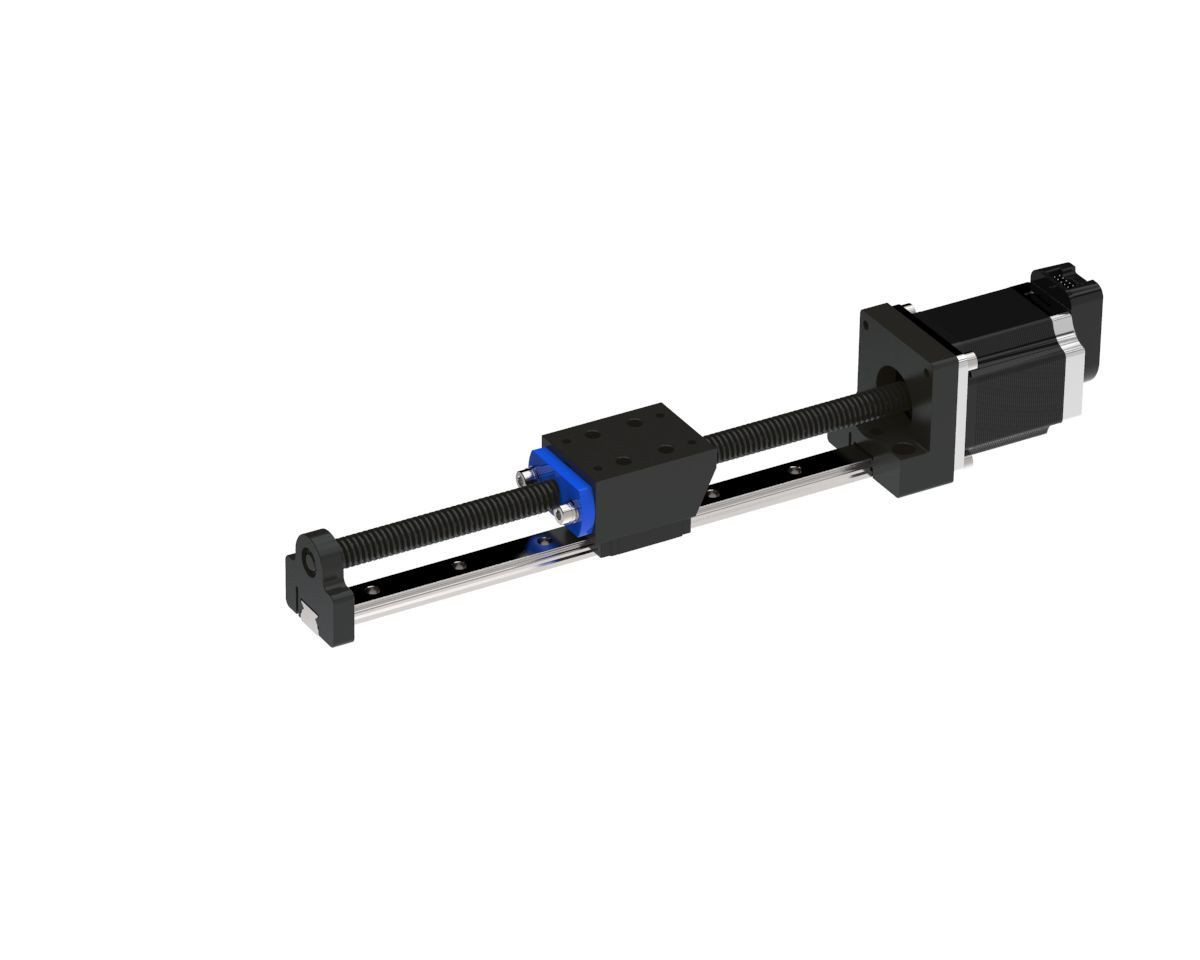

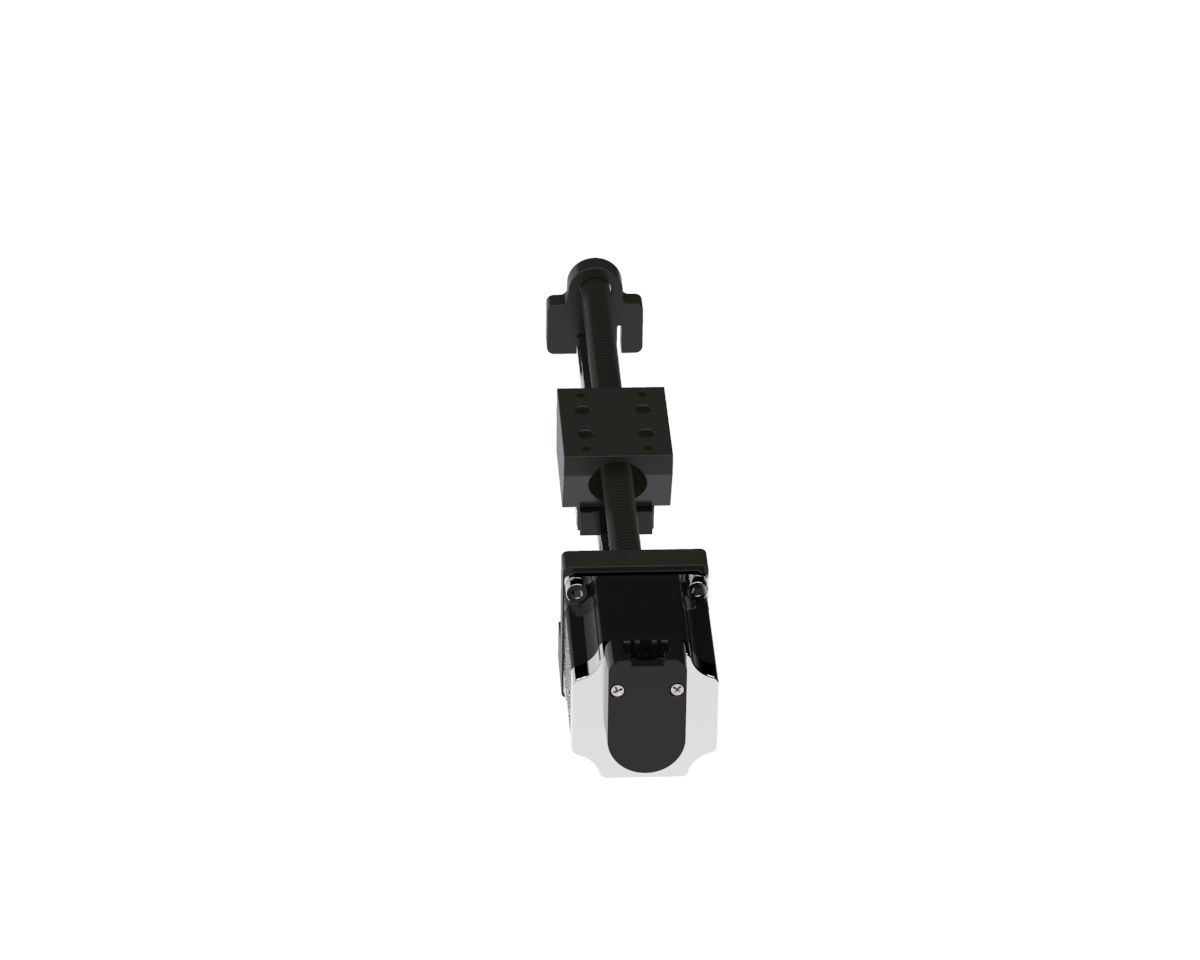

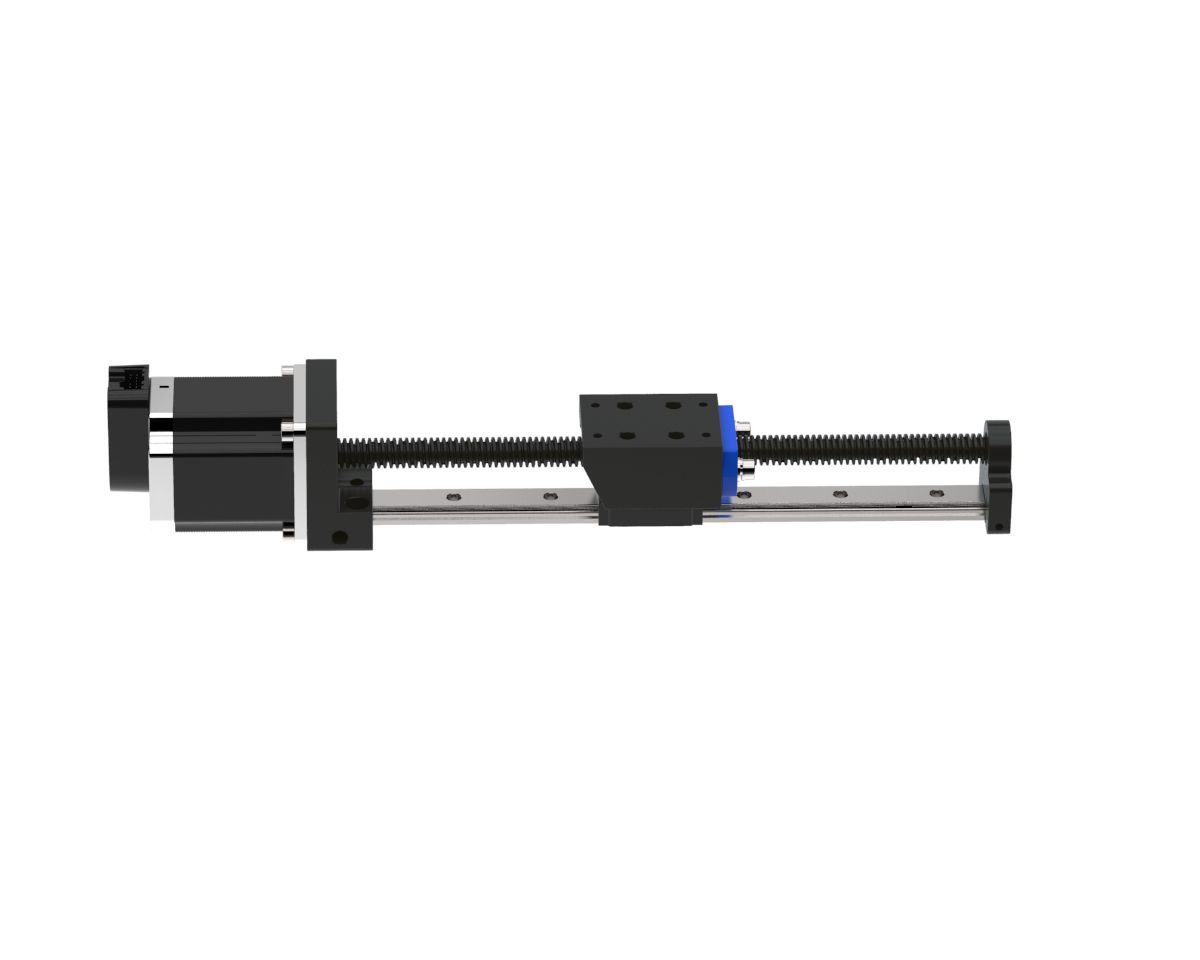

D1 (in)- in
D1 (mm)- mm
D2 (in)0.25 in
D2 (mm)6.35 mm
D3 (in)1.75 in
D3 (mm)44.45 mm
D4 (in)1 in
D4 (mm)25.4 mm
Diameter Code50
Diameter D (in)0.5
Diameter D (mm)12.7
E (in)1.75 in
E (mm)44.45 mm
EncoderNo Encoder, 1000 CPR
F (in)2.5 in
F (mm)63.5 mm
Fy - Axial Static Load Capacity (lbs)625.00
Fz - Dynamic Normal Load (lbs)856.50
Fz - Static Normal Load (lbs)1,256.70
G10-24 UNC-2B
G1 (in)0.38 in
G1 (mm)9.652 mm
H (in)2.25 in
H (mm)57.15 mm
Inductance/Phase (mH)1.33
J (in)2.38 in
J (mm)60.452 mm
K (in)1.16 in
K (mm)29.464 mm
K1 (in)0.1 in
K1 (mm)2.54 mm
K2 (in)0.16 in
K2 (mm)4.064 mm
K3 (in)1.06 in
K3 (mm)26.924 mm
L (in)21.7 in
L (mm)551.18 mm
Length Adder (in)3.7
Length Adder (mm)93.98
Motor Size (NEMA)23
Motor StackDouble Stack, Single Stack
Motor Voltage (V)3.25, 5
Motor Weight (g)958
Motor Weight (oz)33.8, 18
Mx - Maximum Moment Load (in/lbs)239.00
My - Maximum Moment Load (in/lbs)386.00
Mz - Maximum Moment Load (in/lbs)239.00
N (in)1.67 in
N (mm)42.418 mm
Nut TypeAxial Anti-backlash Nut, Standard Freewheeling Nut
P (in)1.79 in
P (mm)45.466 mm
Power Consumption (W)14
Profile Rail Linear Actuator Catalogprofile_rail_linear_guidance_system.pdf
Q1 (in)1.22 in
Q1 (mm)30.988 mm
Q (in)2.25 in
Q (mm)57.15 mm
R (in)2.63 in
R (mm)66.802 mm
Rated Current (A)3.32, 2.16, 2, 1.3
S (in)2.38 in
S (mm)60.452 mm
Screw Drive TypeLead Screw
T (in)1.63 in
T (mm)41.402 mm
Temperature Rise (°C)75
Travel (in)18
Travel (mm)457.2
Travel Per Step (in)0.0005
Travel Per Step (mm)0.0127
U (in)0.65 in
U (mm)16.51 mm
V (in)0.81 in
V (mm)20.574 mm
W (in)1.575 in
W (mm)39.878 mm
WiringBipolar
Wiring Leads4
X (in)1.26 in
X (mm)32.004 mm
Y (in)0.13 in
Y (mm)3.302 mm
Zero Lash Axial Dynamic Load Capacity (lb)15.00
