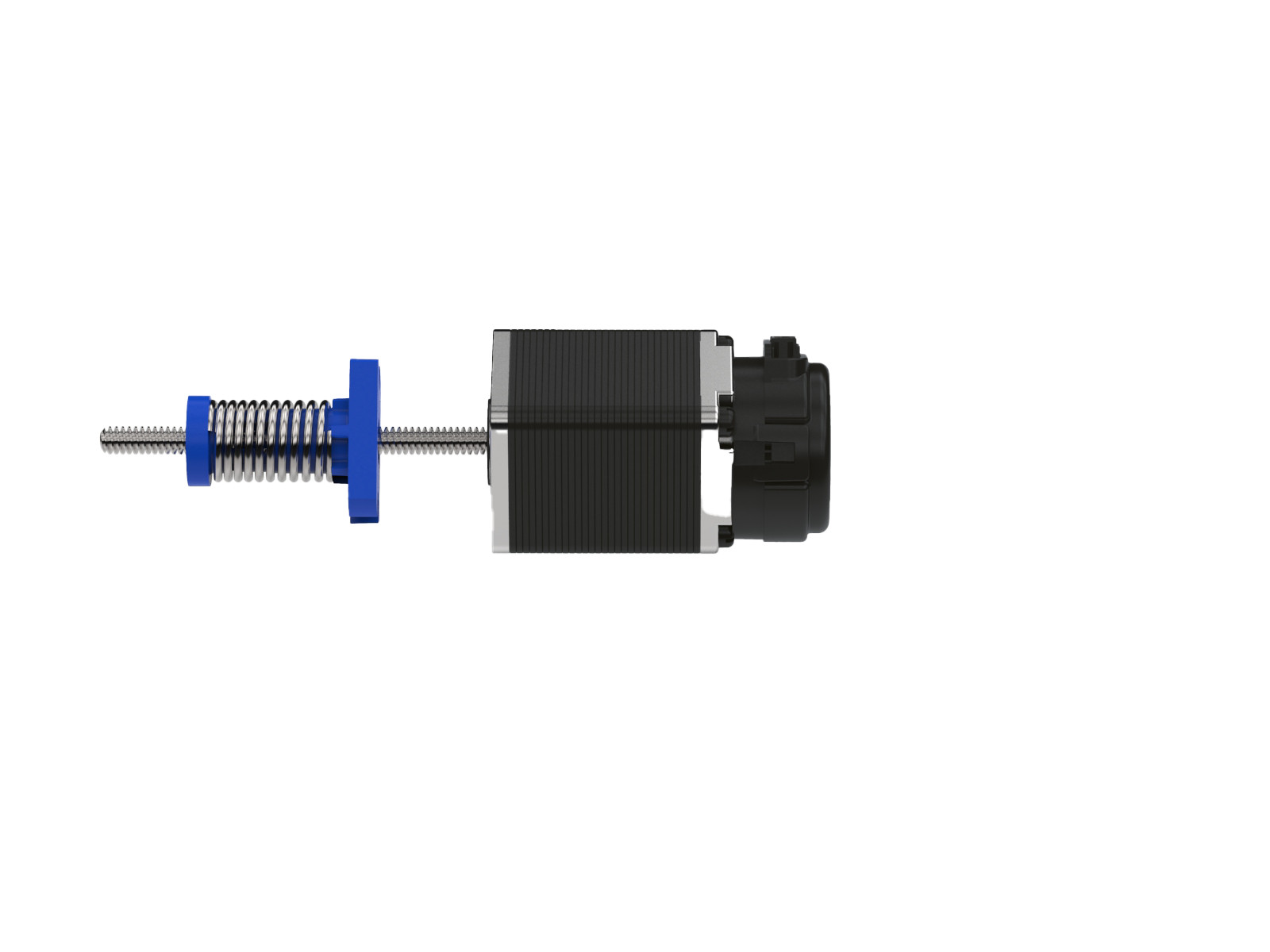

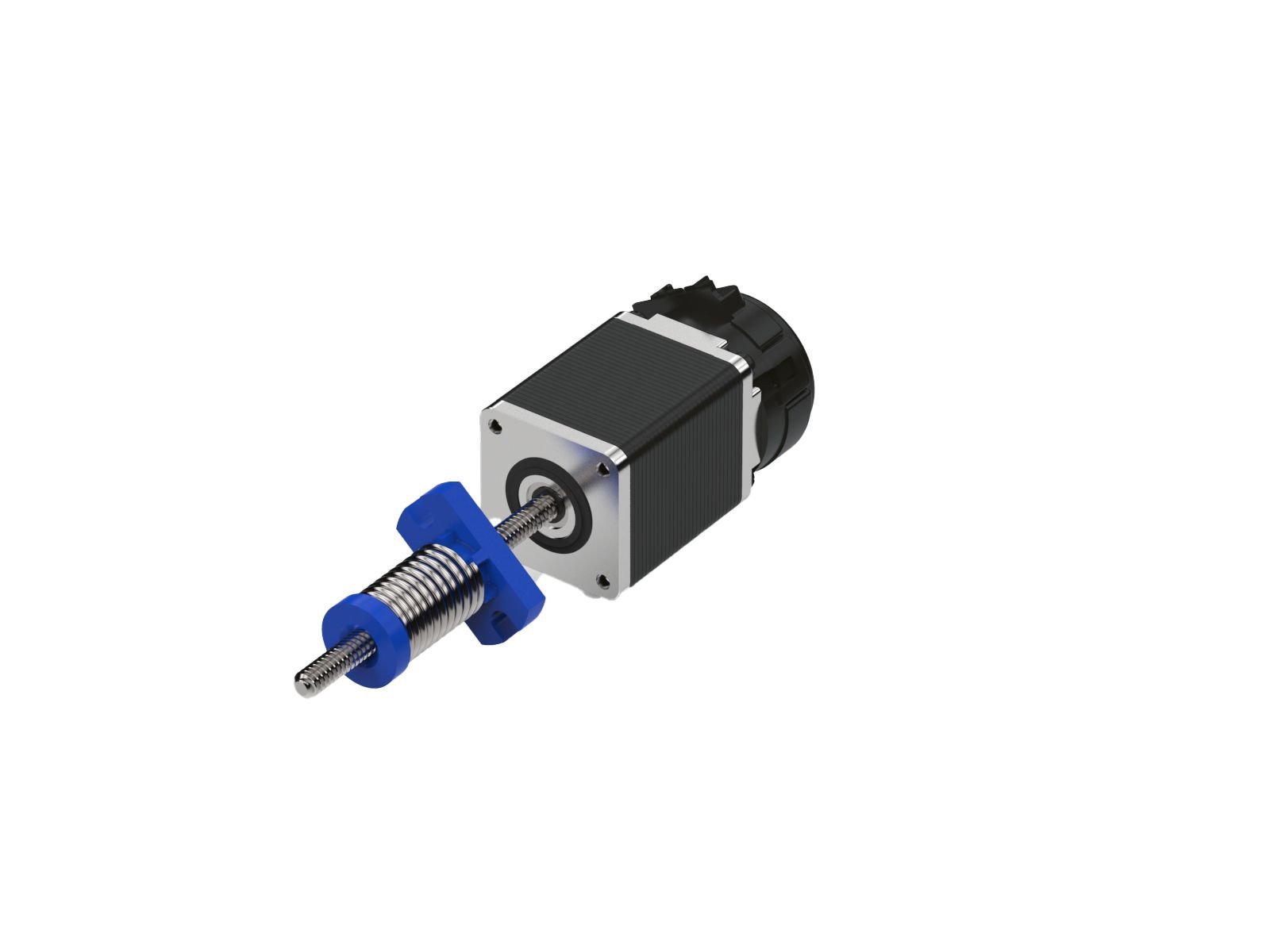

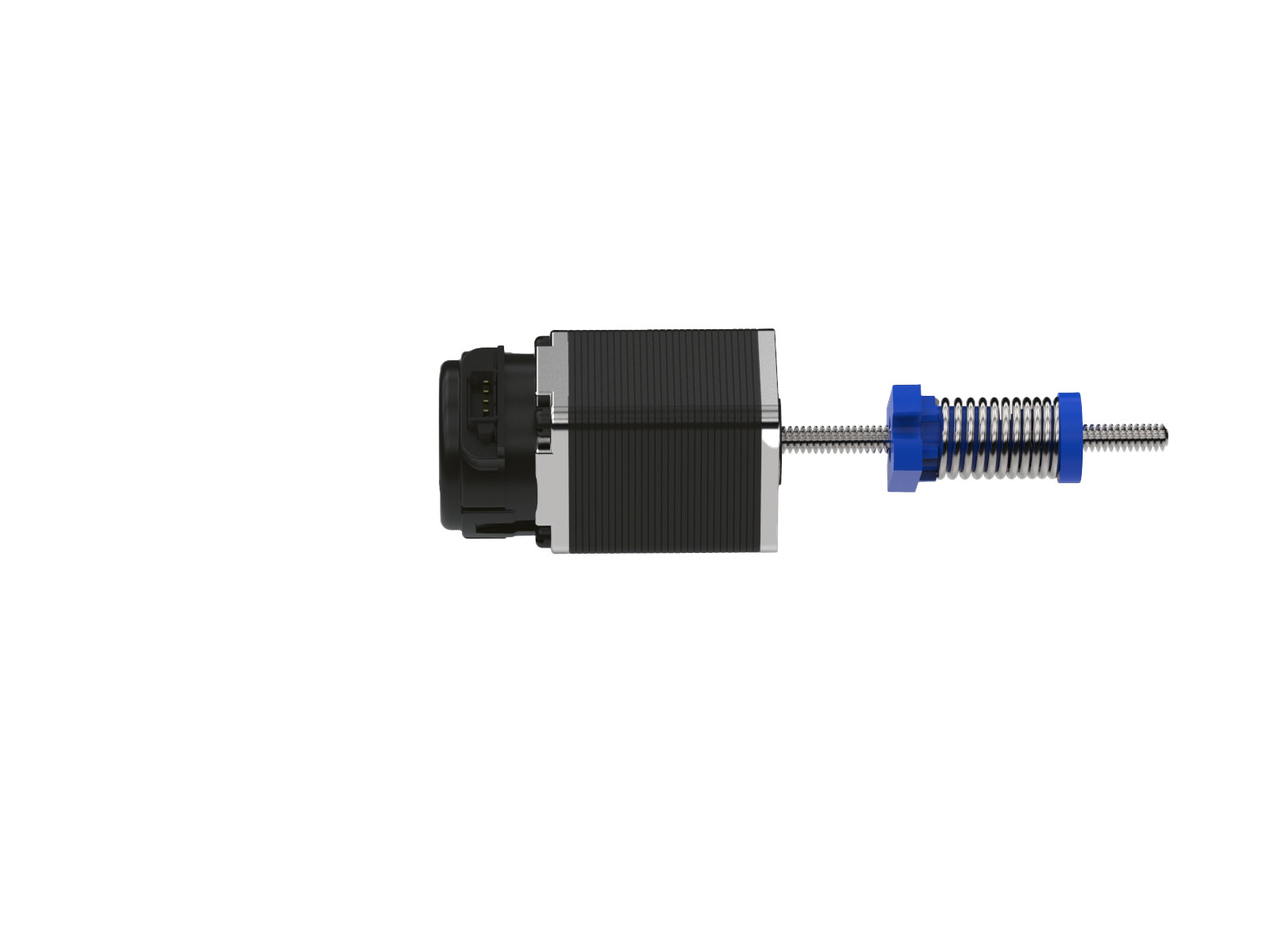

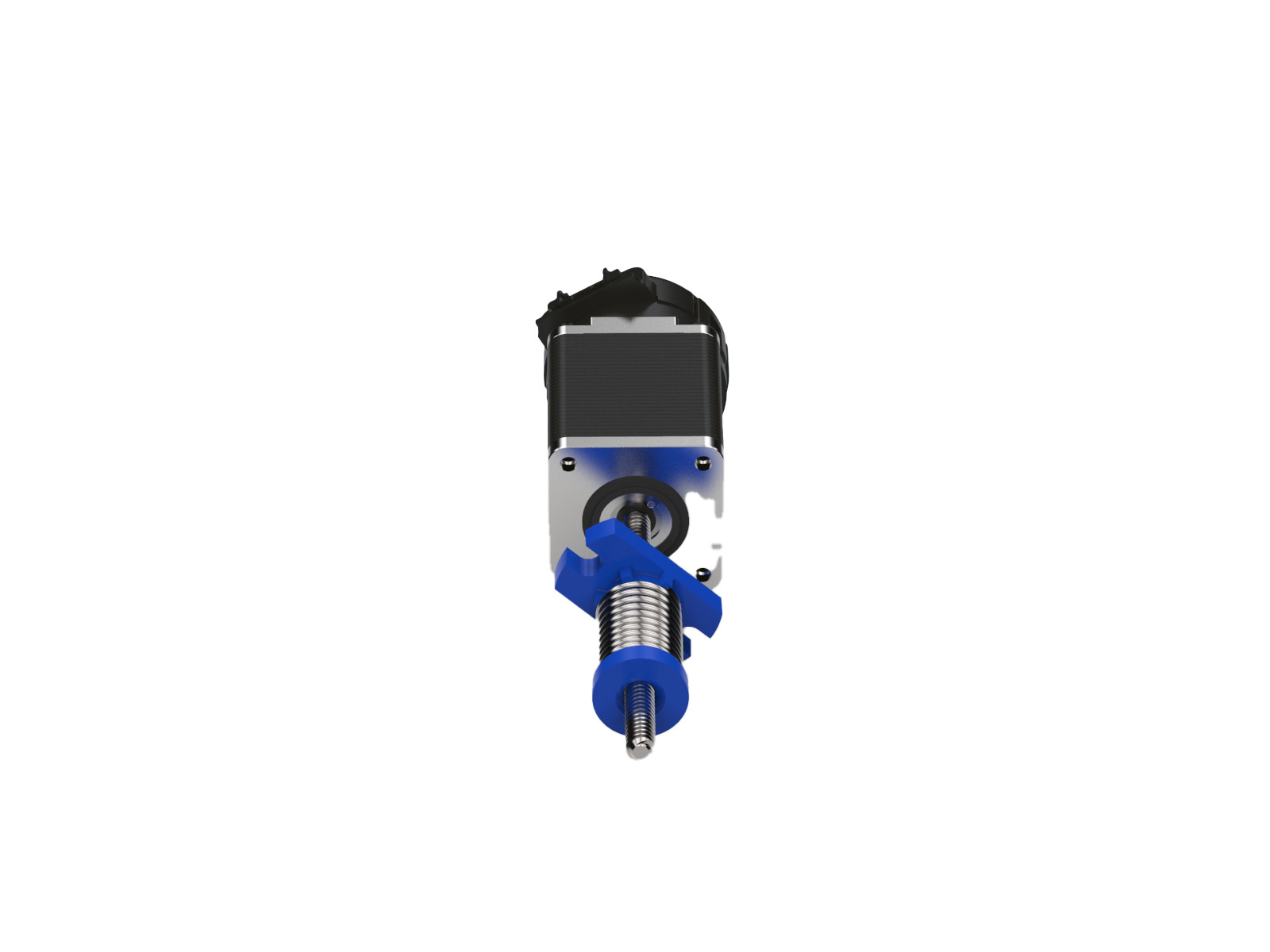

0.125 in Diameter x 0.024 in Lead x 4 in Length External Stepper Motor Linear Actuator

SMA-E-125024-04

External Stepper Motor Linear Actuator, NEMA 8 single stack, 2.5 volt, 0.125 in diameter, .024 in lead, 4.00 inch stroke with no nut included, 500 CPR encoder, position A, no bearing support

Loading...

Loading...

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

0.125 in Diameter x 0.078 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.078 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.078 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.078 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.012 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.012 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.012 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.012 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.039 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.039 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.039 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.039 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.012 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.012 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.039 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.039 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.062 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.062 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.048 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.048 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.078 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.078 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.019 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.019 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.062 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.062 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$270.05View Product

0.125 in Diameter x 0.048 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.048 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$283.91View Product

0.125 in Diameter x 0.078 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.078 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$283.91View Product

0.125 in Diameter x 0.019 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.019 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$283.91View Product

0.125 in Diameter x 0.039 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.039 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$283.91View Product

0.125 in Diameter x 0.012 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.012 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$283.91View Product

0.125 in Diameter x 0.019 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.019 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$297.77View Product

0.125 in Diameter x 0.024 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.125 in Diameter x 0.024 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$297.77View Product

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

Home
Linear Actuators
Lead Screw SMA
External
8

Dimensions Lead

Screw Length (in)4

Screw Length (mm)101.6

Lead (in)0.024

Lead (mm)0.6096

Performance & Tolerances

Lead Accuracy +/- (in/in)0.1300

Measurement systemMetric

Product Info

Actuator StyleExternal

Bearing Load Limit (N)65

Bearing Support0

Diameter (in)0.125

Diameter (mm)3.175

Diameter Code12

E (in)0.05

E (mm)1.27

Encoder500 CPR, No Encoder

Encoder Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/nema8encoder.webp

F (in)0.62

F (mm)15.75

G (in)0.13

G (mm)3.18

Insulation Resistance Œ©20Ω

Inductance/Phase (mH)1.5

J (in)0.78

J (mm)19.81

K (in)0.60

K (mm)15.24

L (in)1.18

L (mm)30.00

Lead Screw Accuracy +/- (in/in)0.1/300

MM2

Motor Size (NEMA)8

Motor StackSingle Stack, Double Stack

Motor Voltage (VDC)2.5, 5

Motor Weight (g)43

N (in)0.10

N (mm)2.50

Nut Type0, AFA, NFA

P (in)11.81

P (mm)299.97

Placeholder AttributeT, 00

Power Consumption (W)1.5

QAWG28#

Rated Current (A)0.49, 0.24, 1.9, 0.75

Resistance/Phase Œ©5.1

Screw Drive TypeLead Screw

Step Angle1.8

Stepper Motor Actuators Cataloghttps://s3.us-west-2.amazonaws.com/catsy.1124/stepper_motor_linear_actuators.pdf

Stroke Length (in)4 in

Stroke Length (mm)101.6

Temperature Rise (°C)75

Temperature Rise (°F)167

Travel Per Step (in)0.127

Travel Per Step (mm)0.005

WiringBipolar

Wiring Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/sma-wiring-8-23-34.webp

Wiring Leads4

Motor Size (NEMA)

Encoder

Motor Voltage (VDC)

Nut Type

Stroke Length (in)

Mount

Motor Stack

Price: Starting at$270.05
