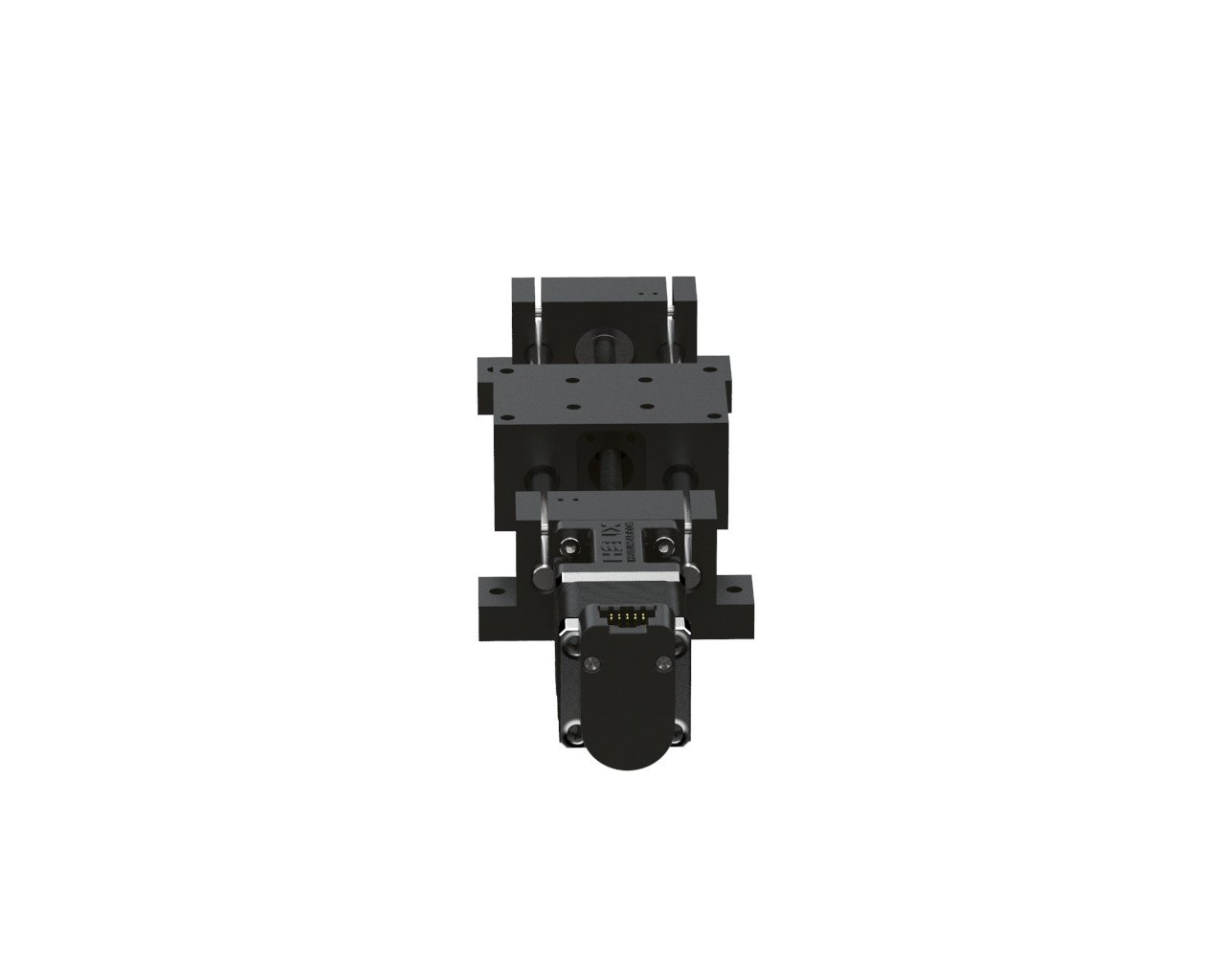

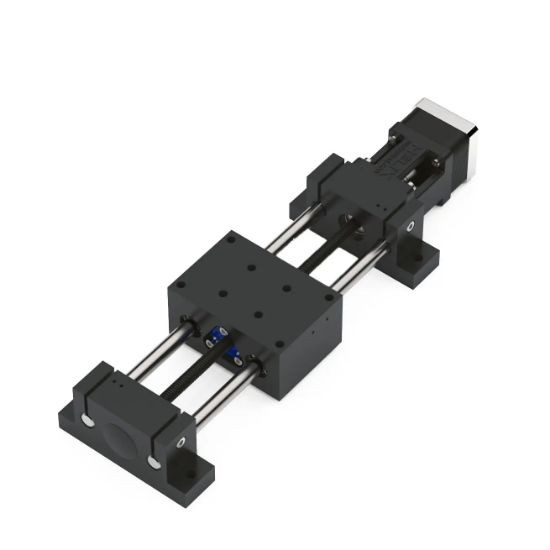

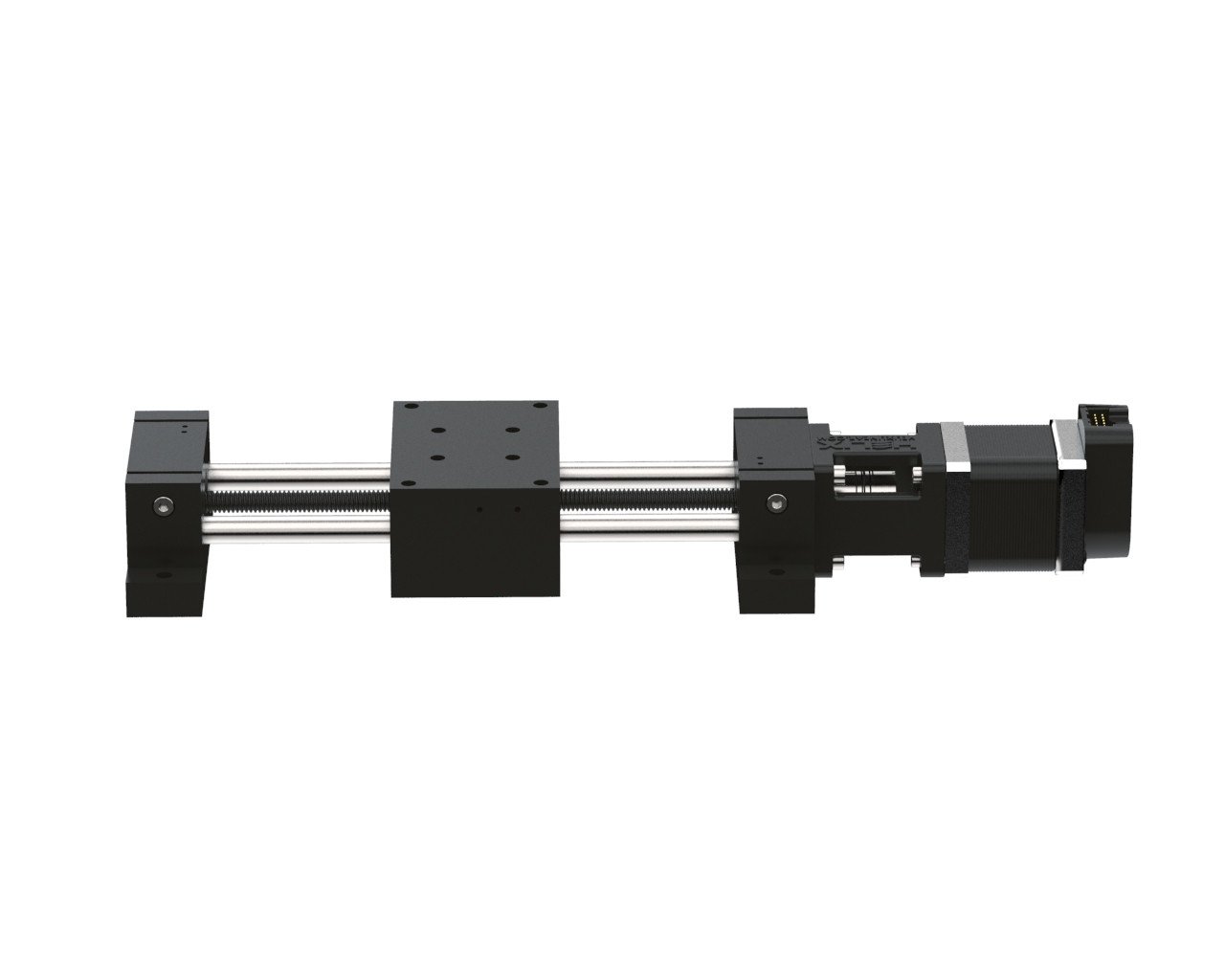

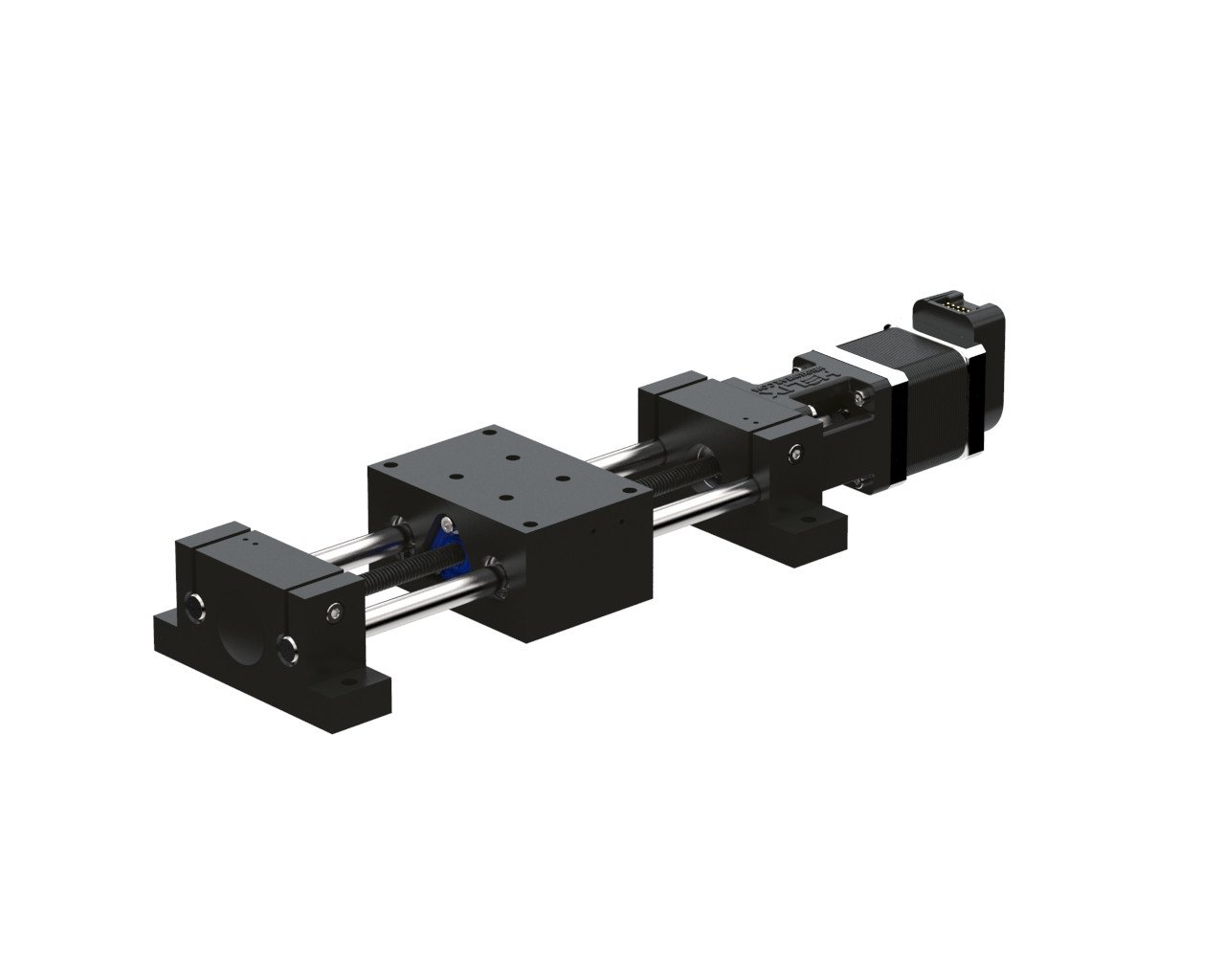

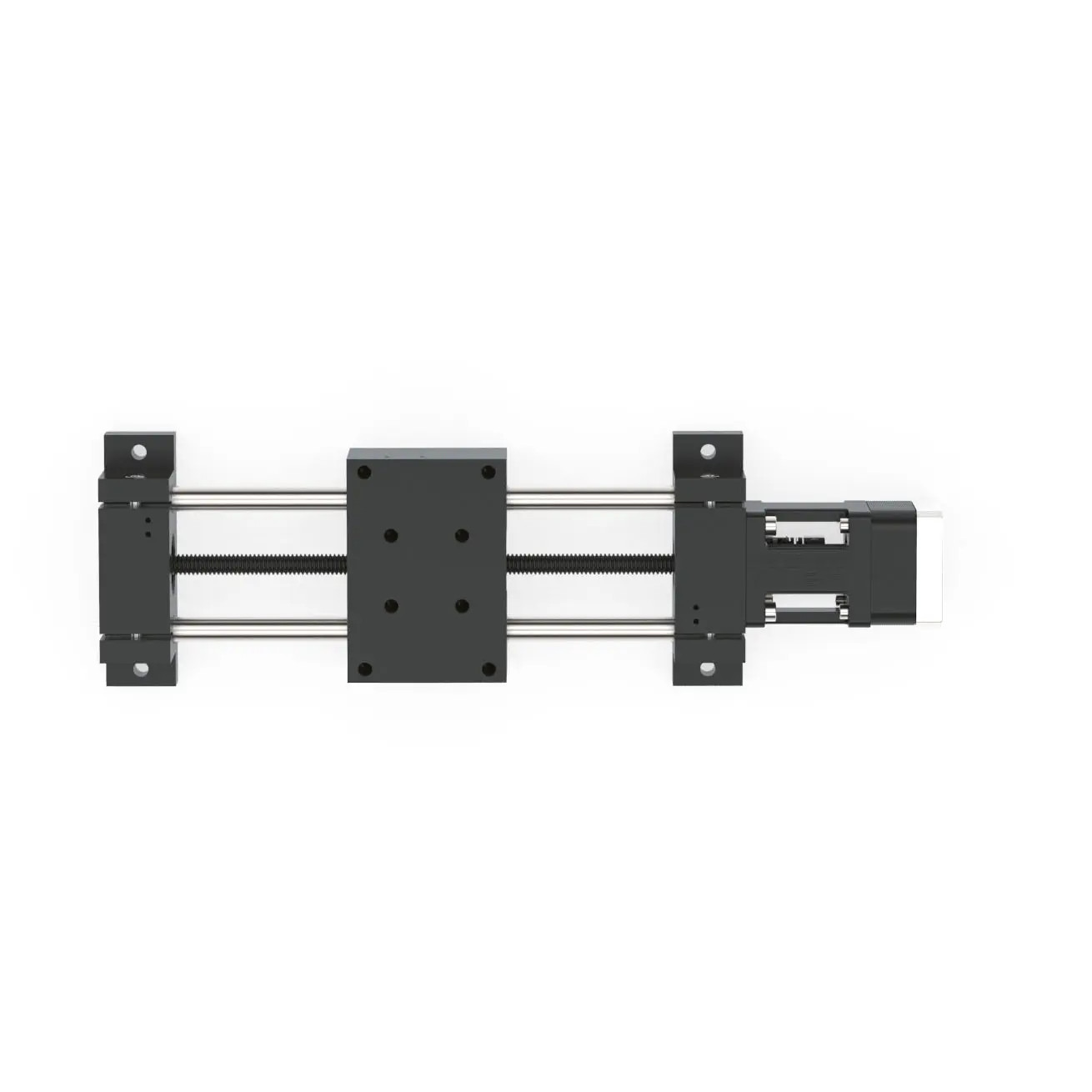

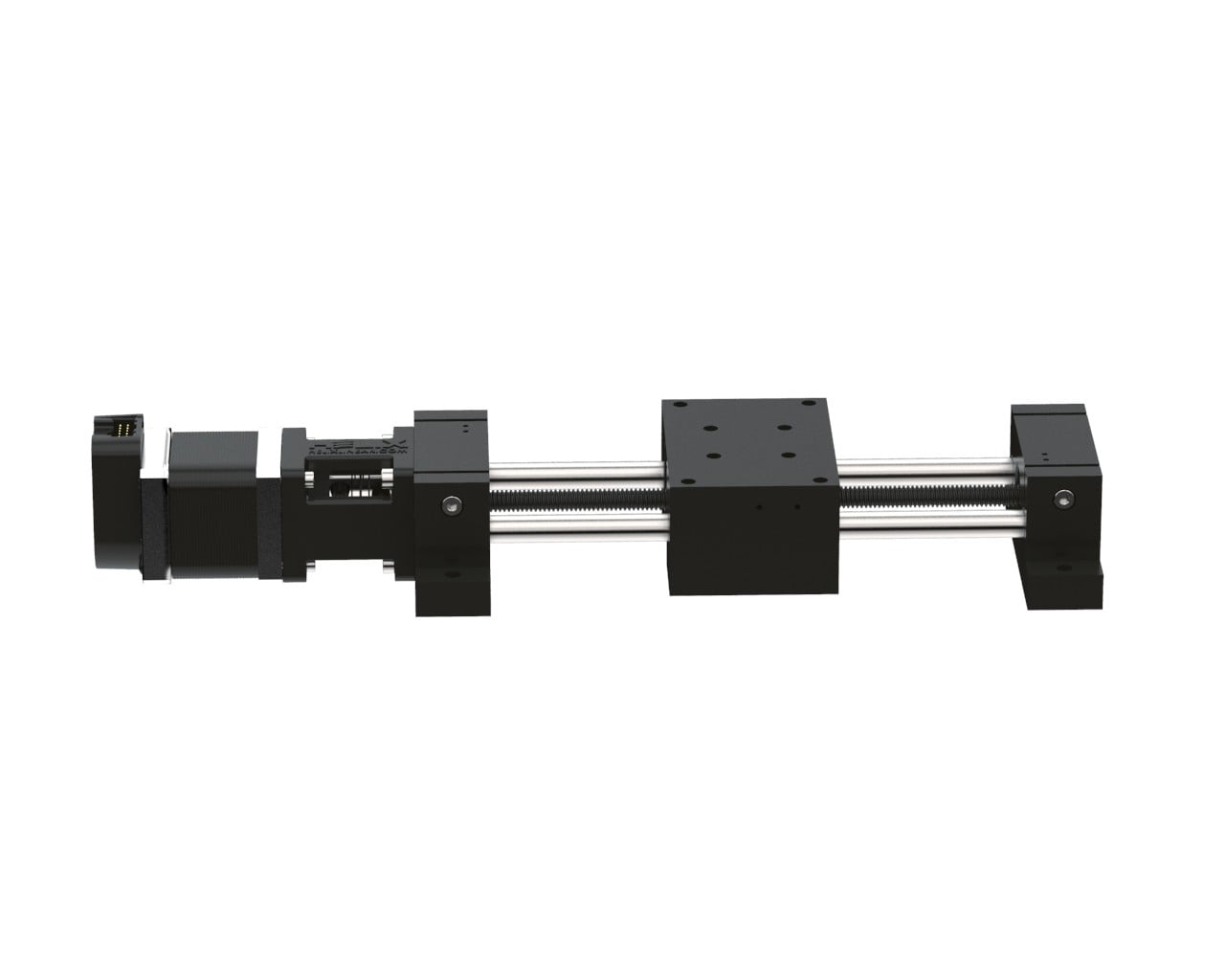

Carriage Block Width Q (mm)80.8
Carriage Height A (in)1.73
Carriage Height A (mm)43.942
Carriage Mounting Hole Depth X (in)0.38
Carriage Mounting Hole Depth X (mm)9.70
Carriage Mounting Hole Diameter V (in)0.25
Carriage Mounting Hole Diameter V (mm)6.35
Carriage Mounting Hole Internal Thread U1/4-20 UNC
D (in)1.88
D (mm)47.8
E (in)0.89
Encoder1000 CPR, Encoder Ready, No Encoder
Encoder PositionA
End Block Depth F25.4
End Block Depth F (in)1
End Block Height A1 (in)1.72
End Block Height A1 (mm)43.7
End Block Width B (in)3.63
End Block Width B (mm)92.2
End SensorsNo Sensors
Guide Rod Length (in)13.25
Guide Rod Length (mm)336.55
H (in)0.5
H (mm)12.7
Holding Torque (N-m)0.22
J (in)2.25
J (mm)57.2
L (in)4.25
L (mm)108
Model Number317
Motor LengthSingle Stack, Double Stack
Motor Size (NEMA)17
Motor Spacer Depth Z (in)1.77
Motor Spacer Depth Z (mm)45.00
Motor Spacer Width Y (in)1.65
Motor Spacer Width Y (mm)41.90
Motor TypeBipolar
Motor Voltage (V)2.33
Mounting Hole Diameter M (in)0.217
Mounting Hole Diameter M (mm)5.5
Nut StyleNon Anti-backlash Nut
Nut TypeStandard Nut, Anti-backlash
Operating Temperature (°C)0 to 93
R (in)1.75
R (mm)44.5
Rated Current (Amps/Phase)1.33
Resistance/Phase Ω2.10
S (in)1
S (mm)25.4
Screw Material300 Series Stainless Steel
Screw TypeLead Screw
Step Angle1.80
T (in)1
T (mm)25.4
Total Height G (in)1.71
Total Height G (mm)43.4
Travel (in)9
Travel (mm)228.60
Travel Per Step (in)0.00
Travel Per Step (mm)0.01
W (in)3.13
W (mm)51.60
