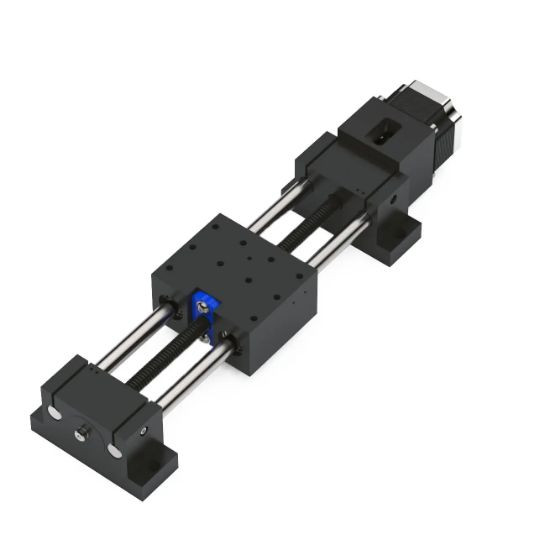

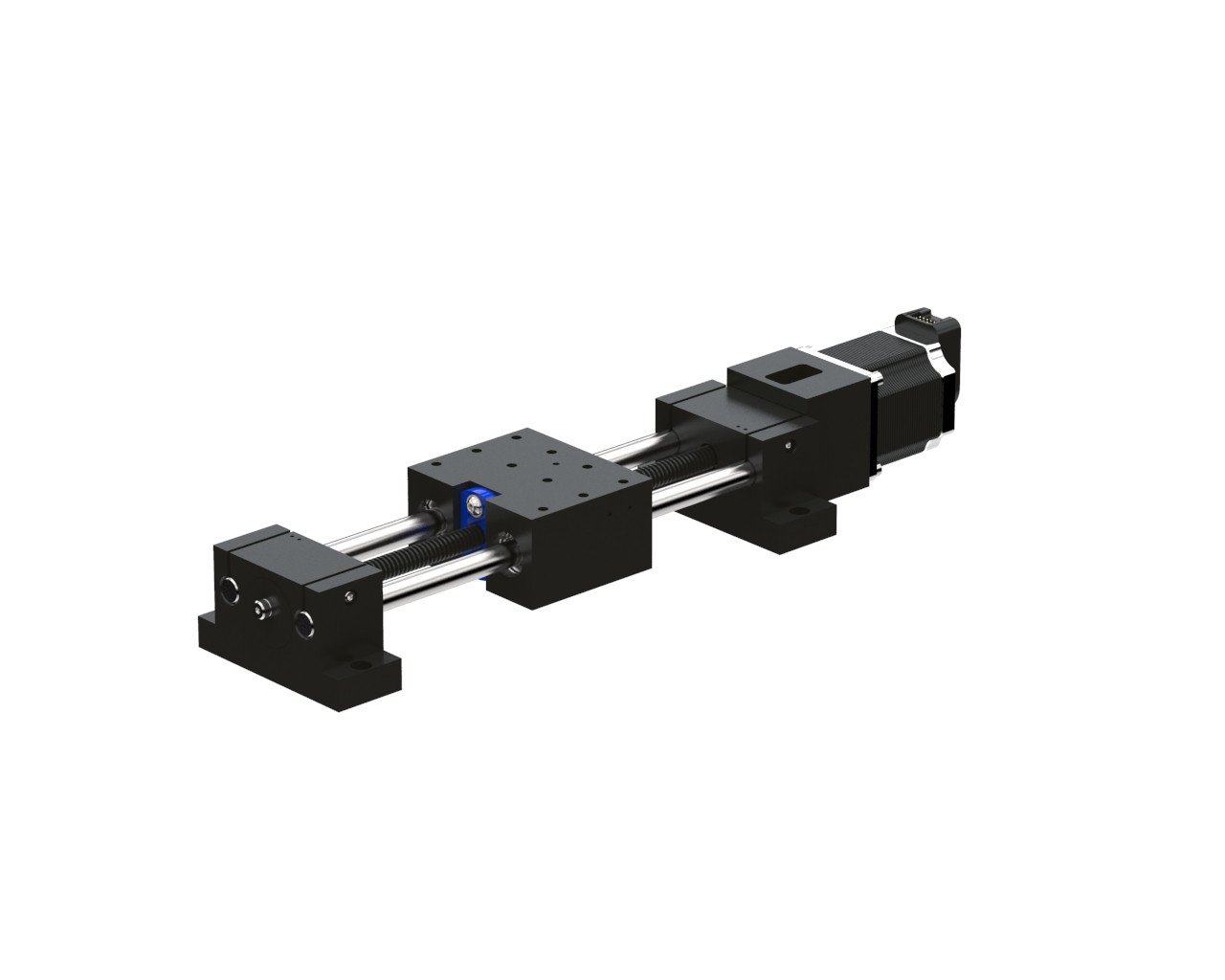

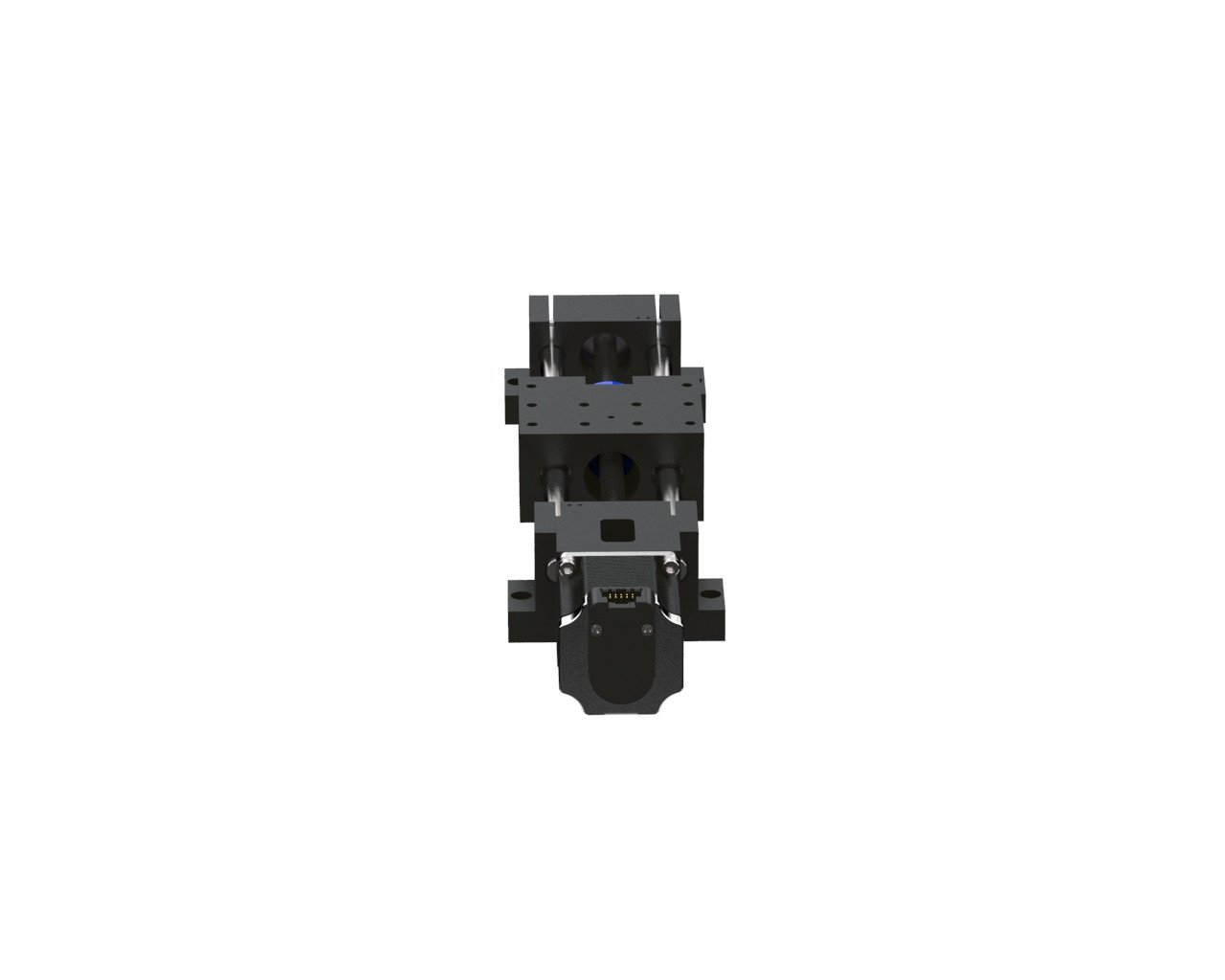

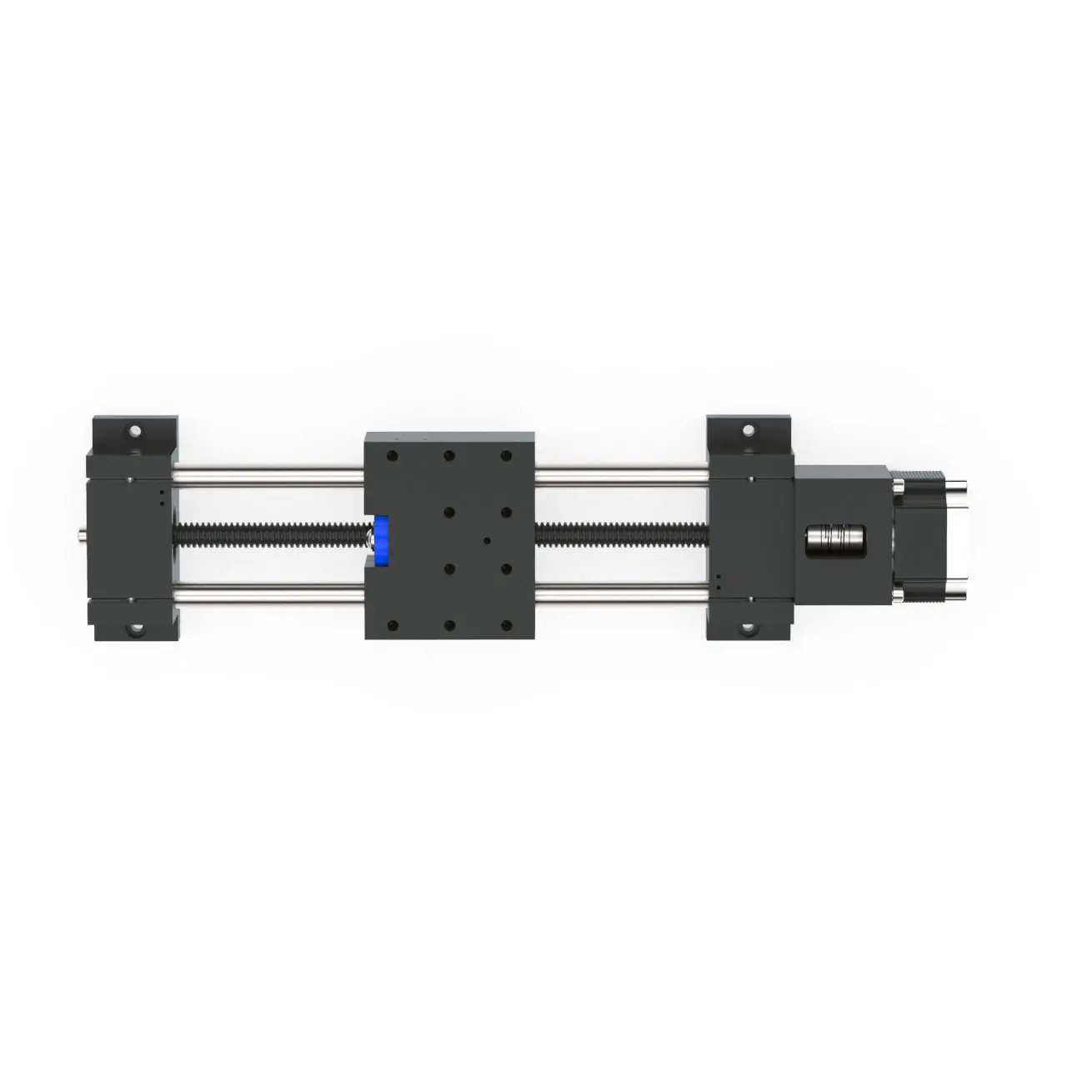

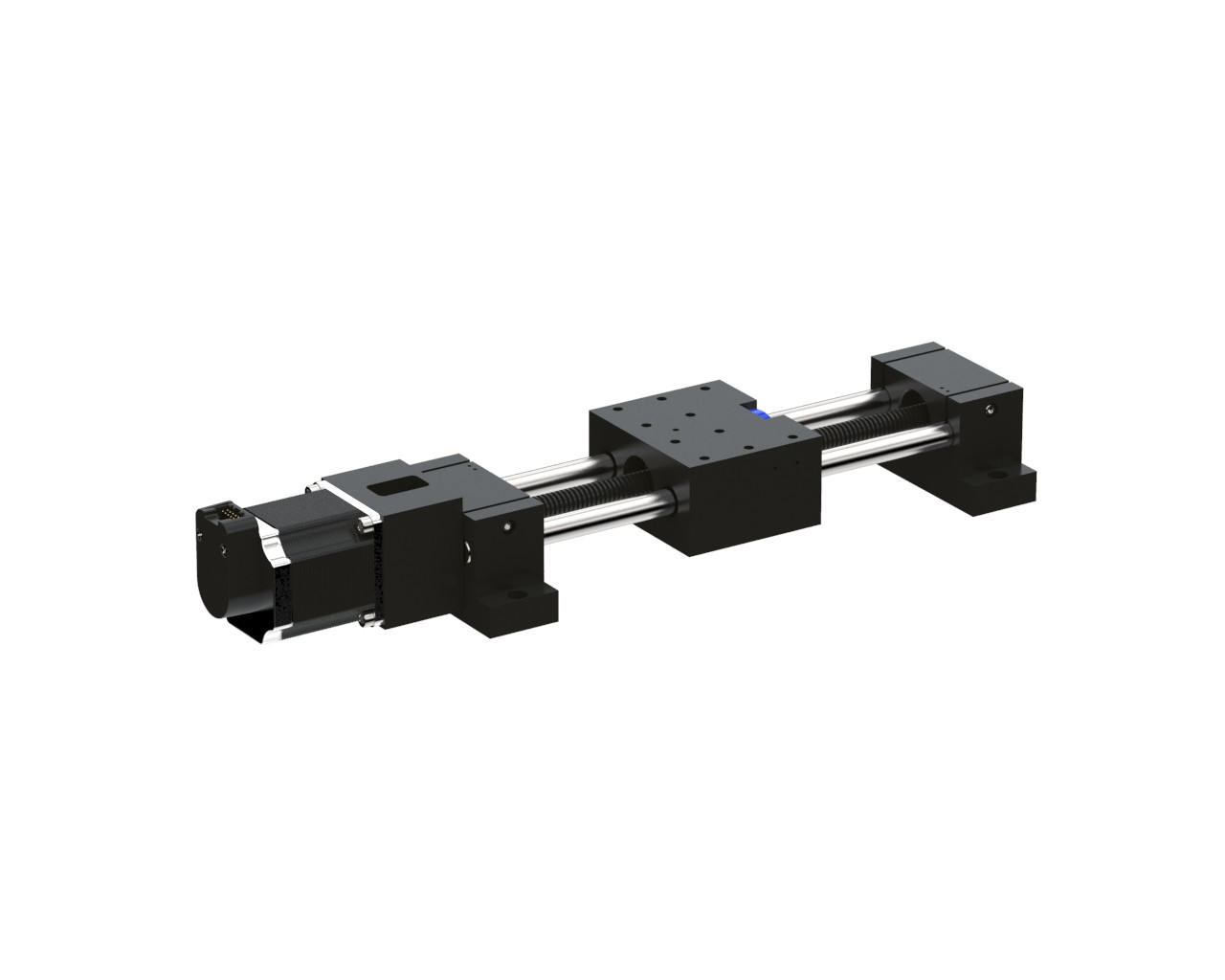

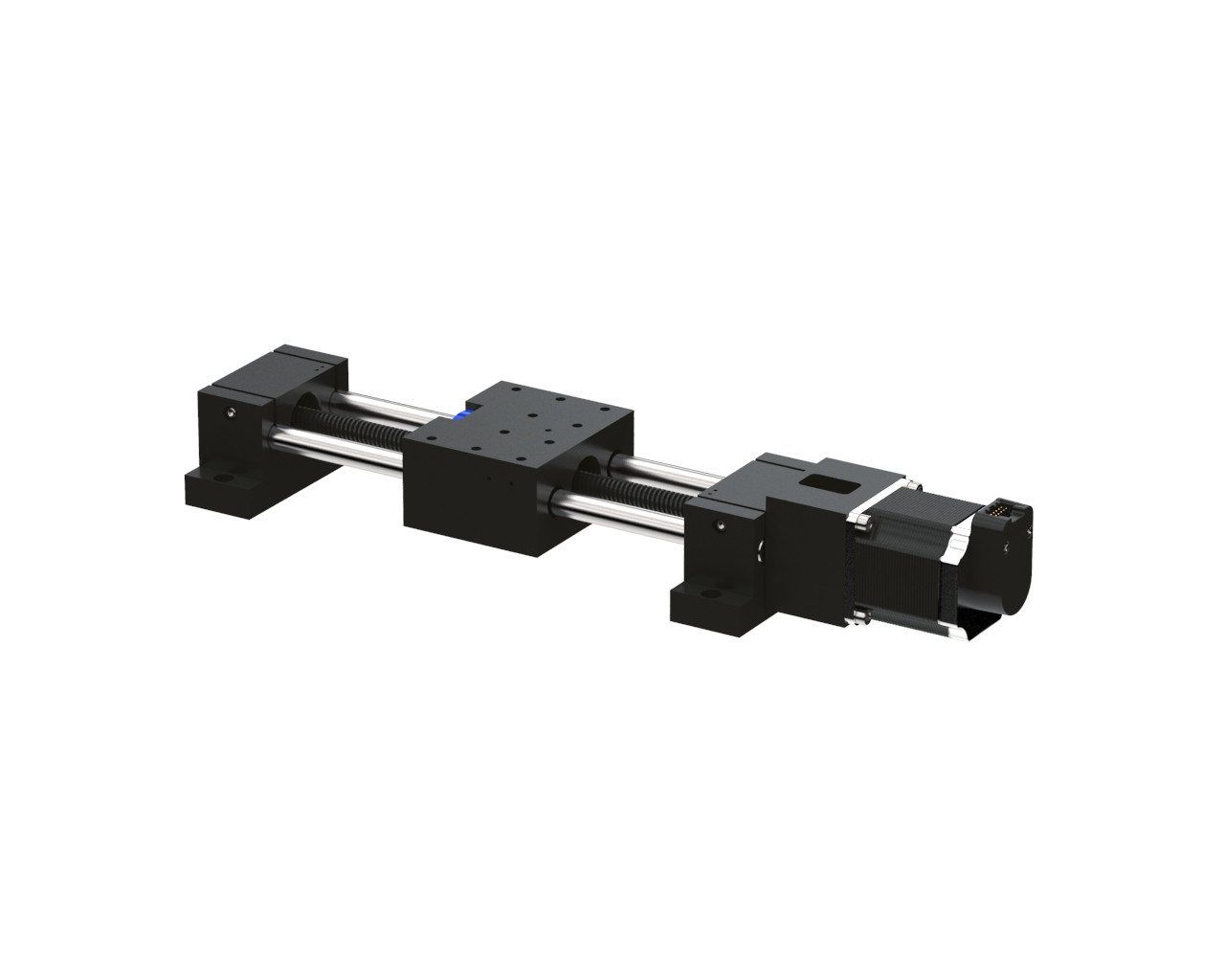

Carriage Height A (mm)59.2
Carriage Mounting Hole Depth X (in)0.50
Carriage Mounting Hole Depth X (mm)12.70
Carriage Mounting Hole Diameter V (in)0.20
Carriage Mounting Hole Diameter V (mm)5.08
Carriage Mounting Hole Internal Thread U1/4-20 UNC-2B
Counterbore Depth P (in)0.2
Counterbore Depth P (mm)5.08
Counterbore Diameter N (in)0.2
Counterbore Diameter N (mm)5.08
D (in)2.13
D (mm)54.102
E (in)1.42
Encoder1000 CPR, Encoder Ready, No Encoder
Encoder PositionA
End Block Depth F38.1
End Block Depth F (in)1.5
End Block Height A1 (in)2.19
End Block Height A1 (mm)55.626
End Block Width B (in)4
End Block Width B (mm)101.6
End SensorsNo Sensors
Guide Rod Length (in)17.00
Guide Rod Length (mm)431.80
H (in)0.75
H (mm)19.05
Holding Torque (N-m)0.55
J (in)3
J (mm)76.2
L (in)6
L (mm)152.4
Model Number323
Motor LengthSingle Stack, Double Stack
Motor Size (NEMA)23
Motor Spacer Depth Z (in)1.73
Motor Spacer Depth Z (mm)43.90
Motor Spacer Width Y (in)2.24
Motor Spacer Width Y (mm)56.90
Motor TypeBipolar
Motor Voltage (V)3.25
Mounting Hole Diameter M (in)0.4
Mounting Hole Diameter M (mm)10.16
Nut TypeStandard Nut, Anti-backlash
Operating Temperature (°C)0 to 93
Rated Current (Amps/Phase)2.80
Resistance/Phase Ω0.70
S (in)1
S (mm)25.4
Screw Material300 Series Stainless Steel
Screw TypeLead Screw
Step Angle1.80
T (in)1
T (mm)25.4
Total Height G (in)2.53
Total Height G (mm)64.262
Travel (in)11
Travel Per Step (in)0.00
Travel Per Step (mm)0.00
W (in)3.50
W (mm)88.90
