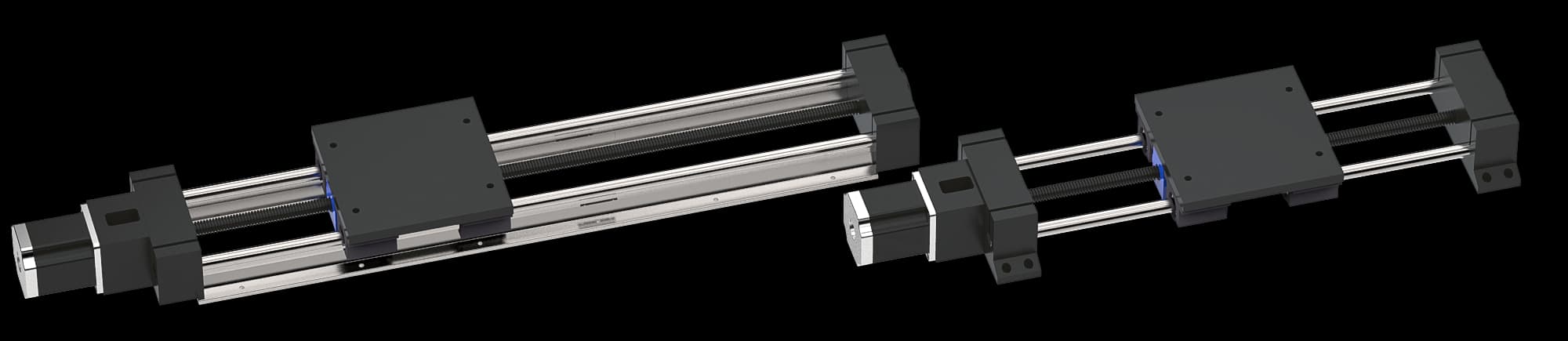

Linear Slides 200 Series
Our Linear Slides 200 Series deliver robust, precision linear motion guidance systems that integrate either Acme or ball screw drives. This makes them ideal for demanding industrial automation, manufacturing, and laboratory applications.
Heavy-Duty Linear Guidance. Engineered for Motion. Built in the USA.
Designed and built in Beachwood, Ohio, these linear slide units include fully supported or end-supported shaft options, high-precision screw diameters and leads (for example 1.500″ diameter with 0.200″ lead) and modular carriage designs to match your system architecture.
Key Features & Benefits
- Pre-assembled slide units: combines linear bearing pillow blocks, supported shafts, screw drives and carriage plates which reduces integration time and design risk.
- Wide configuration flexibility: shaft diameters from 0.500″ to 1.500″, leads from 0.100″ to 0.500″, travel lengths up to ~40–50″ (depending on configuration) and support types matched to load and accuracy requirements.
- High load capacity and precision guidance: fully supported shaft versions carry higher loads and offer smoother motion for heavy-duty use.
- Built for integration: optional motor adaptors (NEMA sizes), bellows boots for protection in dirty environments, custom carriage and mounting plate machining available.
Applications
Whether the requirement is a heavy-duty positioning axis in a robotics system, a long-stroke linear slide in manufacturing automation, or a precision drive in laboratory instrumentation, the 200 Series provides the performance needed for smooth, accurate, repeatable motion. With U.S. manufacturing in Beachwood, designers gain tight quality control, fast revisions, and responsive engineering support.
Why Choose the 200 Series from Helix?
- Manufactured in the U.S. with full traceability and quality standards.
- Engineering and application-support team ready to assist in selecting screw geometry, shaft support type, carriage design and integration strategy ensuring your machine or system is optimized.
- Extensive configuration options mean fewer compromises. You design your system and the slide adapts to it, not the other way around.
- Proven in high-duty-cycle, high-load applications where reliability, accuracy and repeatability matter.
Built for durability. Engineered for precision. Designed for integration.
