Nut CodeAFA
Anti-Backlash Nut Life with H10X Coating (in)150-200 Million
Anti-Backlash Nut Life without H10X Coating (in)40 to 60 Million
Connection TypeFlanged
Diameter Code37
Dynamic Load Capacity (lb)150
E - Flange Thickness (in)0.188
Efficiency (%)29.36
Flange Weight (lb)0.04
Nut Diameter B (in)0.69
Nut Length C (in)1.398

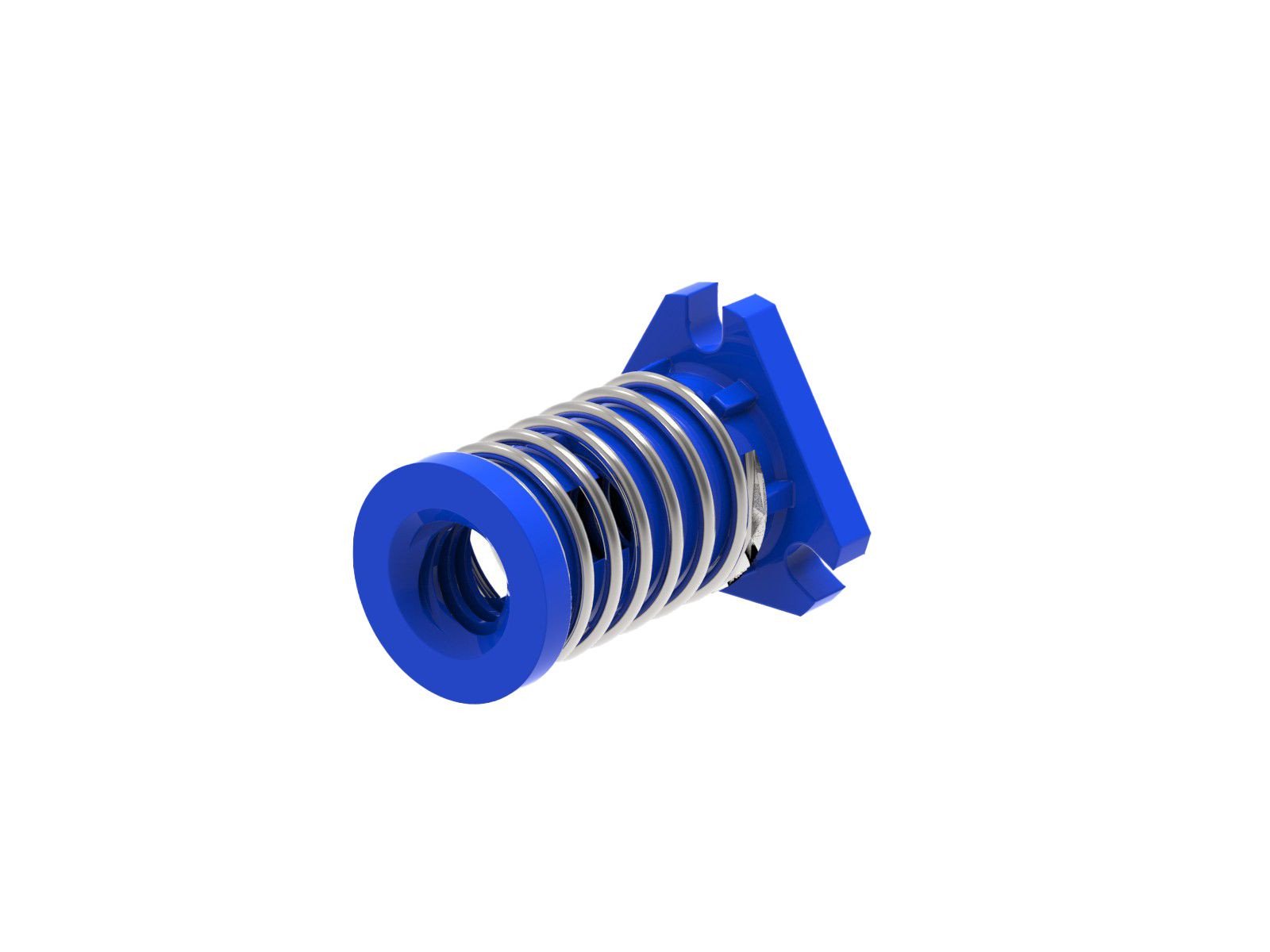

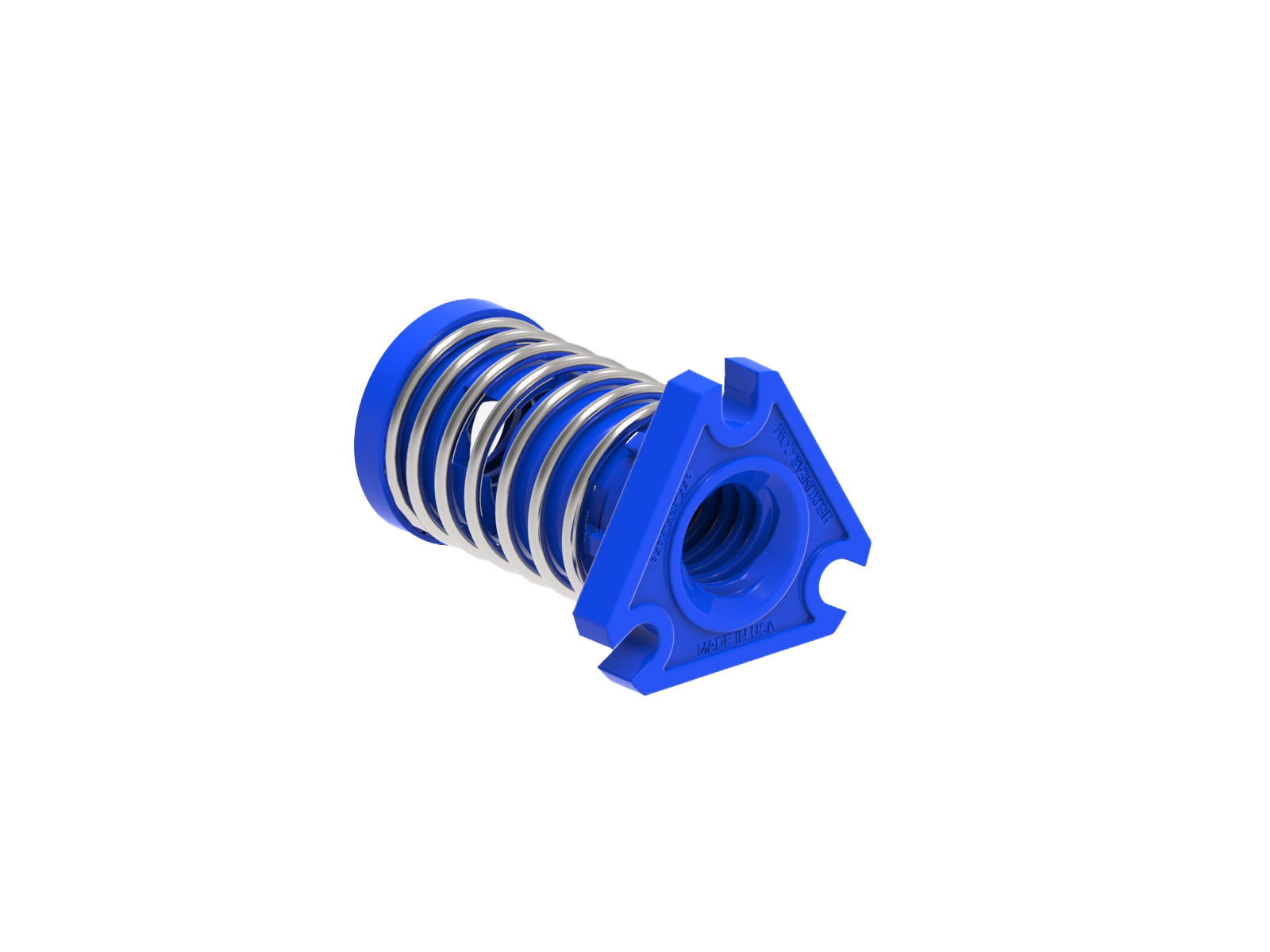

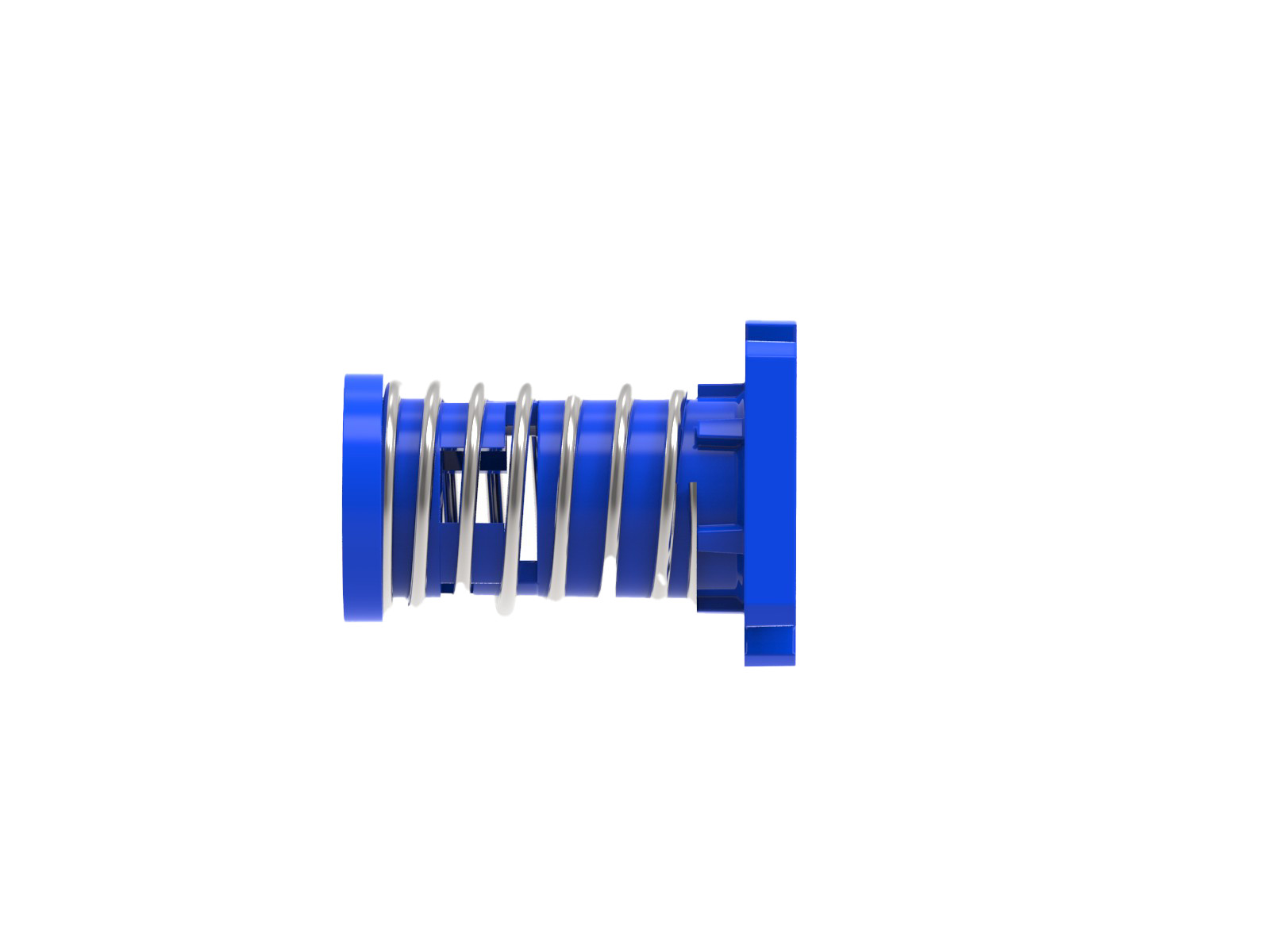

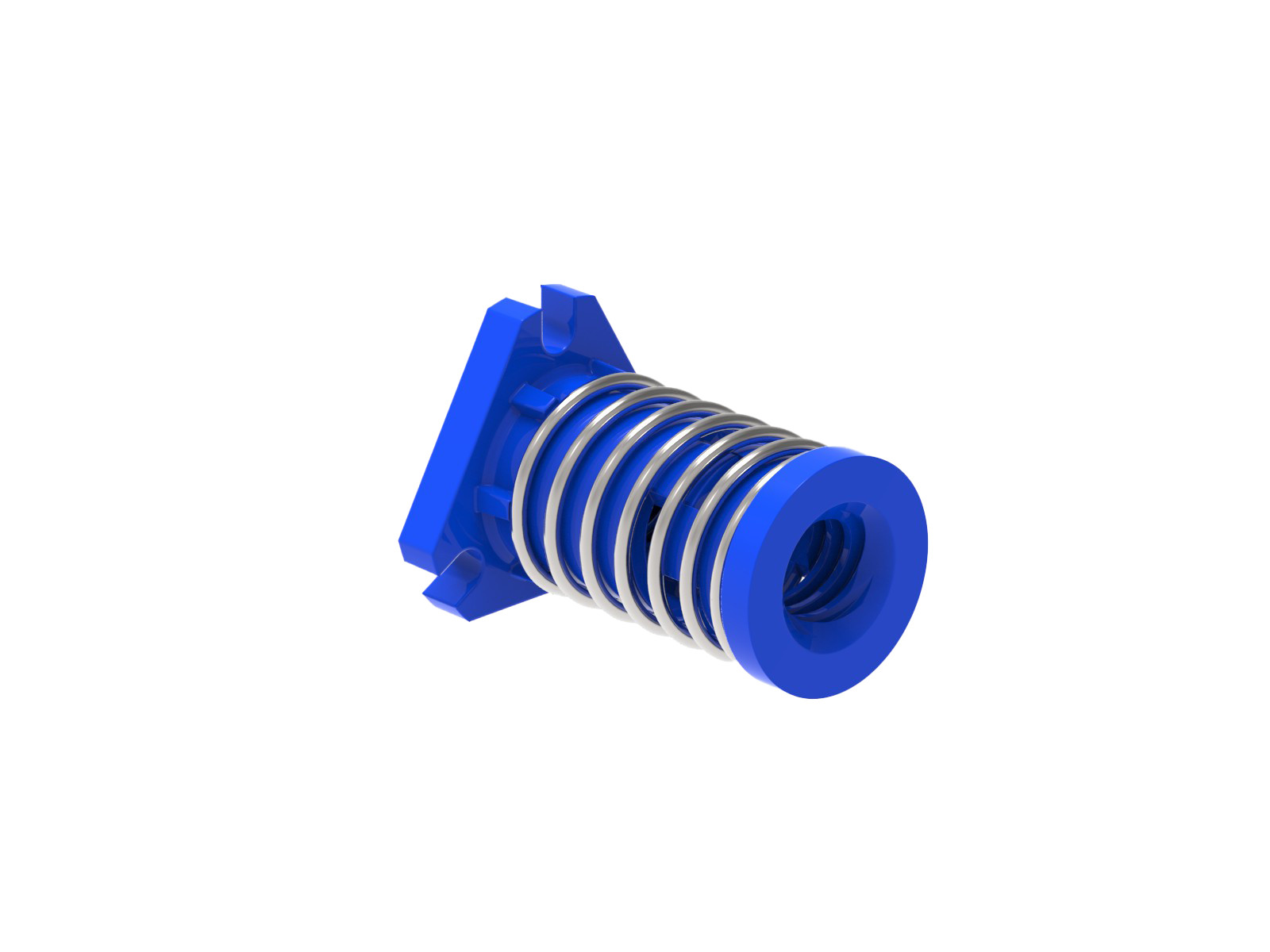

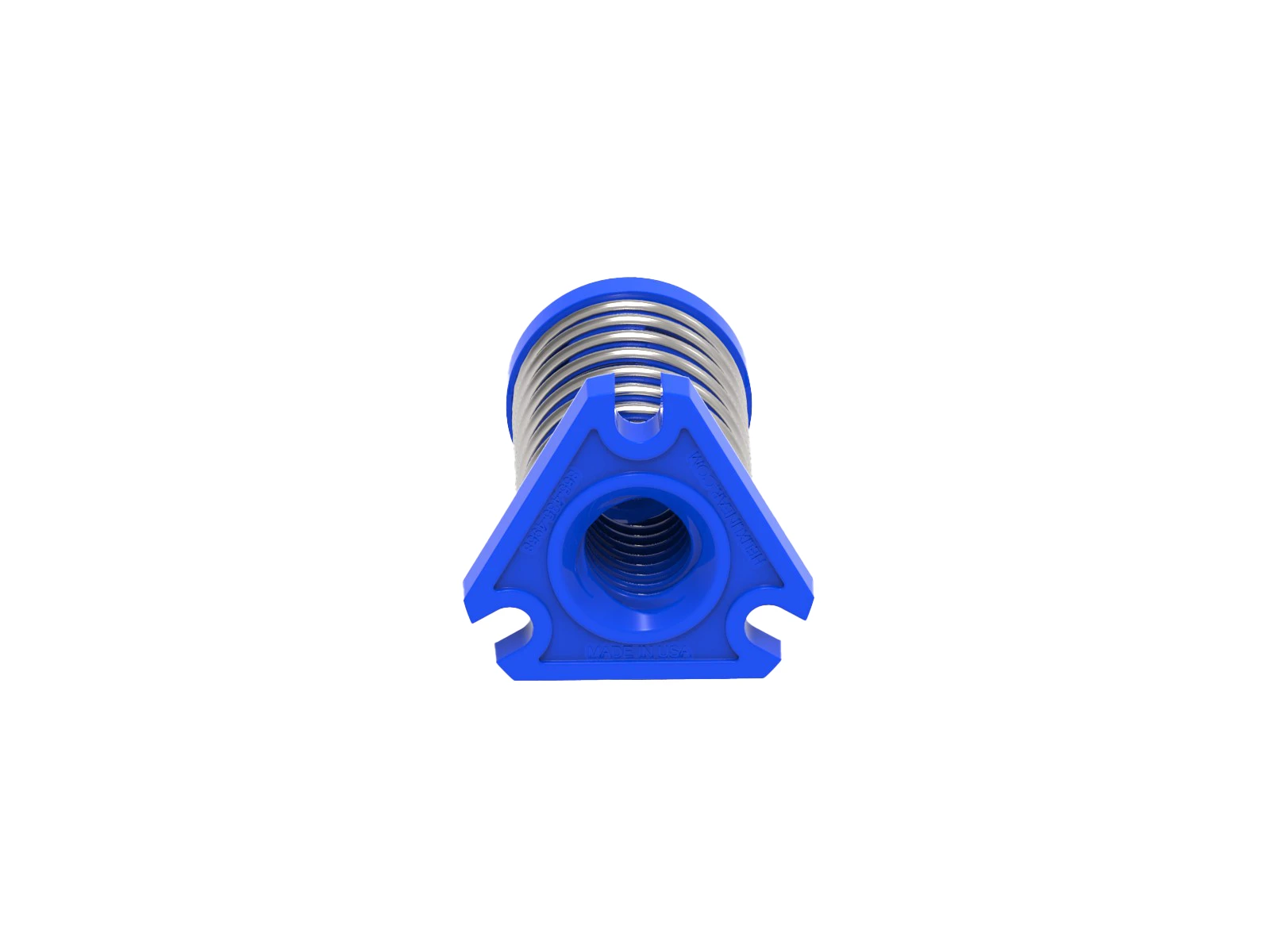

Nut TypeAxial anti-backlash nut with mounting flange
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.02
