Nut CodeAFA
Anti-Backlash Nut Life with H10X Coating (in)150-200 Million
Anti-Backlash Nut Life without H10X Coating (in)40 to 60 Million
Connection TypeFlanged
Diameter Code55
Dynamic Load Capacity (lb)350
E - Flange Thickness (in)0.25
Efficiency (%)80.77898016
Flange Weight (lb)0.14
Nut Diameter B (in)1.13
Nut Length C (in)2.34

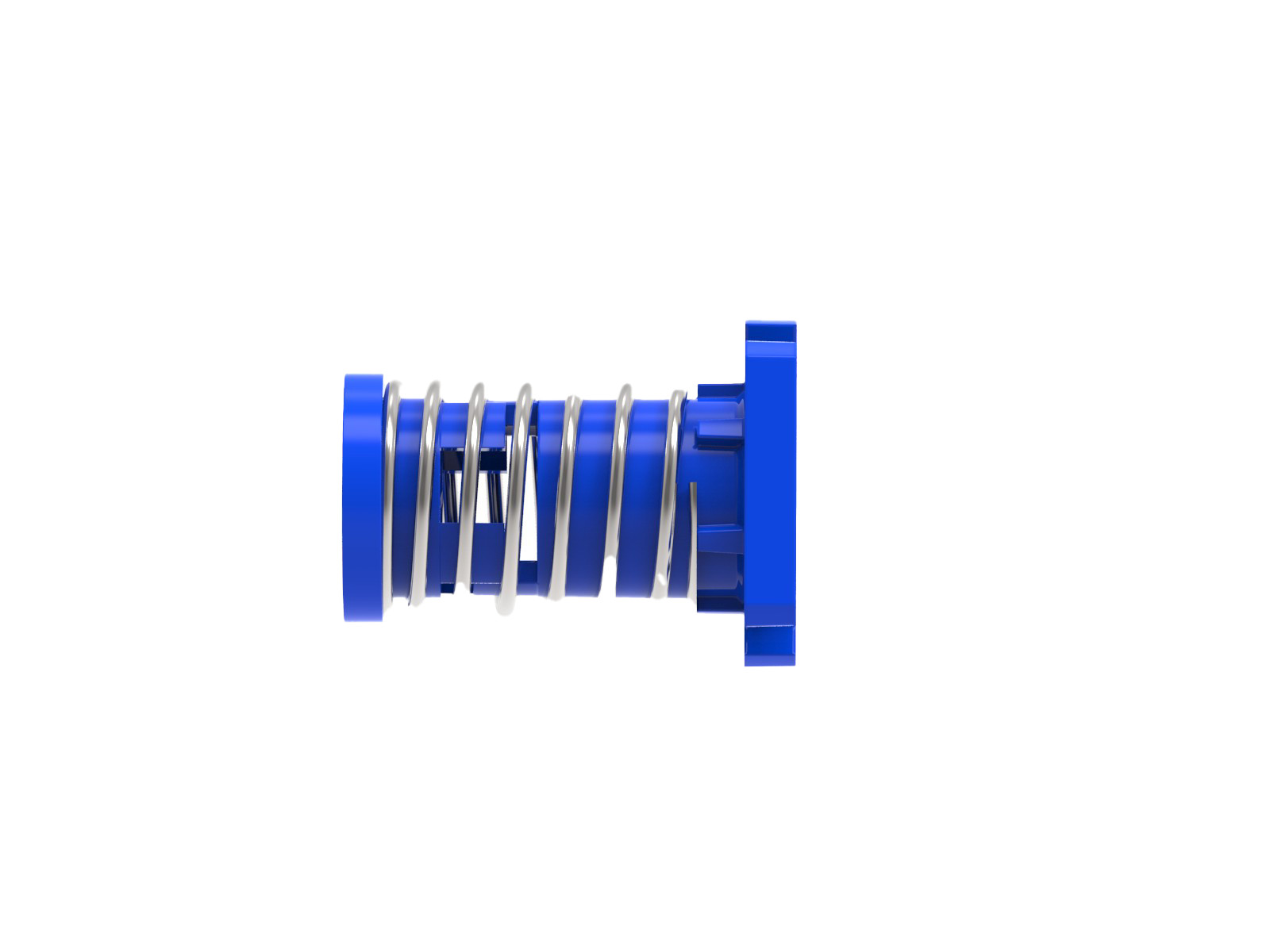

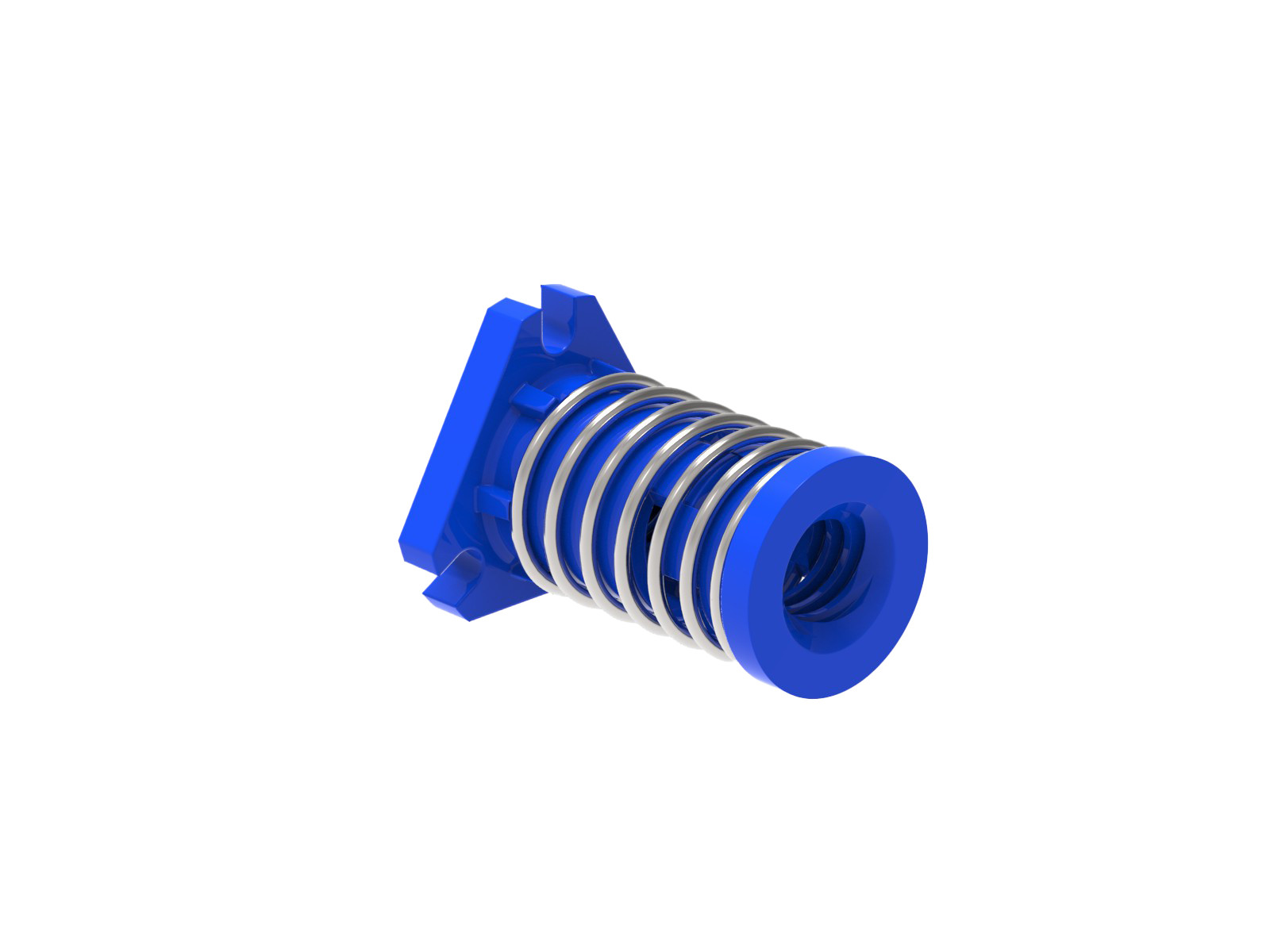

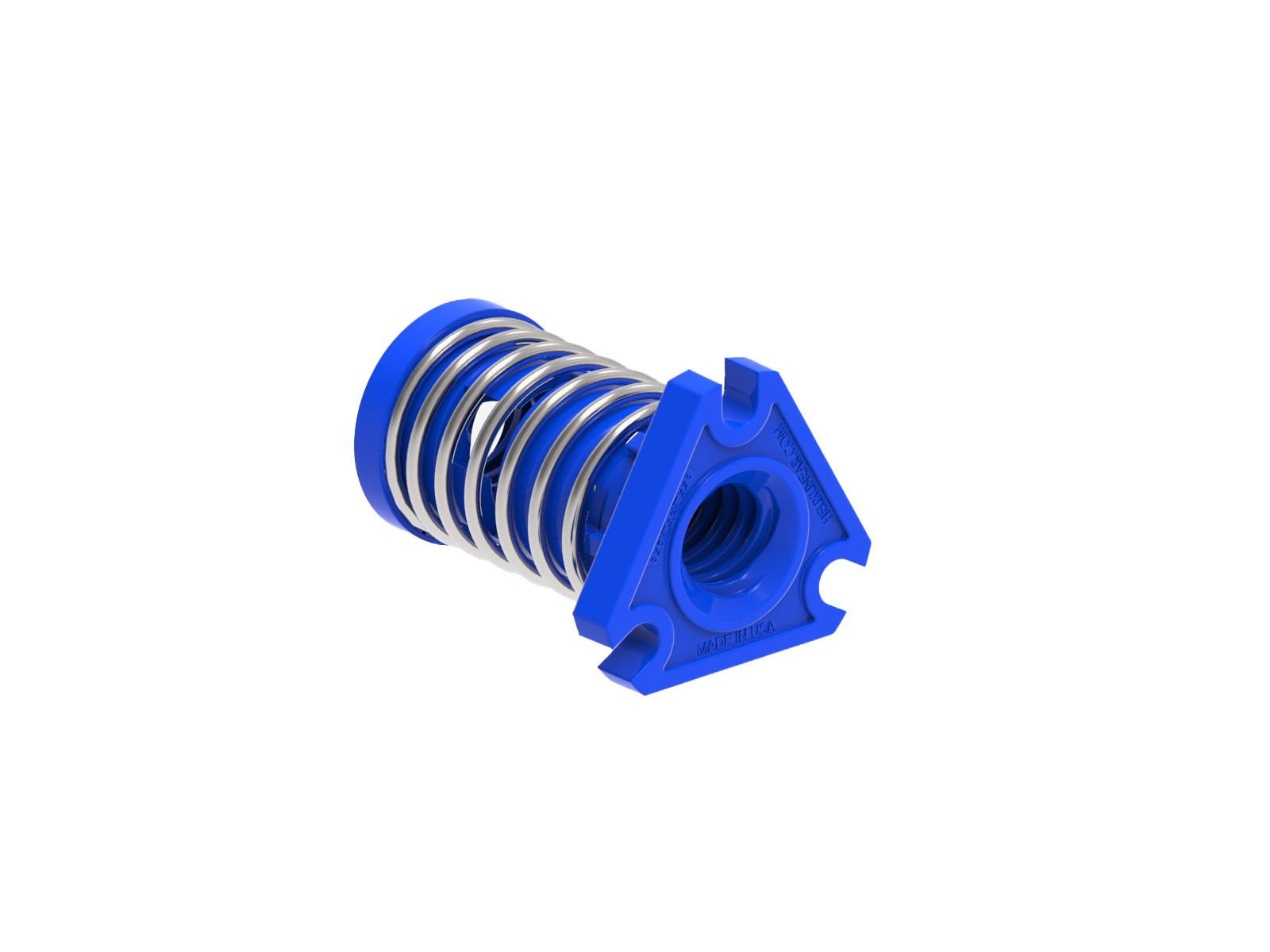

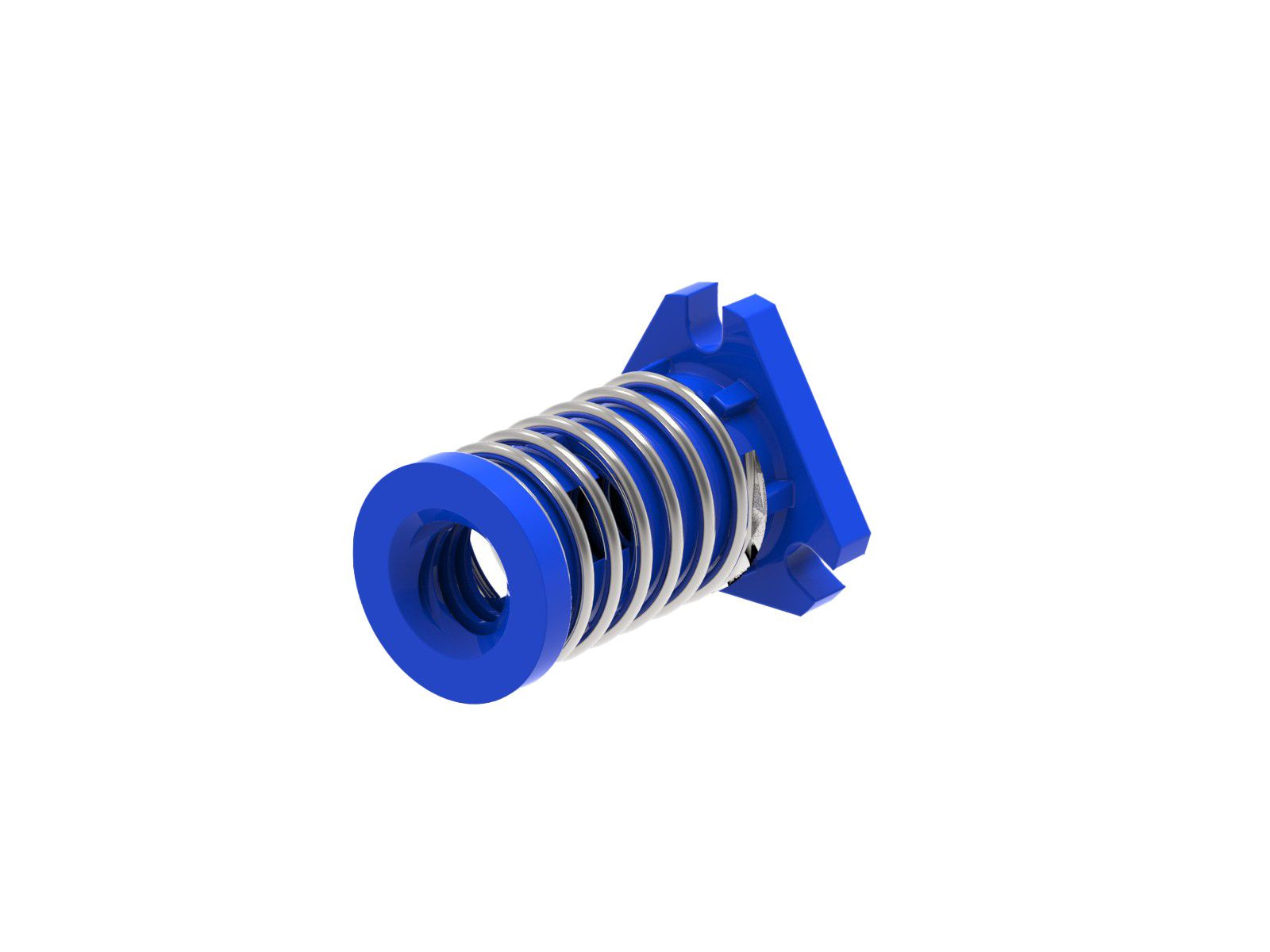

Nut TypeAxial anti-backlash nut with mounting flange
Nut Weight (lb)0.06
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.139631756
