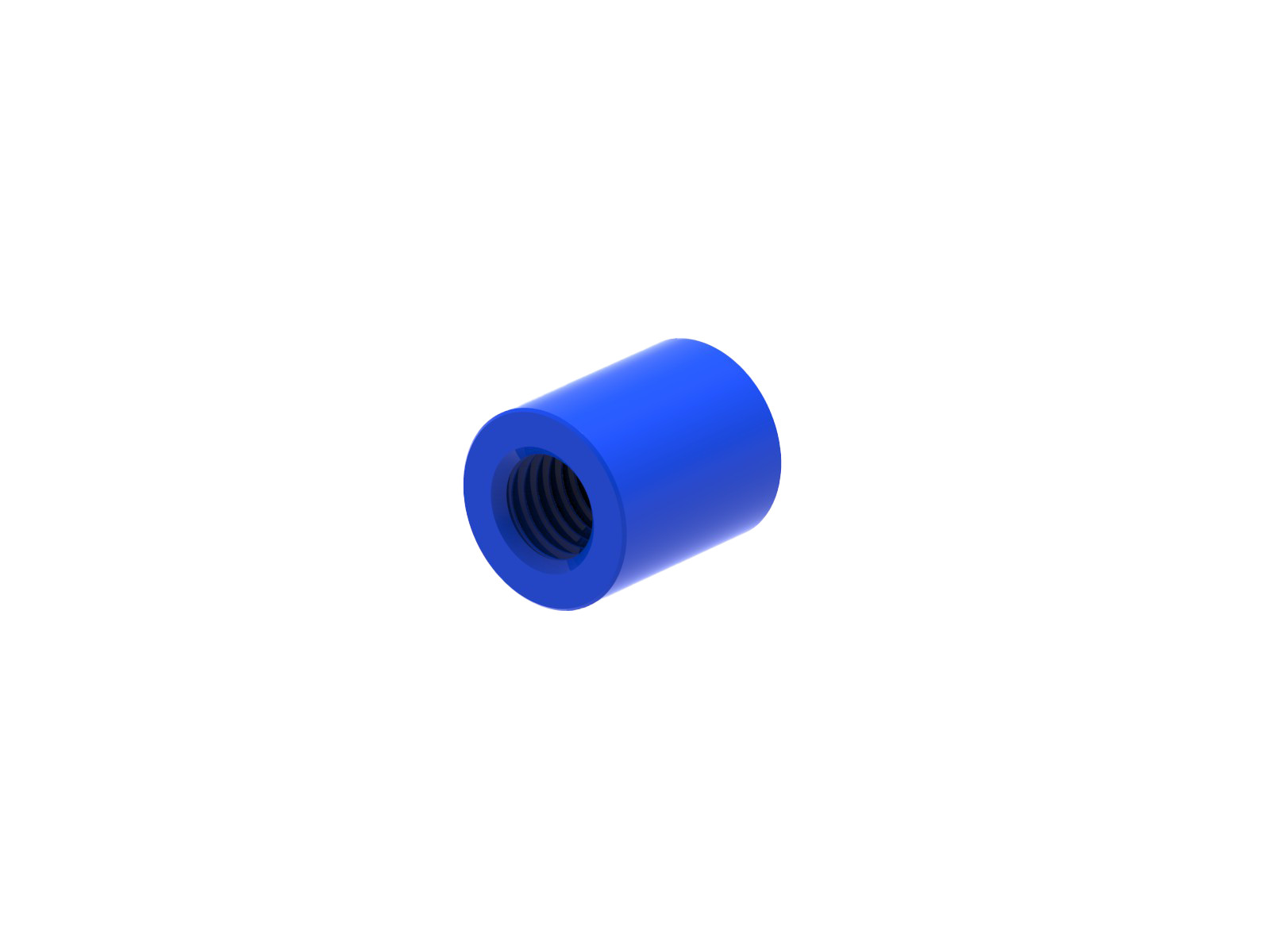

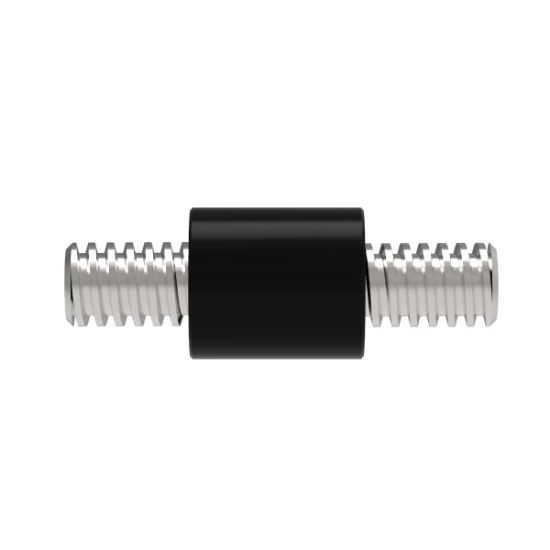

0.25 in Diameter x 0.048 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

SNA025048

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

CAD Specifications Catalog Videos Accessories

You Might Also Like

14mm Diameter x 70mm Lead - Sleeve Nut (SNA)

$20.69

View Product

0.375 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SNA)

$26.86

View Product

10 mm Diameter x 1 mm Lead x 1 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

10mm Diameter x 50mm Lead - Sleeve Nut (SNA)

$26.86

View Product

0.313 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SNA)

$26.86

View Product

8 mm Diameter x 10 mm Lead x 2.5 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

0.38" Diameter x 1.50" Lead - Sleeve Nut (SNA)

$26.86

View Product

10 mm Diameter x 15 mm Lead x 3 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

6 mm Diameter x 20 mm Lead x 1.25 mm Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.096 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 1 in Lead x 0.1 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.197 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.063 in Lead x 0.063 in Pitch Sleeve Nut (SNA)

$28.87

View Product

7 mm Diameter x 0.5 mm Lead x 0.5 mm Pitch Sleeve Nut (SNA)

$29.56

View Product

0.197 in Diameter x 0.197 in Lead x 0.049 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.192 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.1 in Lead x 0.05 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.079 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.157 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.25 in Diameter x 0.048 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

SNA025048

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

14mm Diameter x 70mm Lead - Sleeve Nut (SNA)

$20.69

View Product

0.375 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SNA)

$26.86

View Product

10 mm Diameter x 1 mm Lead x 1 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

10mm Diameter x 50mm Lead - Sleeve Nut (SNA)

$26.86

View Product

0.313 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SNA)

$26.86

View Product

8 mm Diameter x 10 mm Lead x 2.5 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

0.38" Diameter x 1.50" Lead - Sleeve Nut (SNA)

$26.86

View Product

10 mm Diameter x 15 mm Lead x 3 mm Pitch Sleeve Nut (SNA)

$26.86

View Product

6 mm Diameter x 20 mm Lead x 1.25 mm Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.096 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 1 in Lead x 0.1 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.197 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SNA)

$28.87

View Product

0.25 in Diameter x 0.063 in Lead x 0.063 in Pitch Sleeve Nut (SNA)

$28.87

View Product

7 mm Diameter x 0.5 mm Lead x 0.5 mm Pitch Sleeve Nut (SNA)

$29.56

View Product

0.197 in Diameter x 0.197 in Lead x 0.049 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.192 in Lead x 0.048 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.1 in Lead x 0.05 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.079 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$30.87

View Product

0.188 in Diameter x 0.157 in Lead x 0.039 in Pitch Sleeve Nut (SNA)

$30.87

View Product

Dimensions Lead

Turns per inch of Travel (in)20.83333333

Lead (in)0.048

Nominal Diameter - A (in)0.25

Pitch (in)0.048

Pitch (mm)1.2192

Material & Finish

MaterialAcetal

Performance & Tolerances

Starts1

Measurement systemImperial

Product Info

Nut CodeSNA

Diameter Code25

Dynamic Load Capacity (lb)38.00

Efficiency (%)44.27734887

Mating Screw Part No025048L, 025048R

Maximum Axial Lash (in)FALSE

Nut Diameter B (in)0.5

Nut Length C (in)0.5

Nut TypeSleeve Nut

Standard Operating Temperature Range (F°)32 - 200

Static Load Capacity (lb)125.00

Torque to Raise 1 lb (in-lb)0.0172536014

Thread Details

Threads per Inch20.83333333

Thread DirectionLH, RH

Thread ClassCentralizing

Thread TypeModified Acme
