Nut CodeSNA
Diameter Code175
Dynamic Load Capacity (lb)7660
Efficiency (%)37.4515044
Mating Screw Part No175250L, 175250R

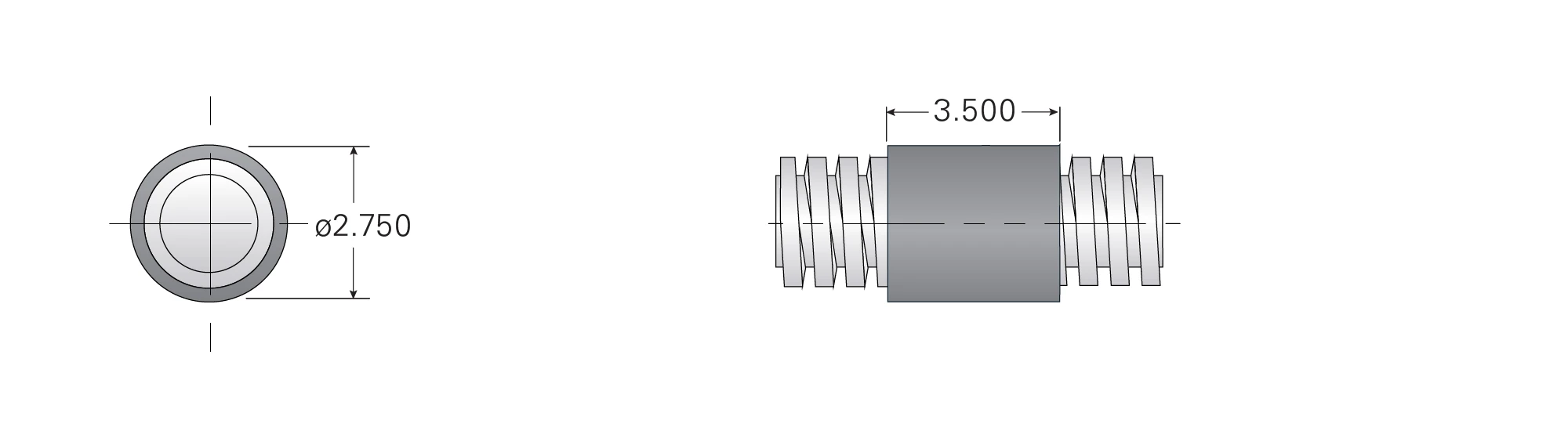

Nut Diameter B (in)2.75
Nut Length C (in)3.5
Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)12600.00
Torque to Raise 1 lb (in-lb)0.1062406875
