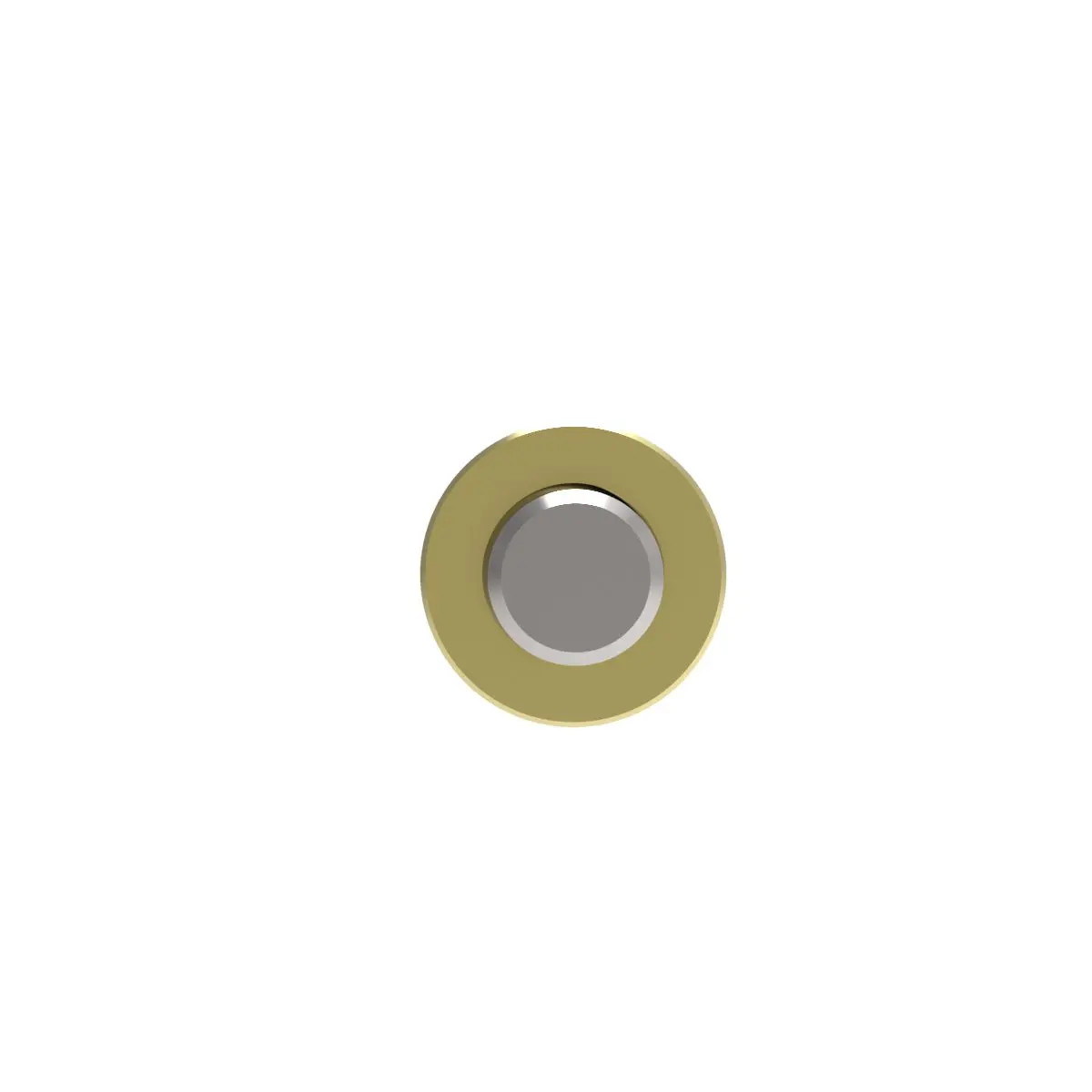

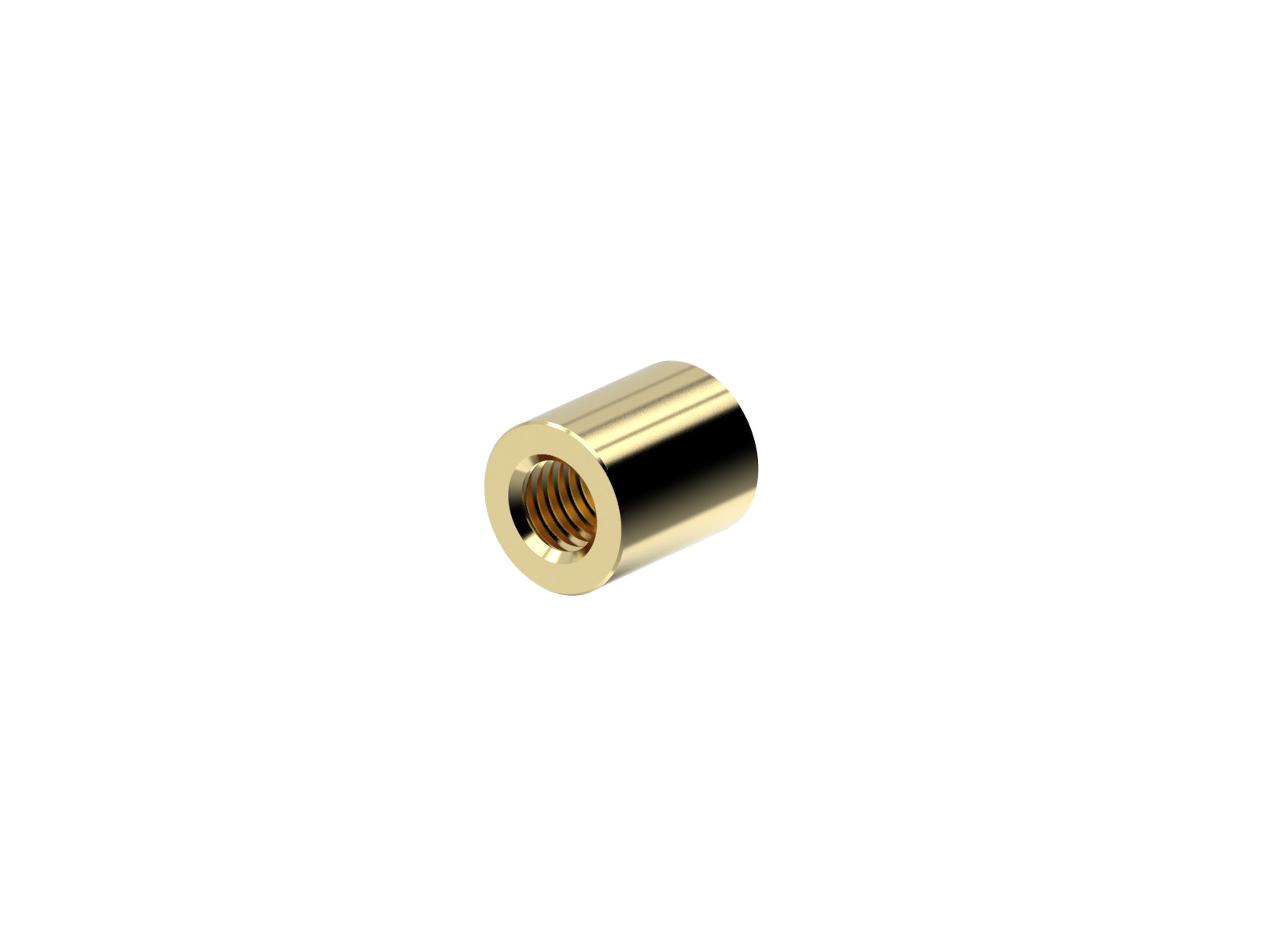

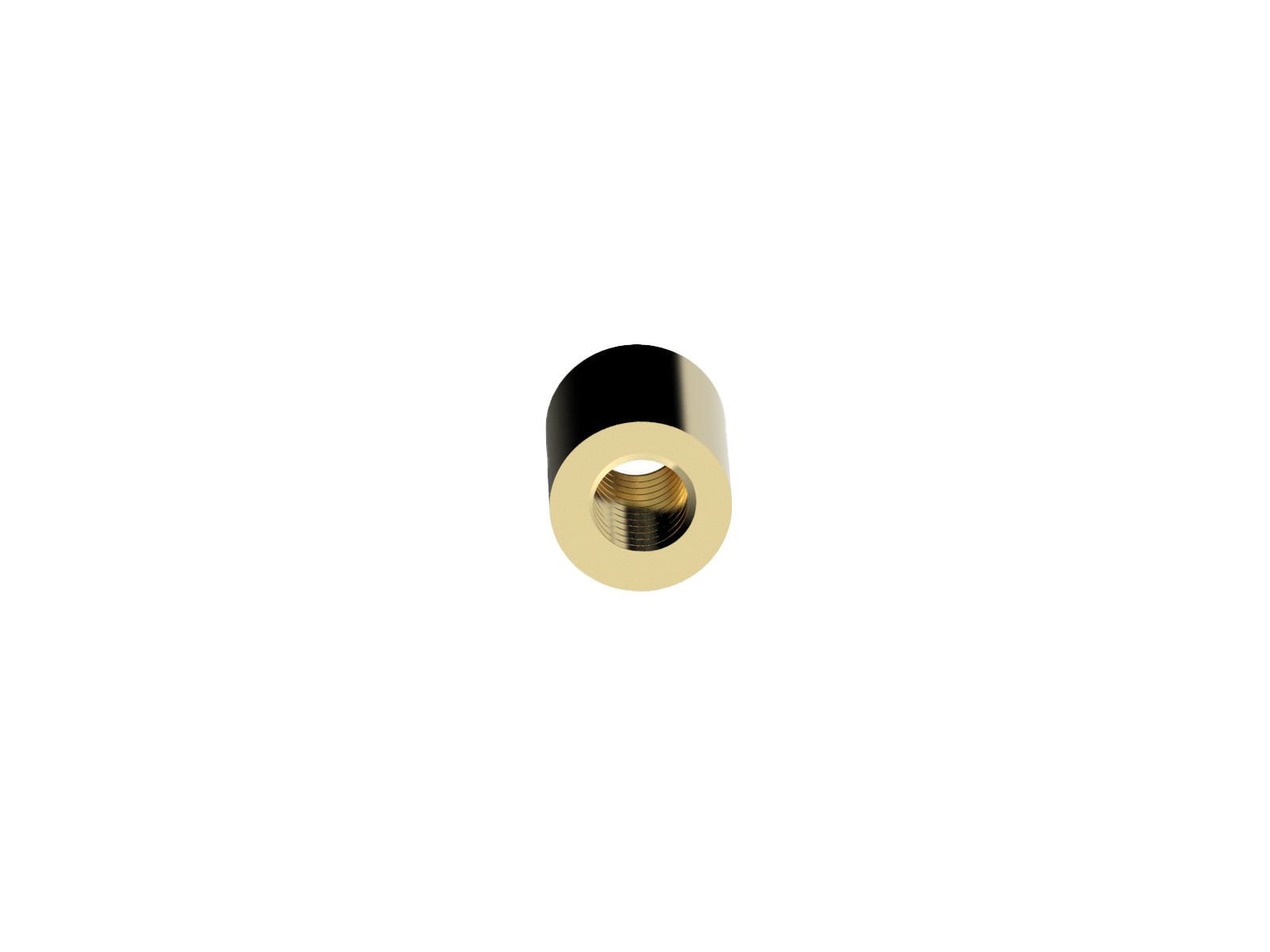

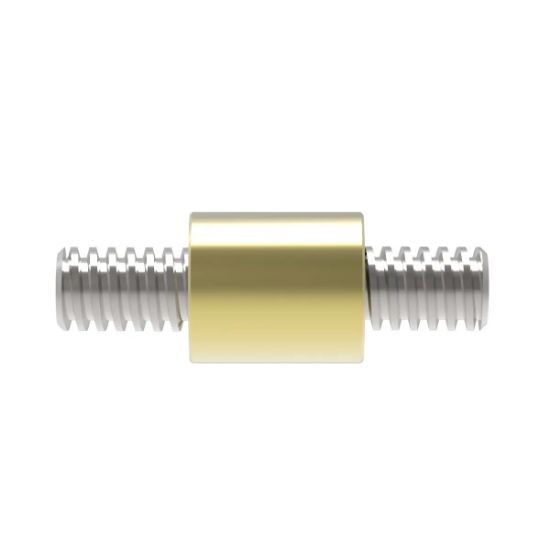

16 mm Diameter x 4 mm Lead x 4.001 mm Pitch Sleeve Nut (SMB)

SNB063157

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

CAD Specifications Catalog Videos Accessories

You Might Also Like

0.125 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SMB)

$46.73

View Product

4 mm Diameter x 10 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.096 in Lead x 0.048 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.25 in Diameter x 0.079 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.125 in Lead x 0.063 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.216 in Diameter x 0.02 in Lead x 0.02 in Pitch Sleeve Nut (SMB)

$57.11

View Product

7 mm Diameter x 0.5 mm Lead x 0.5 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.5 in Diameter x 0.125 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$75.06

View Product

0.5 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$75.06

View Product

0.5 in Diameter x 1 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$75.06

View Product

14 mm Diameter x 20 mm Lead x 5 mm Pitch Sleeve Nut (SMB)

$75.06

View Product

14 mm Diameter x 4 mm Lead x 4 mm Pitch Sleeve Nut (SMB)

$75.06

View Product

0.375 in Diameter x 0.333 in Lead x 0.083 in Pitch Sleeve Nut (SMB)

$76.14

View Product

0.375 in Diameter x 0.667 in Lead x 0.095 in Pitch Sleeve Nut (SMB)

$76.14

View Product

0.375 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SMB)

$76.14

View Product

18 mm Diameter x 2 mm Lead x 2 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

16 mm Diameter x 8 mm Lead x 4 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.625 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.5 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

16mm Diameter x 80mm Lead - Sleeve Nut (SMB)

$101.72

View Product

16 mm Diameter x 4 mm Lead x 4.001 mm Pitch Sleeve Nut (SMB)

SNB063157

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

0.125 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SMB)

$46.73

View Product

4 mm Diameter x 10 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.096 in Lead x 0.048 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.25 in Diameter x 0.079 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.125 in Lead x 0.063 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.216 in Diameter x 0.02 in Lead x 0.02 in Pitch Sleeve Nut (SMB)

$57.11

View Product

7 mm Diameter x 0.5 mm Lead x 0.5 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.5 in Diameter x 0.125 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$75.06

View Product

0.5 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$75.06

View Product

0.5 in Diameter x 1 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$75.06

View Product

14 mm Diameter x 20 mm Lead x 5 mm Pitch Sleeve Nut (SMB)

$75.06

View Product

14 mm Diameter x 4 mm Lead x 4 mm Pitch Sleeve Nut (SMB)

$75.06

View Product

0.375 in Diameter x 0.333 in Lead x 0.083 in Pitch Sleeve Nut (SMB)

$76.14

View Product

0.375 in Diameter x 0.667 in Lead x 0.095 in Pitch Sleeve Nut (SMB)

$76.14

View Product

0.375 in Diameter x 0.025 in Lead x 0.025 in Pitch Sleeve Nut (SMB)

$76.14

View Product

18 mm Diameter x 2 mm Lead x 2 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

16 mm Diameter x 8 mm Lead x 4 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.625 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.5 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

16mm Diameter x 80mm Lead - Sleeve Nut (SMB)

$101.72

View Product

Dimensions Lead

Turns per inch of Travel (in)6.349206349

Lead (mm)4.00

Nominal Diameter - A (mm)15.99946

Pitch (in)0.1575

Pitch (mm)4.0005

Material & Finish

MaterialBronze

Performance & Tolerances

Starts1

Measurement systemMetric

Product Info

Nut CodeSNB

Diameter Code63

Dynamic Load Capacity (lb)1900

Efficiency (%)37.31977076

Mating Screw Part No063157L, 063157R

Maximum Axial Lash (in)FALSE

Nut Diameter B (in)1.125

Nut Length C (in)1.25

Nut TypeSleeve Nut

Standard Operating Temperature Range (F°)32 - 200

Static Load Capacity (lb)6250.00

Torque to Raise 1 lb (in-lb)0.0671678926

Thread Details

Threads per Inch6.349206349

Thread DirectionLH, RH

Thread ClassCentralizing

Thread TypeTrapezoidal
