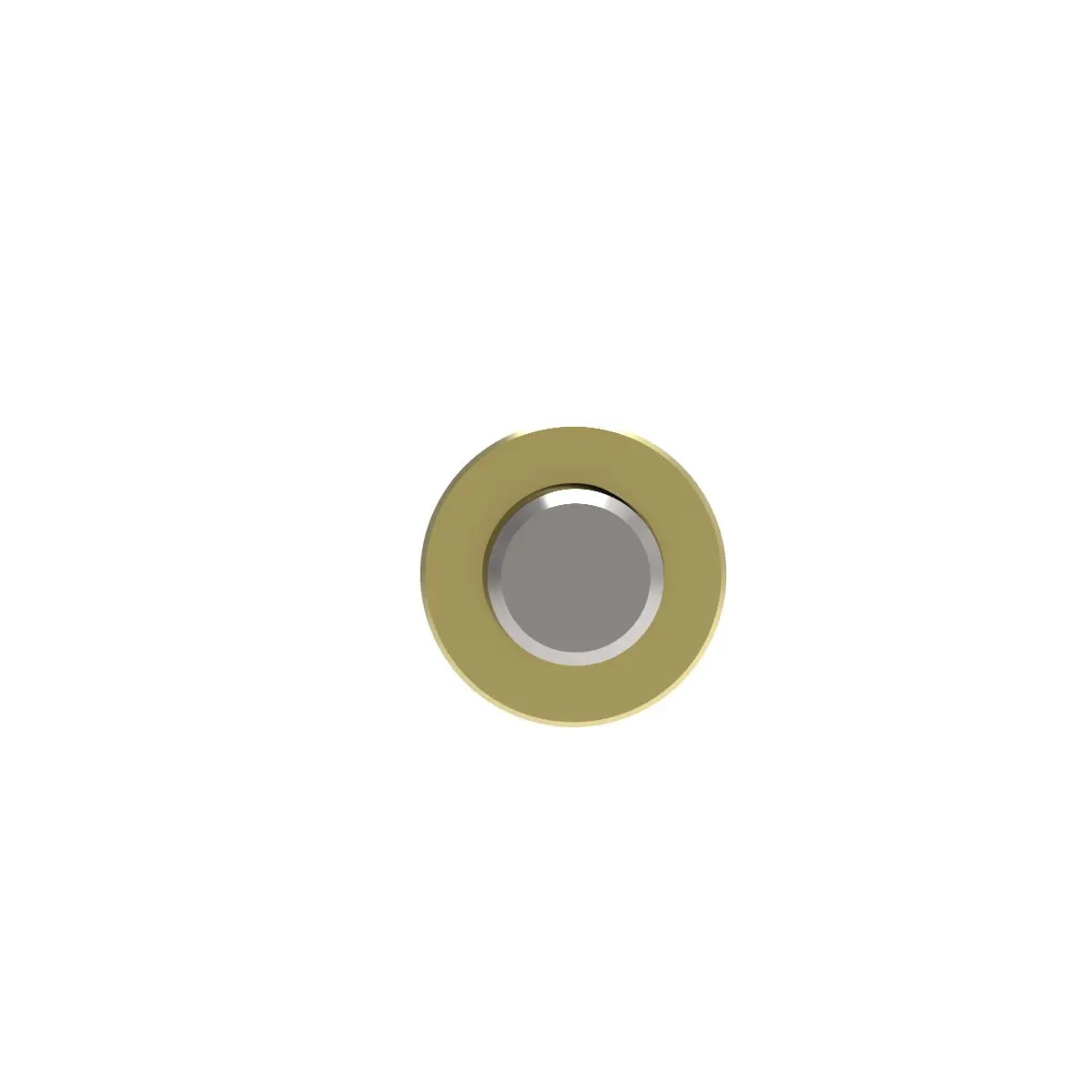

16mm Diameter x 90mm Lead - Sleeve Nut (SMB)

SNB063M90

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

CAD Specifications Catalog Videos Accessories

You Might Also Like

0.197 in Diameter x 0.197 in Lead x 0.049 in Pitch Sleeve Nut (SMB)

$46.73

View Product

4 mm Diameter x 3.2 mm Lead x 0.794 mm Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.039 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.048 in Lead x 0.048 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.25 in Diameter x 0.25 in Lead x 0.063 in Pitch Sleeve Nut (SMB)

$57.11

View Product

8 mm Diameter x 7.5 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.039 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.313 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.394 in Lead x 0.033 in Pitch Sleeve Nut (SMB)

$57.11

View Product

8 mm Diameter x 25 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.313 in Diameter x 0.25 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.1 in Lead x 0.05 in Pitch Sleeve Nut (SMB)

$57.11

View Product

6 mm Diameter x 20 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

6 mm Diameter x 6 mm Lead x 1.5 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.5 in Diameter x 0.197 in Lead x 0.098 in Pitch Sleeve Nut (SMB)

$75.06

View Product

14mm Diameter x 30mm Lead - Sleeve Nut (SMB)

$75.06

View Product

0.375 in Diameter x 0.1 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$76.14

View Product

12mm Diameter x 60mm Lead - Sleeve Nut (SMB)

$76.14

View Product

16 mm Diameter x 20 mm Lead x 2.5 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.25 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

16mm Diameter x 90mm Lead - Sleeve Nut (SMB)

SNB063M90

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

0.197 in Diameter x 0.197 in Lead x 0.049 in Pitch Sleeve Nut (SMB)

$46.73

View Product

4 mm Diameter x 3.2 mm Lead x 0.794 mm Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.039 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.188 in Diameter x 0.048 in Lead x 0.048 in Pitch Sleeve Nut (SMB)

$46.73

View Product

0.25 in Diameter x 0.25 in Lead x 0.063 in Pitch Sleeve Nut (SMB)

$57.11

View Product

8 mm Diameter x 7.5 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.039 in Lead x 0.039 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.313 in Diameter x 0.2 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.394 in Lead x 0.033 in Pitch Sleeve Nut (SMB)

$57.11

View Product

8 mm Diameter x 25 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.313 in Diameter x 0.25 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$57.11

View Product

0.25 in Diameter x 0.1 in Lead x 0.05 in Pitch Sleeve Nut (SMB)

$57.11

View Product

6 mm Diameter x 20 mm Lead x 1.25 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

6 mm Diameter x 6 mm Lead x 1.5 mm Pitch Sleeve Nut (SMB)

$57.11

View Product

0.5 in Diameter x 0.197 in Lead x 0.098 in Pitch Sleeve Nut (SMB)

$75.06

View Product

14mm Diameter x 30mm Lead - Sleeve Nut (SMB)

$75.06

View Product

0.375 in Diameter x 0.1 in Lead x 0.1 in Pitch Sleeve Nut (SMB)

$76.14

View Product

12mm Diameter x 60mm Lead - Sleeve Nut (SMB)

$76.14

View Product

16 mm Diameter x 20 mm Lead x 2.5 mm Pitch Sleeve Nut (SMB)

$101.72

View Product

0.625 in Diameter x 0.25 in Lead x 0.125 in Pitch Sleeve Nut (SMB)

$101.72

View Product

Dimensions Lead

Turns per inch of Travel (in)0.2822227867

Lead (mm)90.00

Nominal Diameter - A (mm)016

Pitch (in)0.19685

Pitch (mm)4.99999

Material & Finish

MaterialBronze

Performance & Tolerances

Starts18

Measurement systemMetric

Product Info

Nut CodeSNB

Diameter Code63

Dynamic Load Capacity (lb)1900

Efficiency (%)65.09773104

Mating Screw Part No063M90L, 063M90R

Maximum Axial Lash (in)FALSE

Nut Diameter B (in)1.125

Nut Length C (in)1.25

Nut TypeSleeve Nut

Standard Operating Temperature Range (F°)32 - 200

Static Load Capacity (lb)6250

Torque to Raise 1 lb (in-lb)0.866287812

Thread Details

Threads per Inch5.08001016

Thread DirectionLH, RH

Thread ClassCentralizing

Thread TypeHigh Helix

Subscribe to our newsletter

16mm Diameter x 90mm Lead - Sleeve Nut (SMB)

16mm Diameter x 90mm Lead - Sleeve Nut (SMB)

Dimensions Lead

Material & Finish

Performance & Tolerances

Product Info

Thread Details
