Nut CodeSNB
Diameter Code200
Dynamic Load Capacity (lb)20000
Efficiency (%)18
Mating Screw Part No200200L, 200200R
Nut Diameter B (in)3.25
Nut Length C (in)4

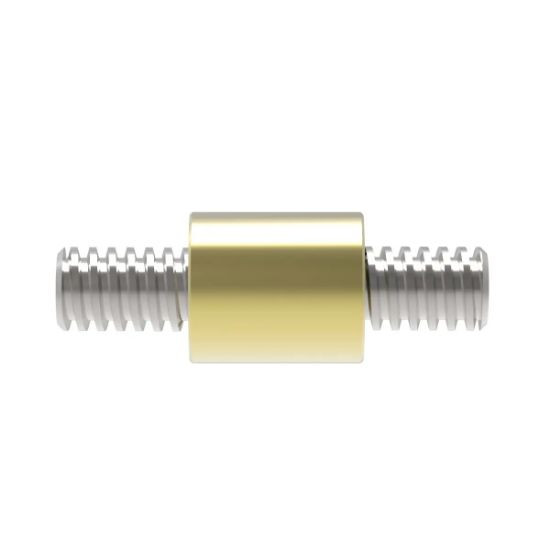

Nut TypeSleeve Nut
Standard Operating Temperature Range (F°)32 - 200
Static Load Capacity (lb)65000.00
Torque to Raise 1 lb (in-lb)0.1769285209
