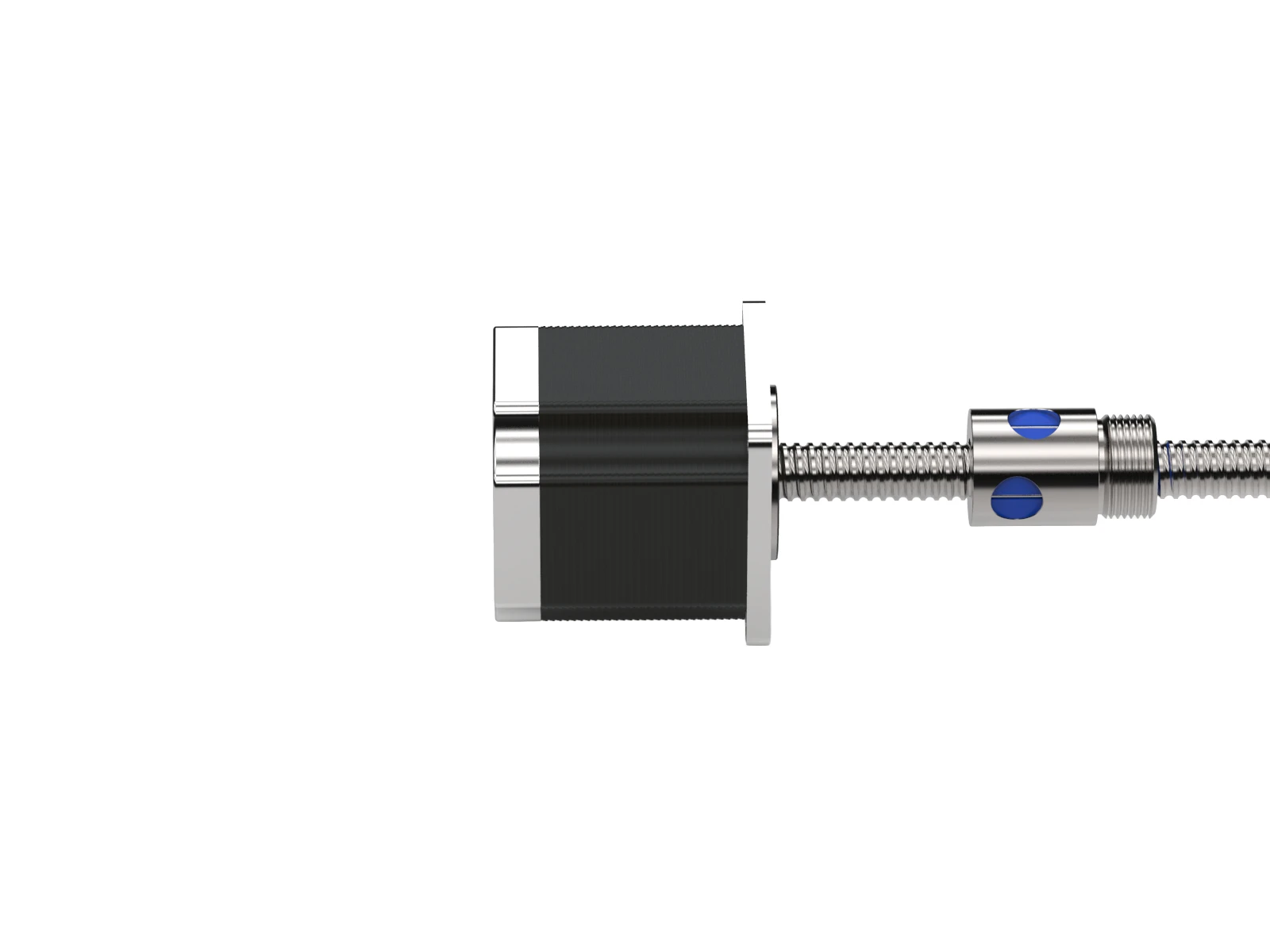

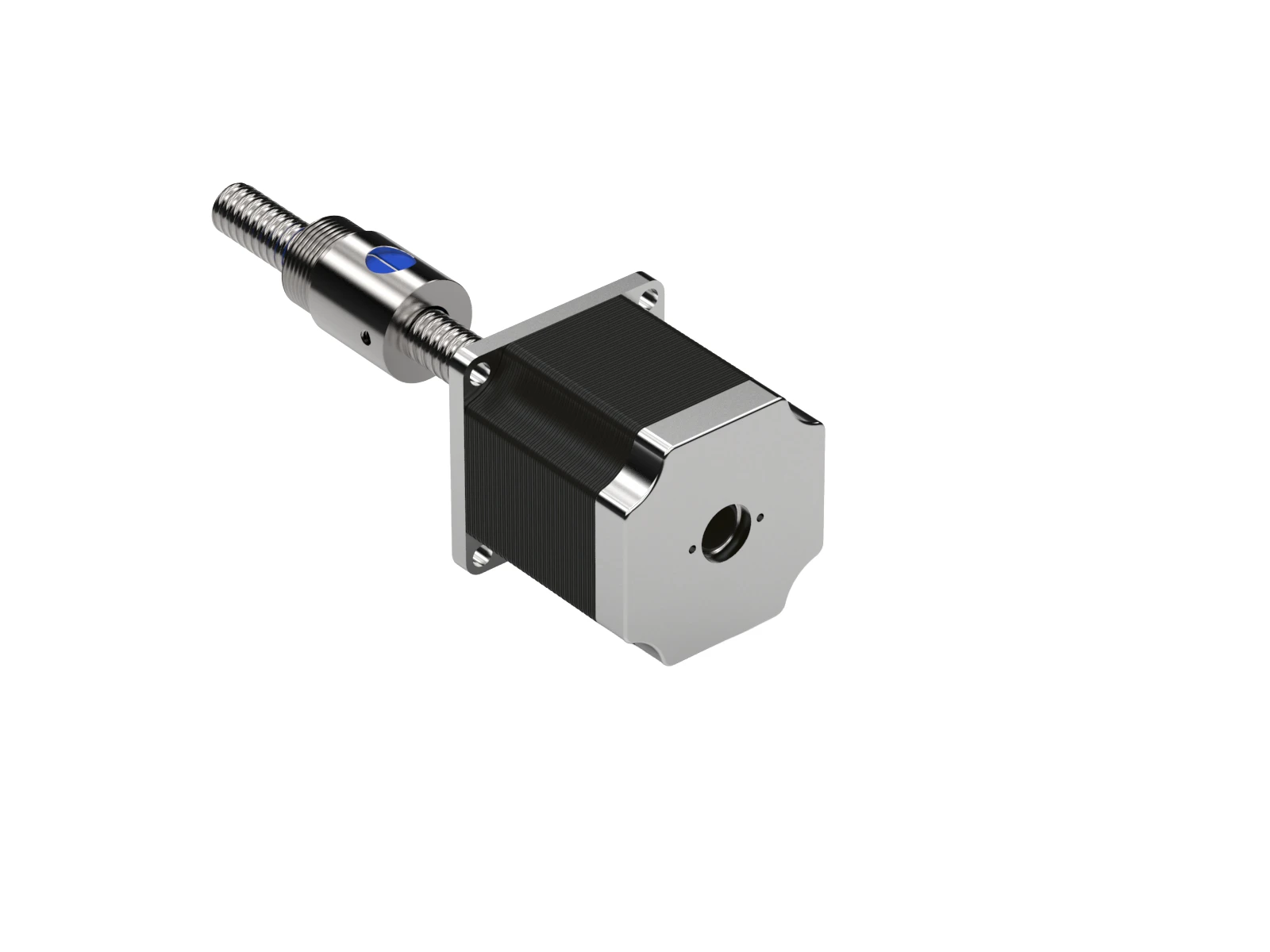

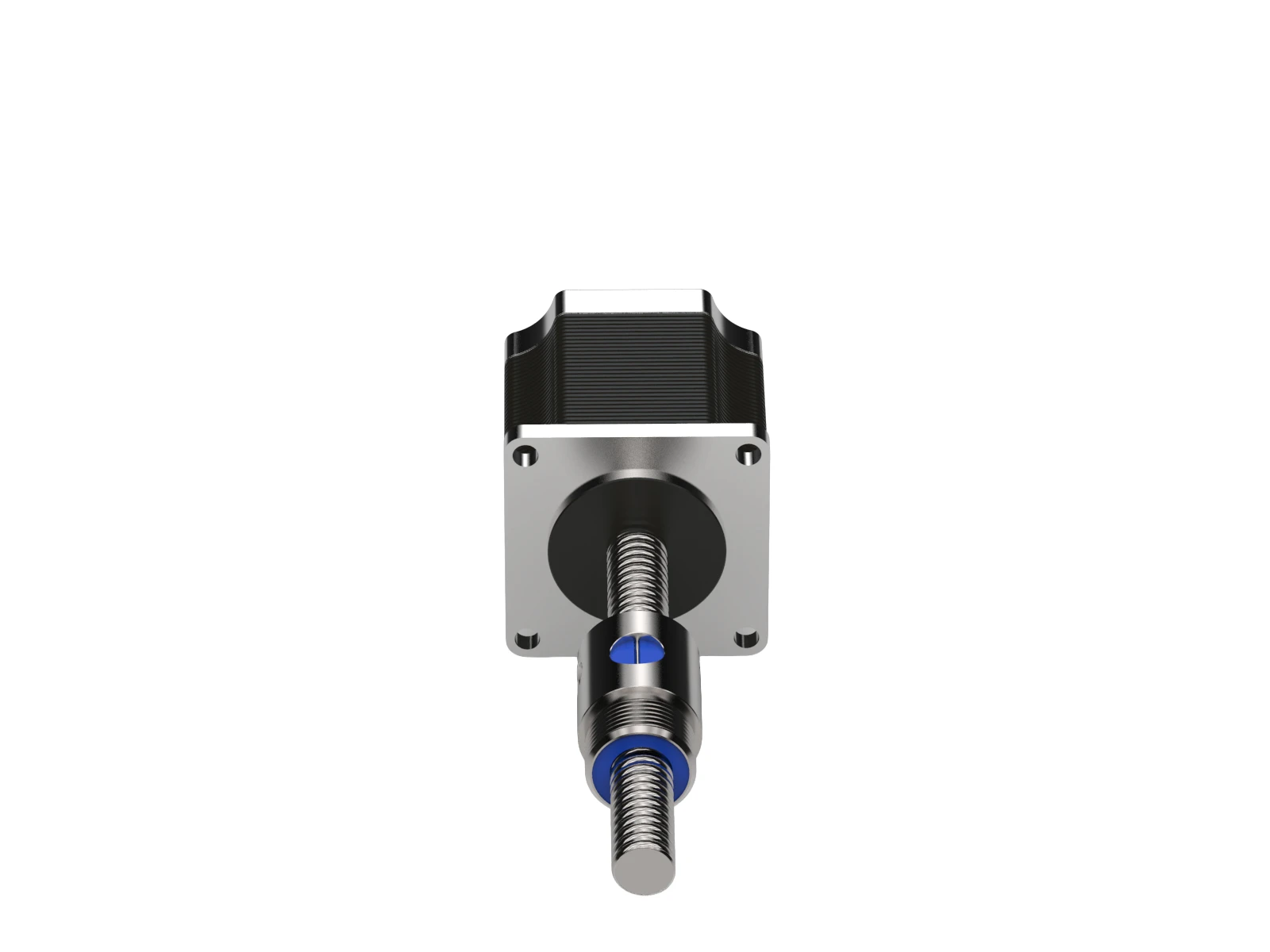

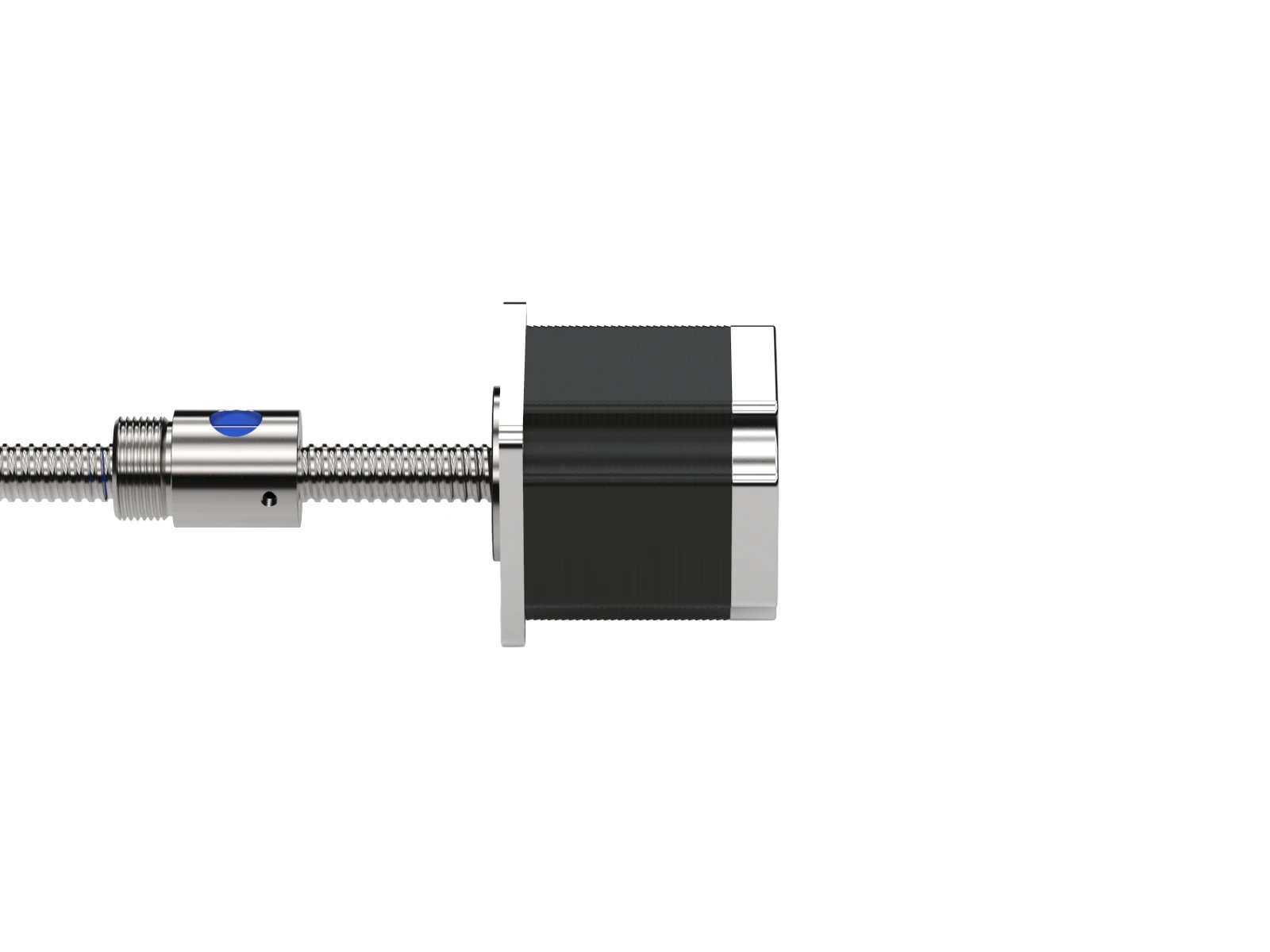

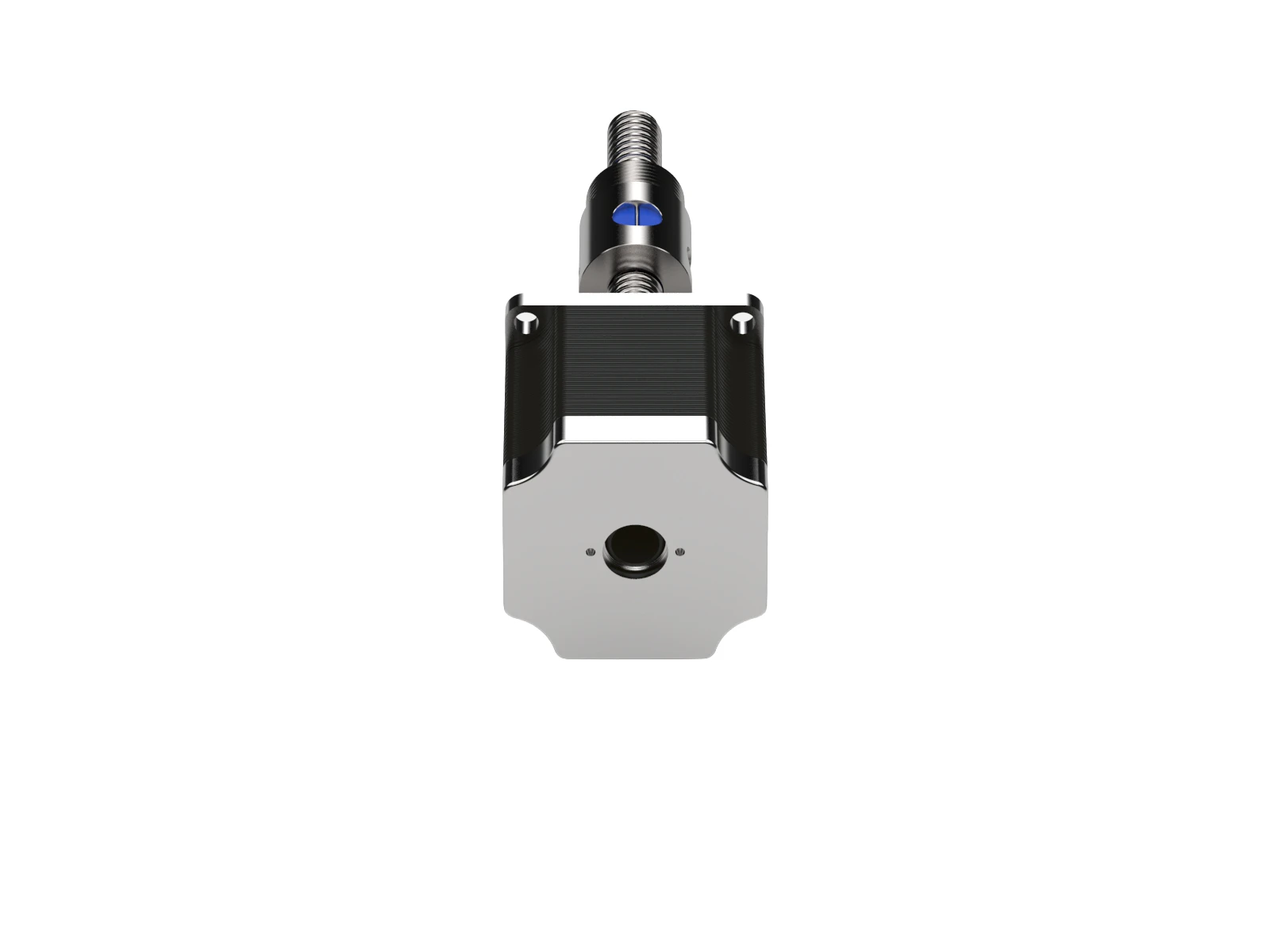

10 mm Diameter x 3 mm Lead x Double Stack Motor x No Encoder Ball Screw Actuator

BSA-10030-DN

Ball Screw Actuator, NEMA 23, Double Stack, 3.25 Volt, 10 mm diameter, 3 mm lead, 3.00 inch length, with threaded ball nut facing away from motor, no encoder, no end machining
