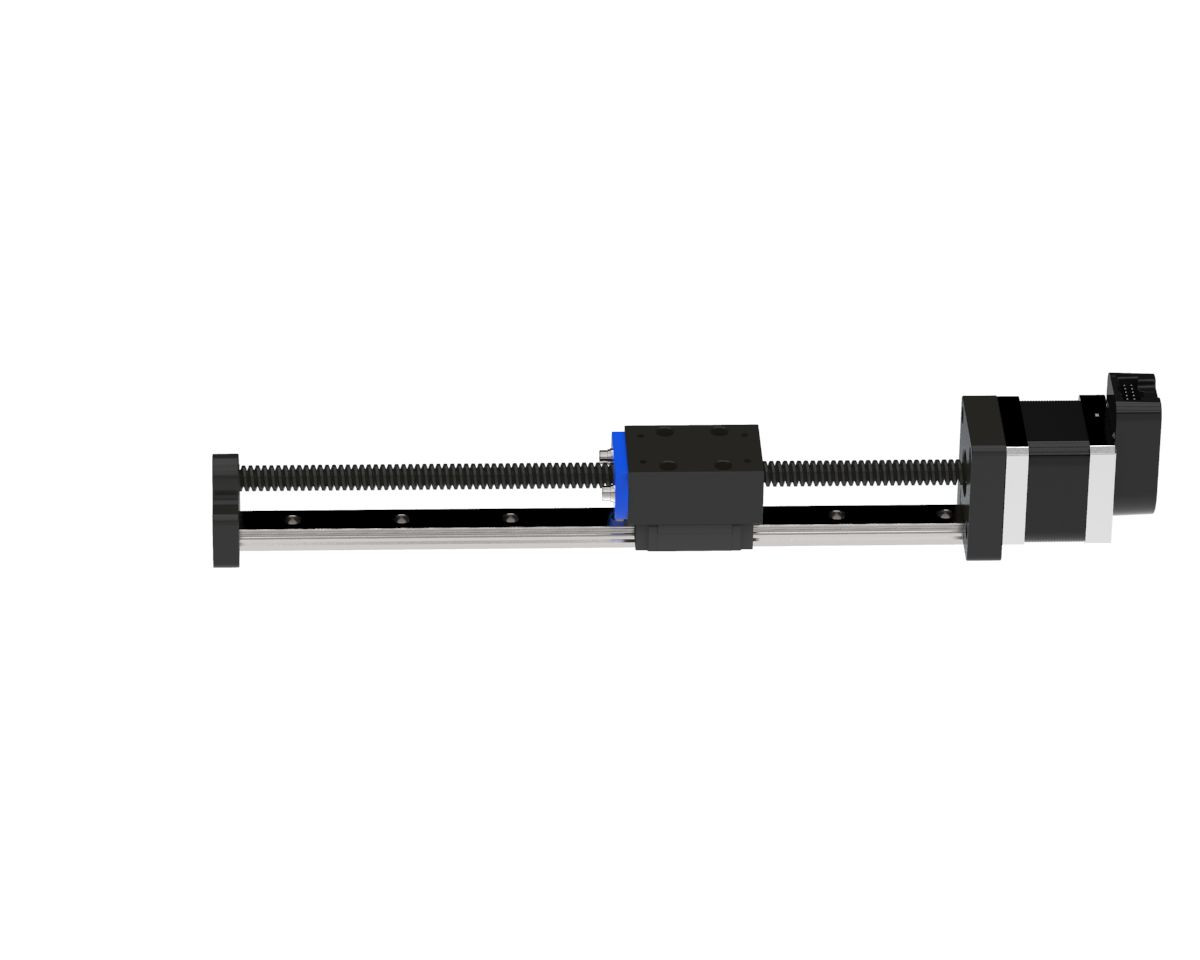

D1 (in)0.31 in
D1 (mm)7.874 mm
D2 (in)0.22 in
D2 (mm)5.588 mm
D3 (in)1.5 in
D3 (mm)38.1 mm
D4 (in)0.75 in
D4 (mm)19.05 mm
Diameter Code37
Diameter D (in)0.0375
Diameter D (mm)0.9525
E (in)1.38 in
E (mm)35.052 mm
EncoderNo Encoder, 1000 CPR
F (in)2.13 in
F (mm)54.102 mm
Fy - Axial Static Load Capacity (lbs)350.00
Fz - Dynamic Normal Load (lbs)856.50
Fz - Static Normal Load (lbs)1,256.70
G6-32 UNC-2B
G1 (in)0.28 in
G1 (mm)7.112 mm
H (in)1.94 in
H (mm)49.276 mm
Inductance/Phase (mH)1.33
J (in)1.92 in
J (mm)48.768 mm
K (in)0.88 in
K (mm)22.352 mm
K1 (in)0.24 in
K1 (mm)6.096 mm
K2 (in)0.16 in
K2 (mm)4.064 mm
L (in)17 in
L (mm)431.8 mm
Length Adder (in)3
Length Adder (mm)76.2
Motor Size (NEMA)17
Motor StackDouble Stack, Single Stack
Motor Voltage (V)2.33, 5
Motor Weight (g)352
Motor Weight (oz)12.4, 8.5
Mx - Maximum Moment Load (in/lbs)239.00
My - Maximum Moment Load (in/lbs)386.00
Mz - Maximum Moment Load (in/lbs)239.00
N (in)1.43 in
N (mm)36.322 mm
Nut TypeAxial Anti-backlash Nut, Standard Freewheeling Nut
P (in)1.5 in
P (mm)38.1 mm
Power Consumption (W)14
Profile Rail Linear Actuator Catalogprofile_rail_linear_guidance_system.pdf
Q (in)1.22 in
Q (mm)30.988 mm
R (in)2.49 in
R (mm)63.246 mm
Rated Current (A)2.6, 1.3, 1.5, 0.7
S (in)1.92 in
S (mm)48.768 mm
Screw Drive TypeLead Screw
T (in)1.66 in
T (mm)42.164 mm
Temperature Rise (°C)75
Travel (in)14
Travel (mm)355.6
Travel Per Step (in)0.00039
Travel Per Step (mm)0.009906
U (in)0.65 in
U (mm)16.51 mm
V (in)0.75 in
V (mm)19.05 mm
W (in)1.575 in
W (mm)39.878 mm
WiringBipolar
Wiring Leads4
X (in)1.26 in
X (mm)32.004 mm
Y (in)0.13 in
Y (mm)3.302 mm
Zero Lash Axial Dynamic Load Capacity (lb)8.00
