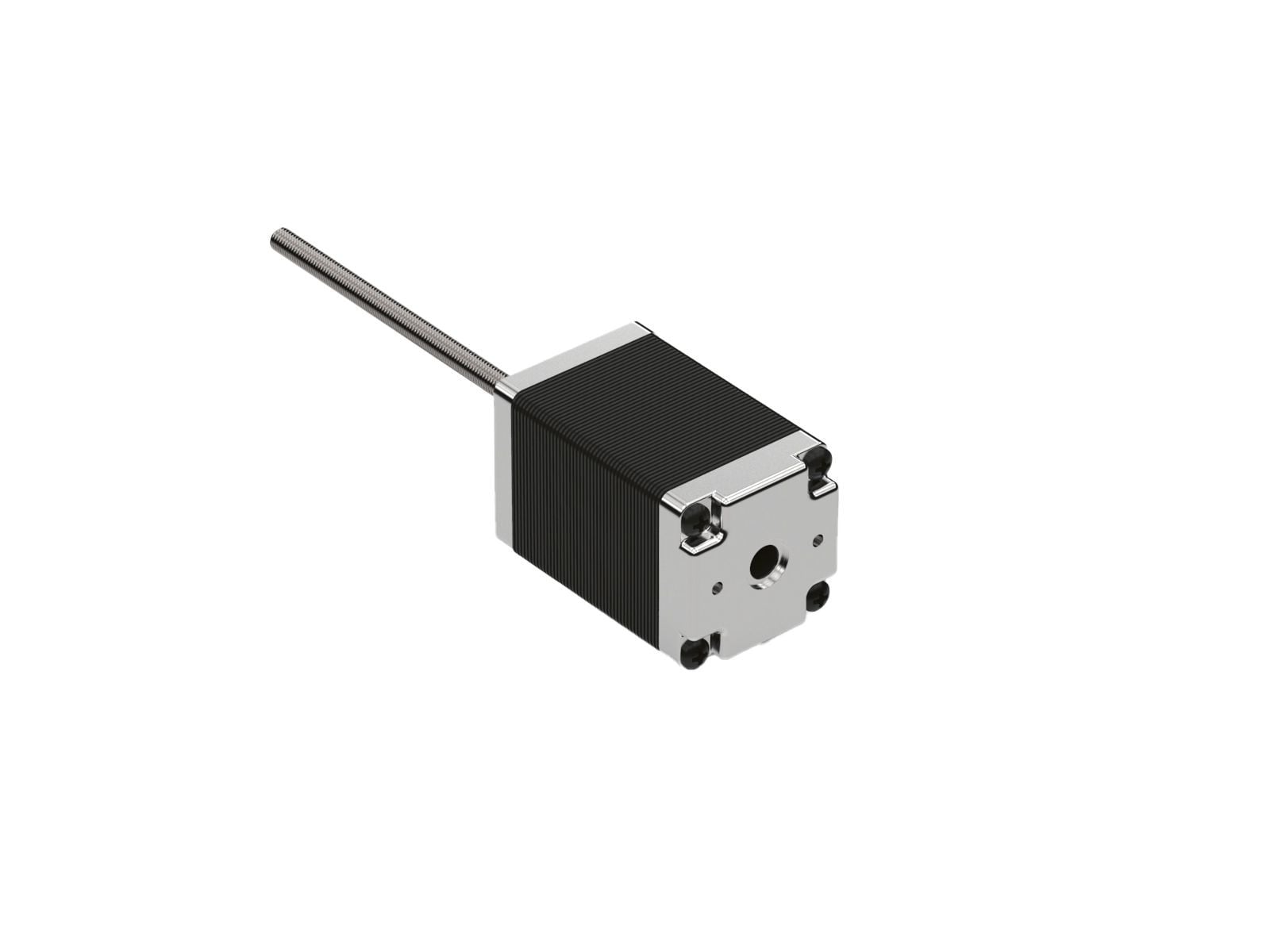

0.188 in Diameter x 0.2 in Lead External Stepper Motor Linear Actuator

SMA-E-18200

External Stepper Motor Linear Actuator,NEMA 11 single stack,2.1 volt,0.1875 in diameter,.200 in lead,2.00 inch stroke with no nut included,500 CPR encoder,position A,no bearing support

Loading...

Loading...

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

0.188 in Diameter x 0.05 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.05 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.2 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.2 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.2 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.2 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.025 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.025 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.1 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.1 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.1 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.1 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.1 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.1 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.025 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.025 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.2 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.2 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.05 in Lead x 2 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.05 in Lead x 2 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.05 in Lead x 6 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.05 in Lead x 6 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.025 in Lead x 4 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.025 in Lead x 4 in Length External Stepper Motor Linear Actuator

Price: Starting at$249.26View Product

0.188 in Diameter x 0.05 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.05 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$263.12View Product

0.188 in Diameter x 0.1 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.1 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$263.12View Product

0.188 in Diameter x 0.025 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.025 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$263.12View Product

0.188 in Diameter x 0.2 in Lead x 8 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.2 in Lead x 8 in Length External Stepper Motor Linear Actuator

Price: Starting at$263.12View Product

0.188 in Diameter x 0.05 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.05 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$276.98View Product

0.188 in Diameter x 0.1 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.1 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$276.98View Product

0.188 in Diameter x 0.2 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.2 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$276.98View Product

0.188 in Diameter x 0.025 in Lead x 10 in Length External Stepper Motor Linear Actuator

0.188 in Diameter x 0.025 in Lead x 10 in Length External Stepper Motor Linear Actuator

Price: Starting at$276.98View Product

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

Home
Linear Actuators
Lead Screw SMA
External
11

CAD Specifications Catalog Videos Accessories

Use arrow keys to navigate between tabs. Press Enter or Space to activate a tab.

No resources available

Dimensions Lead

Screw Length (in)2 in

Screw Length (mm)50.8 mm

Lead (in)0.2

Lead (mm)5.08

Performance & Tolerances

Lead Accuracy +/- (in/in)0.1300

Measurement systemMetric

Product Info

Actuator StyleExternal

Bearing Load Limit (N)115

Bearing Support0

Diameter (in)0.188

Diameter (mm)4.7625

Diameter Code18

E (in)0.078 in

E (mm)1.9812 mm

Encoder500 CPR

Encoder Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/nema11encoder.webp

F (in)0.87 in

F (mm)22.098 mm

G (in)0.1875 in

G (mm)4.7625 mm

Insulation Resistance Œ©20Ω

Inductance/Phase (mH)1.5

J (in)1.11 in

J (mm)28.194 mm

K (in)0.9 in

K (mm)22.86 mm

L (in)1.26 in

L (mm)32.2 mm

MM2.5

Motor Size (NEMA)11

Motor StackSingle Stack

Motor Voltage (VDC)2.1

Motor Weight (g)119

N (in)0.0984251968503937 in

N (mm)2.5 mm

Nut Type0

P (in)11.81 in

P (mm)299.974 mm

Power Consumption (W)4.2

QAWG26#

Rated Current (A)1

Resistance/Phase Œ©2.1

Screw Drive TypeLead Screw

Step Angle1.8

Stepper Motor Actuators Cataloghttps://s3.us-west-2.amazonaws.com/catsy.1124/stepper_motor_linear_actuators.pdf

Temperature Rise (°C)75

Temperature Rise (°F)167

Travel Per Step (in)0.381

Travel Per Step (mm)0.015

WiringBipolar

Wiring Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/sma-wiring-11-14-17.webp

Wiring Leads4

Price: $456.34
