Counterbore - √∏D (mm)3.5
Counterbore Depth - g1 (in)0.039
Counterbore Depth - g1 (mm)1
Dynamic Load (N)470.00
Ending Hole Pitch5
MM2.6x2.0
M2M3x0.5
Mounting Plate - L1 (in)0.531
Mounting Plate - L1 (mm)13.5, 10, 21.2, 15.1
Number of Blocks1
P1 (in)0.28
P1 (mm)7.00
P2 (in)0.32, 0.51
P2 (mm)8.00, 13.00
Pitch Moment - Mp (Lbf-ft)1.55
Pitch Moment - Mp (Nm)2.10
preloadstandard
Ø (in)0.03
Ø (mm)0.70
Rail Height - H1 (in)0.138
Rail Height - H1 (mm)3.5
Rail Length40, 55, 70, 85, 100, 50, 90, 110, 130, 150, 170
Rail Pitch x-axis - P (in)0.591
Rail Pitch x-axis - P (mm)15
Rail stylestandard
Rail Weight (g/m)116.00
Rail Weight (oz/yard)3.74
Rail Width5
Rail Width - W1 (in)0.197
Rail Width - W1 (mm)5
Roll Moment - Mr (Lbf-ft)1.77
Roll Moment - Mr (Nm)2.40
S (in)0.05
S (mm)1.30
Seal decodedend seal and bottom seal, with end seal, end seal and bottom seal and reinforcement plate, end seal and reinforcement plate, end seal and bottom seal and lubrication storage, end seal and lubrication storage, end seal and bottom seal and reinforcement plate and lubrication storage, end seal and reinforcement plate and lubrication storage
Seals, Plates, LubricationSU

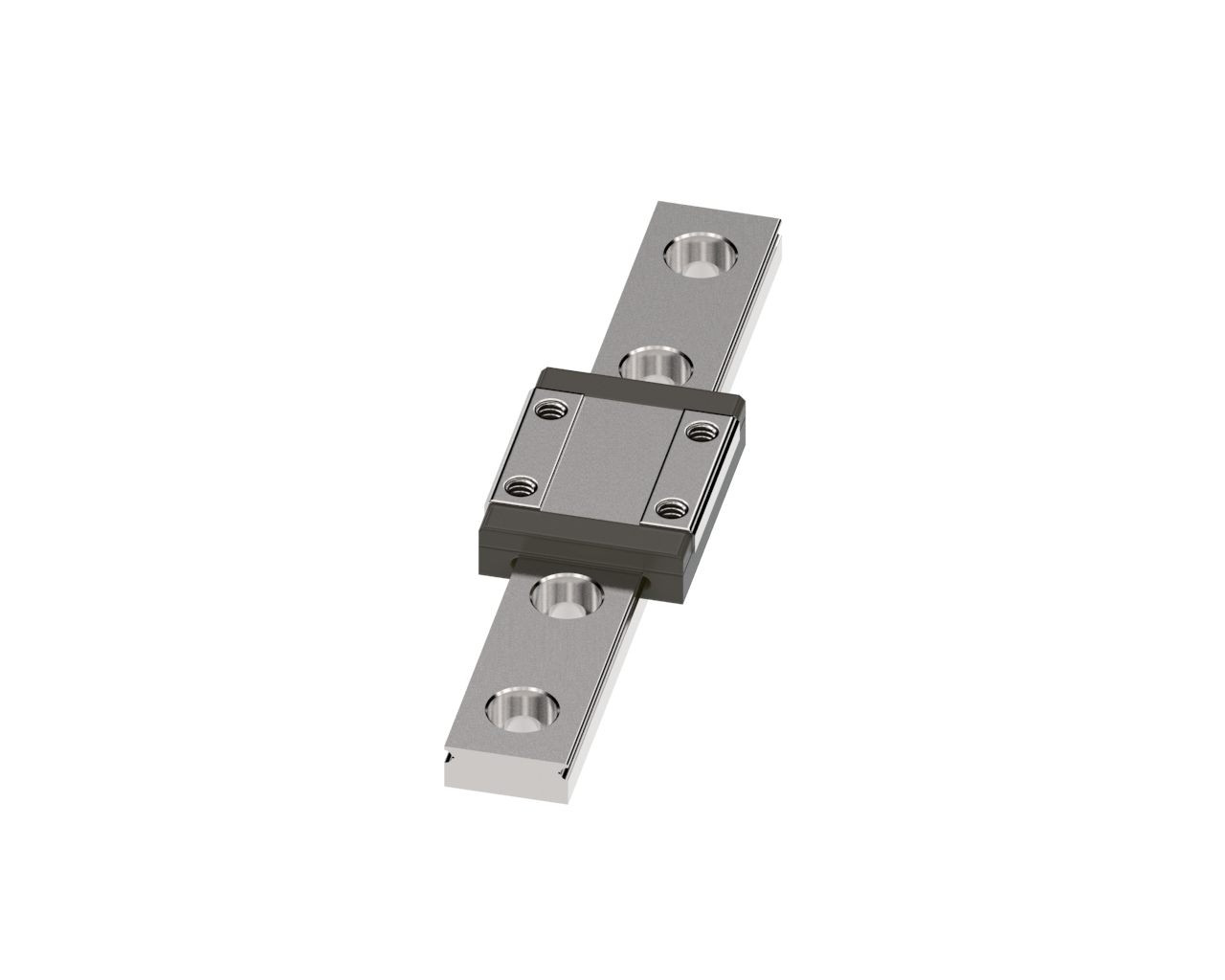

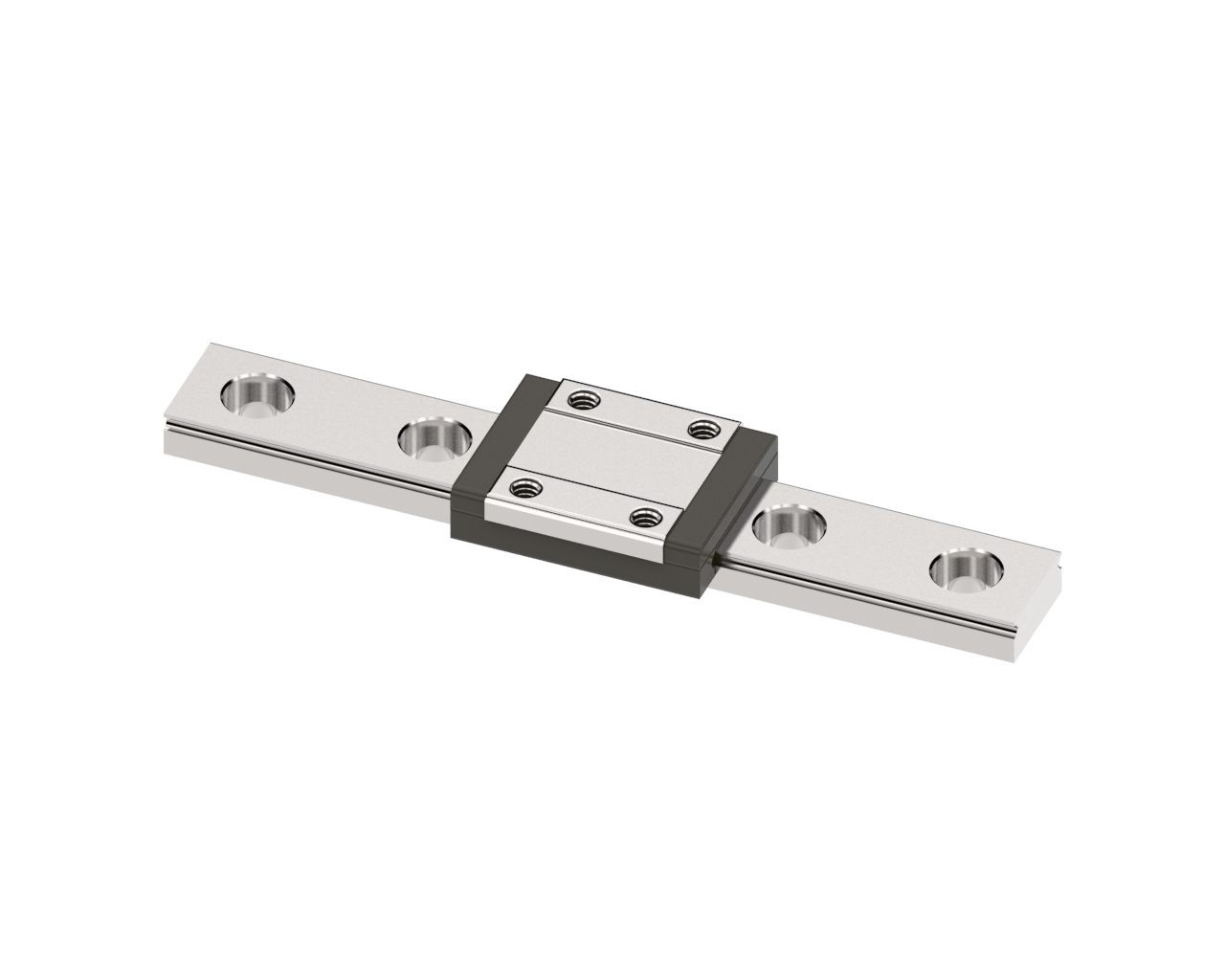

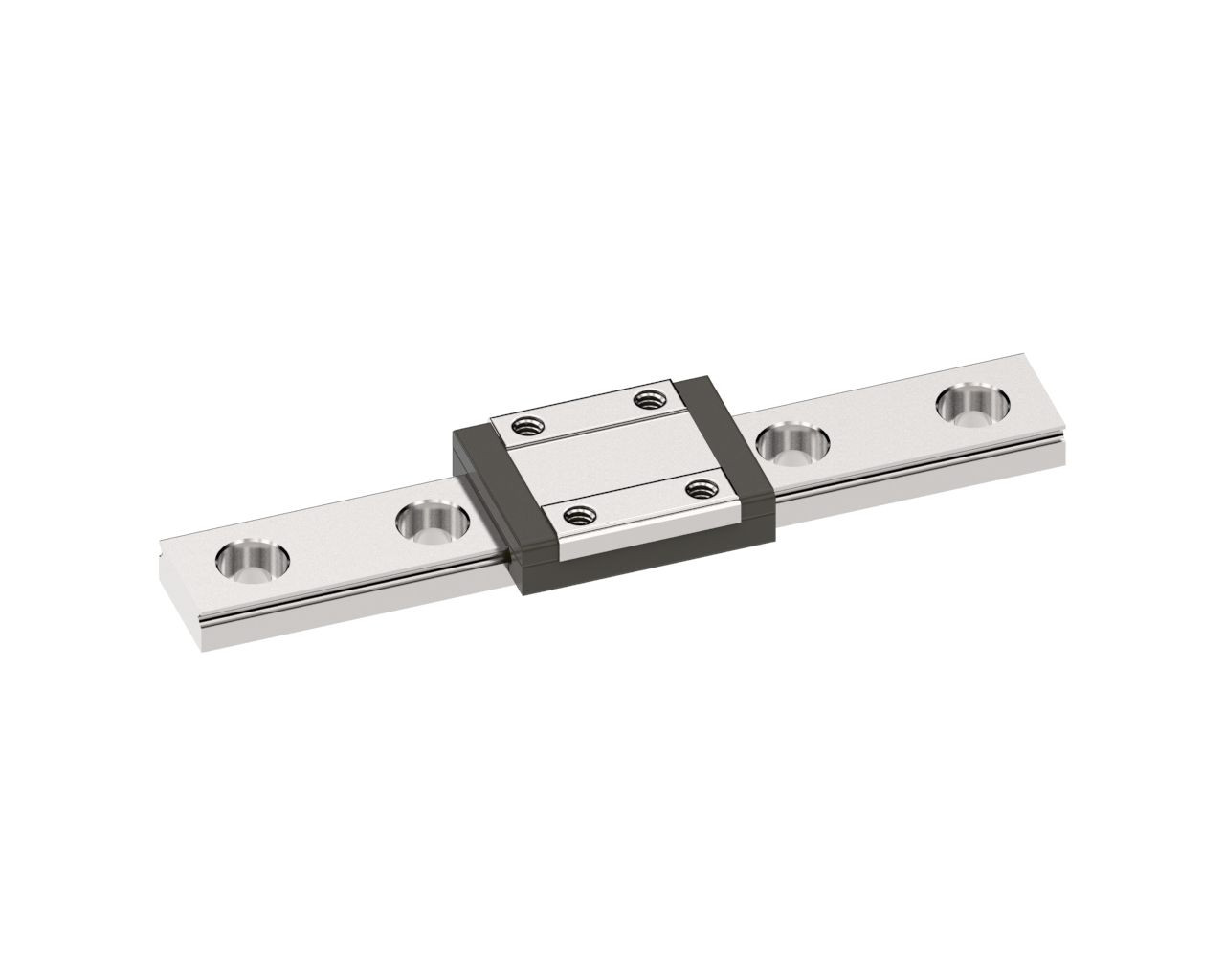

Series NameHMR
Starting Hole Pitch5
Static Load (N)900.00
T (in)0.08
T (mm)2.00
Thru Hole - √∏D (in)0.094
Thru Hole - √∏D (mm)2.4
Total Height - H (in)0.236
Total Height - H (mm)6
W2 (in)0.138
W2 (mm)3.5
Yaw Moment - My (Lbf-ft)1.55
Yaw Moment -My (Nm)2.10
