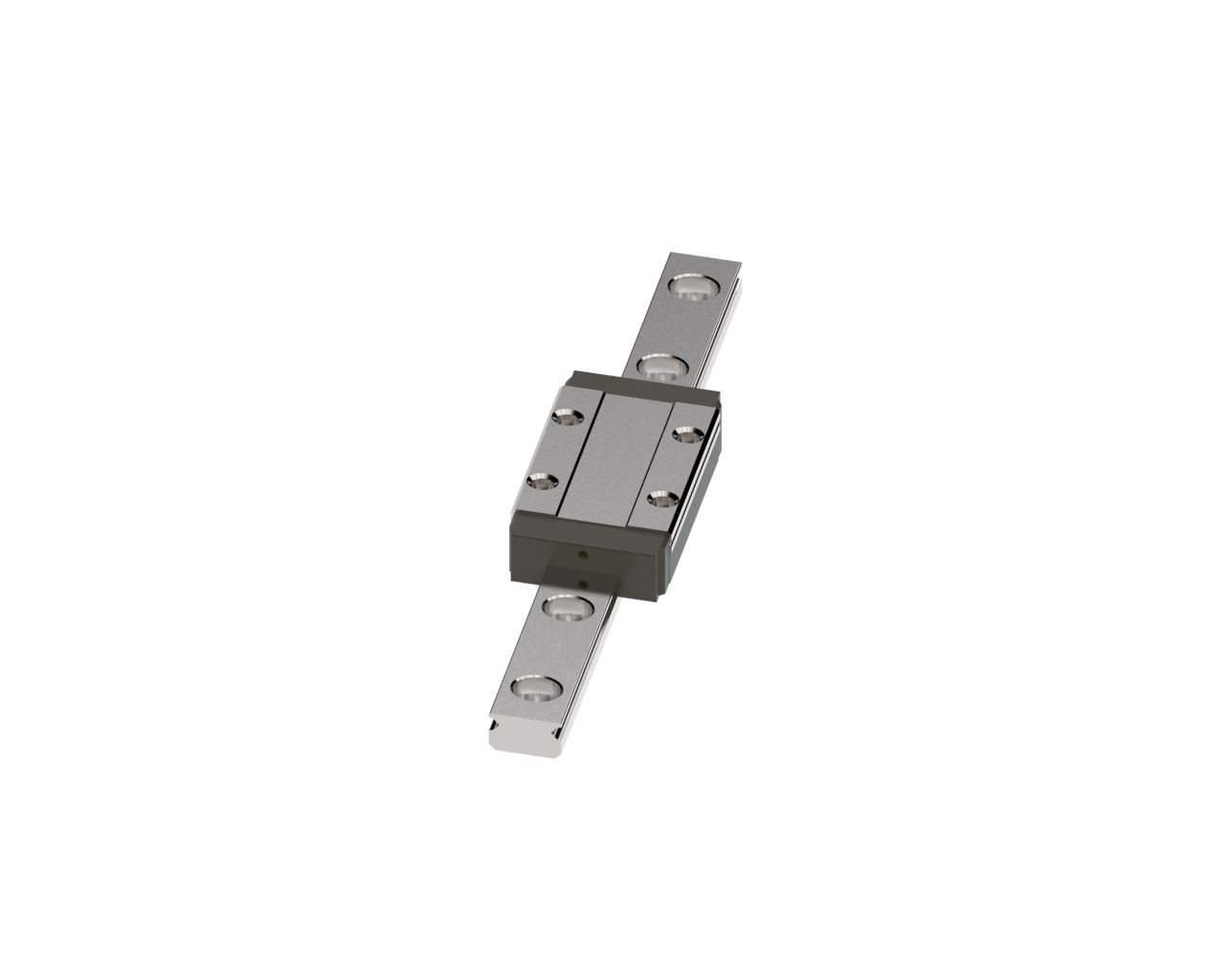

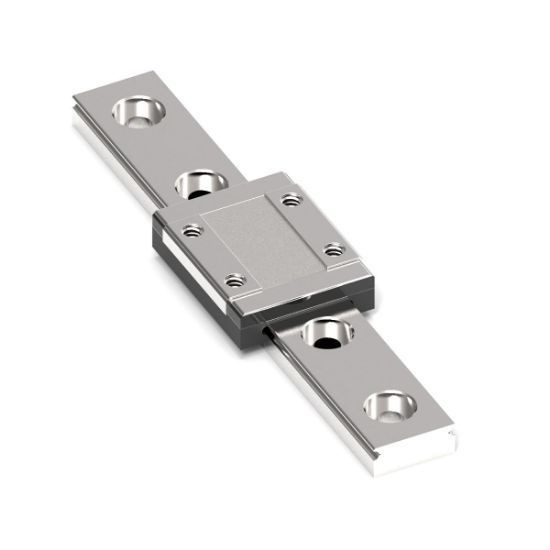

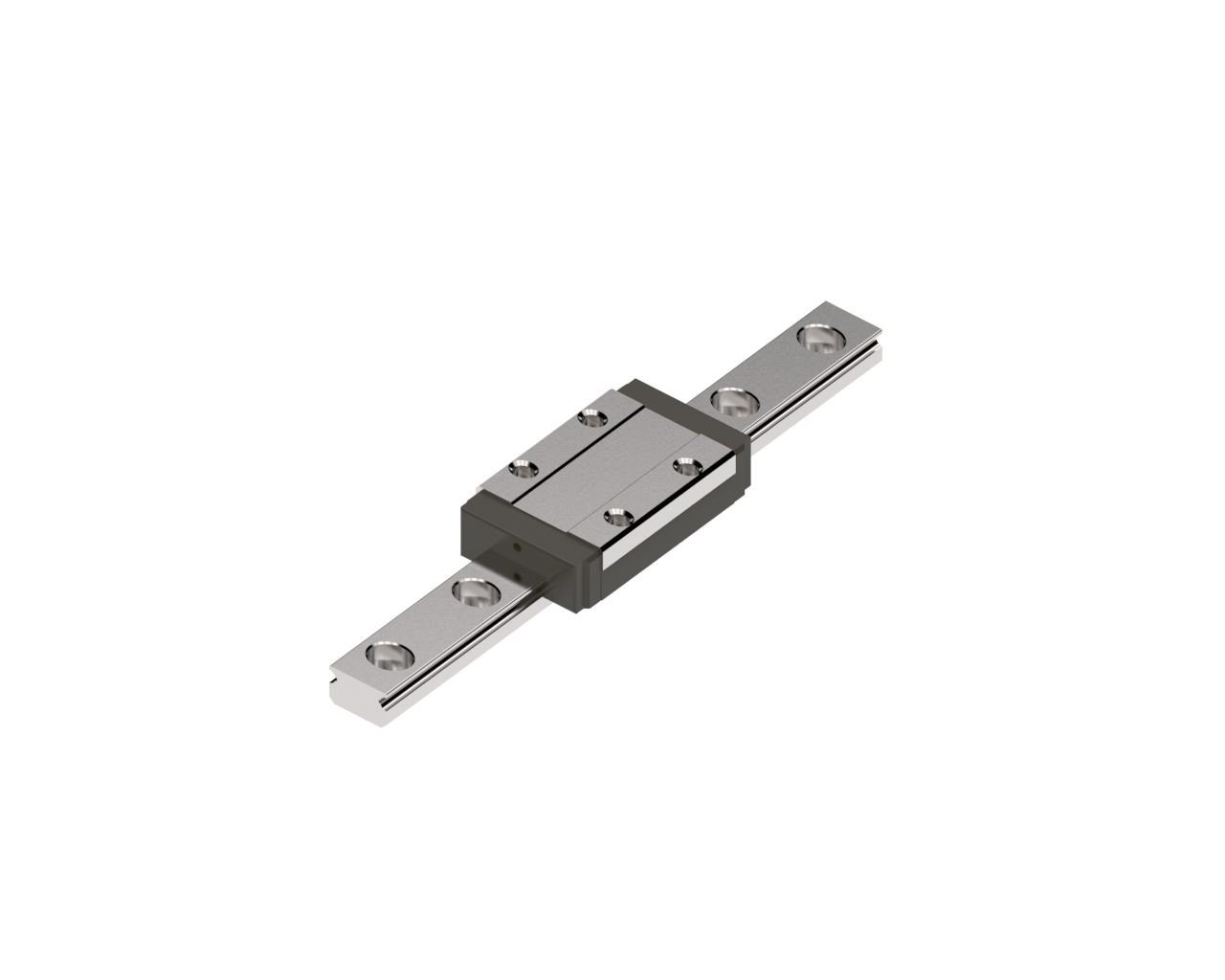

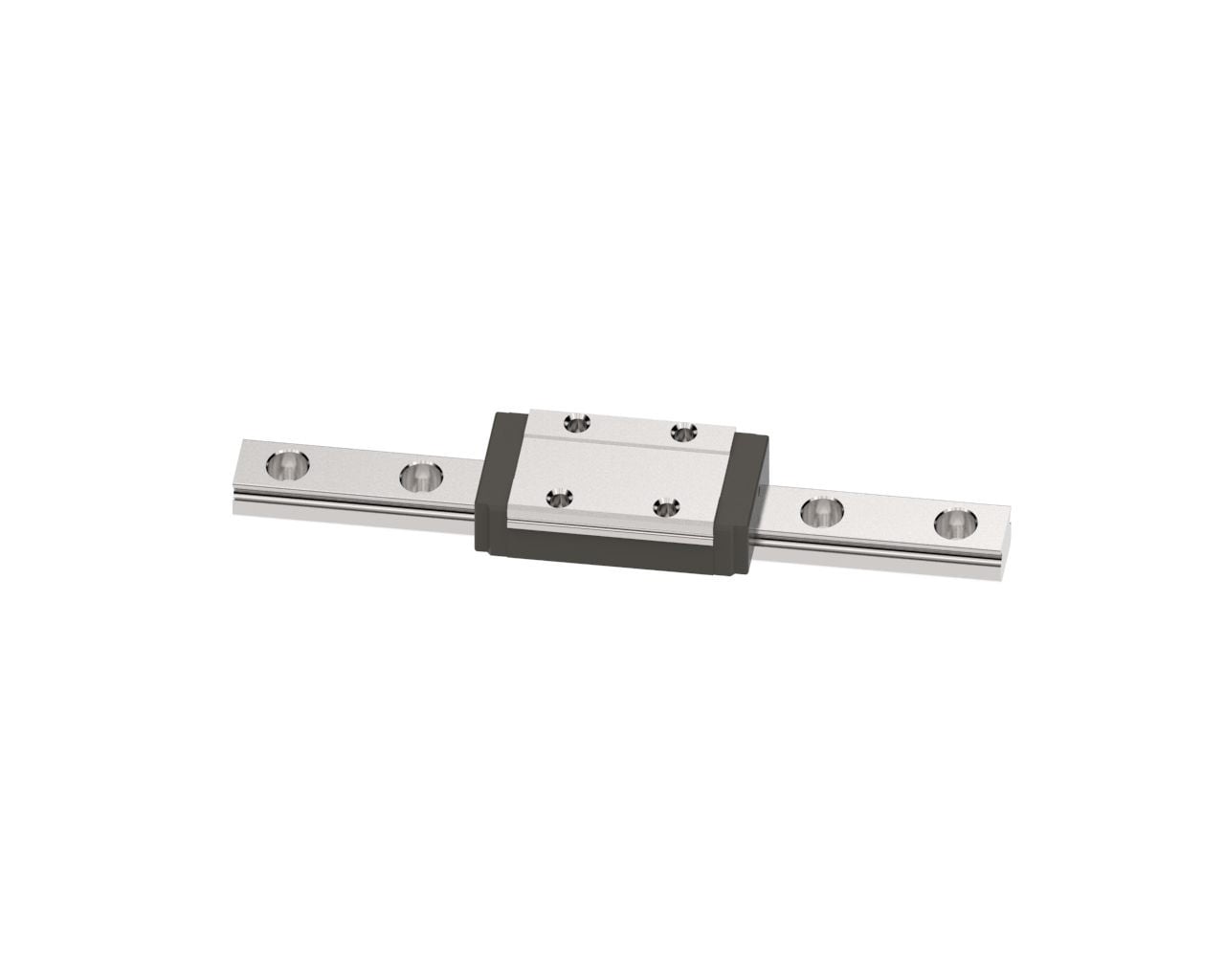

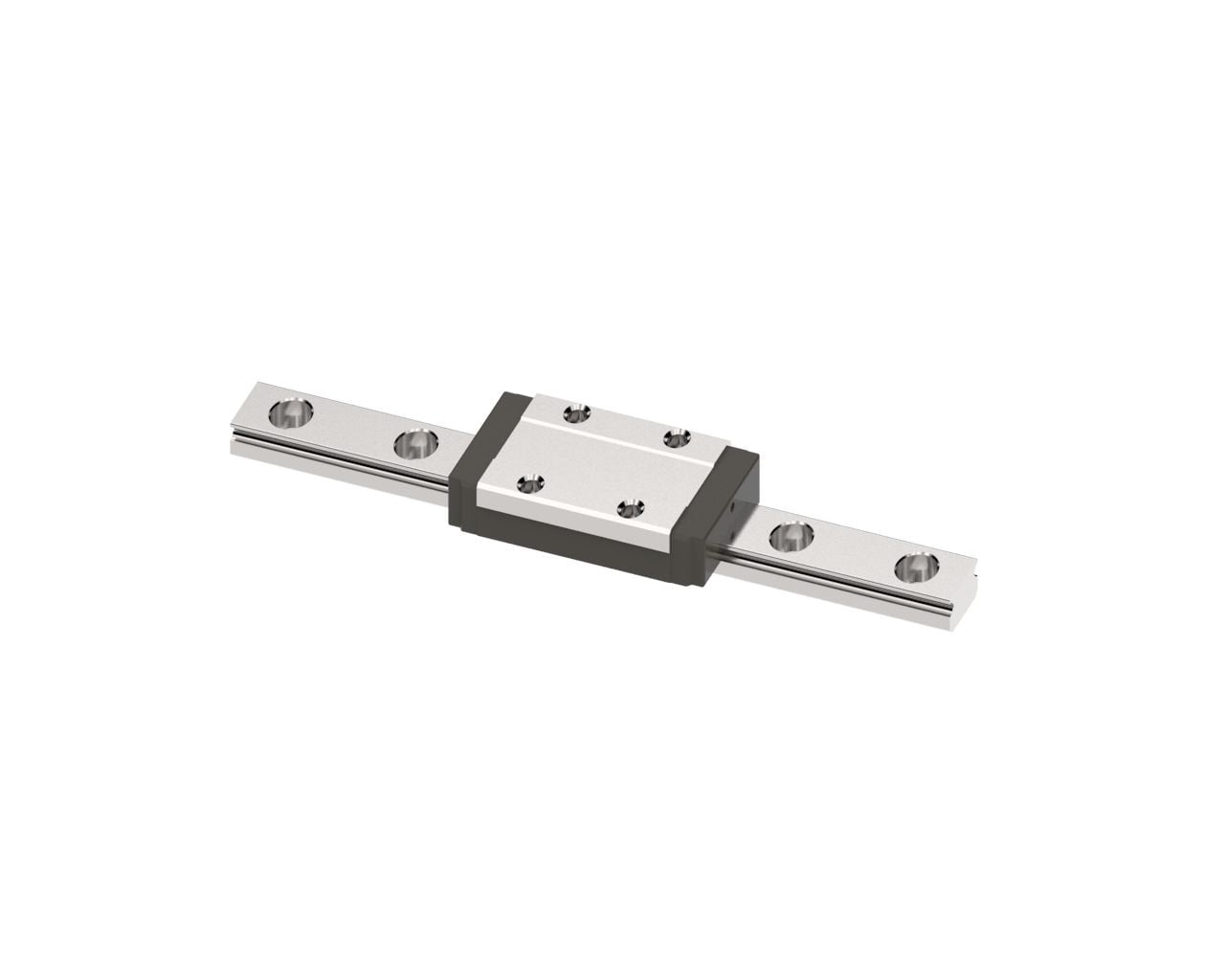

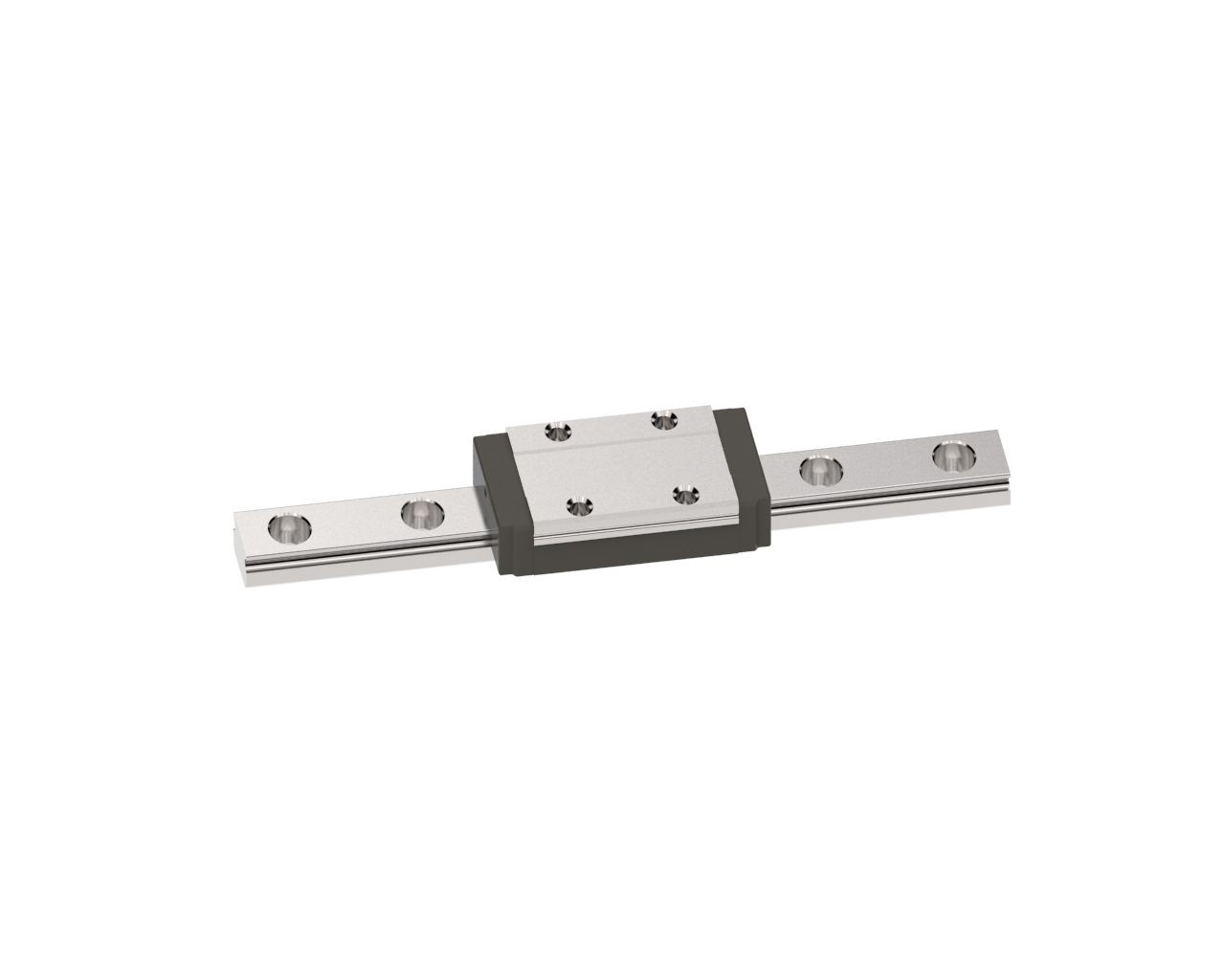

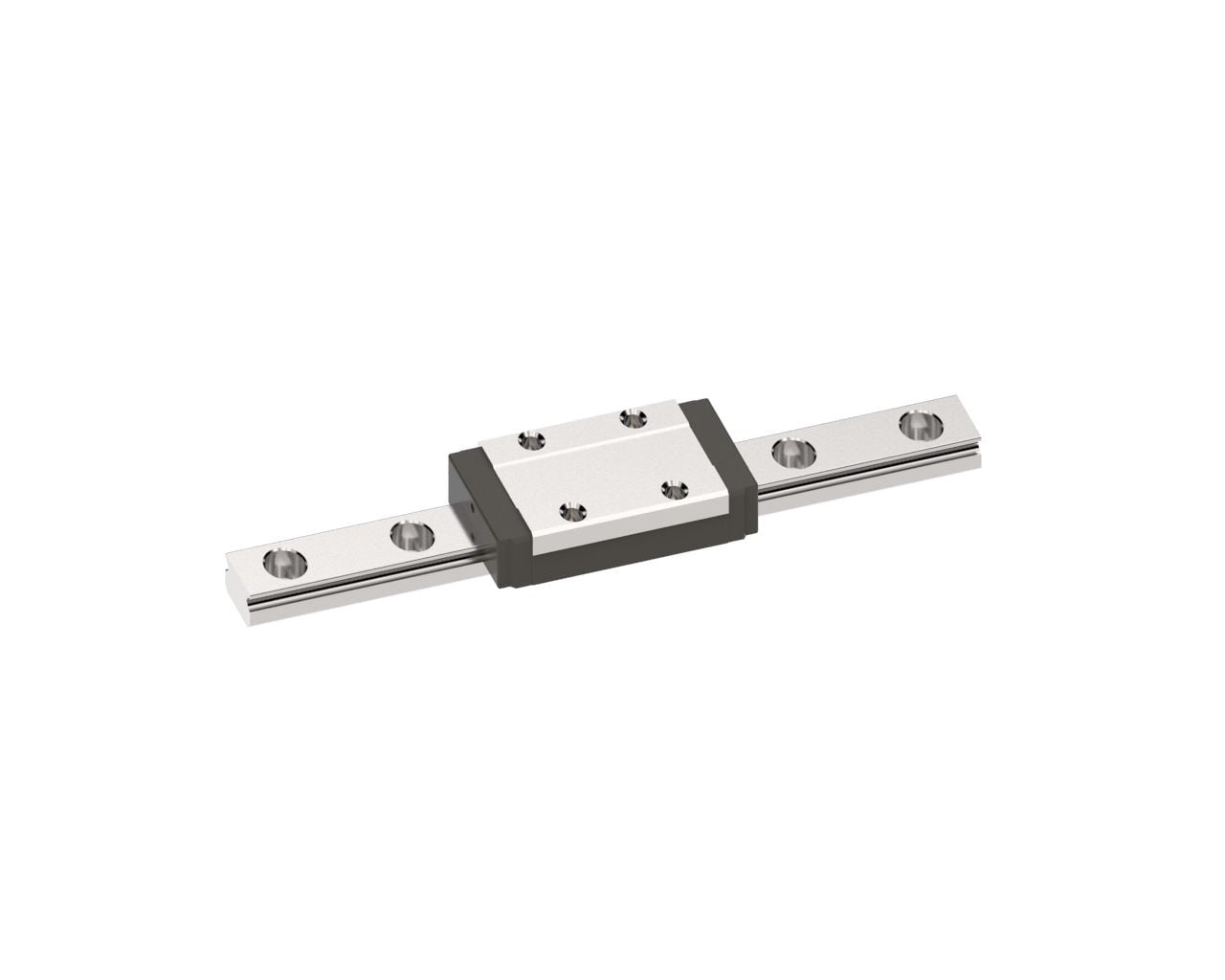

Counterbore Depth - g1 (mm)2.3
Dynamic Load (N)1310
Ending Hole Pitch5.0
MM2x2.5
Mounting Plate - L1 (in)0.858
Mounting Plate - L1 (mm)21.8
Number of Blocks1
P1 (in)0.51
P1 (mm)13
P2 (in)0.47
P2 (mm)12
Pitch Moment - Mp (Lbf-ft)5.68
Pitch Moment - Mp (Nm)7.7
preloadclearance
Ø (in)0.04
Ø (mm)1.1
Rail Height - H1 (in)0.185
Rail Height - H1 (mm)4.7
Rail Length40
Rail Pitch x-axis - P (in)0.591
Rail Pitch x-axis - P (mm)15
Rail stylestandard
Rail Weight (g/m)215
Rail Weight (oz/yard)6.94
Rail Width7
Rail Width - W1 (in)0.276
Rail Width - W1 (mm)7
Roll Moment - Mr (Lbf-ft)6.64
Roll Moment - Mr (Nm)9.0
S (in)0.06
S (mm)1.6
Seal decodedend seal and bottom seal
Series NameHMR
Starting Hole Pitch5.0
Static Load (N)2440
T (in)0.11
T (mm)2.8
Total Height - H (in)0.315
Total Height - H (mm)8.0
W2 (in)0.197
W2 (mm)5.0
Yaw Moment - My (Lbf-ft)5.68
Yaw Moment -My (Nm)7.7
