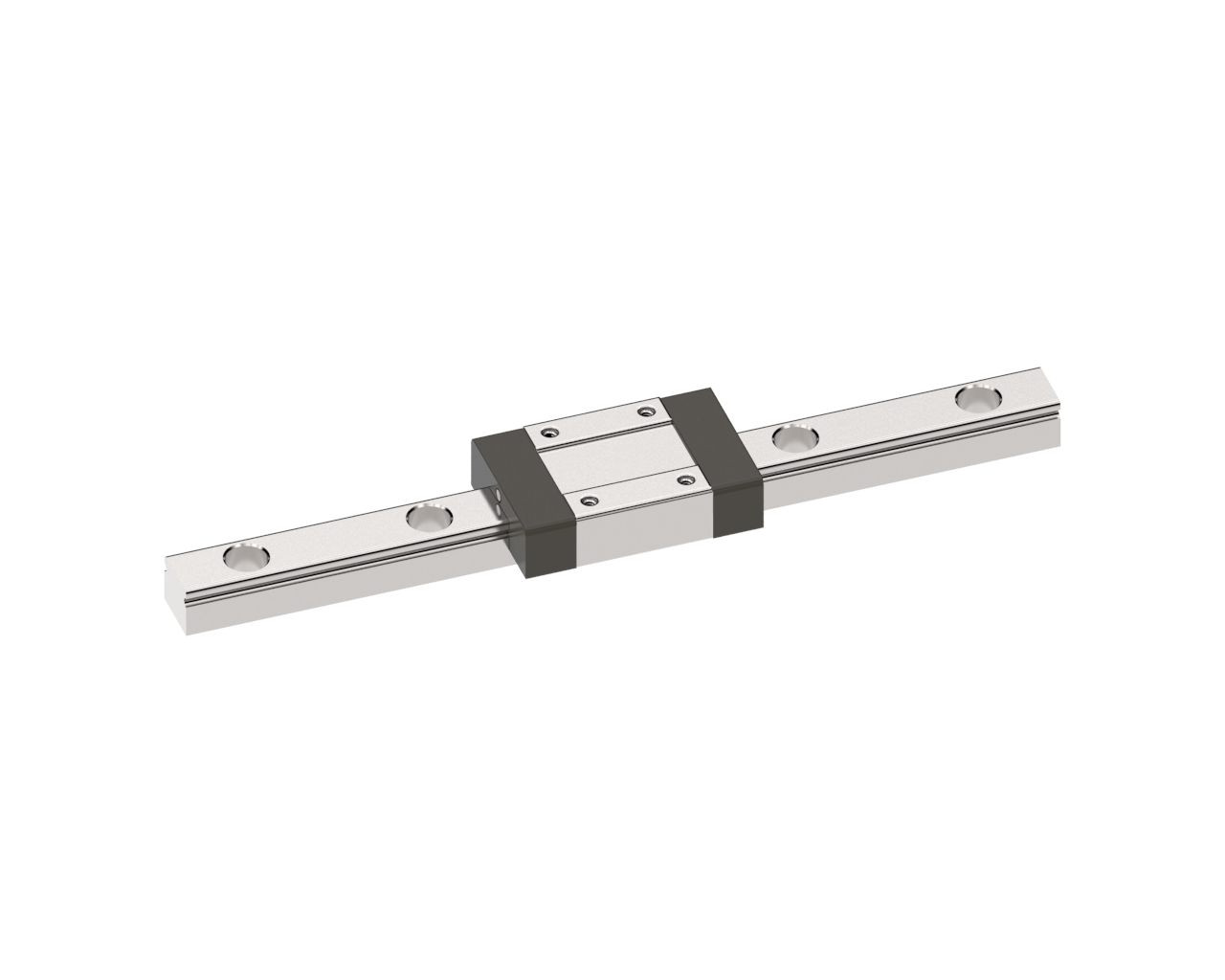

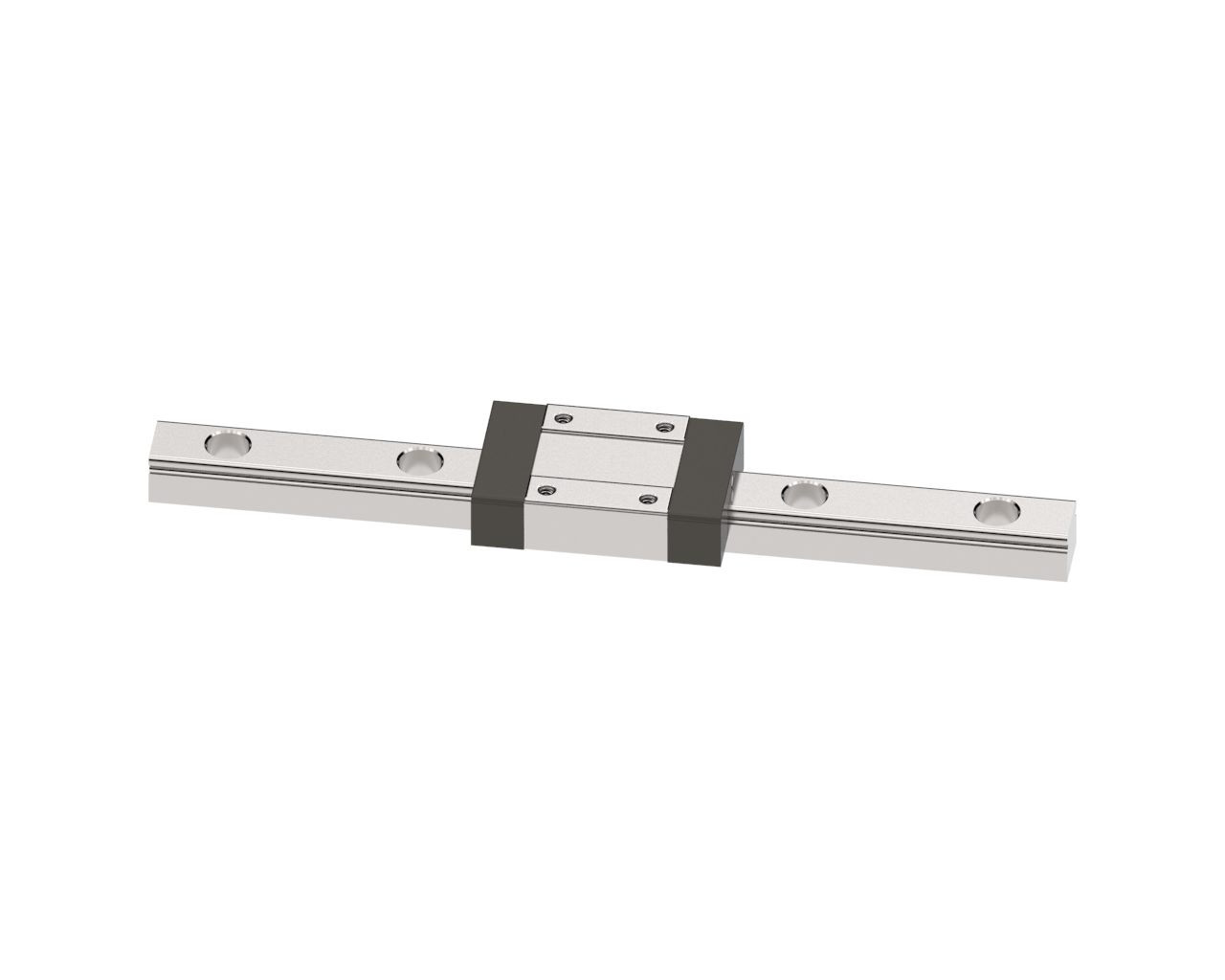

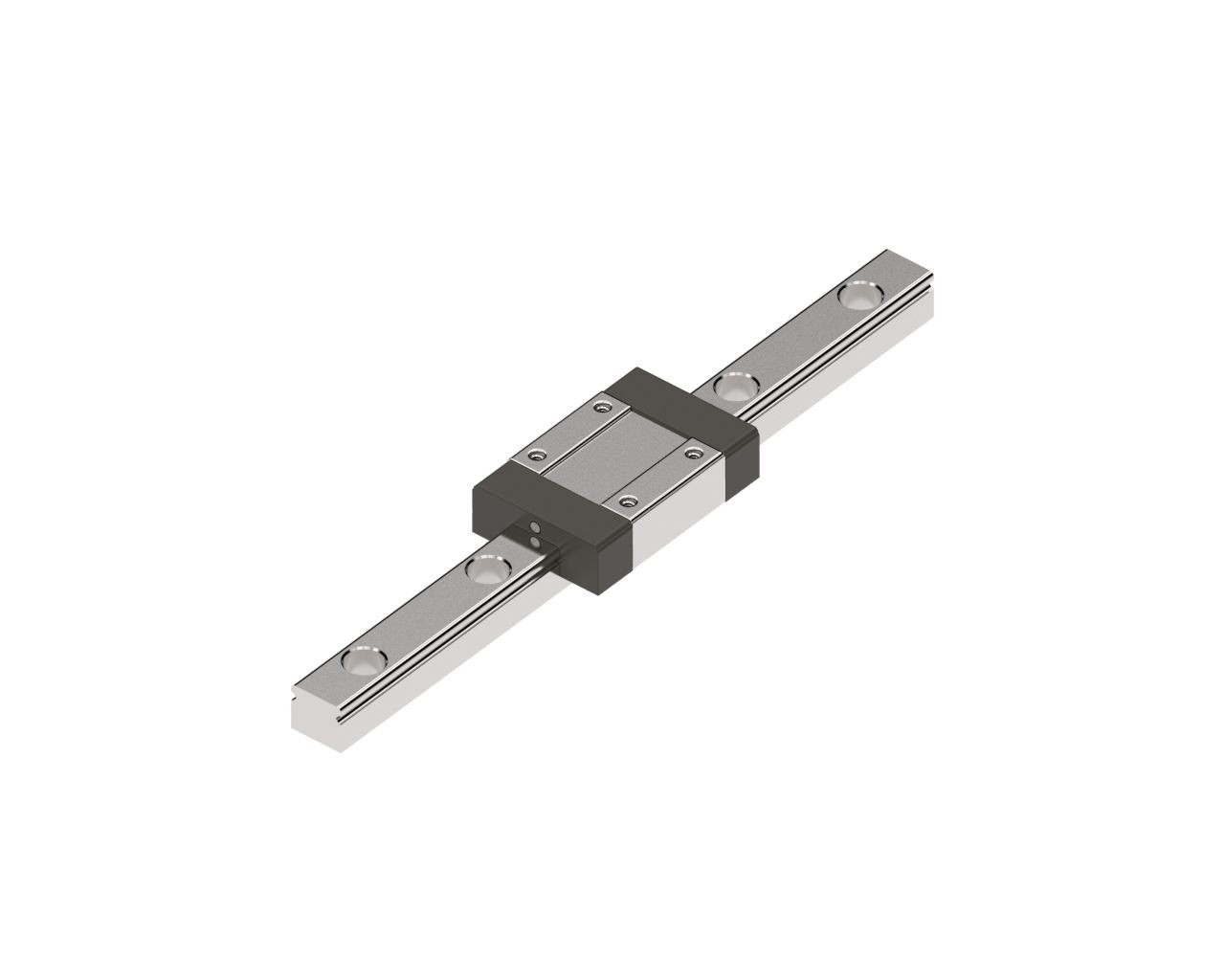

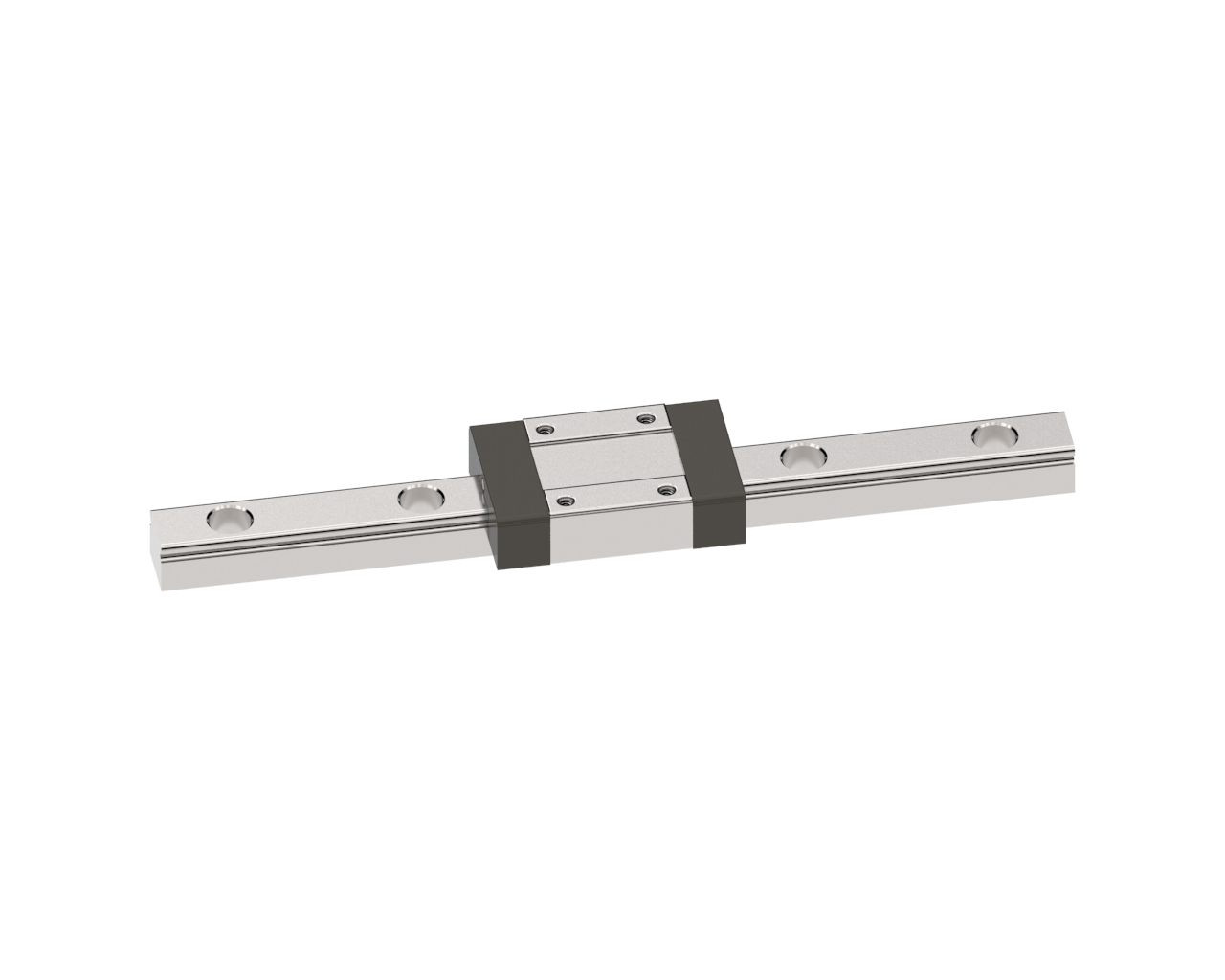

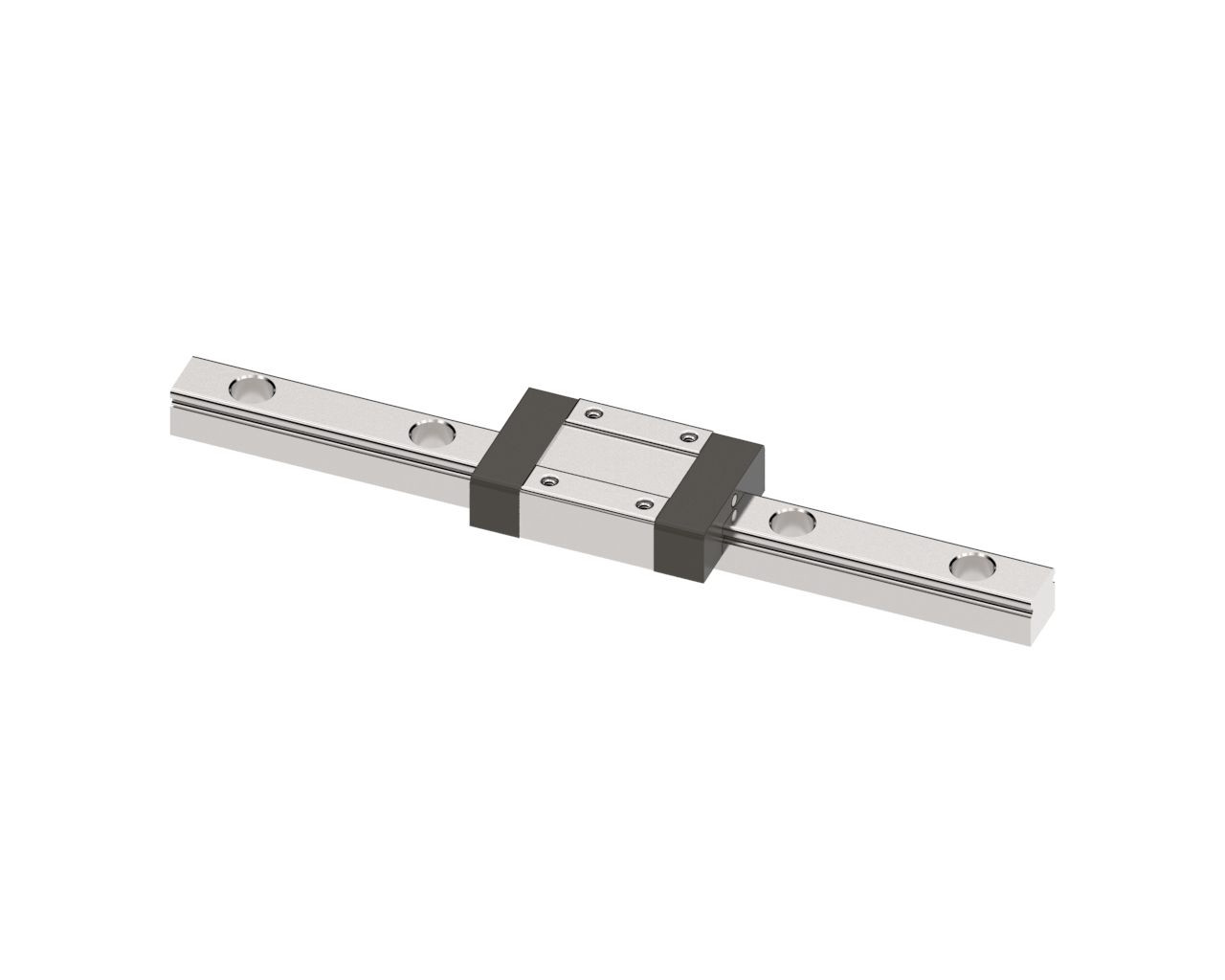

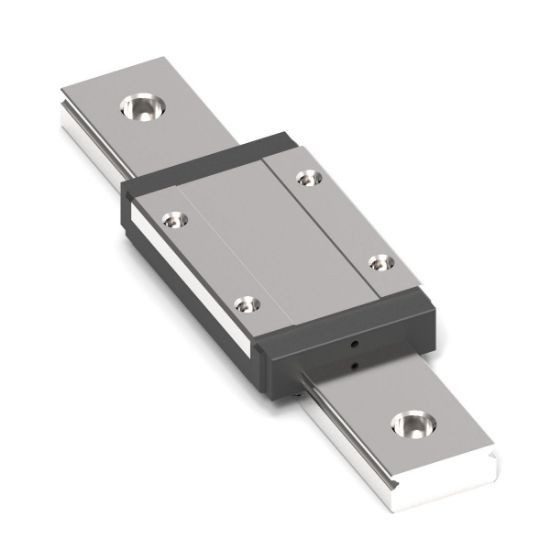

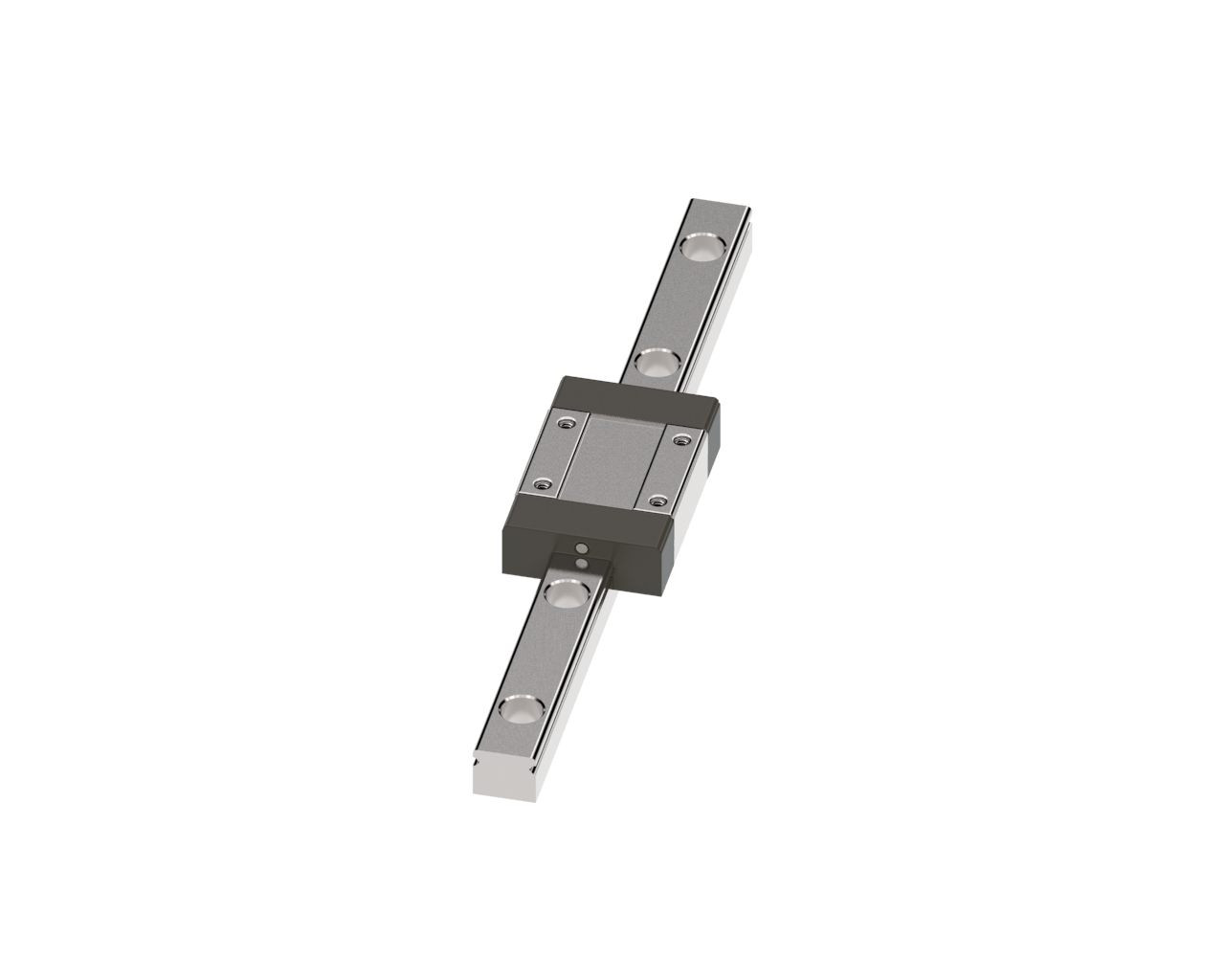

Counterbore Depth - g1 (mm)1
Dynamic Load (N)310
Ending Hole Pitch5.0
MM2x1.3
Mounting Plate - L1 (in)0.469
Mounting Plate - L1 (mm)11.9
Number of Blocks1
P1 (in)0.26
P1 (mm)6.5
Pitch Moment - Mp (Lbf-ft)0.89
Pitch Moment - Mp (Nm)1.2
preloadclearance
Rail Height - H1 (in)0.102
Rail Height - H1 (mm)2.6
Rail Length30
Rail Pitch x-axis - P (in)0.394
Rail Pitch x-axis - P (mm)10
Rail stylewide
Rail Weight (g/m)69
Rail Weight (oz/yard)2.23
Rail Width2
Rail Width - W1 (in)0.157
Rail Width - W1 (mm)4
Roll Moment - Mr (Lbf-ft)1.18
Roll Moment - Mr (Nm)1.6
Seal decodedend seal and bottom seal
Series NameHMR
Starting Hole Pitch5.0
Static Load (N)625
T (in)0.05
T (mm)1.3
Total Height - H (in)0.157
Total Height - H (mm)4.0
W2 (in)0.118
W2 (mm)3.0
Yaw Moment - My (Lbf-ft)0.89
Yaw Moment -My (Nm)1.2
